4-80 — ROAD WHEEL (#15614) — 66 parça

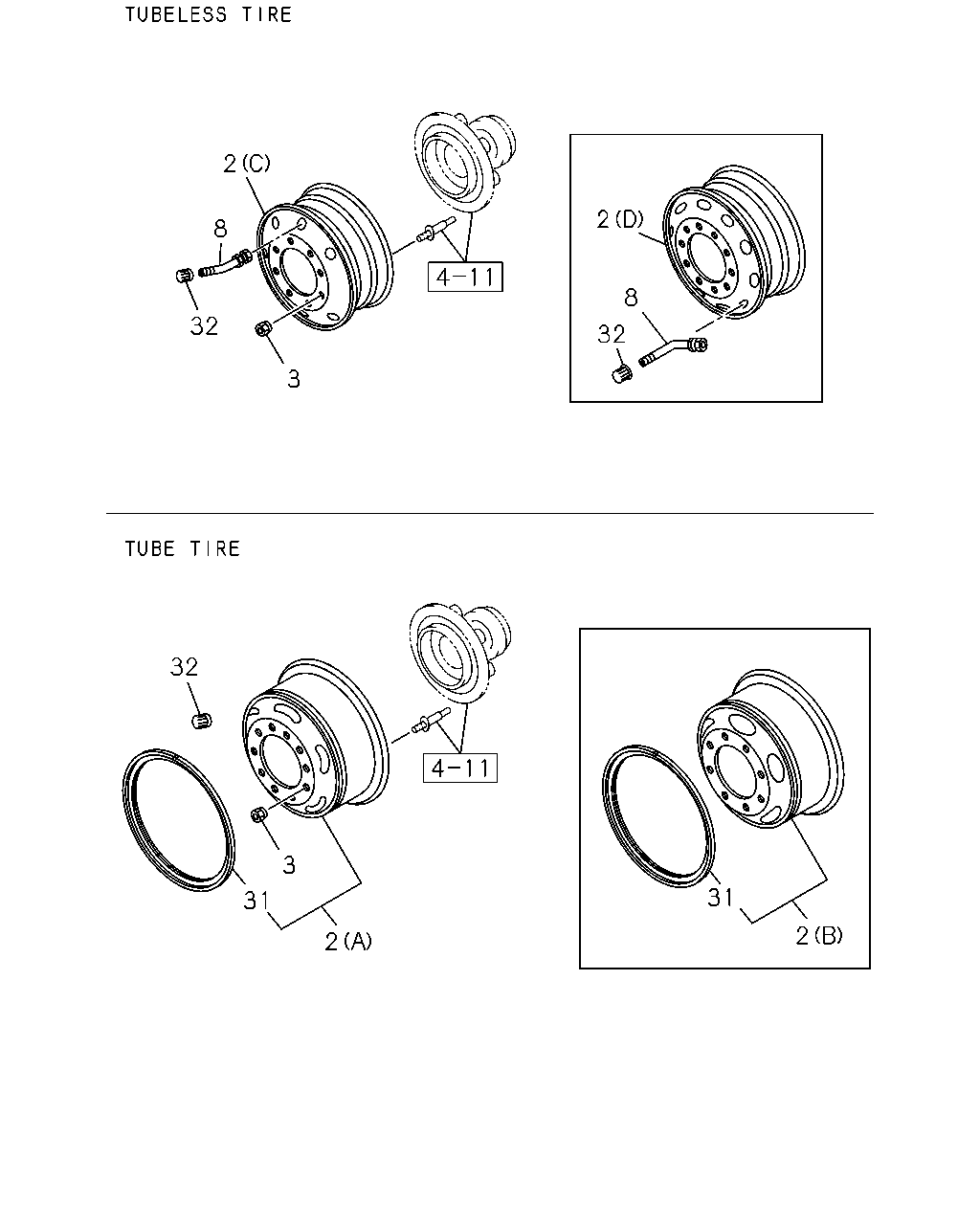

2 8 32 3 32 3 31 2 2 31 32 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR	1-42350-448-0	06	1	0910-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0910-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	1-42350-730-0	06	1	0910-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	8-98281-497-0	06	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0910-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0910-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (B) FRONT,REAR	1-42350-362-0	06	1	0910-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-362-0	01	1	0910-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) FRONT,REAR	1-42350-667-0	06	1	0910-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0910-
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	08	1	0910-
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	08	1	0910-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) FRONT,REAR	1-42370-020-3	06	1	0910-1205
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE	1-42370-020-3	01	1	1206-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) SPARE	1-42370-020-3	01	1	0910-1205
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR	1-42370-020-3	06	1	1206-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	06	1	0910-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0910-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) FRONT,REAR	1-42355-004-1	06	1	0910-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-004-1	01	1	0910-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0910-
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0910-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0910-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42374-001-0	07	1	0910-

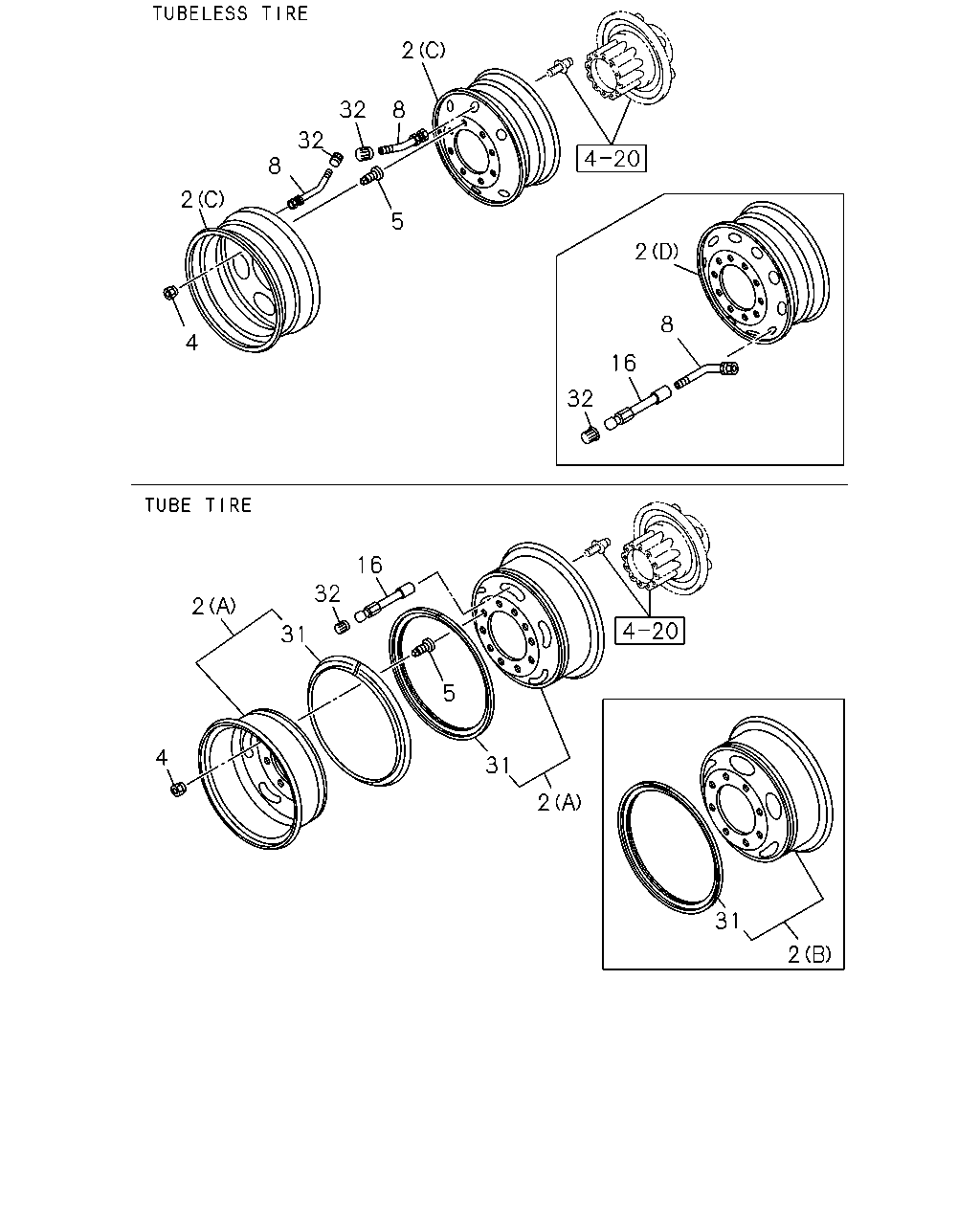

2 8 32 5 32 8 2 4 2 4 31 32 16 5 31 2 31 2 32 16 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR	1-42350-448-0	06	1	0910-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0910-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	1-42350-730-0	06	1	0910-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D) FRONT,REAR	8-98281-497-0	06	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0910-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0910-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (B) FRONT,REAR	1-42350-362-0	06	1	0910-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-362-0	01	1	0910-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) FRONT,REAR	1-42350-667-0	06	1	0910-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0910-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	08	1	0910-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	08	1	0910-
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0910-
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0910-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) FRONT,REAR	1-42370-020-3	06	1	0910-1205
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE	1-42370-020-3	01	1	1206-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) SPARE	1-42370-020-3	01	1	0910-1205
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR	1-42370-020-3	06	1	1206-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	02	1	0910-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	8-98167-052-0	02	1	1004-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	06	1	0910-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0910-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) FRONT,REAR	1-42355-004-1	06	1	0910-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-004-1	01	1	0910-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0910-
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0910-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0910-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42374-001-0	07	1	0910-
