8-28 — CHASSIS ELECTRICAL (#156138) — 13 parça

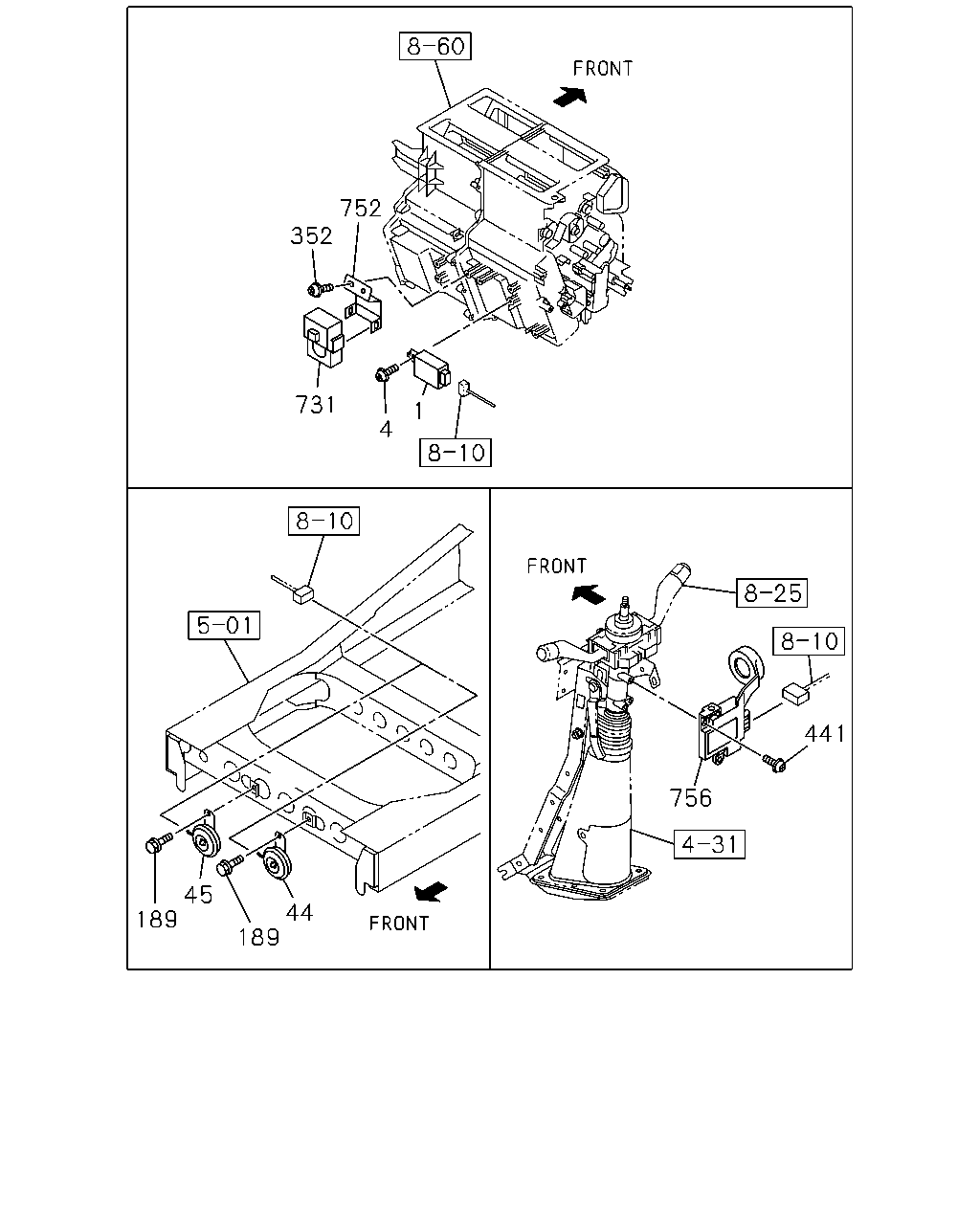

çizim 467355
752 352 731 1 4 45 189 189 756 44 441
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1502-
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1502-
44 02.810 HORN; HIGH NOTE 8-98022-022-0 01 1 1502-
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1502-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1502-
352 03.883 SCREW; BRKT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1502-
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1502-
731 03.883 ALARM; INFORMATION 8-98247-532-0 01 1 1502-
752 09.190 BRACKET; MODULE 8-98116-043-1 01 1 1502-
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1502-

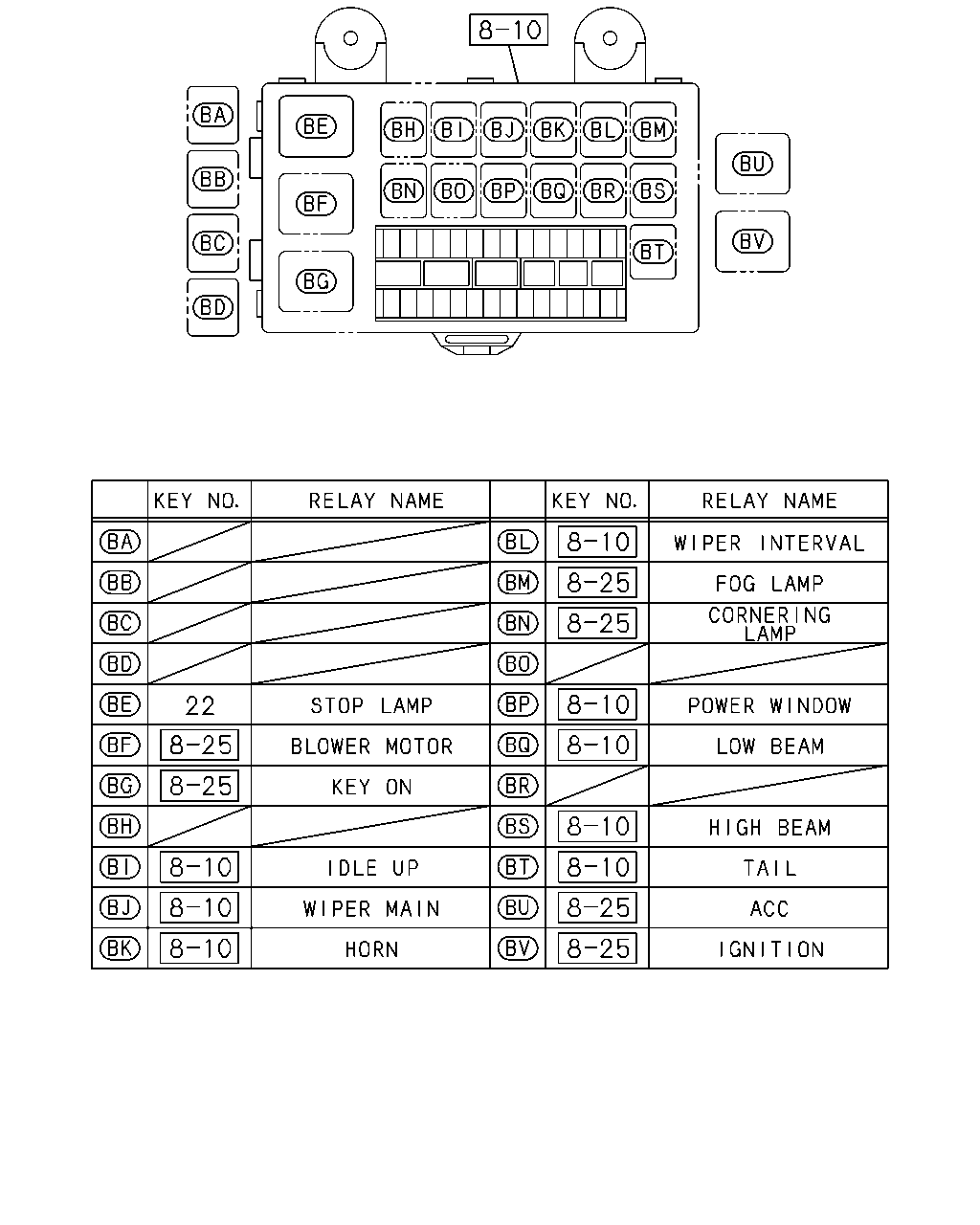

çizim 467372
22
BalonParca AdiParca NoAdetTipApplied Date
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1502-
çizim 467423
531 666
BalonParca AdiParca NoAdetTipApplied Date
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1502-
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1502-
