Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-16 - WIRING HARNESS CONNECTOR
▶

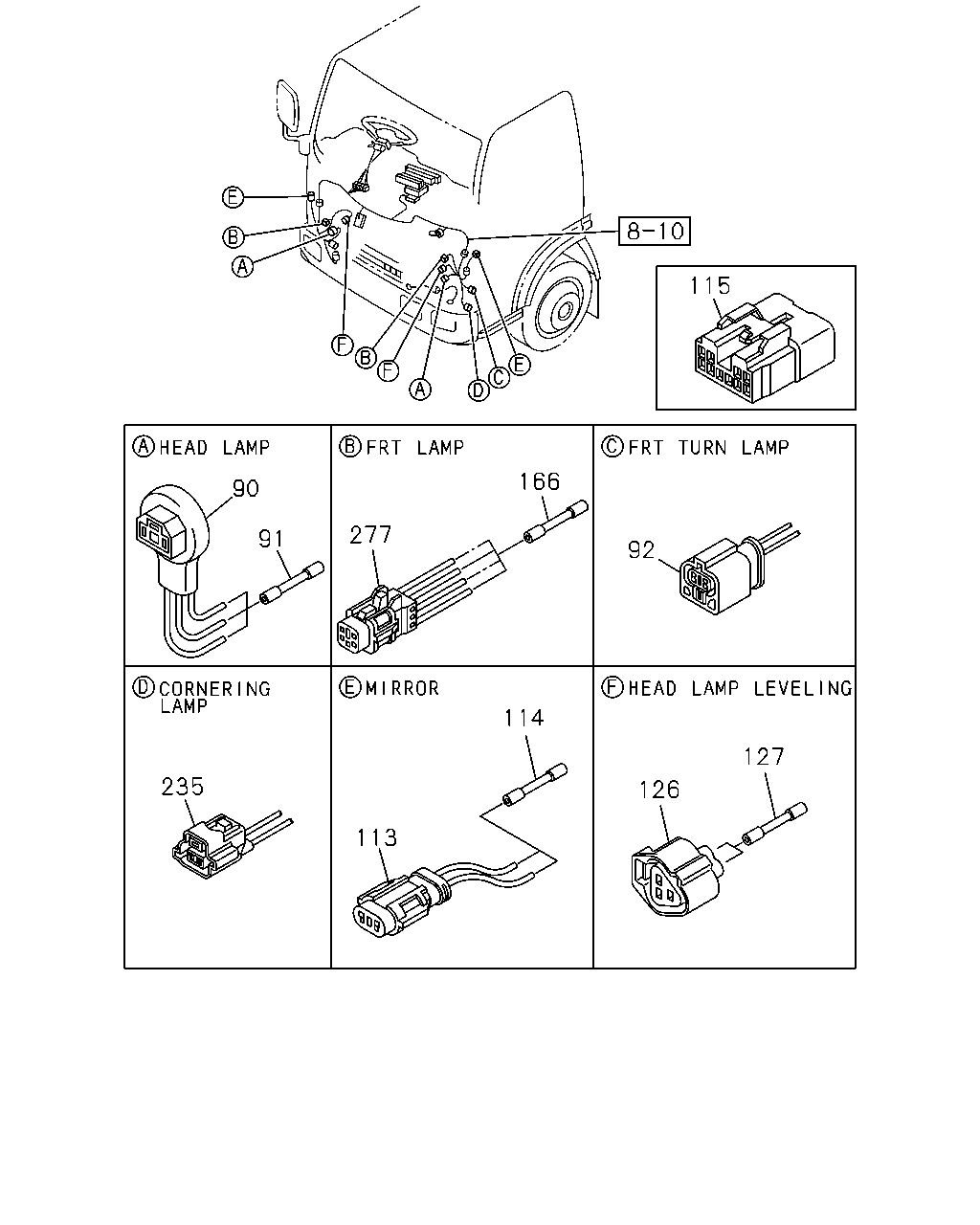

8-16 — WIRING HARNESS CONNECTOR
(#156133) — 13 parça
115
166
92
277
91
90
235
113
114
126
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
02.483 CONNECTOR; HEAD LAMP
3P FEMALE BLACK
8-97169-945-0
02
1
1502-
91
02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
1502-
91
02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
08
1
1502-
92
02.483 CONNECTOR; FRT TURN LAMP
2P FEMALE
8-98075-130-0
02
1
1502-
113
02.483 CONNECTOR; MIRROR
2P FEMALE BLACK
8-97169-948-0
02
1
1502-
113
02.483 CONNECTOR; MIRROR
6P MALE
8-98062-627-0
02
1
1502-
114
02.483 TERMINAL; JOINT,MIRROR
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
14
1
1502-
115
02.483 CONNECTOR; BACK BUZZER
8-98165-178-0
01
1
1502-
126
02.483 CONNECTOR; HEAD LAMP LEVELING
3P FEMALE GRAY
8-98062-624-0
02
1
1502-
127
02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
1502-
166
02.483 TERMINAL; JOINT
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
14
1
1502-
235
02.483 CONNECTOR; CORNERING LAMP
2P FEMALE
8-98075-131-0
02
1
1502-
277
02.483 CONNECTOR; FRONT LAMP
4P MALE
8-98062-625-0
02
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
