4-71 — AIR SUSPENSION PIPING (#15613) — 28 parça

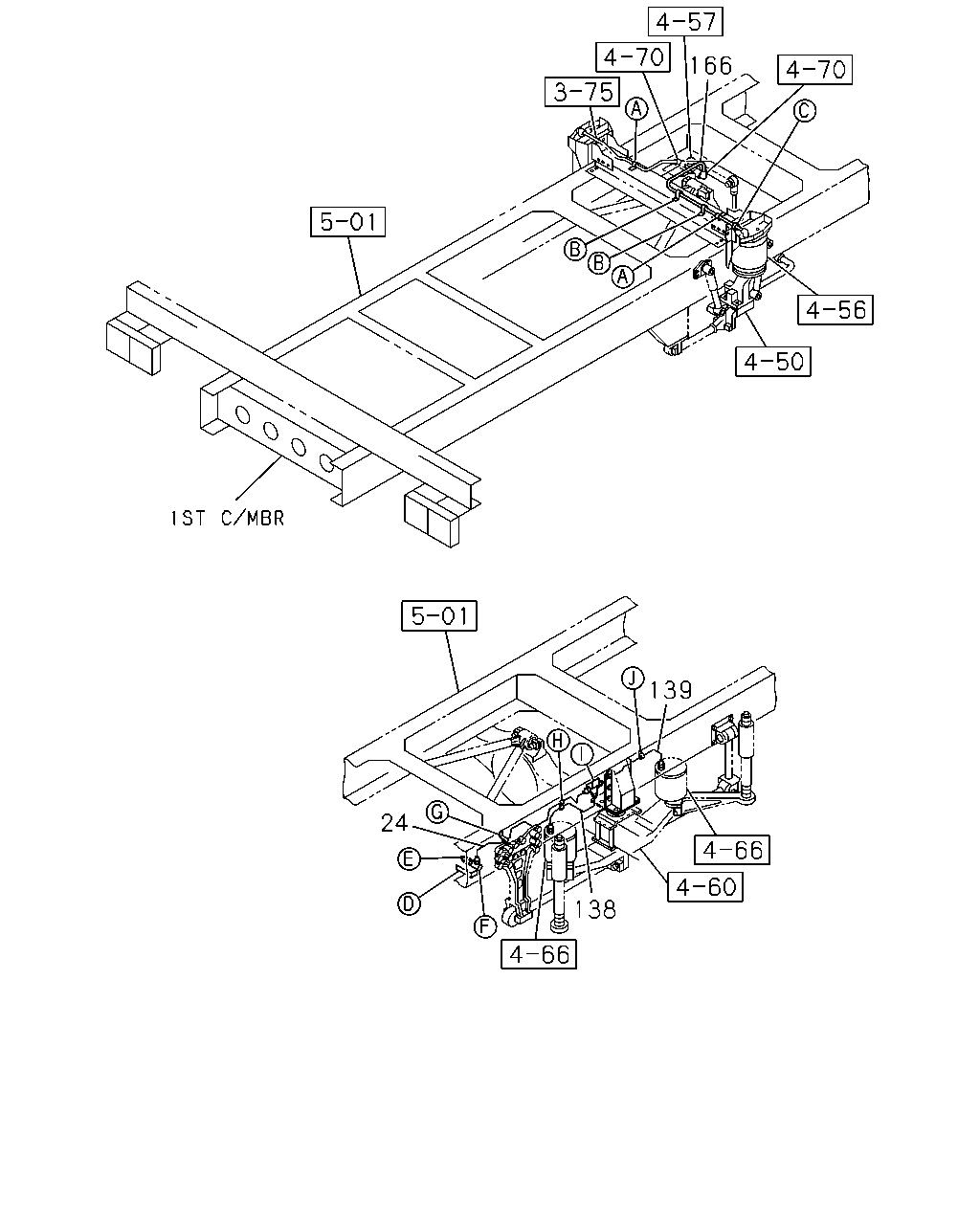

çizim 130101
166 139 138 24
BalonParca AdiParca NoAdetTipApplied Date
24 PIPE ASM; AIR UNION TO UNION
L=1128 SERVICED BY L=1200 		1-47428-816-0 01 1 0910-
24 PIPE ASM; AIR UNION TO UNION
L=1089 SERVICED BY L=1100 		1-47428-815-0 01 1 0910-
138 PIPE ASM; AIR UNION TO AIR SPR
L=565 SERVICED BY L=600 		1-47428-809-0 01 1 0910-
138 PIPE ASM; AIR UNION TO AIR SPR
L=577 SERVICED BY L=600 		1-47428-809-0 01 1 0910-
139 PIPE ASM; AIR UNION TO AIR SPR 1-49122-564-0 01 1 0910-
139 PIPE ASM; AIR UNION TO AIR SPR 1-49122-563-0 01 1 0910-
166 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0910-

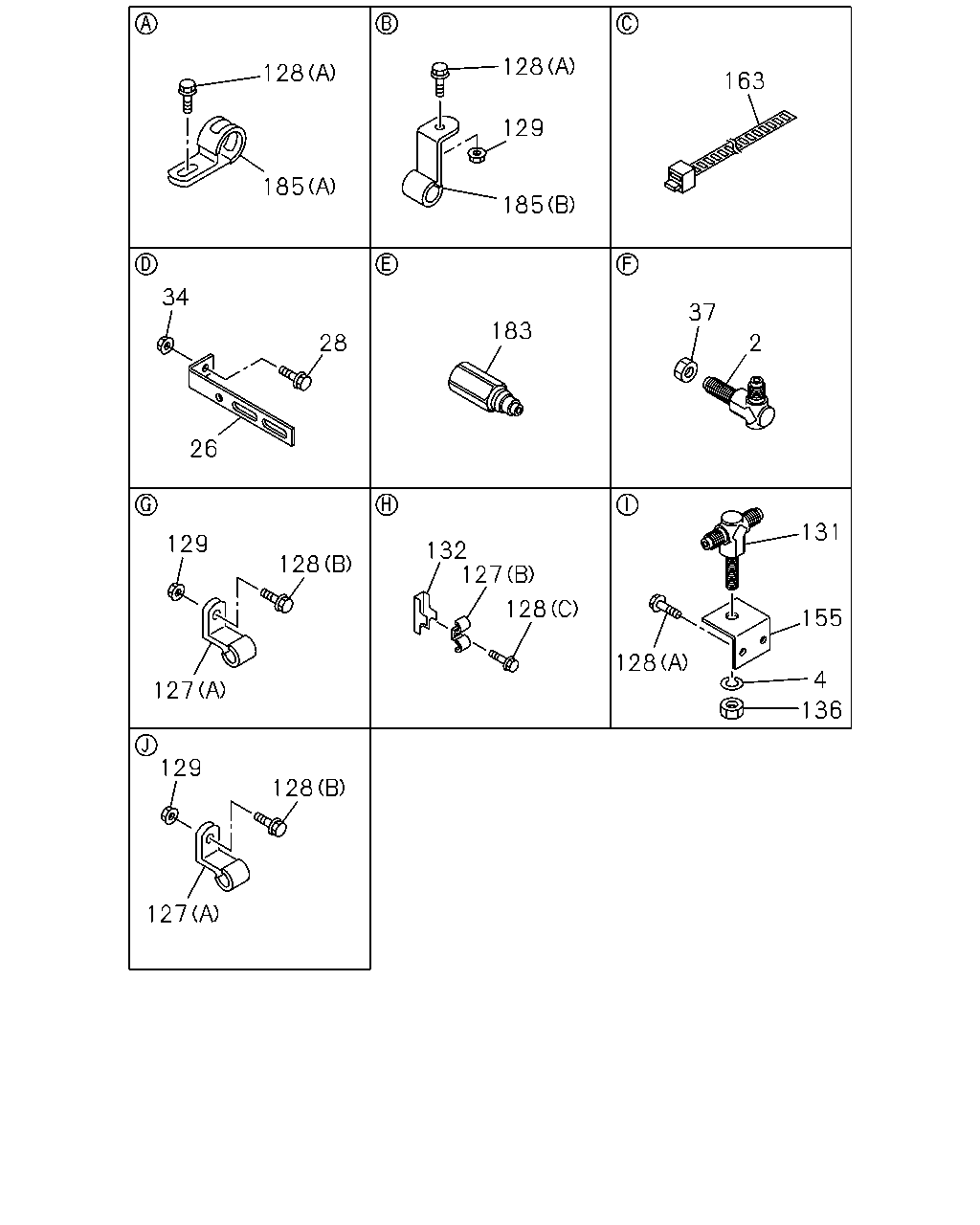

çizim 130103
128 185 28 34 26 129 128 127 129 127 128 132 127 128 128 136 4 155 131 2 37 183 185 129 128 163
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0910-
4 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0910-
26 BRACKET; CLIP
L=150 H=30 		1-47477-629-2 02 1 0910-
28 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0910-1003
28 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1004-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0910-
37 NUT; UNION
M12 		9-09840-280-0 02 1 0910-
127 CLIP; AIR PIPE FIX
(A) ID=6 H=20 L=20 		1-09700-603-0 04 1 0910-
127 CLIP; AIR PIPE FIX
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0910-
128 BOLT; CLIP FIX
(A) M8X25 FLANGE 		0-28650-825-0 10 1 0910-
128 BOLT; CLIP FIX
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0910-
128 BOLT; CLIP FIX
(C) M8X40 FLANGE 		0-28650-840-0 02 1 0910-
129 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 07 1 0910-
131 UNION; AIR PIPE
M12 3WAY 		0-92138-606-0 02 1 0910-
132 BRACKET; CLIP 1-47475-427-1 02 1 0910-
136 NUT; UNION FIX
M12 		9-09840-280-0 02 1 0910-
155 BRACKET; UNION 1-47478-954-0 02 1 0910-
163 CLIP; BAND
L=250 		1-09707-126-0 03 1 0910-
183 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0910-
185 CLIP; NYLON TUBE
(A) ID=14.5 L=20 		1-09701-012-0 01 1 0910-
185 CLIP; NYLON TUBE
(B) D=18 H=30 		1-09701-028-0 05 1 0910-
