Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

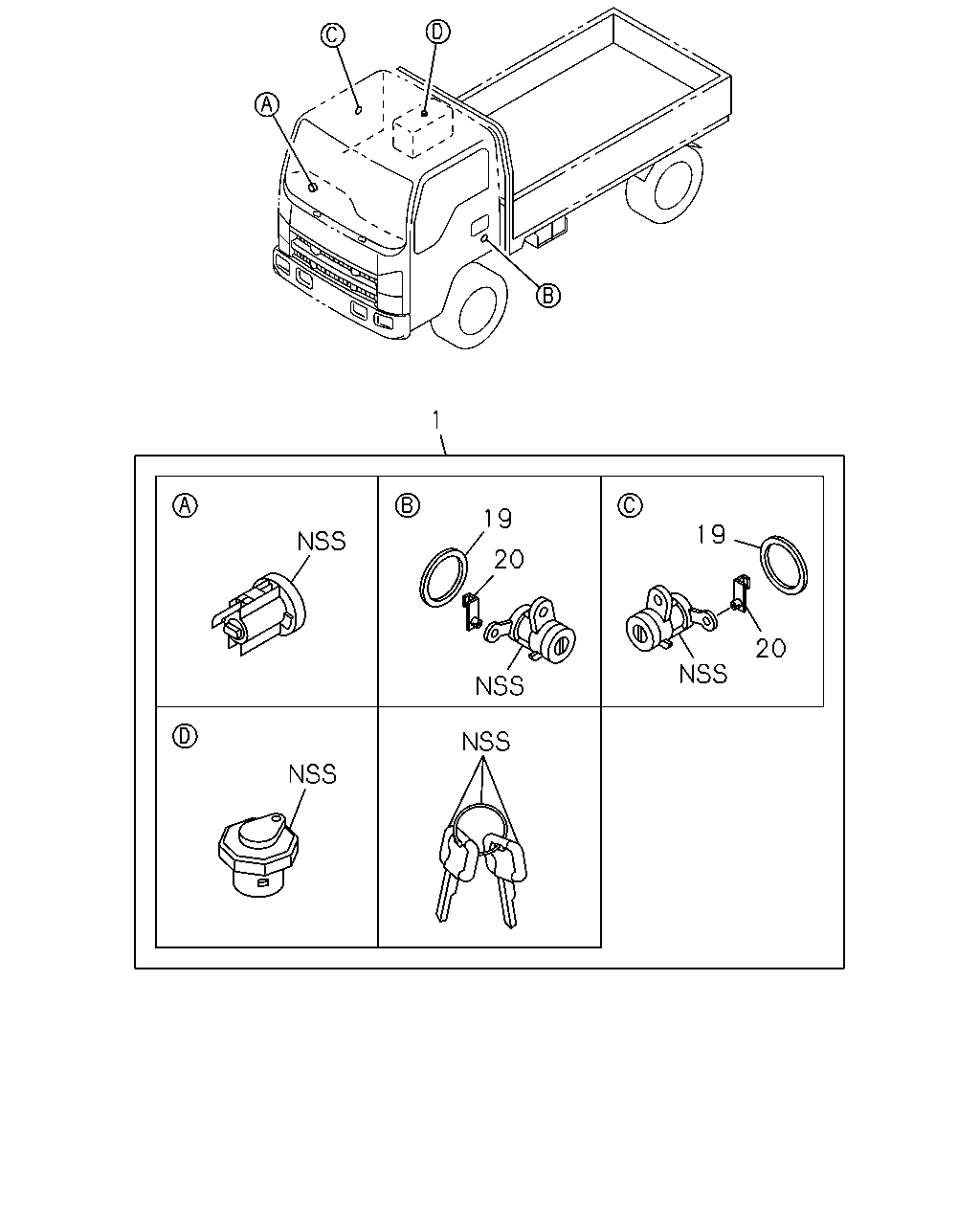

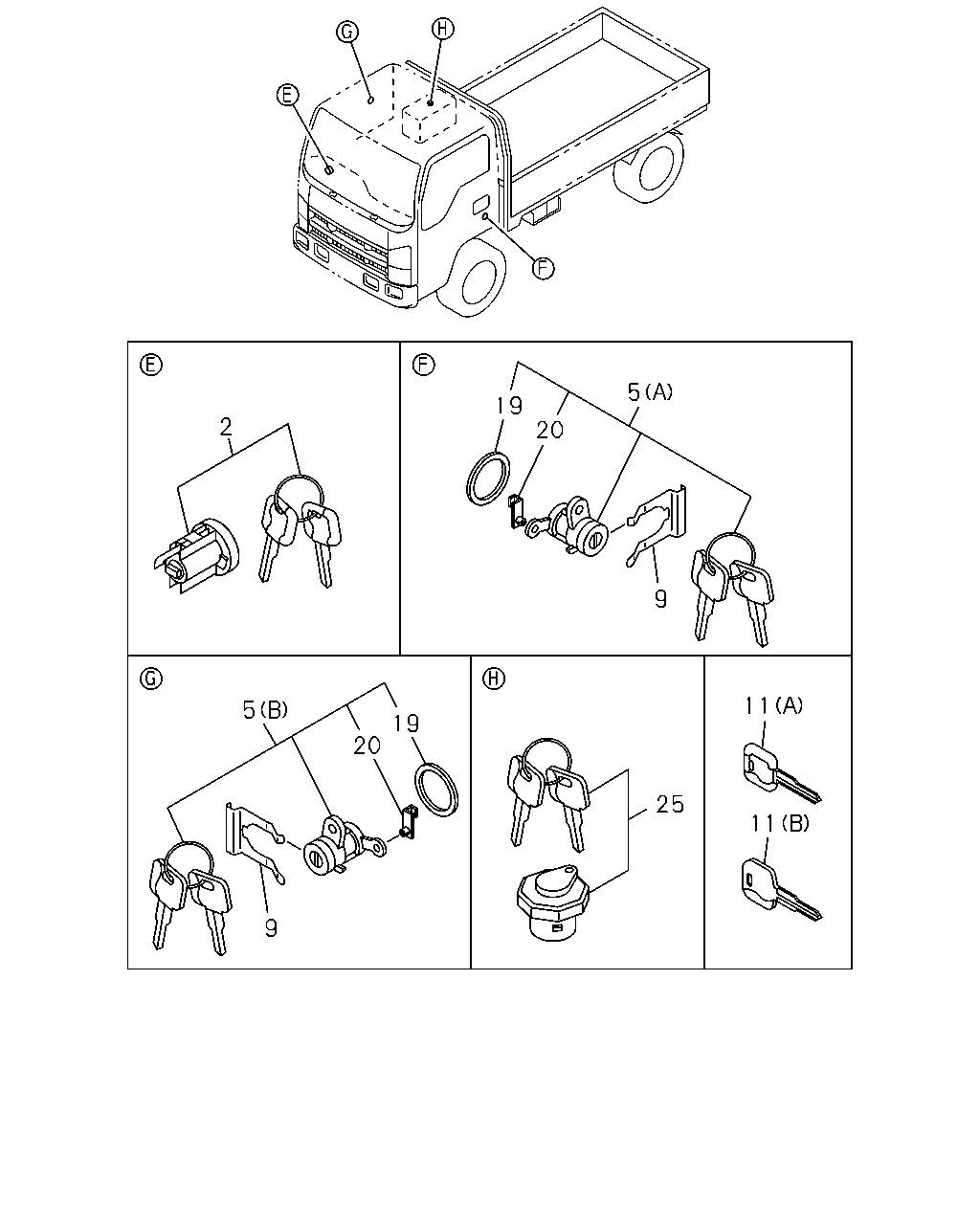

7-30 — LOCK CYLINDER SET
(#156123) — 14 parça
◀
[730A] NO.2 (10 parça)
[730A] NO.1 (4 parça)
▶
11
11
25
19
20
9
5
2
19
5
20
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.188 BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1502-
5
16.328 CYLINDER ASM; DOOR LOCK
(B)
8-98055-151-0
01
1
1502-
5
16.328 CYLINDER ASM; DOOR LOCK
(A)
8-98055-152-0
01
1
1502-
9
16.328 CLIP; DOOR LOCK
8-97410-786-0
02
1
1502-
11
02.187 KEY; BLANK
(A) IMMOBILIZER
8-98055-168-0
AR
1
1502-
11
02.187 KEY; BLANK
(B)
8-98055-170-0
AR
1
1502-
19
16.328 GASKET; DOOR LOCK CYL
8-98055-179-0
02
1
1502-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1502-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1502-
25
03.028 CAP; FUEL TANK,W/KEY
8-98088-979-0
01
1
1502-
20
19
20
19
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.188 CYLINDER SET; CAR LOCK
8-98201-585-0
01
1
1502-
19
16.328 GASKET; DOOR LOCK CYL
8-98055-179-0
02
1
1502-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1502-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
