◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51609 - NHR RHD EURO5 WB 2500MM ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#156121) — 11 parça

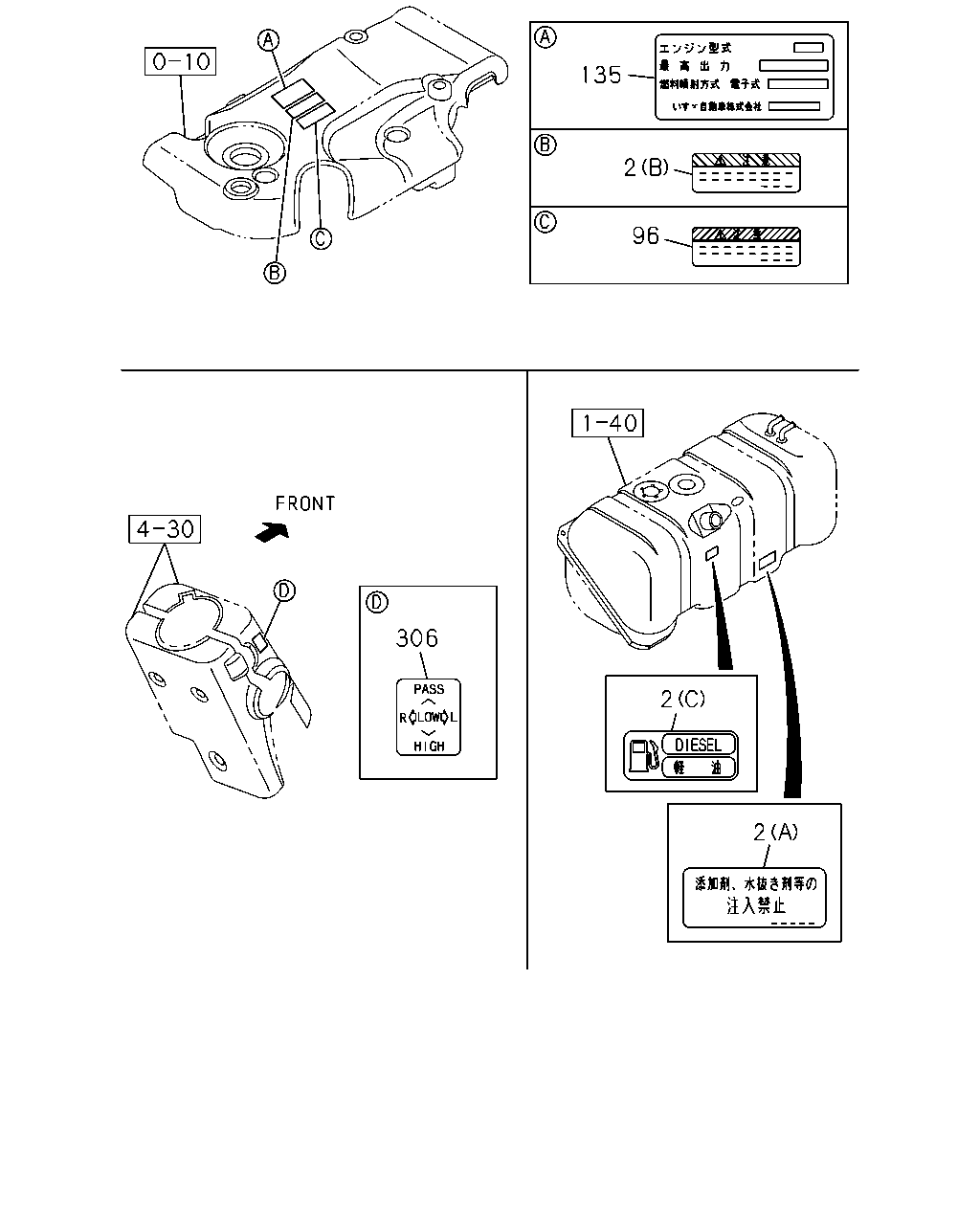

çizim 467260
2 2 96 2 135 306
BalonParca AdiParca NoAdetTipApplied Date
2 03.680 LABEL; FUEL CAUTION
(C) 		8-97203-837-0 01 1 1502-
2 03.680 LABEL; FUEL CAUTION
(A) 		8-97223-995-0 01 1 1502-
2 03.680 LABEL; FUEL CAUTION
(B) 		8-98036-536-0 01 1 1502-
96 08.808 PLATE; CAUTION,ENGINE OIL 8-98046-171-0 01 1 1502-
135 08.808 PLATE; CAUTION,ENGINE 8-98257-273-0 01 1 1502-
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1502-

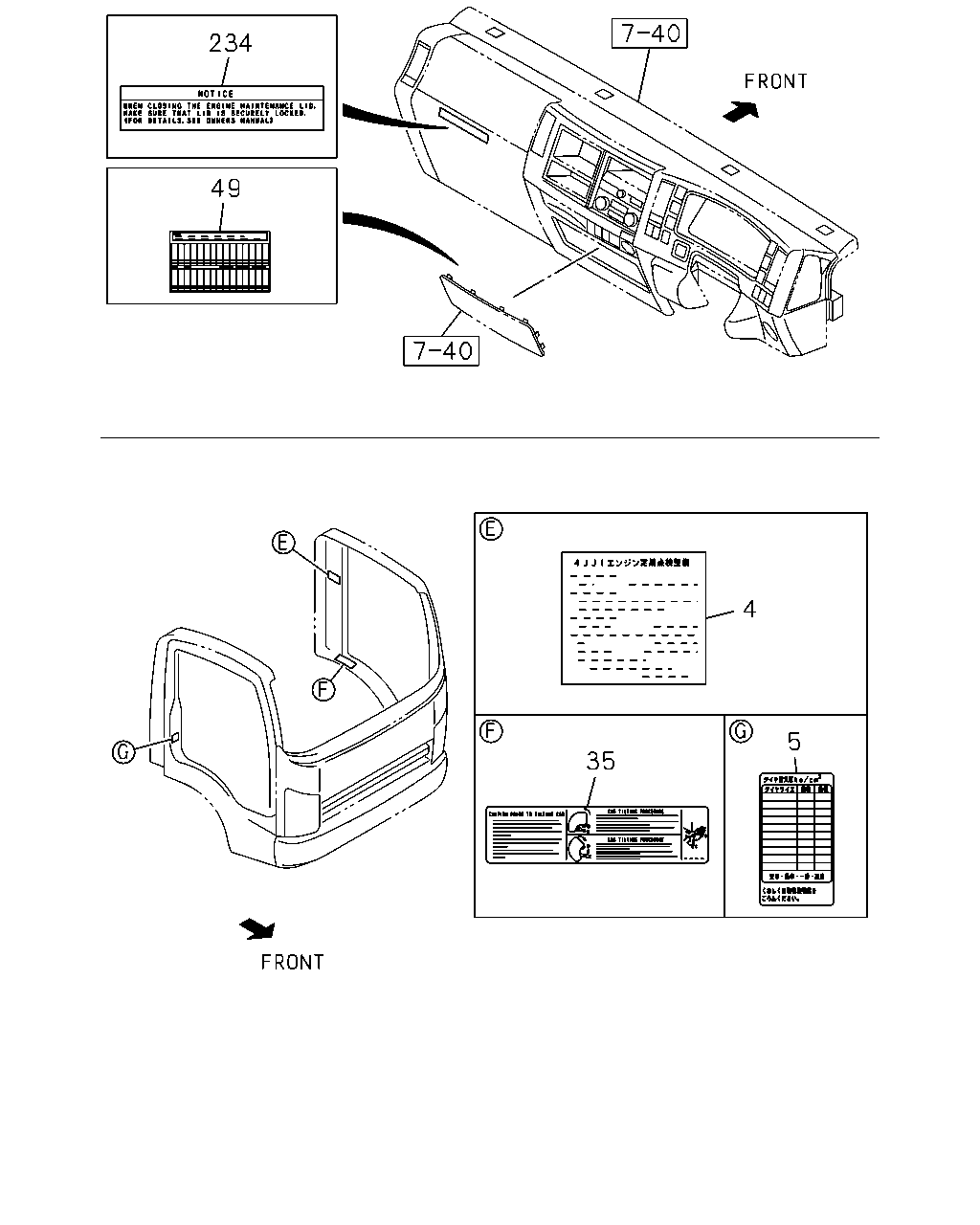

çizim 467261
4 5 35 234 49
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE 8-98183-257-0 01 1 1502-
5 05.880 LABEL; TIRE AIR PRESSURE 8-98180-208-0 01 1 1502-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> 		8-98067-809-0 01 1 1502-
49 08.808 PLATE; CAUTION,FUSE BOX 8-98283-177-0 01 1 1502-
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-97994-545-0 01 1 1502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
