◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51609 - NHR RHD EURO5 WB 2500MM ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#156116) — 9 parça

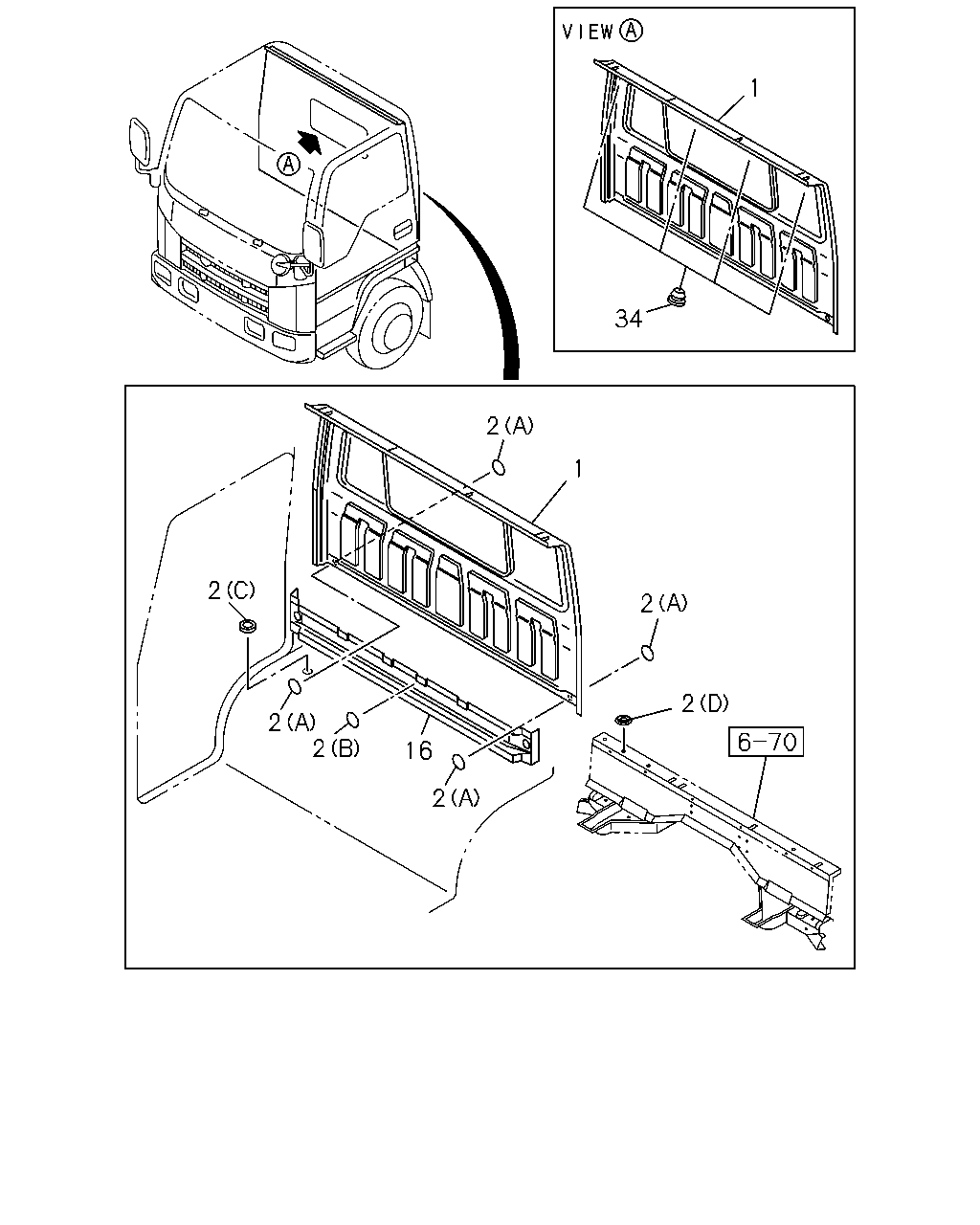

çizim 467208
2 2 1 2 2 2 2 16 2 34 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER 8-98182-755-0 01 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDIN AL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODYCOLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 02 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.549 (D) OD=30 		8-94107-655-0 01 1 1502-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 1502-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97585-401-0 01 1 1502-
34 16.587 PLUG; HOLE,BACK PANEL
16.547 OD=15.0 		8-94279-040-0 01 1 1502-
