6-20 — SIDE PANEL AND STEP (#156103) — 45 parça

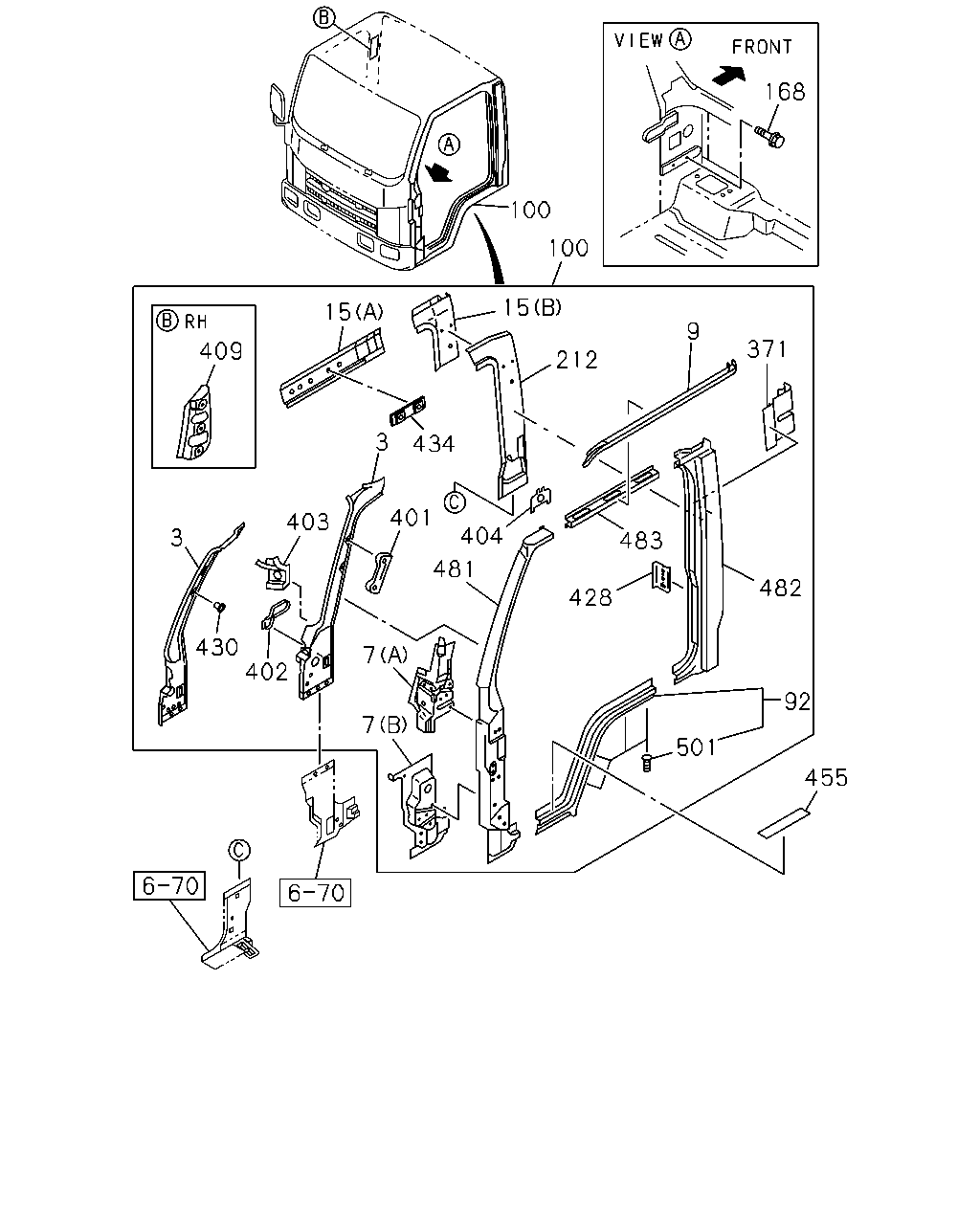

çizim 467231
100 100 168 15 212 9 371 15 409 3 434 403 3 430 402 401 481 404 7 7 428 483 482 92 455 501
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-021-7 01 1 1502-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98258-928-1 01 1 1502-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 1502-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 1502-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 1502-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 1502-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-017-8 01 1 1502-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-018-8 01 1 1502-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-324-4 01 1 1502-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-325-4 01 1 1502-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-326-5 01 1 1502-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-327-4 01 1 1502-
92 16.570 PANEL; SIDE SILL,CAB 8-98191-282-0 01 1 1502-
92 16.570 PANEL; SIDE SILL,CAB 8-98191-283-0 01 1 1502-
100 16.570 PANEL ASM; BODY SIDE 8-98141-844-3 01 1 1502-
100 16.570 PANEL ASM; BODY SIDE 8-98255-970-0 01 1 1502-
168 16.570 BOLT; BODY SIDE PANEL
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1502-
212 16.588 CLOSING; PILLAR 8-97585-392-1 01 1 1502-
212 16.588 CLOSING; PILLAR 8-97585-394-1 01 1 1502-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 1502-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 1502-
402 16.085 BRACKET; SUPPORT 8-97585-381-0 01 1 1502-
402 16.085 BRACKET; SUPPORT 8-97585-382-2 01 1 1502-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 1502-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 1502-
404 16.570 BRACKET 8-97585-387-0 02 1 1502-
409 06.642 REINFORCEMENT; SEAT BELT 8-97857-358-2 01 1 1502-
428 06.642 REINFORCEMENT; DOOR STRIKER 8-98140-977-2 01 1 1502-
428 06.642 REINFORCEMENT; DOOR STRIKER 8-98140-978-2 01 1 1502-
430 16.570 NUT; PANEL
09.647 M5 POP NUT 		8-97249-574-0 02 1 1502-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 1502-
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 1502-
481 16.570 PANEL; SIDE FRT PILLAR 8-98191-267-0 01 1 1502-
481 16.570 PANEL; SIDE FRT PILLAR 8-98191-268-0 01 1 1502-
482 16.570 PANEL; SIDE RR PILLAR 8-98191-269-0 01 1 1502-
482 16.570 PANEL; SIDE RR PILLAR 8-98191-272-0 01 1 1502-
483 16.570 PANEL; SIDE CANTRAIL 8-98191-284-0 01 1 1502-
483 16.570 PANEL; SIDE CANTRAIL 8-98191-285-0 01 1 1502-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 1502-

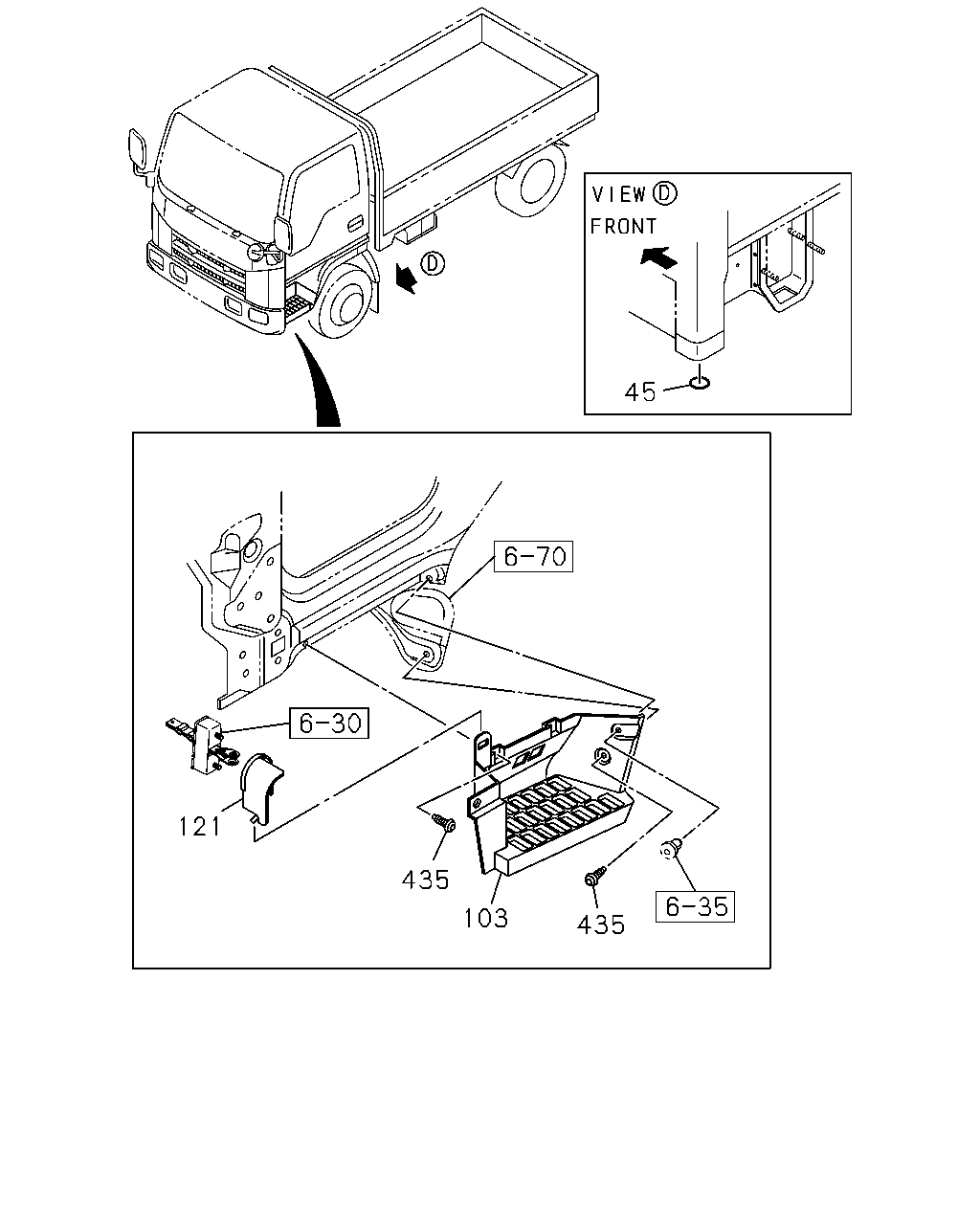

çizim 467232
45 121 435 103 435
BalonParca AdiParca NoAdetTipApplied Date
45 16.570 SEAL; B-C POST
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1502-
103 08.228 PLATE; STEP 8-97997-853-0 01 1 1502-
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1502-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 1502-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 1502-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 10 1 1502-
