0-85 — AUTO TIMER; INJECTION PUMP (#1561) — 101 parça

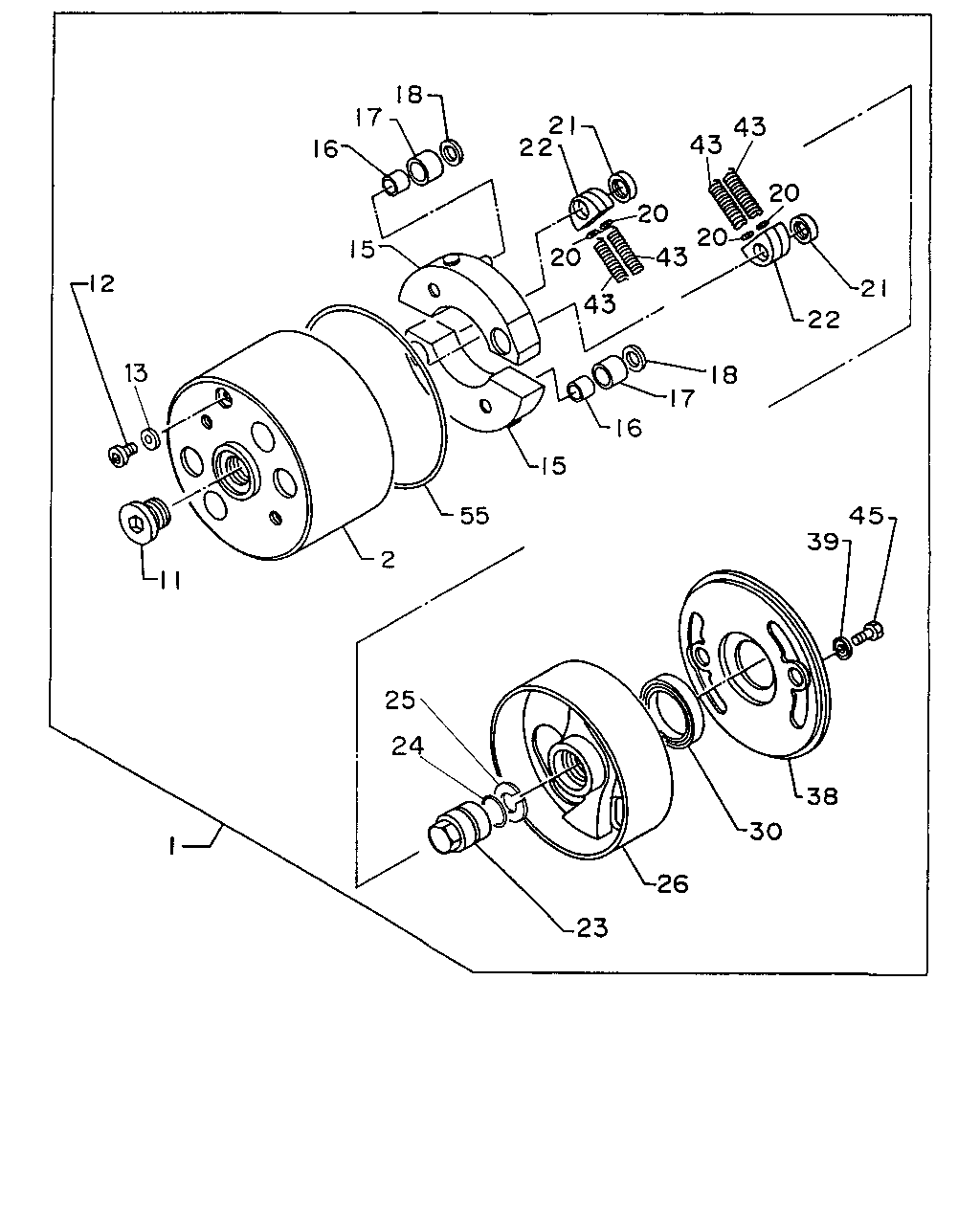

12 13 11 1 25 24 23 30 26 38 39 45 2 55 15 16 17 18 22 21 20 20 43 20 20 43 43 43 21 22 15 16 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15601-764-4	1-15740-158-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15601-910-4, F = 1-15601-912-4	1-15740-222-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4	1-15740-246-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15741-002-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	5-15741-022-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-115-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4	9-81341-515-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15601-910-4, F = 1-15601-912-4	9-81341-515-0	04	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 1-15601-764-4	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 1-15601-764-4	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 1-15601-764-4	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 1-15601-764-4	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 1-15601-764-4	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 1-15601-764-4	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.15 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-061-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15601-764-4	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15601-764-4	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15601-764-4	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15601-764-4	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15601-764-4	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15601-764-4	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15601-764-4	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15601-764-4	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15601-764-4	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15601-764-4	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15601-764-4	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15601-764-4	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15601-764-4	9-81325-382-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-033-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-034-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-035-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-036-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-037-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-051-1	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-88410-470-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-036-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-88410-264-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15742-062-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15742-009-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-003-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-073-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-072-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	8-97084-347-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-008-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-271-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-067-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-138-0	01	1	-

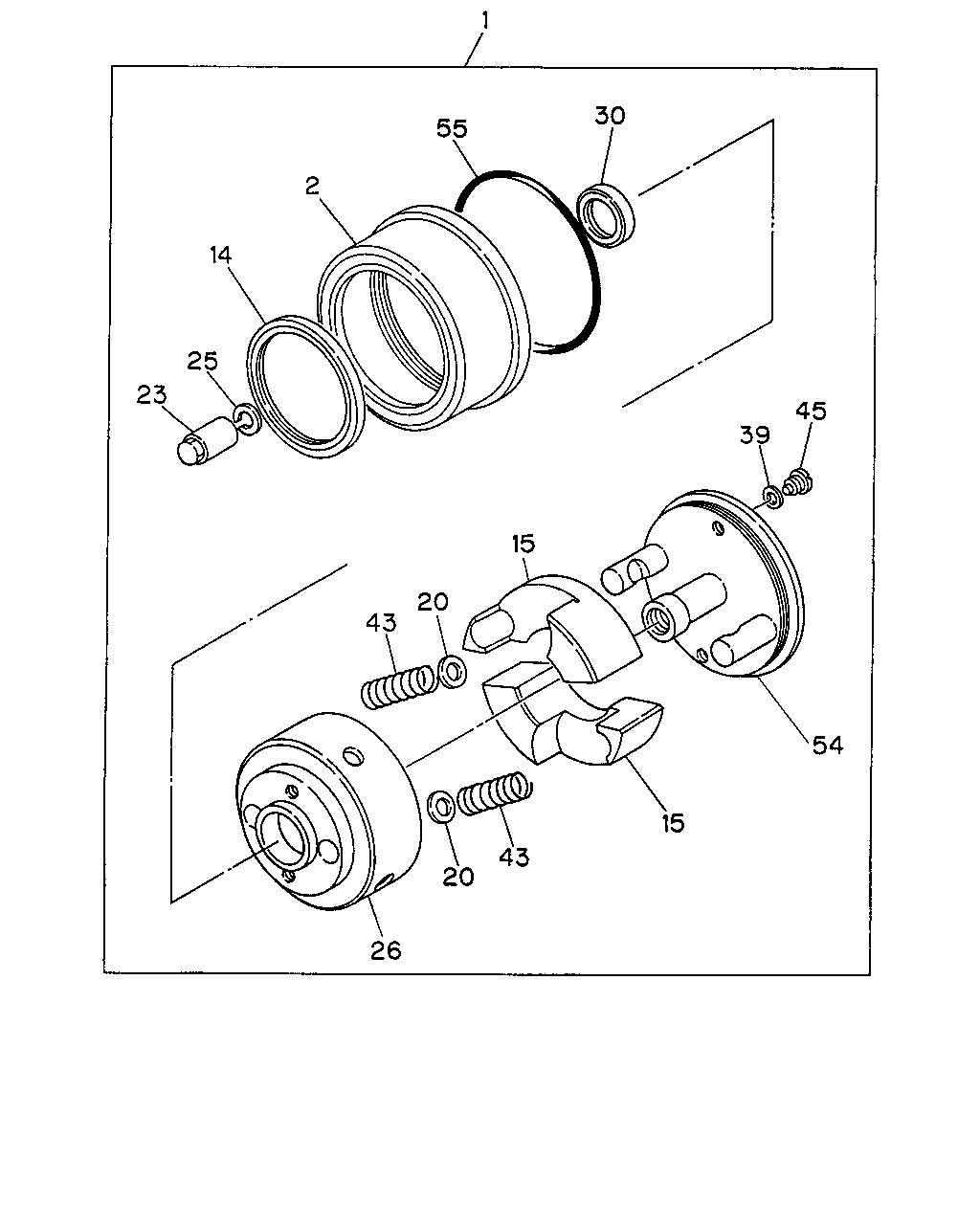

1 30 55 2 14 25 23 45 39 15 20 43 54 15 43 20 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15601-764-4	1-15740-158-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15601-910-4, F = 1-15601-912-4	1-15740-222-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4	1-15740-246-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15741-002-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	5-15741-022-0	01	1	-
14	SEAL; OIL,AUTO TIMER ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-002-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4	9-81341-515-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15601-910-4, F = 1-15601-912-4	9-81341-515-0	04	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.15 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-061-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15601-764-4	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15601-764-4	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15601-764-4	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15601-764-4	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15601-764-4	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15601-764-4	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15601-764-4	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15601-764-4	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15601-764-4	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15601-764-4	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15601-764-4	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15601-764-4	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15601-764-4	9-81325-382-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-033-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-034-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-035-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-036-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-037-0	AR	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-051-1	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-88410-470-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-88410-264-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15742-062-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	5-15742-009-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-003-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-073-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	8-97084-347-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15749-008-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-271-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15601-764-4	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-067-0	02	1	-
54	HOLDER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	1-15741-022-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-764-4	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4	9-81345-138-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
