◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51609 - NHR RHD EURO5 WB 2500MM ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#156099) — 41 parça

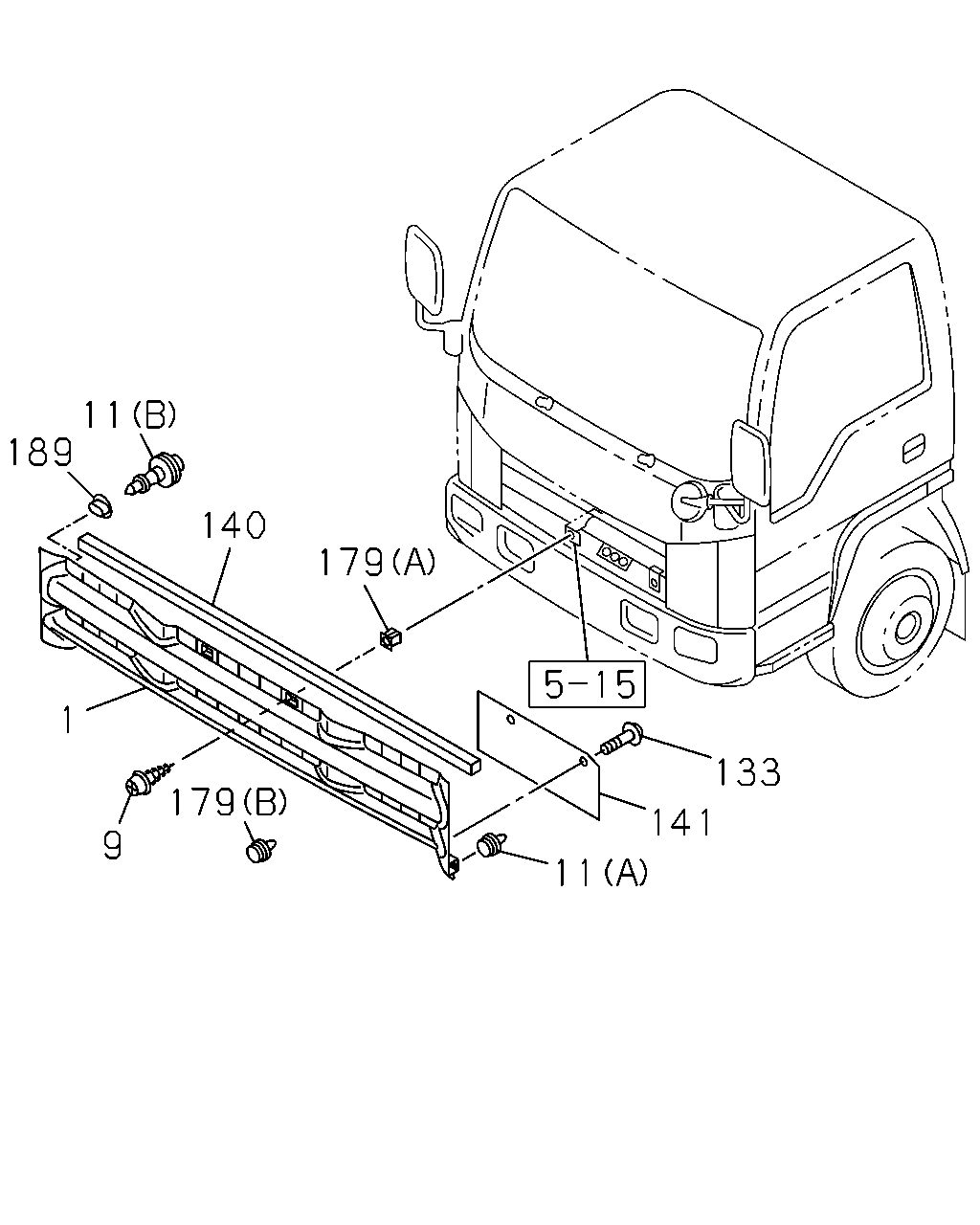

çizim 467376
133 141 11 179 1 189 11 140 179 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) GRAY 		8-97412-268-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-278-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-269-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) RED 		8-97412-270-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) BLUE 		8-97412-271-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97407-844-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RED 		8-97412-272-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-273-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-274-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-275-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-276-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-277-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-279-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97407-843-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) BLUE 		8-97407-842-0 01 1 1502-
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1502-
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1502-
11 01.269 CLIP; RAD GRILLE
(B) 		8-98020-030-1 04 1 1502-
133 01.269 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 02 1 1502-
140 01.266 SEAL; RAD GRILLE 8-98032-321-0 01 1 1502-
141 01.266 COVER; RAD GRILLE 8-98032-324-2 01 1 1502-
179 01.269 RETAINER; GRILLE,RAD
02.726 (A) D=7X7 L=7.5 		8-94291-927-0 01 1 1502-
179 01.269 RETAINER; GRILLE,RAD
(B) 		8-98040-291-0 01 1 1502-
189 01.269 HOLDER; RAD GRILLE 8-98019-458-1 04 1 1502-

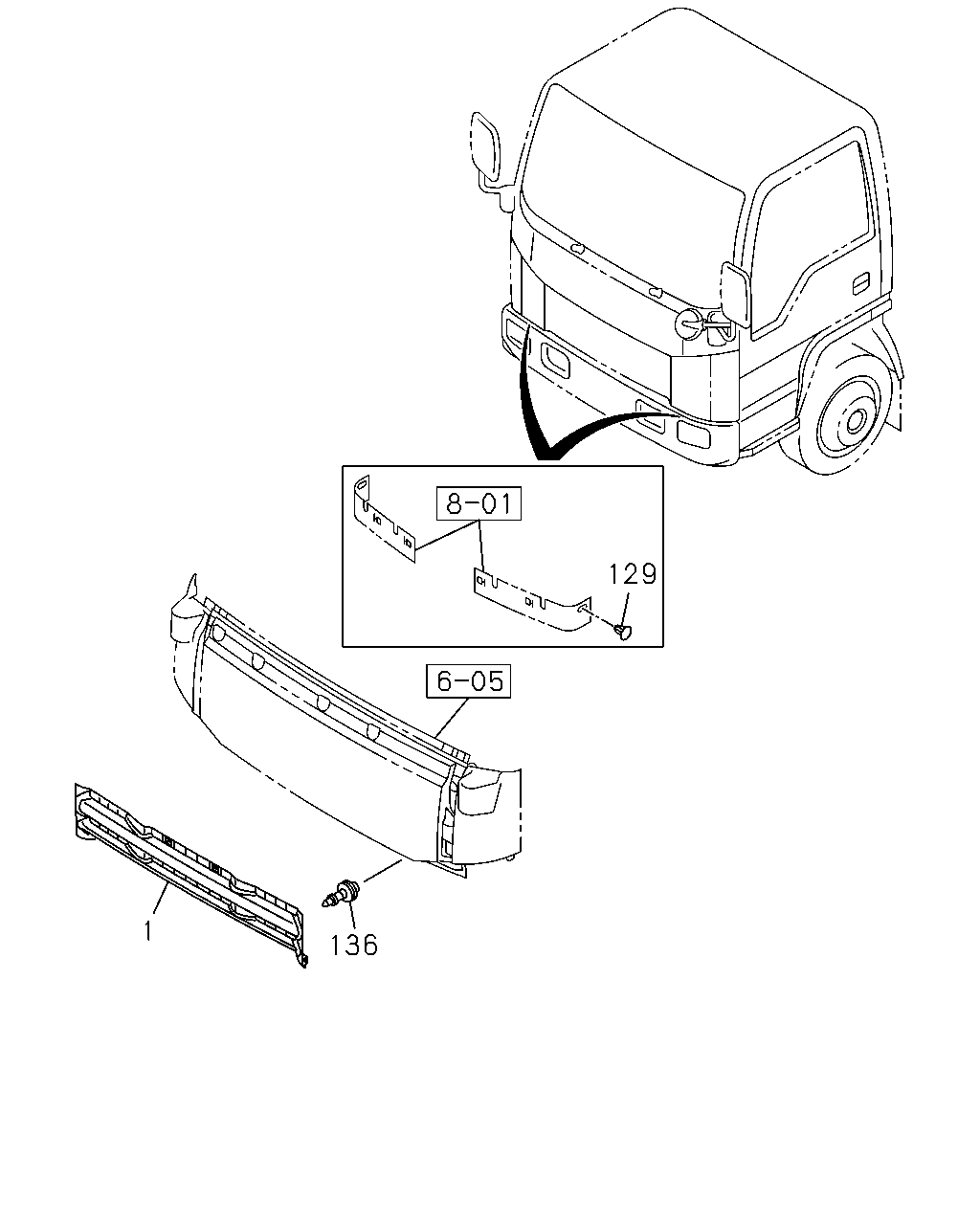

çizim 467434
129 136 1
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) GRAY 		8-97412-268-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-278-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-269-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) RED 		8-97412-270-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) BLUE 		8-97412-271-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97407-844-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RED 		8-97412-272-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-273-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-274-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-275-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-276-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-277-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-279-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97407-843-0 01 1 1502-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) BLUE 		8-97407-842-0 01 1 1502-
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 1502-
136 01.269 PIN; GRILLE 8-98020-030-1 02 1 1502-
