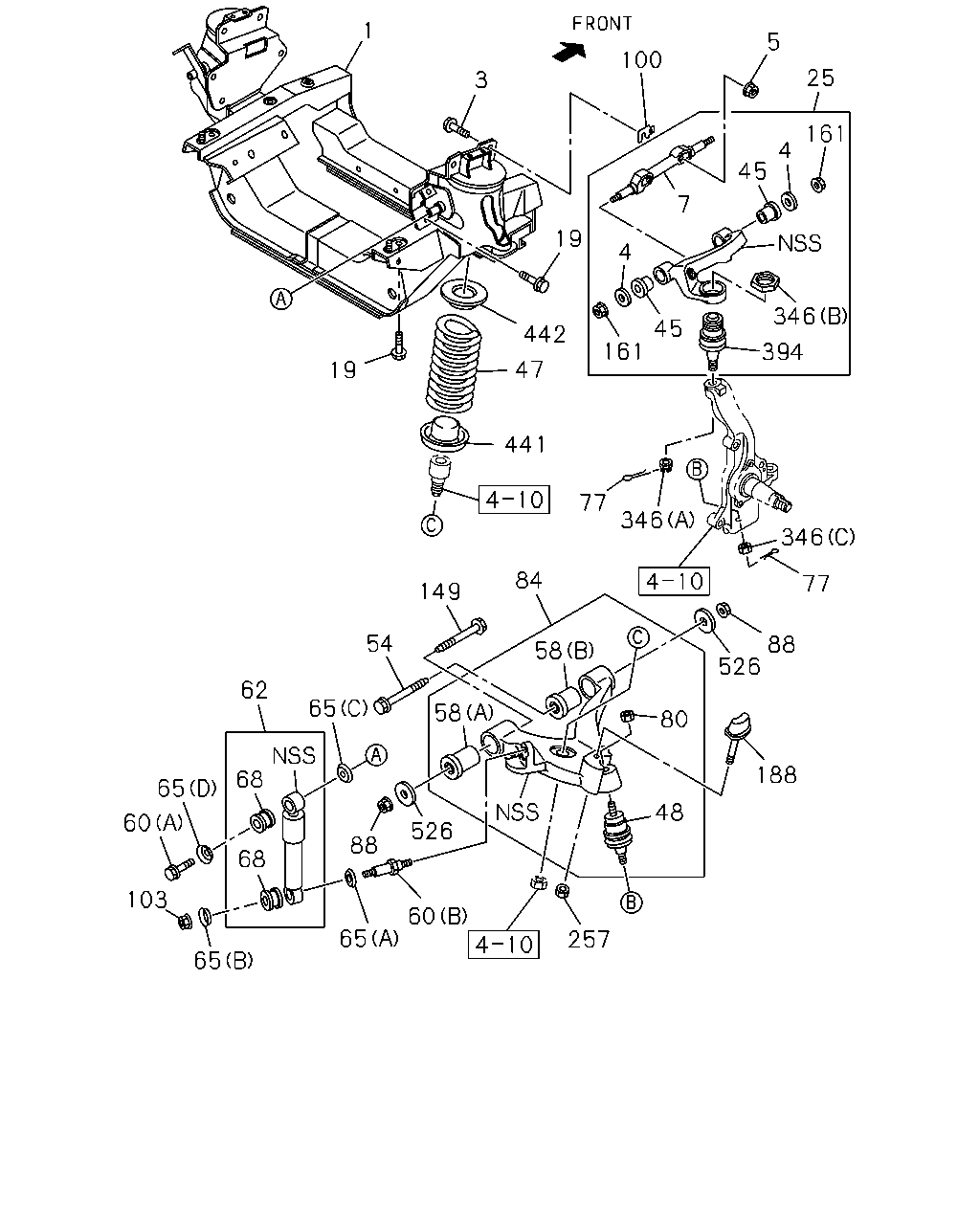

1 |
07.010 MEMBER; CROSS,FRT SUSP
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98247-587-0 |
01 |
1 |
1502- |
| |
3 |
06.164 BOLT; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
06.178
M16X70 FLANGE
|
0-28861-670-0 |
04 |
1 |
1502- |
| |
4 |
06.164 WASHER; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98021-786-0 |
04 |
1 |
1502- |
| |
5 |
06.164 NUT; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
M16 FLANGE
|
0-91180-216-0 |
04 |
1 |
1502- |
| |
7 |
06.174 PIN; FULCRUM,UPR LINK
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98021-654-0 |
02 |
1 |
1502- |
| |
19 |
07.425 BOLT; FRT SUSP TO C/MBR
FRT INDEPENDENT SUSPENSION(FF0)
06.509
M12X30 FLANGE
|
0-28661-230-0 |
14 |
1 |
1502- |
| |
25 |
06.168 ARM; UPR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98021-652-0 |
01 |
1 |
1502- |
| |
25 |
06.168 ARM; UPR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98021-653-0 |
01 |
1 |
1502- |
| |
45 |
06.164 BUSHING; UPR LINK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97188-369-0 |
04 |
1 |
1502- |
| |
47 |
07.412 SPRING; COIL,FRT SUSP
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97354-630-1 |
02 |
1 |
1502- |
| |
48 |
06.174 JOINT ASM; BALL,LWR CONT ARM
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97142-452-1 |
02 |
1 |
1502- |
| |
54 |
06.174 PIN; FULCRUM,LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
06.172
|
8-98021-825-1 |
02 |
1 |
1502- |
| |
58 |
06.170 BUSHING; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-94336-509-1 |
02 |
1 |
1502- |
| |
58 |
06.170 BUSHING; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
(B)
|
8-98009-049-1 |
02 |
1 |
1502- |
| |
60 |
07.347 BOLT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
02.343
(A)
M10X20 FLANGE
|
0-28651-020-0 |
02 |
1 |
1502- |
| |
60 |
07.347 BOLT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
(B)
|
8-98003-210-0 |
02 |
1 |
1502- |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98270-983-1 |
02 |
1 |
1502- |
| |
65 |
07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0)
(A)
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
1502- |
| |
65 |
07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0)
(B)
ID=15
|
8-97360-056-0 |
02 |
1 |
1502- |
| |
65 |
07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0)
(C)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1502- |
| |
65 |
07.347 WASHER; S/ABS
FRT INDEPENDENT SUSPENSION(FF0)
(D)
ID=10.5
|
8-97360-058-0 |
02 |
1 |
1502- |
| |
68 |
07.388 BUSHING; S/ABS
FRT INDEPENDENT SUSPENSION(FF0)
KYB
|
8-98273-083-0 |
04 |
1 |
1502- |
| |
77 |
06.174 PIN; SPLIT,LINK END TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0)
05.812
OD=3.7 L=30
|
0-81124-030-0 |
04 |
1 |
1502- |
| |
80 |
06.174 NUT; LWR LINK END TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0)
00.785
M16
|
0-91111-516-0 |
02 |
1 |
1502- |
| |
84 |
06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98111-717-2 |
01 |
1 |
1502-1508 |
| |
84 |
06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98322-934-0 |
01 |
1 |
1509- |
| |
84 |
06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98111-718-2 |
01 |
1 |
1502-1508 |
| |
84 |
06.168 ARM; LWR CONT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98322-935-0 |
01 |
1 |
1509- |
| |
88 |
06.174 NUT; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
07.172
M22
|
0-91110-522-0 |
04 |
1 |
1502- |
| |
100 |
06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
T=1.2
|
8-98029-250-0 |
AR |
1 |
1502- |
| |
100 |
06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
T=2.3
|
8-98029-251-0 |
AR |
1 |
1502- |
| |
100 |
06.164 SHIM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
T=4.5
|
8-98029-252-0 |
AR |
1 |
1502- |
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
07.833
M14
|
0-91110-514-0 |
02 |
1 |
1502- |
| |
149 |
06.172 BOLT; ARM TO LWR CONT ARM
FRT INDEPENDENT SUSPENSION(FF0)
06.174
|
8-98021-826-1 |
02 |
1 |
1502- |
| |
161 |
06.178 NUT ASM; UPR LINK TO FRAME
FRT INDEPENDENT SUSPENSION(FF0)
06.164
M16 FLANGE
|
0-91180-216-0 |
04 |
1 |
1502- |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98009-114-0 |
02 |
1 |
1502- |
| |
257 |
07.346 NUT; CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(FF0)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1502- |
| |
346 |
06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0)
06.861
(C)
M22
|
0-91111-522-0 |
02 |
1 |
1502- |
| |
346 |
06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0)
(A)
M18 SLOTTED
|
8-97245-632-0 |
02 |
1 |
1502- |
| |
346 |
06.174 NUT; LINK END
FRT INDEPENDENT SUSPENSION(FF0)
(B)
M52
|
8-98158-133-0 |
02 |
1 |
1502- |
| |
394 |
06.714 END ASM; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97327-369-5 |
02 |
1 |
1502- |
| |
441 |
07.420 SEAT; COIL SPR
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97354-580-2 |
02 |
1 |
1502- |
| |
442 |
07.420 INSULATOR; COIL SPR
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97354-550-1 |
02 |
1 |
1502- |
| |
526 |
06.172 WASHER; LWR LINK
FRT INDEPENDENT SUSPENSION(FF0)
06.174
ID=23
|
0-91614-522-0 |
04 |
1 |
1502- |
