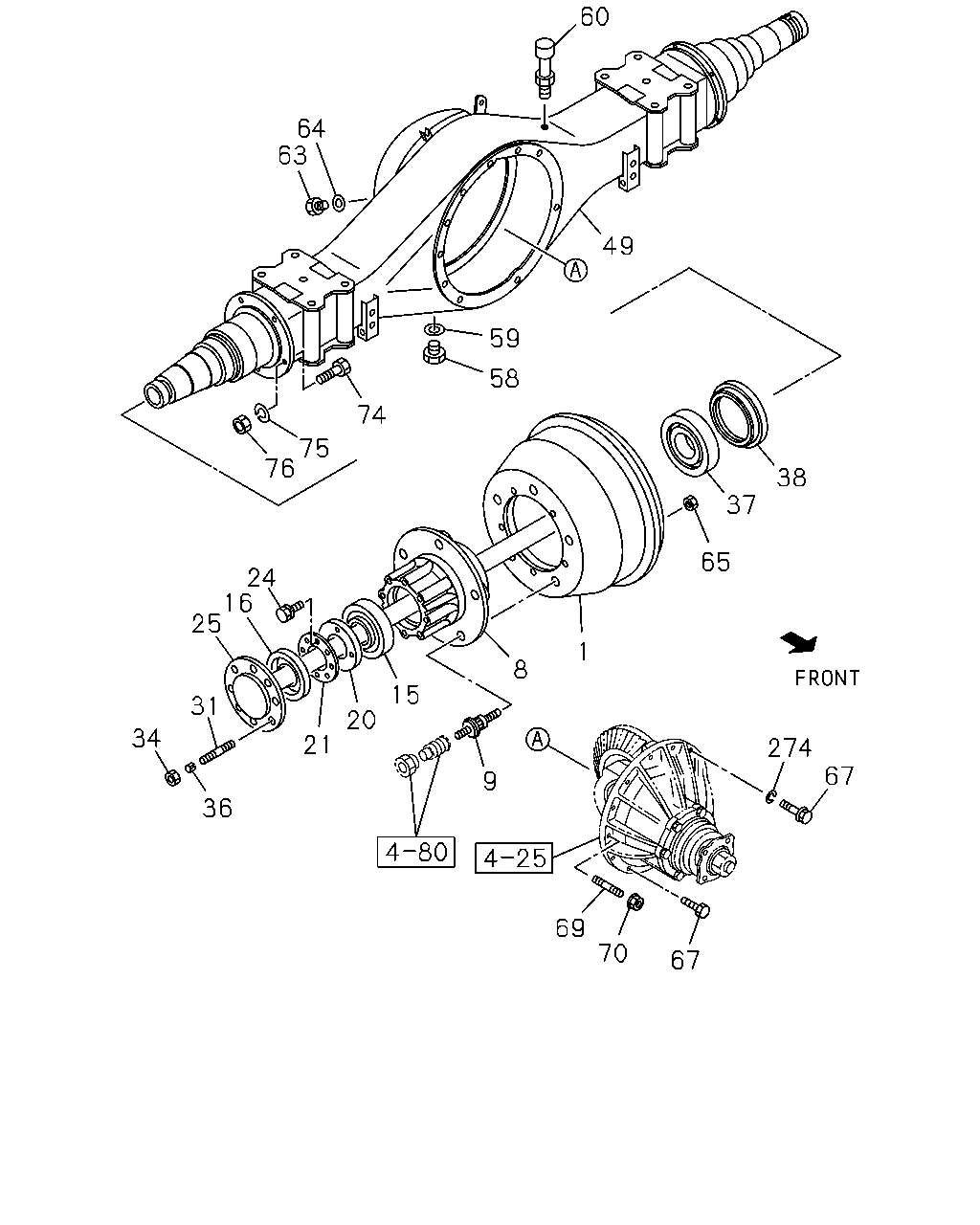

1 |
05.809 DRUM; BRK,RR
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97169-806-2 |
02 |
1 |
1502- |
| |
8 |
05.809 HUB; RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97240-322-1 |
02 |
1 |
1502- |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
M16X26,M16X37 RH THREAD
|
8-98000-404-1 |
06 |
1 |
1502- |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
M16X26 LH THREAD,M16X37 RH THREAD
|
8-98000-406-1 |
06 |
1 |
1502- |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
NSK
|
9-00093-082-0 |
02 |
1 |
1502- |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1502- |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FRT INDEPENDENT SUSPENSION(FF0)
NOK
|
8-98202-911-0 |
02 |
1 |
1502- |
| |
20 |
05.830 NUT; BRG,RR HUB
FRT INDEPENDENT SUSPENSION(FF0)
M52
|
8-98236-850-0 |
02 |
1 |
1502- |
| |
21 |
05.830 WASHER; LK,BRG NUT
FRT INDEPENDENT SUSPENSION(FF0)
ID=52
|
9-09853-214-1 |
02 |
1 |
1502- |
| |
24 |
05.830 BOLT; LK WASHER
FRT INDEPENDENT SUSPENSION(FF0)
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
1502-1508 |
| |
24 |
05.830 BOLT; LK WASHER
FRT INDEPENDENT SUSPENSION(FF0)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1509- |
| |
25 |
05.420 SHAFT; AXLE,RR
FRT INDEPENDENT SUSPENSION(FF0)
|
8-94341-978-0 |
02 |
1 |
1502- |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
FRT INDEPENDENT SUSPENSION(FF0)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1502- |
| |
34 |
05.387 NUT; AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1502- |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1502- |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
NSK
|
9-00093-081-0 |
02 |
1 |
1502- |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1502- |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(FF0)
TKK
|
8-94336-314-1 |
02 |
1 |
1502- |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(FF0)
NOK
|
8-94367-959-0 |
02 |
1 |
1502- |
| |
49 |
05.387 CASE; RR AXLE
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98133-129-2 |
01 |
1 |
1502- |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
FRT INDEPENDENT SUSPENSION(FF0)
M16X12.5
|
8-97307-060-0 |
01 |
1 |
1502- |
| |
59 |
05.400 GASKET; DRAIN PLUG
FRT INDEPENDENT SUSPENSION(FF0)
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1502- |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
1502- |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(FF0)
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1502- |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(FF0)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1502- |
| |
65 |
05.387 NUT
FRT INDEPENDENT SUSPENSION(FF0)
05.586
M16 FLANGE
|
1-09449-065-0 |
12 |
1 |
1502- |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FRT INDEPENDENT SUSPENSION(FF0)
M10X100
|
0-10956-000-0 |
01 |
1 |
1502- |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FRT INDEPENDENT SUSPENSION(FF0)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1502- |
| |
69 |
05.387 STUD; AXLE CASE
FRT INDEPENDENT SUSPENSION(FF0)
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1502- |
| |
70 |
05.387 NUT; CARRIER
FRT INDEPENDENT SUSPENSION(FF0)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1502- |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FRT INDEPENDENT SUSPENSION(FF0)
M12X32
|
8-97359-819-0 |
08 |
1 |
1502- |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FRT INDEPENDENT SUSPENSION(FF0)
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
1502- |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FRT INDEPENDENT SUSPENSION(FF0)
M12
|
0-91110-512-0 |
08 |
1 |
1502- |
| |
274 |
05.822 WASHER; HSG
FRT INDEPENDENT SUSPENSION(FF0)
02.277
ID=10.2
|
0-91510-810-0 |
01 |
1 |
1502- |
