Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#156074) — 56 parça
◀

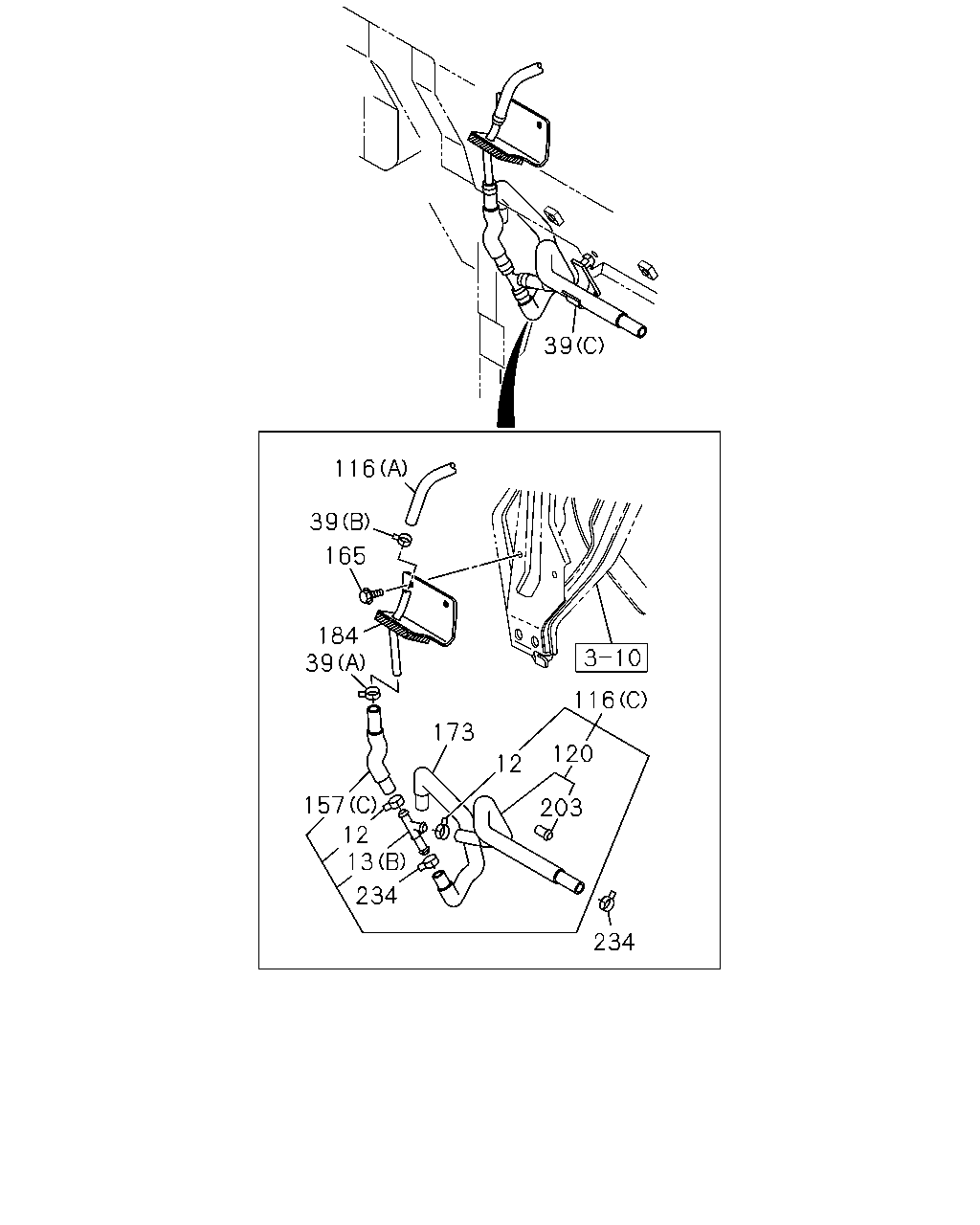

[360A] CAB OUTSIDE (19 parça)
[360A] CAB INSIDE (15 parça)

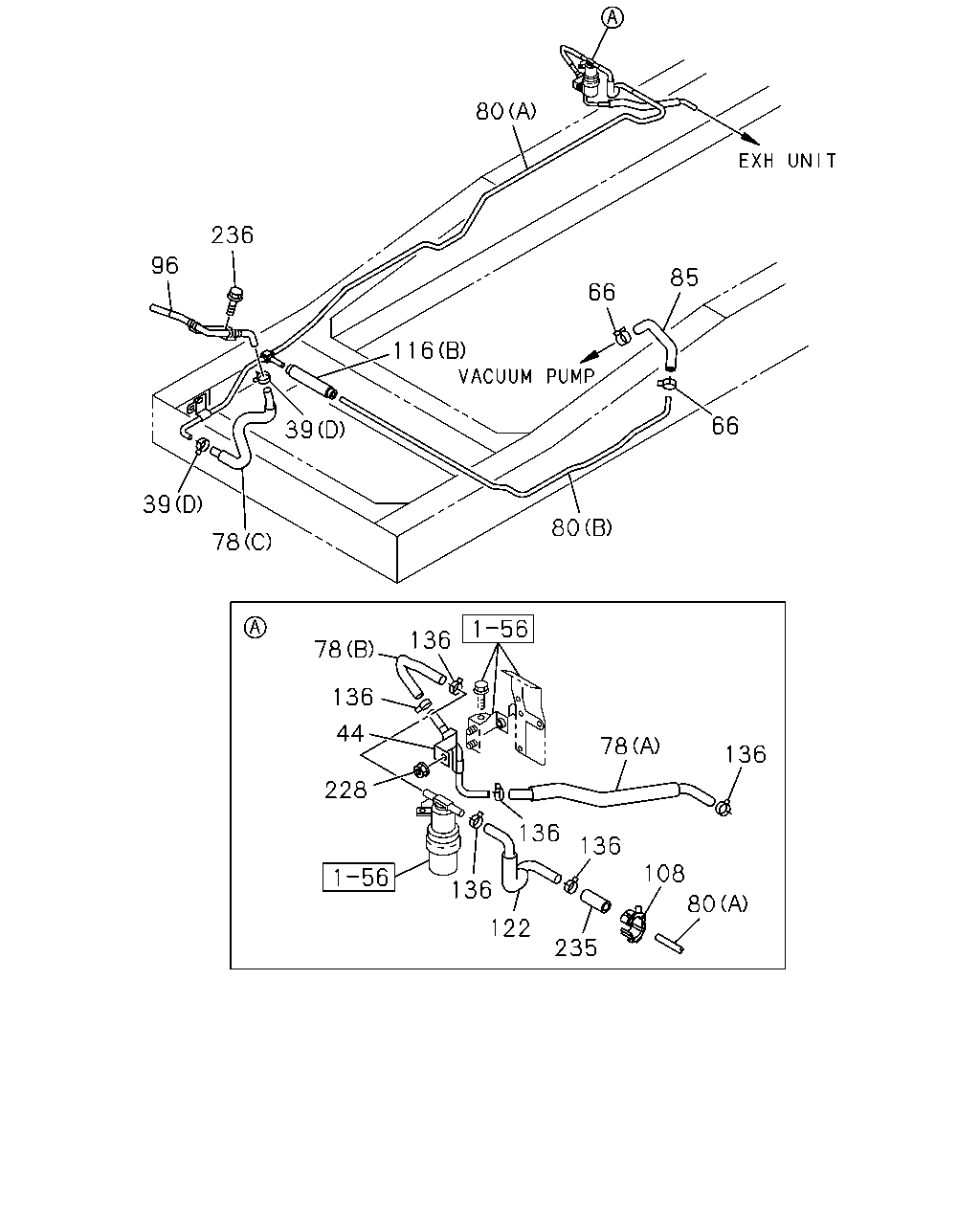

[360A] FRAME SIDE (22 parça)
▶
39
116
39
165
184
39
173
12
203
234
234
13
12
157
116
120
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
04.681 CLIP; HOSE
04.930 ID=15.5
8-98008-097-0
04
1
1502-
13
04.681 JOINT; HOSE,VAC
(B)
8-98035-106-0
01
1
1502-
13
04.681 JOINT; HOSE,VAC
(A)
8-98048-075-0
01
1
1502-
39
04.681 CLIP; HOSE,VAC
04.930 (A) ID=16
5-09707-023-2
01
1
1502-
39
04.681 CLIP; HOSE,VAC
04.930 (B) ID=16
8-94238-568-0
02
1
1502-
39
04.681 CLIP; HOSE,VAC
(C) ID=25.5
8-97077-492-0
01
1
1502-
39
04.681 CLIP; HOSE,VAC
03.162 (D) ID=16
8-98008-098-0
02
1
1502-
116
04.931 HOSE; VAC,M/VAC
(C)
8-97389-684-3
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(B)
8-98033-137-1
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(A)
8-98115-398-1
01
1
1502-
120
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
8-98032-517-3
01
1
1502-
157
04.931 HOSE; JOINT
(B)
8-97389-669-3
01
1
1502-
157
04.931 HOSE; JOINT
(C)
8-98032-516-3
01
1
1502-
157
04.931 HOSE; JOINT
(A)
8-98157-683-1
01
1
1502-
165
04.686 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1502-
173
04.931 HOSE; VAC,VAC TANK SIDE
8-98032-515-2
01
1
1502-
184
04.685 BRACKET; UNION FIX
8-98251-816-0
01
1
1502-
203
04.690 VALVE; CHECK
8-94386-540-0
01
1
1502-
234
04.685 CLAMP; PIPE
04.930 ID=16
8-94238-568-0
02
1
1502-
157
13
12
12
157
116
184
165
39
39
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
04.681 CLIP; HOSE
04.930 ID=15.5
8-98008-097-0
04
1
1502-
13
04.681 JOINT; HOSE,VAC
(B)
8-98035-106-0
01
1
1502-
13
04.681 JOINT; HOSE,VAC
(A)
8-98048-075-0
01
1
1502-
39
04.681 CLIP; HOSE,VAC
04.930 (A) ID=16
5-09707-023-2
01
1
1502-
39
04.681 CLIP; HOSE,VAC
04.930 (B) ID=16
8-94238-568-0
02
1
1502-
39
04.681 CLIP; HOSE,VAC
(C) ID=25.5
8-97077-492-0
01
1
1502-
39
04.681 CLIP; HOSE,VAC
03.162 (D) ID=16
8-98008-098-0
02
1
1502-
116
04.931 HOSE; VAC,M/VAC
(C)
8-97389-684-3
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(B)
8-98033-137-1
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(A)
8-98115-398-1
01
1
1502-
157
04.931 HOSE; JOINT
(B)
8-97389-669-3
01
1
1502-
157
04.931 HOSE; JOINT
(C)
8-98032-516-3
01
1
1502-
157
04.931 HOSE; JOINT
(A)
8-98157-683-1
01
1
1502-
165
04.686 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1502-
184
04.685 BRACKET; UNION FIX
8-98251-816-0
01
1
1502-
80
236
96
116
66
85
66
80
39
78
39
78
136
136
44
228
78
136
108
80
235
122
136
136
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
04.681 CLIP; HOSE,VAC
04.930 (A) ID=16
5-09707-023-2
01
1
1502-
39
04.681 CLIP; HOSE,VAC
04.930 (B) ID=16
8-94238-568-0
02
1
1502-
39
04.681 CLIP; HOSE,VAC
(C) ID=25.5
8-97077-492-0
01
1
1502-
39
04.681 CLIP; HOSE,VAC
03.162 (D) ID=16
8-98008-098-0
02
1
1502-
44
04.930 PIPE; VAC,MAG VLV
CAB SUSPENSION<6XF>
8-97389-621-1
01
1
1502-
66
04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16
8-98008-098-0
02
1
1502-
78
04.931 HOSE; VAC,PIPE TO PIPE
CAB SUSPENSION<6XF> (B)
8-97389-713-0
01
1
1502-
78
04.931 HOSE; VAC,PIPE TO PIPE
CAB SUSPENSION<6XF> (A)
8-97389-724-0
01
1
1502-
78
04.931 HOSE; VAC,PIPE TO PIPE
(C)
8-98240-772-4
01
1
1502-
80
04.930 PIPE; VAC,ENG SIDE
(A)
8-98240-767-1
01
1
1502-
80
04.930 PIPE; VAC,ENG SIDE
(B)
8-98253-094-0
01
1
1502-
85
04.931 HOSE; VAC,ENG SIDE
8-98075-176-0
01
1
1502-
96
04.930 PIPE; VAC,M/VAC TO VAC PUMP
8-98255-441-1
01
1
1502-
108
04.931 GROMMET; PIPE
02.343 ID=17
8-94128-319-2
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(C)
8-97389-684-3
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(B)
8-98033-137-1
01
1
1502-
116
04.931 HOSE; VAC,M/VAC
(A)
8-98115-398-1
01
1
1502-
122
04.931 HOSE; AIR,MAG VLV TO AIR PIPE
CAB SUSPENSION<6XF>
8-98287-476-0
01
1
1502-
136
04.681 CLIP; VAC HOSE
CAB SUSPENSION<6XF> 03.162 ID=16
8-98008-098-0
06
1
1502-
228
04.930 NUT; PIPE
CAB SUSPENSION<6XF> 01.062 M8 FLANGE
0-91180-108-0
01
1
1502-
235
04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50
8-97214-235-0
01
1
1502-
236
04.930 BOLT; PIPE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1502-
