3-55 — BRAKE PIPING; OIL,REAR
(#156072) — 9 parça
◀
[355A] NO.2 (4 parça)

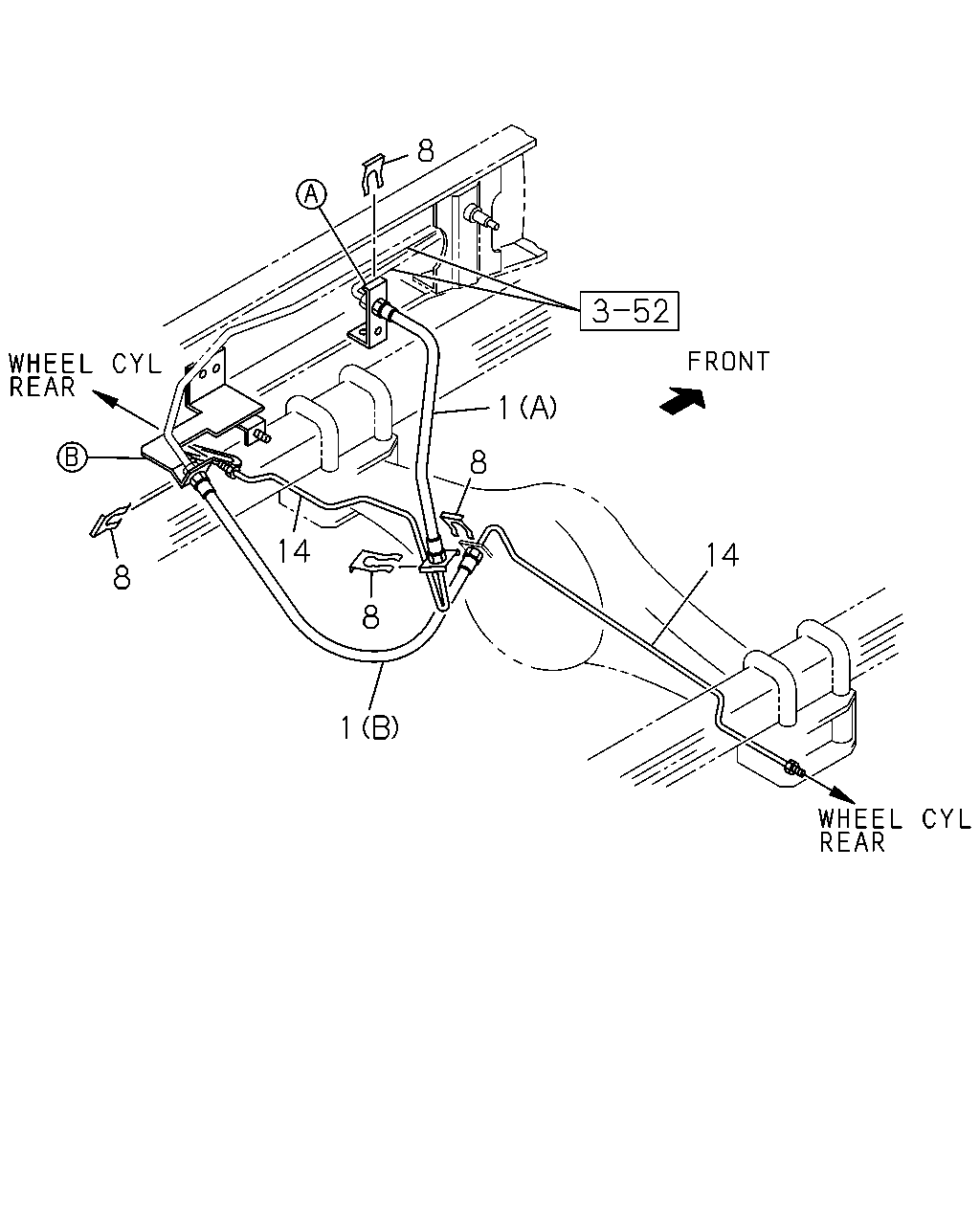

[355A] NO.1 (5 parça)
▶
3
3
3
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.681 BRACKET; FLEX HOSE,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) (B)
8-98135-875-0
01
1
1502-
3
04.681 BRACKET; FLEX HOSE,RR BRK
(A)
8-97251-436-0
01
1
1502-
3
04.681 BRACKET; FLEX HOSE,RR BRK
(C)
8-98117-513-0
01
1
1502-
25
04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT
0-92107-005-0
04
1
1502-
8
1
8
14
8
1
14
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,RR BRK
(A) L=370
8-97035-574-0
01
1
1502-
1
04.680 HOSE; FLEX,RR BRK
(B) L=430
8-97077-458-0
01
1
1502-
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
1502-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0)
8-98112-118-0
01
1
1502-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0)
8-98132-641-0
01
1
1502-
