Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

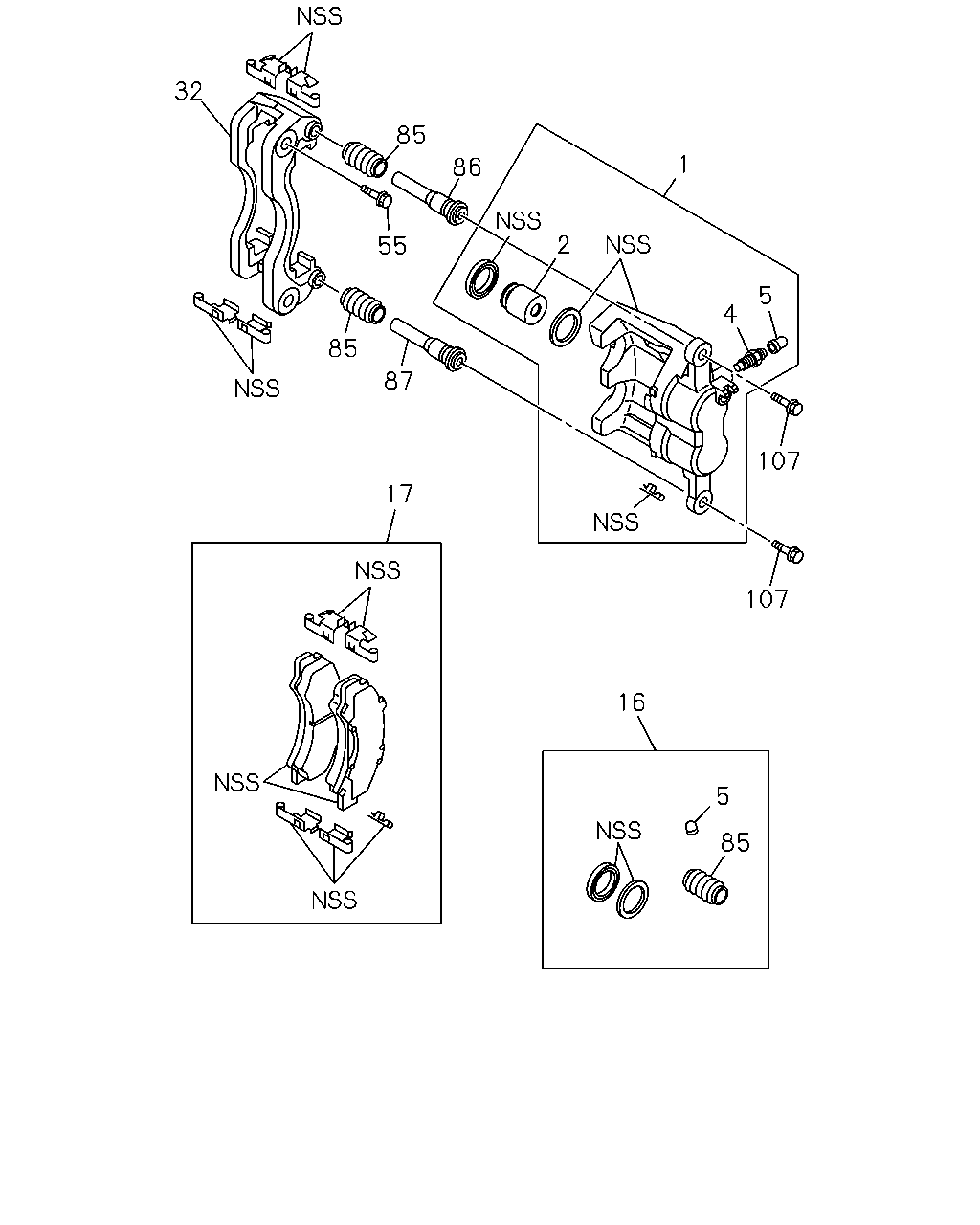

3-02 — FRONT DISC BRAKE CALIPER
(#156061) — 13 parça
85
5
16
17
87
85
32
85
86
55
2
1
5
4
107
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
8-98303-459-0
01
1
1502-
1
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
8-98303-460-0
01
1
1502-
2
04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
8-97365-256-0
04
1
1502-
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
8-98050-476-0
02
1
1502-
5
04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
8-98050-479-0
02
1
1502-
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
8-98302-529-0
01
1
1502-
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
8-98216-921-0
01
1
1502-
32
04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
8-97365-258-0
02
1
1502-
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE
8-98033-656-0
04
1
1502-
85
04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0)
8-98120-354-0
04
1
1502-
86
04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0)
8-98047-530-0
02
1
1502-
87
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0)
8-98047-532-0
02
1
1502-
107
04.665 BOLT; PIN
FRT INDEPENDENT SUSPENSION(FF0)
8-97365-264-0
04
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
