Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

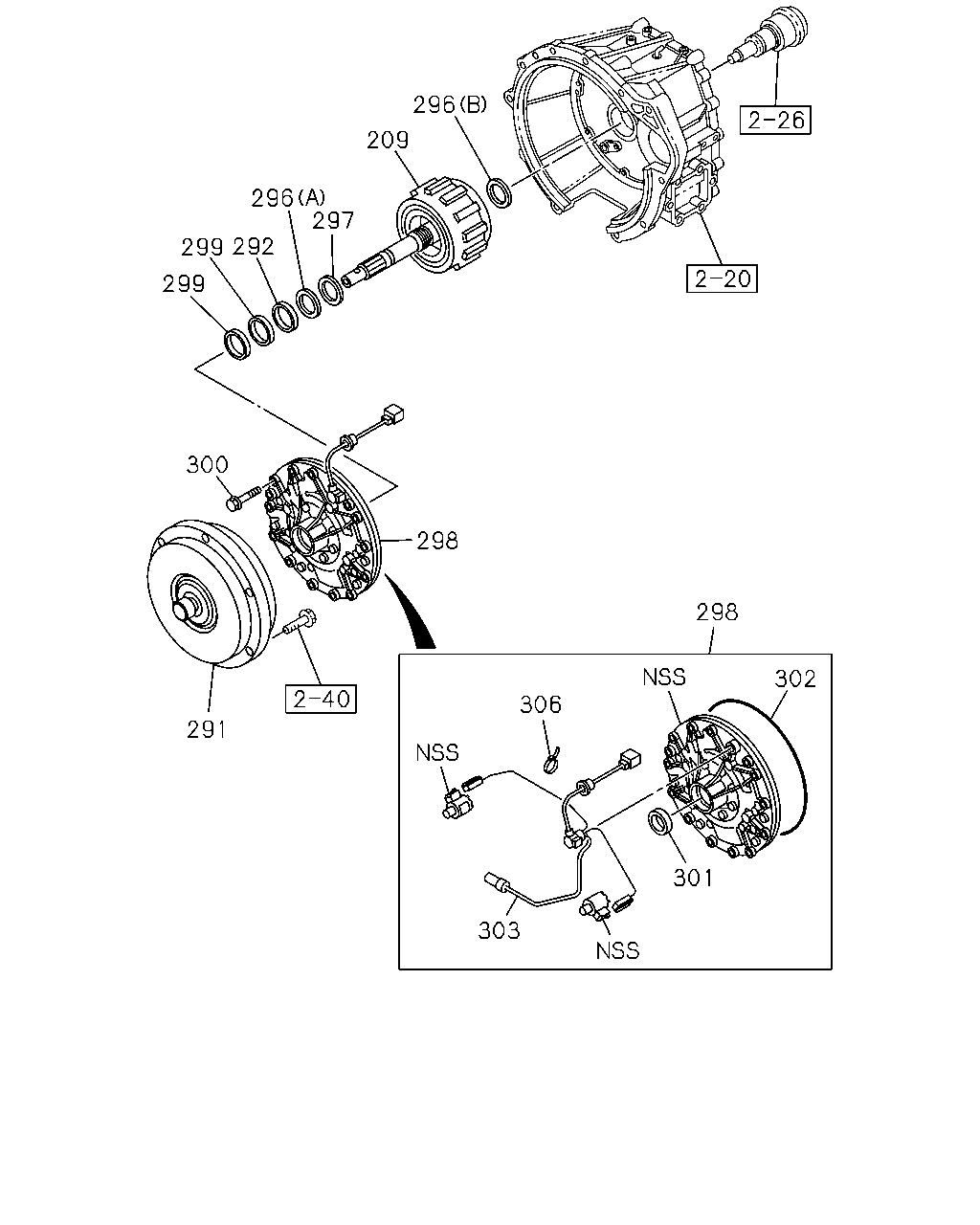

2-01 — CLUTCH
(#156049) — 13 parça
302
298
301
303
306
291
300
298
299
292
299
296
297
209
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
209
00.885 CLUTCH ASM
8-98282-865-0
01
1
1502-
291
00.863 COUPLING; FLUID
8-98109-456-3
01
1
1502-
292
00.862 RING; SEAL
8-97255-329-0
01
1
1502-
296
00.862 BEARING; THRUST
(A)
8-97255-688-0
01
1
1502-
296
00.862 BEARING; THRUST
(B)
8-97255-689-0
01
1
1502-
297
00.862 WASHER; THRUST
8-97300-070-0
01
1
1502-
298
04.020 PUMP ASM; OIL
8-98109-429-1
01
1
1502-
299
04.105 RING; SEAL
8-97255-330-0
02
1
1502-
300
04.226 BOLT; OIL PUMP
09.173 M8X45 FLANGE
0-28050-845-0
11
1
1502-
301
04.166 SEAL; OIL PUMP
8-97289-811-0
01
1
1502-
302
04.226 RING; OIL PUMP
8-97255-188-0
01
1
1502-
303
02.480 HARNESS ASM; OIL PUMP
8-98000-265-2
01
1
1502-
306
00.785 CLIP; BAND
02.559 L=100
8-94279-939-0
03
1
1502-
