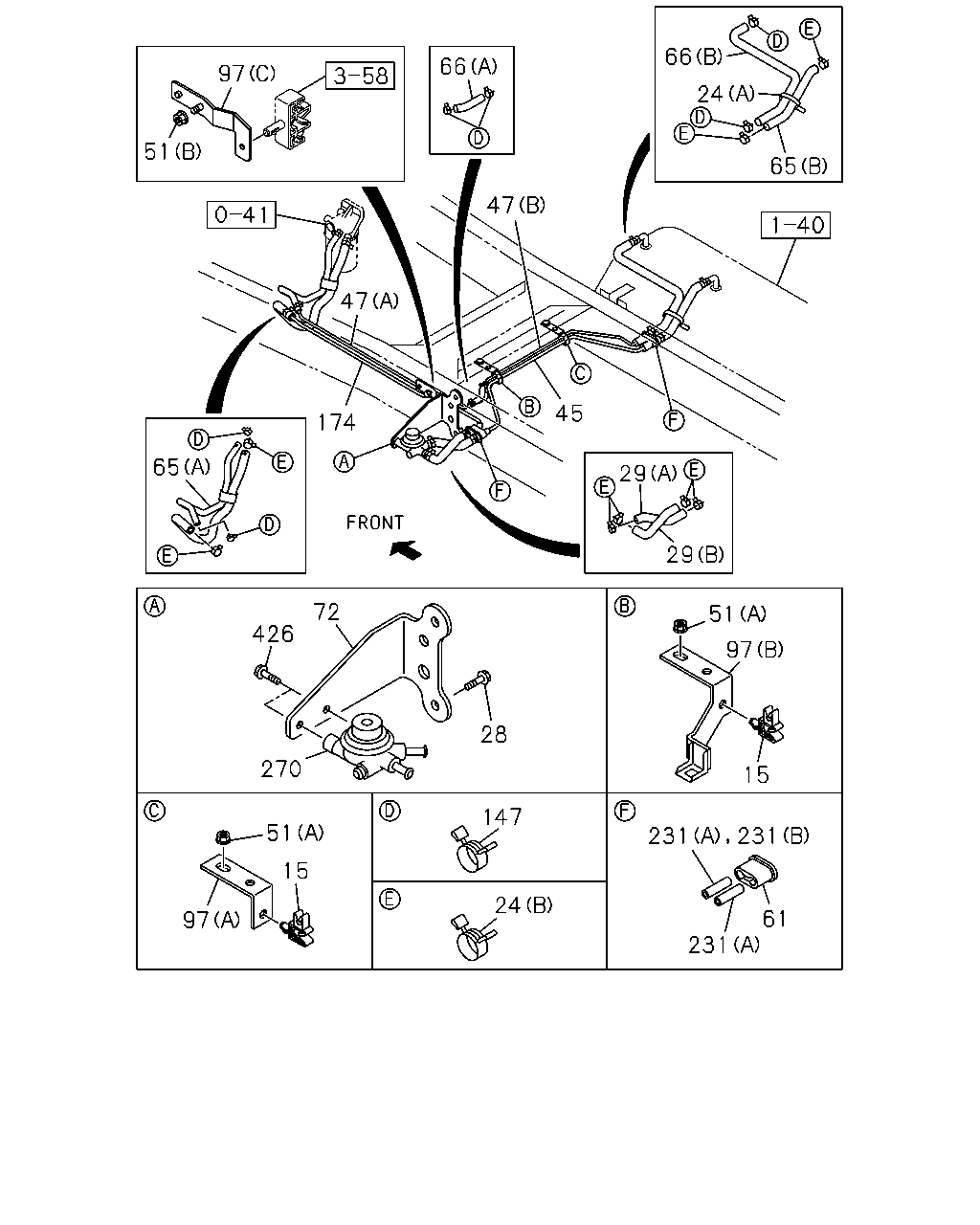

15 |
03.162 CLIP; FUEL PIPE
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
1502- |
| |
24 |
03.162 CLIP; FUEL HOSE
FRT INDEPENDENT SUSPENSION(FF0)
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
1502- |
| |
24 |
03.162 CLIP; FUEL HOSE
FRT INDEPENDENT SUSPENSION(FF0)
(B)
ID=16
|
8-98008-098-0 |
03 |
1 |
1502- |
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=16
|
8-98008-098-0 |
05 |
1 |
1502- |
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1502- |
| |
29 |
03.163 HOSE; FUEL
FRT INDEPENDENT SUSPENSION(FF0)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1502- |
| |
29 |
03.163 HOSE; FUEL
FRT INDEPENDENT SUSPENSION(FF0)
(B)
L=200
|
8-98081-038-0 |
01 |
1 |
1502- |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
|
8-97389-580-3 |
01 |
1 |
1502- |
| |
47 |
03.163 PIPE; FUEL,RETURN
(A)
L=890
|
8-98175-182-1 |
01 |
1 |
1502- |
| |
47 |
03.163 PIPE; FUEL,RETURN
(B)
L=638
|
8-98288-394-0 |
01 |
1 |
1502- |
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
(A)
M10
|
0-91111-510-0 |
02 |
1 |
1502- |
| |
51 |
03.162 NUT; CLIP,PIPE
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1502- |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
|
8-98038-801-0 |
02 |
1 |
1502- |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRT INDEPENDENT SUSPENSION(FF0)
(B)
|
8-98062-959-0 |
01 |
1 |
1502- |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(A)
|
8-98111-220-2 |
01 |
1 |
1502- |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRT INDEPENDENT SUSPENSION(FF0)
(B)
L=380
|
8-97389-805-1 |
01 |
1 |
1502- |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=120
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1502- |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
|
8-98107-370-0 |
01 |
1 |
1502- |
| |
97 |
03.162 BRACKET; CLIP
(A)
|
8-98006-480-1 |
01 |
1 |
1502- |
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
1502- |
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98064-442-1 |
01 |
1 |
1502- |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRT INDEPENDENT SUSPENSION(FF0)
01.240
ID=12
|
8-98150-358-0 |
01 |
1 |
1502- |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
ID=12
|
8-98150-358-0 |
05 |
1 |
1502- |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
|
8-97389-589-1 |
01 |
1 |
1502- |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
1502- |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
1502- |
| |
270 |
03.900 PUMP ASM; FUEL
|
8-97948-892-0 |
01 |
1 |
1502- |
| |
426 |
03.330 BOLT; FUEL PUMP
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1502- |
