1-40 — FUEL TANK (#156044) — 21 parça

411 411 411 1 14 159 158 19 6 3 8 11 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

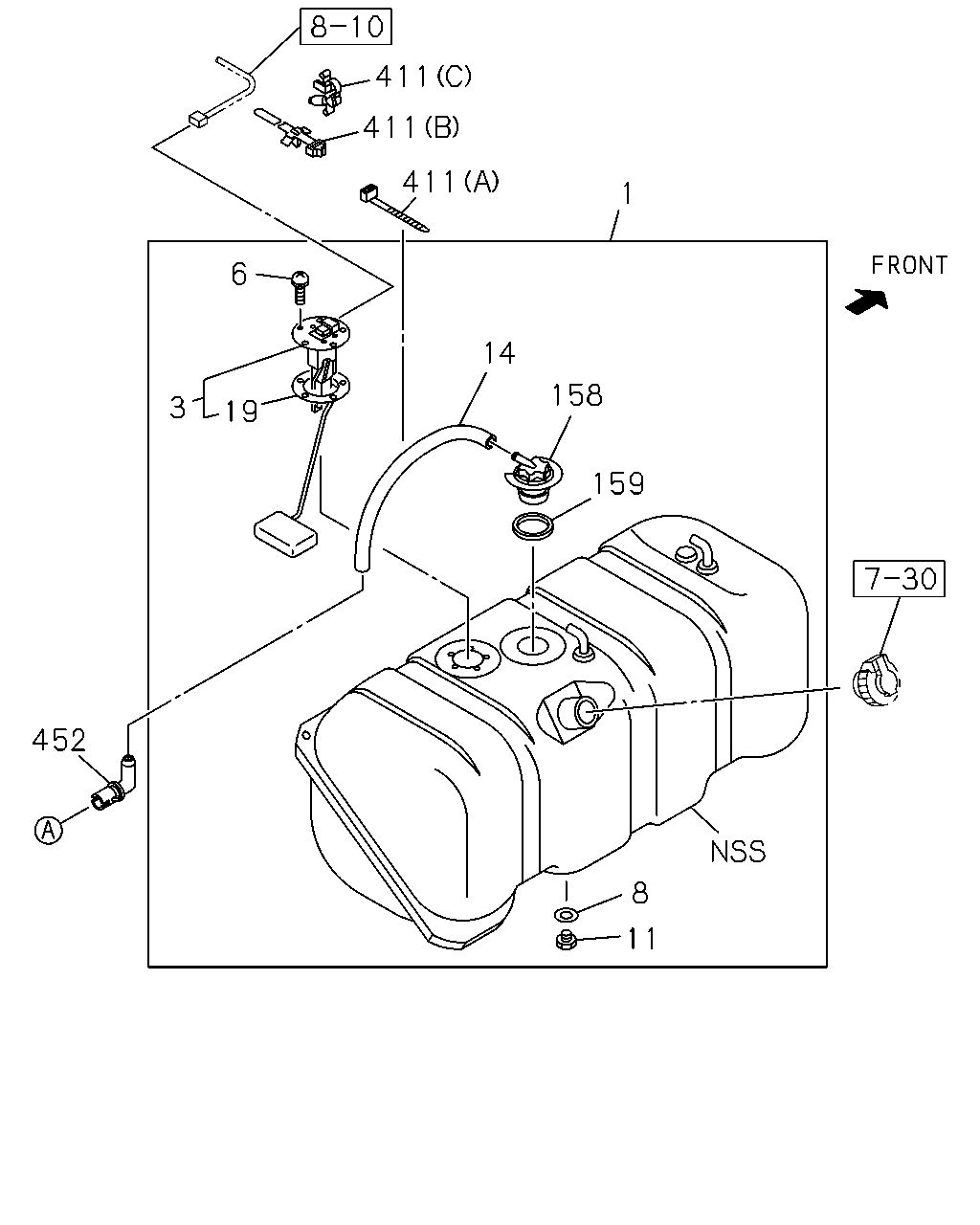

1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1502-
3	03.107 UNIT; FUEL TANK,SUB	8-98213-753-0	01	1	1502-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1502-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1502-
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1502-
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1502-
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1502-
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1502-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1502-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (C) ID=5-12 L=18	1-09709-287-0	03	1	1502-
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1502-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	1502-
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1502-

322 322 43 49 49 42 42 43 1 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1502-

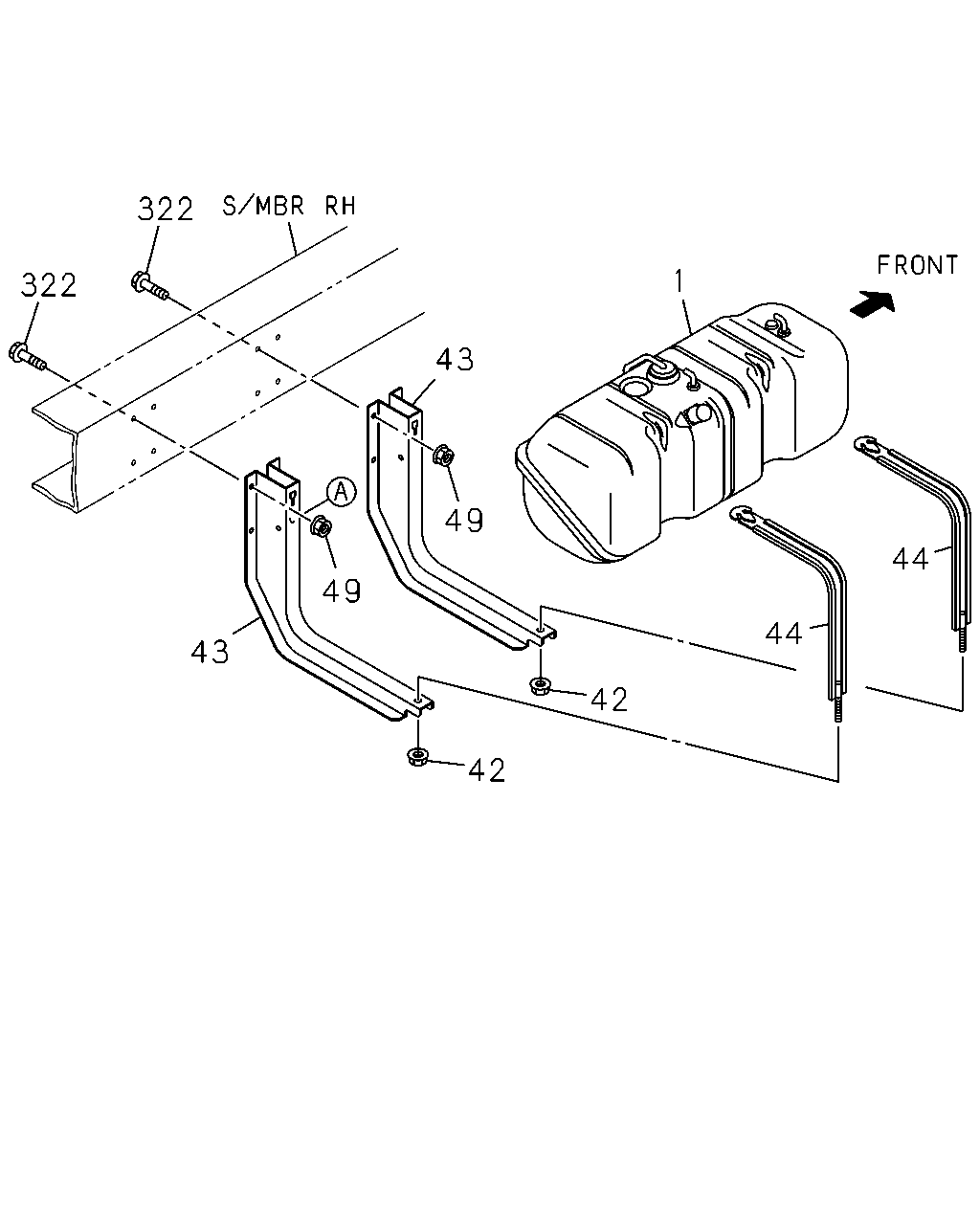

42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1502-
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-055-1	01	1	1502-
43	03.015 BRACKET; FUEL TANK REAR	8-97384-061-2	01	1	1502-
44	03.023 BAND; FUEL TANK L=613	8-98245-202-0	02	1	1502-
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	03	1	1502-
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	07	1	1502-

301

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

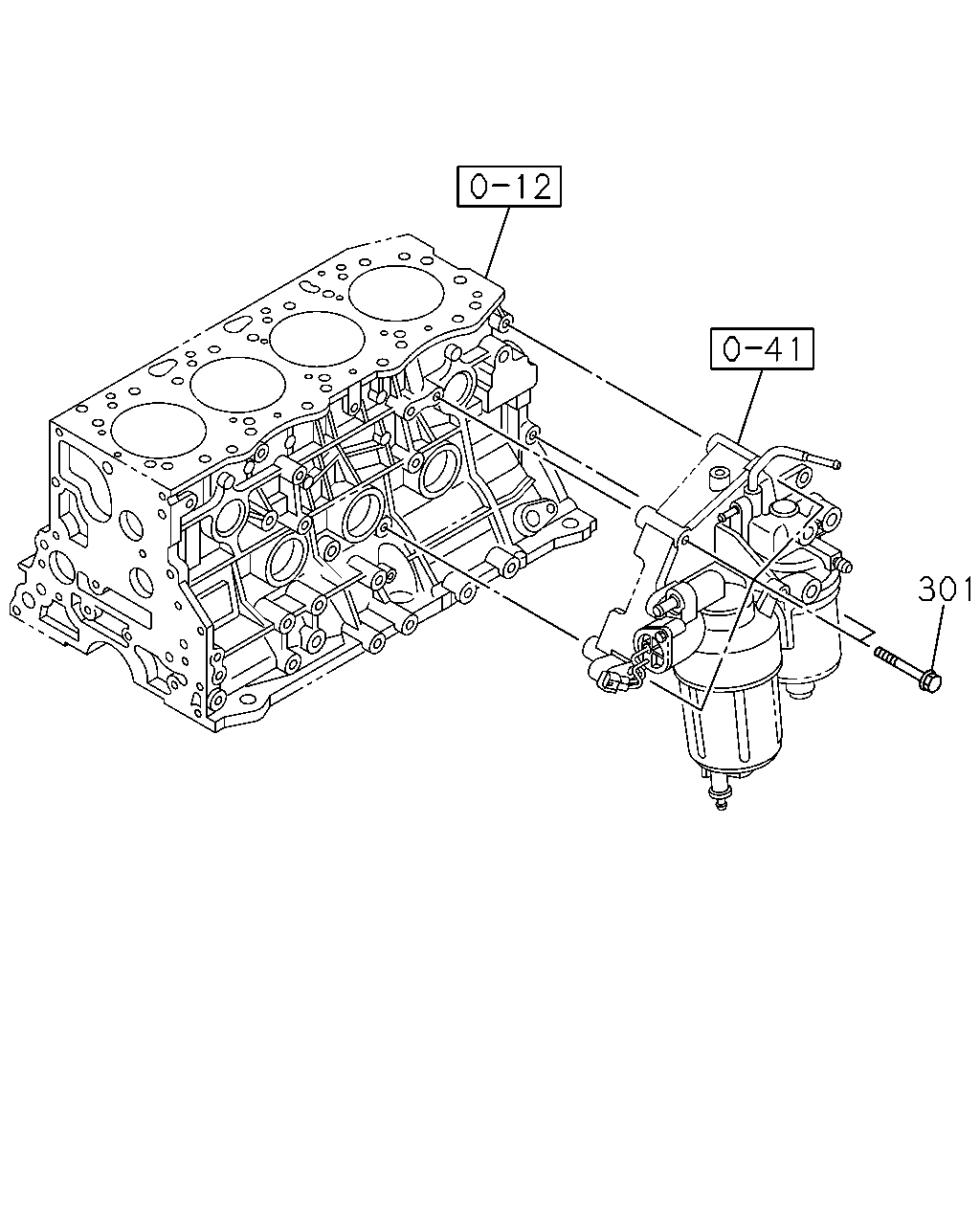

	301	03.162 BOLT; BRKT TO SEDIMENTER 01.097 M8X65 FLANGE	1-09044-072-1	04	1	1502-
