◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51609 - NHR RHD EURO5 WB 2500MM ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#156040) — 14 parça
çizim 467086
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 1502-
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 04 1 1502-
128 01.159 HOSE; WATER,RAD INL 8-97383-812-1 01 1 1502-

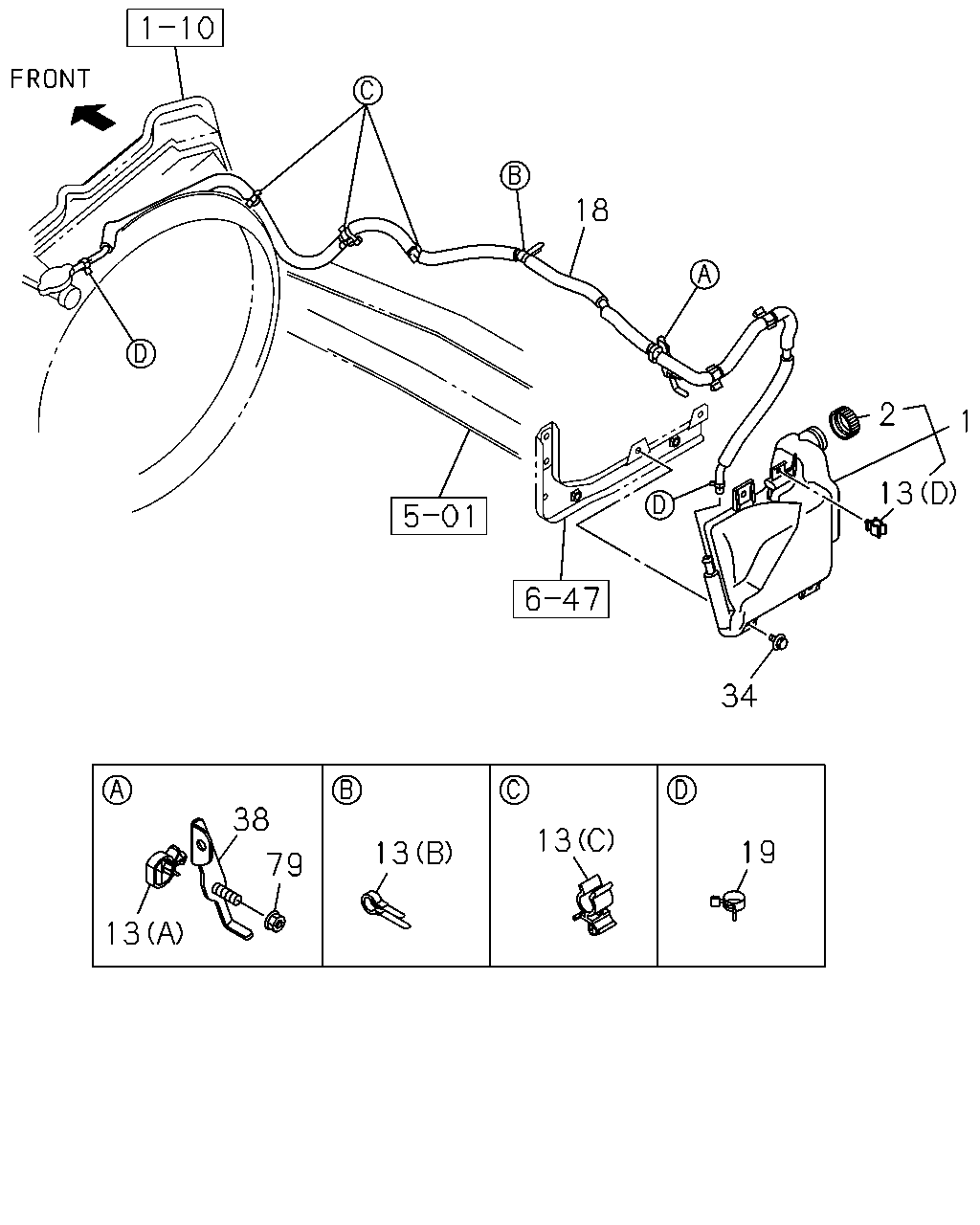

çizim 467588
18 2 1 13 34 19 13 13 79 38 13
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-98246-872-2 01 1 1502-
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1502-
13 01.240 CLIP; HOSE,SURGE TANK
CAB SUSPENSION<6XF> 03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1502-
13 01.240 CLIP; HOSE,SURGE TANK
CAB SUSPENSION<6XF> (B) ID=14 L=47 		5-09700-319-0 01 1 1502-
13 01.240 CLIP; HOSE,SURGE TANK
CAB SUSPENSION<6XF> (C) ID=12 		8-98029-256-0 03 1 1502-
13 01.240 CLIP; HOSE,SURGE TANK
08.154 (D) 		8-98244-588-0 01 1 1502-
18 01.240 HOSE; RAD TO SURGE TANK
CAB SUSPENSION<6XF> 		8-98247-172-3 01 1 1502-
19 01.240 CLIP; HOSE,SURGE TANK
CAB SUSPENSION<6XF> ID=12 		8-98150-358-0 02 1 1502-
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 1502-
38 01.219 BRACKET; RUBBER HOSE
CAB SUSPENSION<6XF> 		8-98250-628-1 01 1 1502-
79 01.219 NUT; CLIP,HOSE
CAB SUSPENSION<6XF> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
