Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#156034) — 26 parça
◀
[060A] STARTER,GENERATOR AND SENSOR (8 parça)
[060A] HARNESS BRACKET (3 parça)
[060A] SENSOR AND BOLT (2 parça)
[060A] ENG HARNESS BRACKET (3 parça)
[060A] RELAY (3 parça)
[060A] ENG CONTROL UNIT (7 parça)
▶

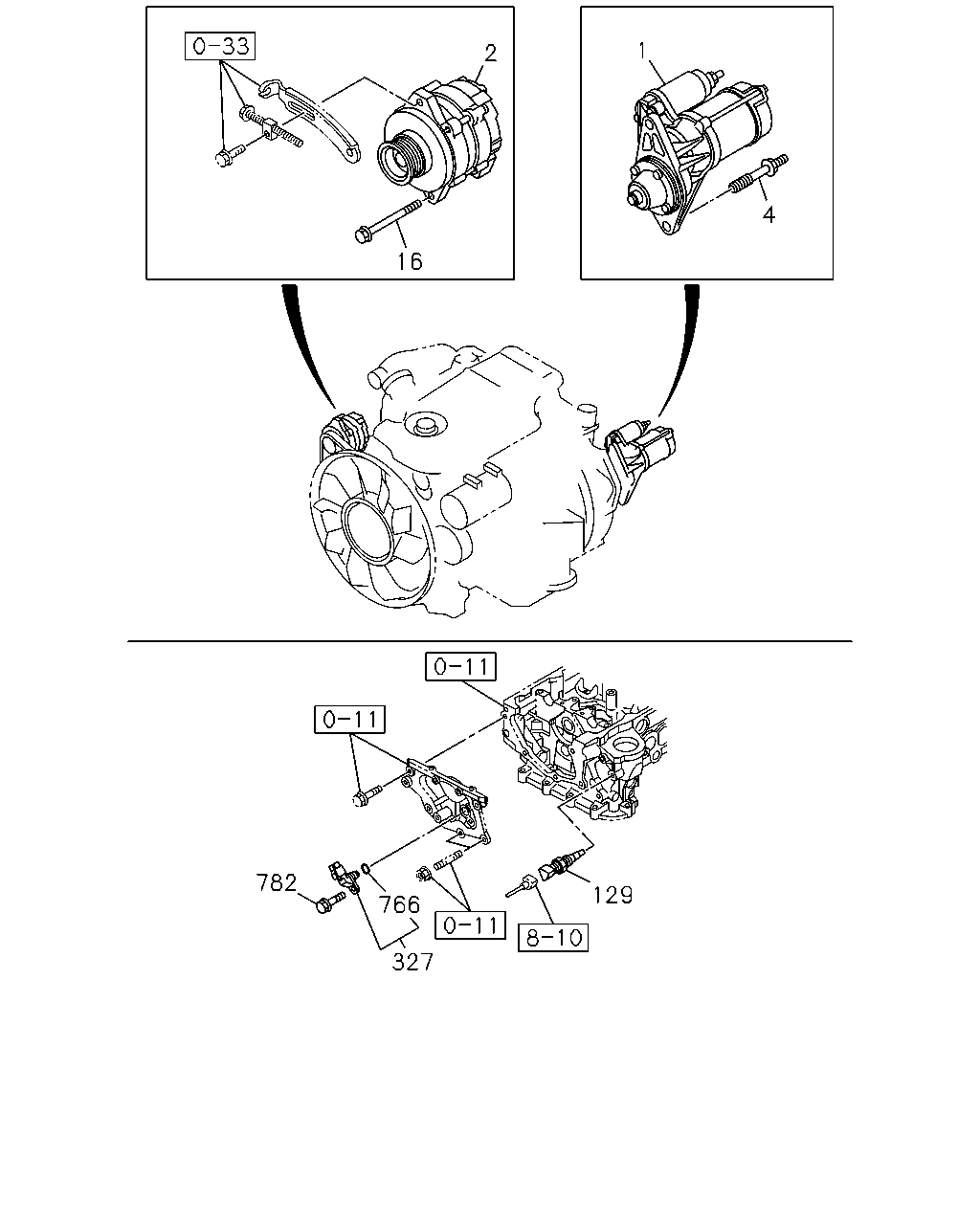

1
2
16
4
129
327
766
782
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-258-0
01
1
1502-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A
8-98251-634-1
01
1
1502-
4
02.042 BOLT; STARTER
M10X15,M14X75 L=103
8-97212-602-0
02
1
1502-
16
02.277 BOLT; GEN
M10X120 FLANGE
0-28056-012-0
01
1
1502-
129
01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT
8-98023-717-0
01
1
1502-
327
02.361 SENSOR; CAMSHAFT POSITION
00.724
8-98019-024-0
01
1
1502-
766
02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1502-
782
02.510 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1502-

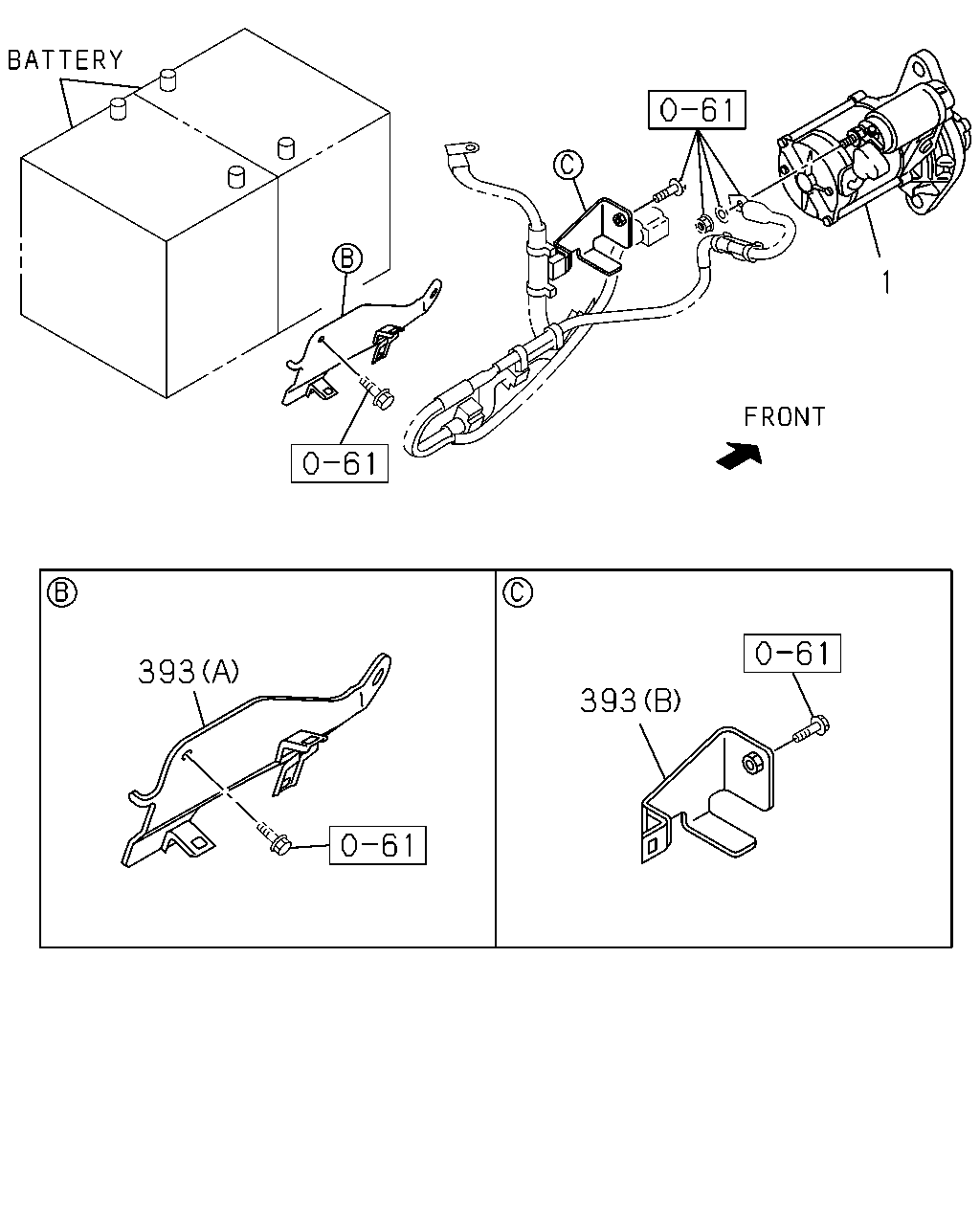

393
1
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-258-0
01
1
1502-
393
02.343 BRACKET; HARNESS TO BODY
(B)
8-98123-872-0
01
1
1502-
393
02.343 BRACKET; HARNESS TO BODY
(A)
8-98256-612-0
01
1
1502-
539
796
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
539
02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1502-
796
01.150 SENSOR; MAP
8-98009-418-0
01
1
1502-

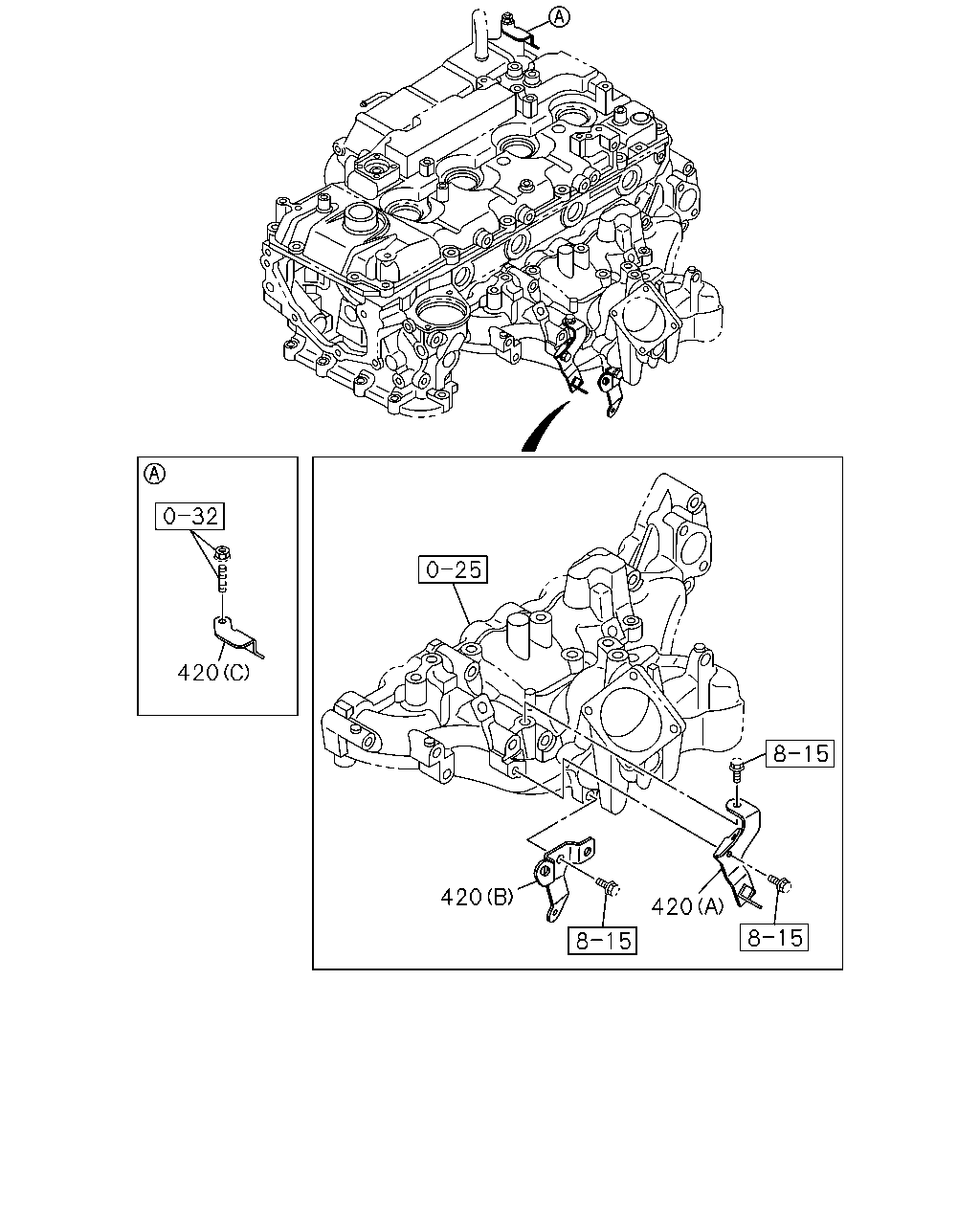

420
420
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
420
02.183 BRACKET; HARNESS
(B)
8-98250-707-0
01
1
1502-
420
02.183 BRACKET; HARNESS
(A)
8-98251-987-0
01
1
1502-
420
02.183 BRACKET; HARNESS
(C)
8-98259-810-0
01
1
1502-
46
718
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
02.100 RELAY; STARTER
24V 50A
8-98174-456-0
02
1
1502-
46
02.510 RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1502-
718
02.483 RELAY; FUEL HTR
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1502-

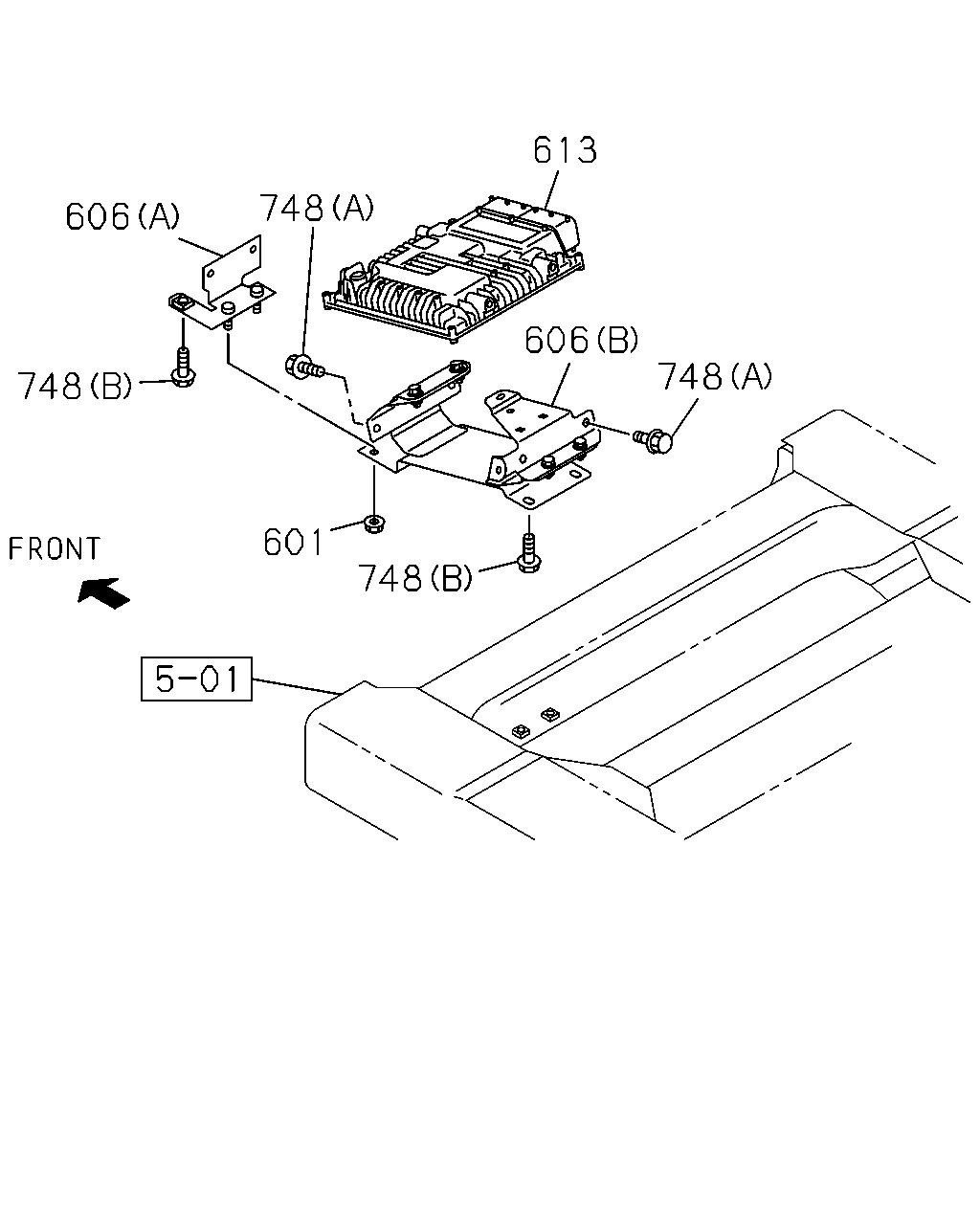

613
606
748
748
601
748
606
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
601
03.670 NUT; UNIT
01.062 M8 FLANGE
0-91180-108-0
02
1
1502-
606
03.680 BRACKET; CONT UNIT
(A)
8-98119-085-0
01
1
1502-
606
03.680 BRACKET; CONT UNIT
(B)
8-98242-796-1
01
1
1502-
613
03.670 CONTROL UNIT; ENG
8-98250-046-3
01
1
1502-1504
613
03.670 CONTROL UNIT; ENG
8-98312-434-0
01
1
1505-
748
02.500 BOLT; CONT UNIT
02.343 (A) M8X16 FLANGE
0-28050-816-0
04
1
1502-
748
02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE
0-28650-825-0
03
1
1502-
