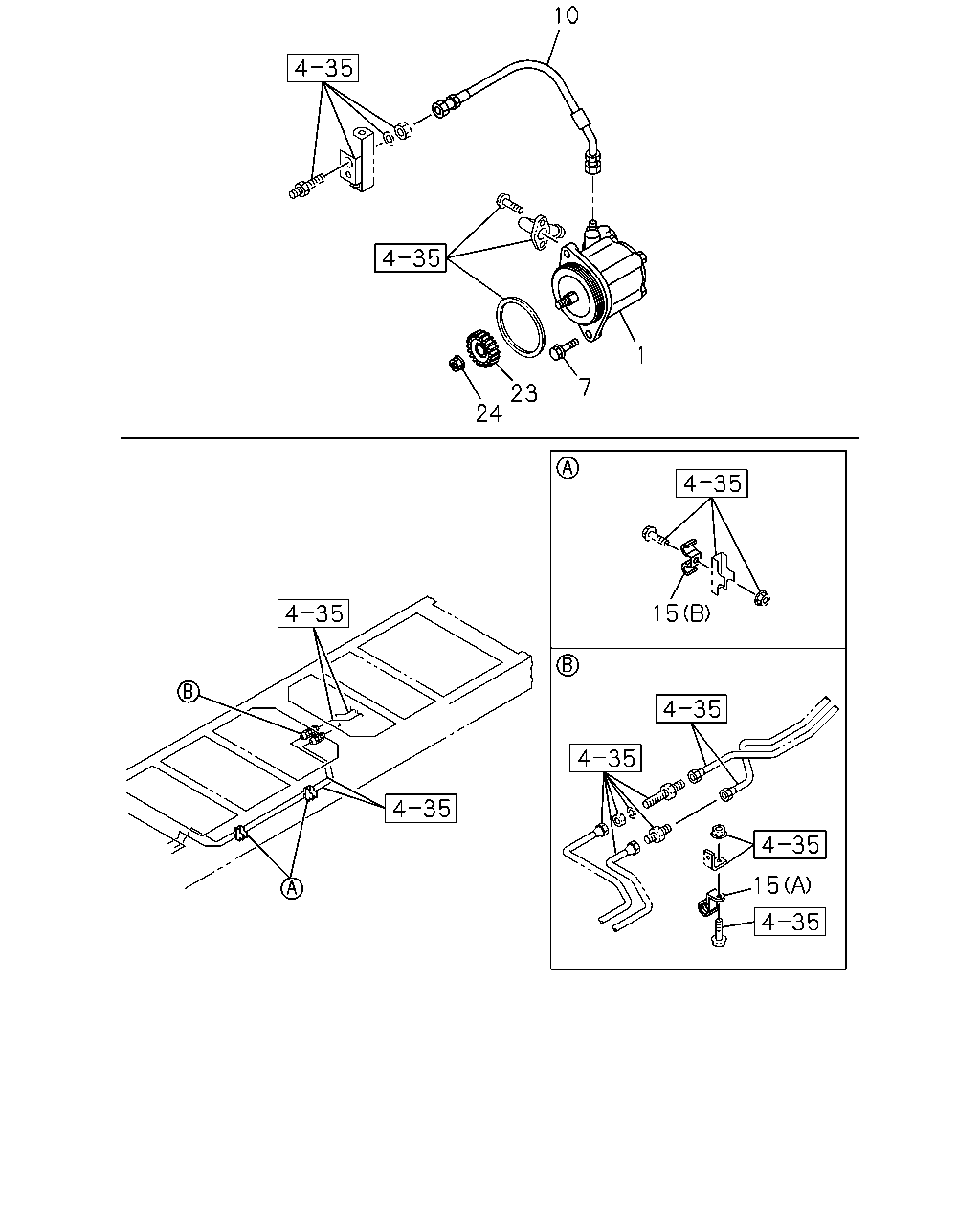

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#15602) — 7 parça

10 1 7 23 24 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-573-1	01	1	0910-
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0910-
10	HOSE; FLEX,P/S OIL PUMP,INL	8-98060-392-0	01	1	0910-
15	CLIP; OIL PIPE SUCTION (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0910-
15	CLIP; OIL PIPE SUCTION (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0910-
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	0910-
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0910-
