Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

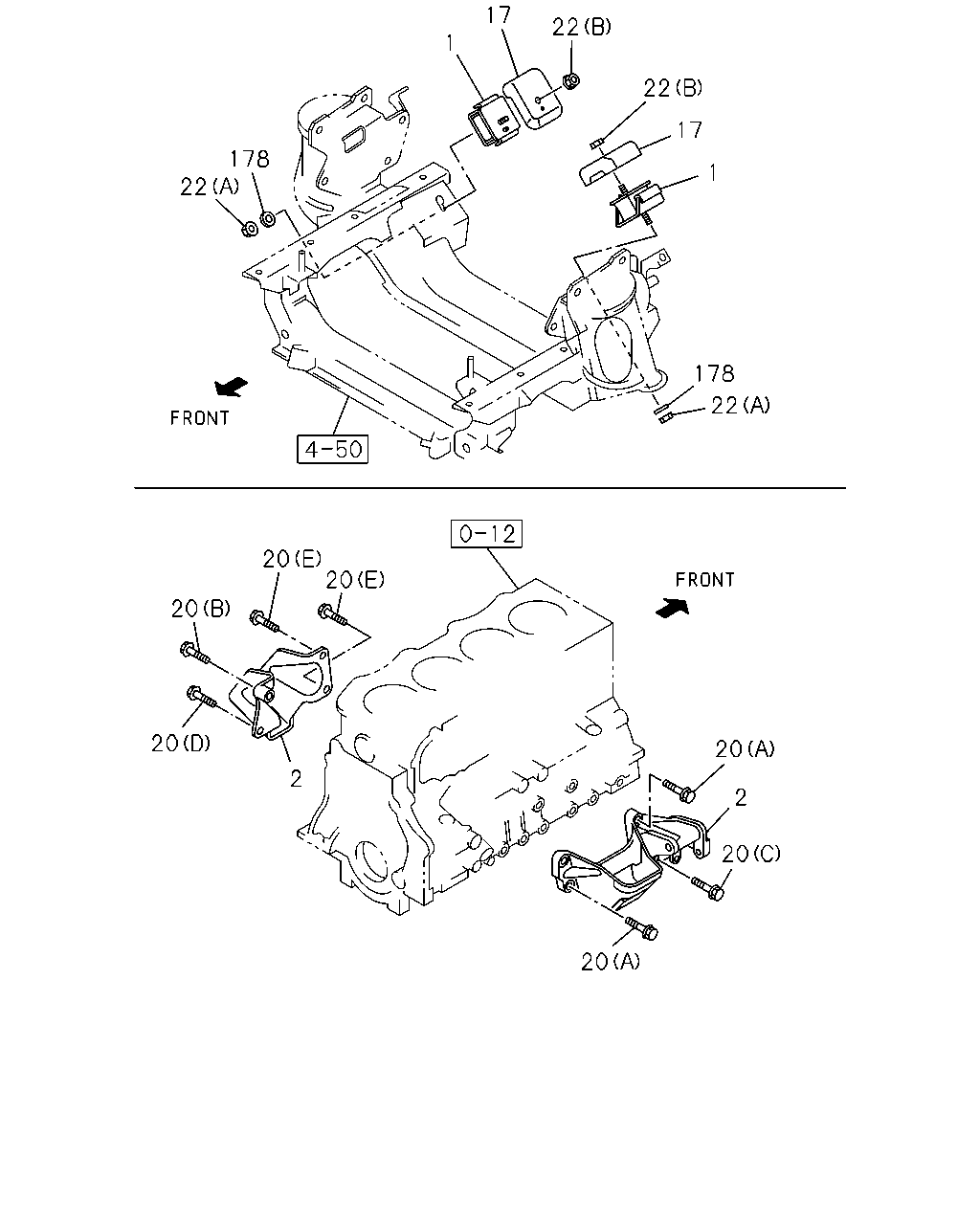

0-22 — ENGINE MOUNTING
(#156018) — 24 parça
◀
[022A] FRONT (14 parça)
[022A] REAR (10 parça)
▶
20
20
2
20
20
20
2
20
20
22
178
1
17
22
22
17
178
1
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.027 RUBBER; ENG FOOT,FRT
8-98053-831-0
01
1
1502-
1
00.027 RUBBER; ENG FOOT,FRT
8-98053-832-0
01
1
1502-
2
00.029 FOOT; ENG
8-97381-513-1
01
1
1502-
2
00.029 FOOT; ENG
8-97381-514-2
01
1
1502-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97229-825-0
01
1
1502-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97383-796-0
01
1
1502-
20
00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE
0-28051-070-0
01
1
1502-
20
00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE
0-28651-020-0
01
1
1502-
20
00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE
0-28651-025-0
02
1
1502-
20
00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE
0-28651-030-0
03
1
1502-
20
00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE
0-28651-035-0
01
1
1502-
22
00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (A) M12
0-91110-512-0
02
1
1502-
22
00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE
0-91180-112-0
02
1
1502-
178
00.002 WASHER; PL,CUSHION RUBBER TO BRK
07.529 ID=12.5 OD=32
0-91614-712-0
02
1
1502-
134
52
134
78
71
76
76
76
67
67
76
71
84
87
78
76
71
134
134
52
71
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
00.027 RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
1502-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-98004-324-1
01
1
1502-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-98004-325-1
01
1
1502-
71
00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
1502-
76
00.002 STOPPER; ENG MTG RUBBER
00.027 (B)
8-94111-904-0
02
1
1502-
76
00.002 STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
1502-
78
00.029 BRACKET; ENG MTG,RR
8-98220-858-0
02
1
1502-
84
00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
1502-
87
00.029 NUT; ENG MTG RR
03.162 M10 FLANGE
0-91180-110-0
04
1
1502-
134
00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE
0-28751-225-0
06
1
1502-
