1 |

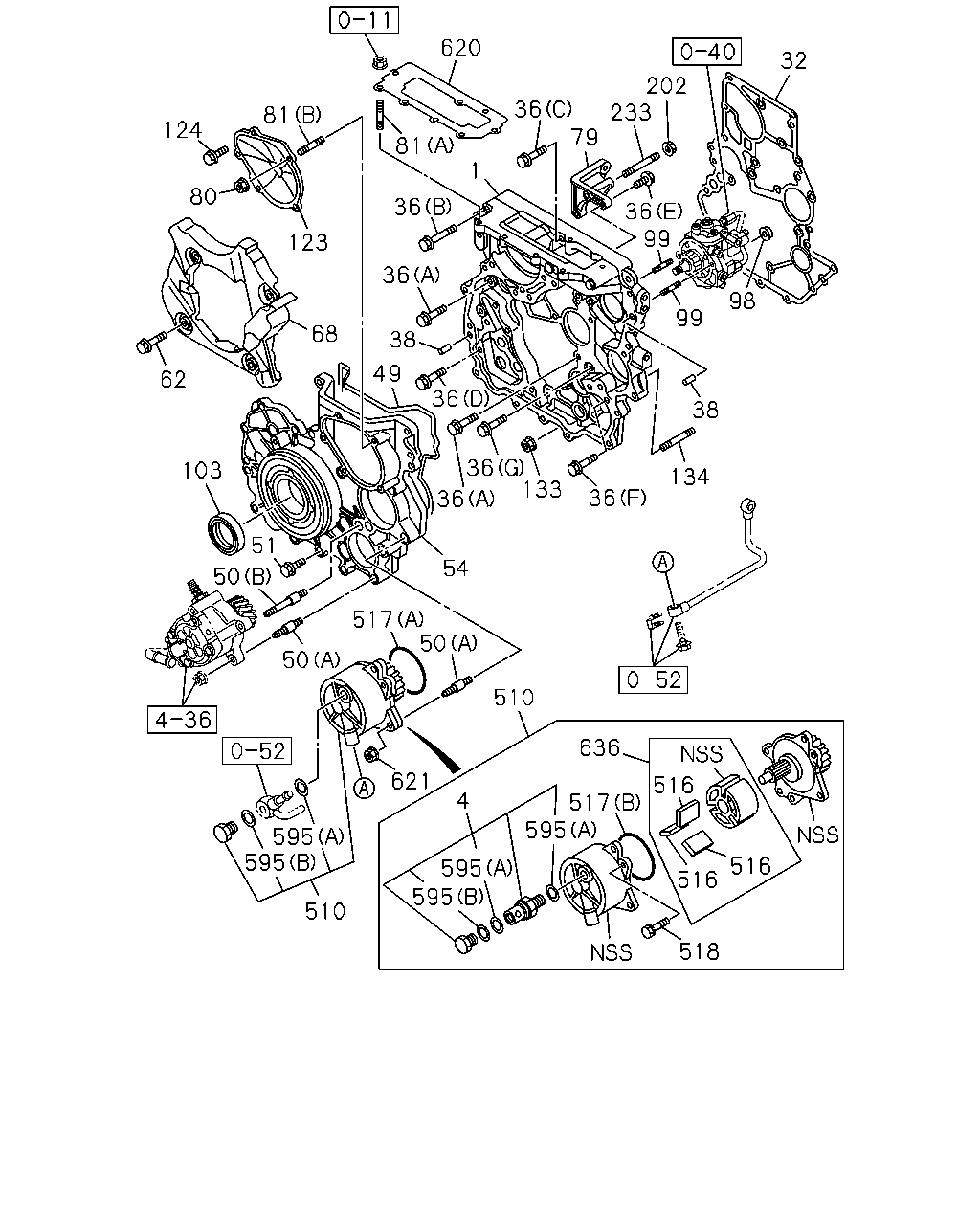

00.206 CASE; TIMING GEAR
|
8-98217-735-0 |
01 |
1 |
1502- |
| |
4 |
00.213 VALVE ASM; CHECK
|
8-98049-521-0 |
01 |
1 |
1502- |
| |
32 |
00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-98181-198-1 |
01 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
02.343
(G)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
04.338
(A)
M8X20 FLANGE
|
0-28050-820-0 |
13 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
03.162
(C)
M8X35 FLANGE
|
0-28050-835-0 |
01 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
09.173
(F)
M8X45 FLANGE
|
0-28050-845-0 |
02 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
04.686
(B)
M8X60 FLANGE
|
0-28050-860-0 |
01 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
06.216
(D)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1502- |
| |
36 |
00.206 BOLT; GEAR CASE
03.403
(E)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
1502- |
| |
38 |
00.685 PIN; GEAR CASE COVER
04.510
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
1502- |
| |
49 |
00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97945-298-0 |
01 |
1 |
1502- |
| |
50 |
00.206 STUD
(A)
M8X27,M8X14 L=64.5
|
8-97354-808-2 |
05 |
1 |
1502- |
| |
50 |
00.206 STUD
(B)
M8X70,M8X14 L=107.5
|
8-98134-221-0 |
01 |
1 |
1502- |
| |
51 |
00.206 BOLT; GEAR CASE COVER
|
8-97354-697-1 |
14 |
1 |
1502- |
| |
54 |
00.206 COVER; GEAR CASE
|
8-98253-700-1 |
01 |
1 |
1502- |
| |
62 |
00.206 BOLT; COVER
03.162
M6X20 FLANGE
|
0-28650-620-0 |
04 |
1 |
1502- |
| |
68 |
00.206 COVER ASM; GEAR CASE COVER
|
8-98245-226-0 |
01 |
1 |
1502- |
| |
79 |
00.219 BRACKET; GEAR CASE COVER
|
8-98107-106-0 |
01 |
1 |
1502- |
| |
80 |
00.206 NUT; COVER
01.540
M6 FLANGE
|
0-91180-206-0 |
02 |
1 |
1502- |
| |
81 |
00.206 STUD; GEAR CASE COVER FIX
(B)
M6X16 L=25
|
0-41010-616-0 |
02 |
1 |
1502- |
| |
81 |
00.206 STUD; GEAR CASE COVER FIX
00.413
(A)
M8X30 L=48
|
0-49140-830-0 |
02 |
1 |
1502- |
| |
98 |
00.206 NUT; STUD,INJ PUMP
01.540
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
1502- |
| |
99 |
00.206 STUD; INJ PUMP
M8X30 L=41
|
8-97369-449-0 |
02 |
1 |
1502- |
| |
103 |
00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-98158-110-0 |
01 |
1 |
1502- |
| |
123 |
00.206 COVER; TIMING,LWR
|
8-98158-145-0 |
01 |
1 |
1502- |
| |
124 |
00.206 BOLT; TIMING COVER
09.242
M6X16 FLANGE
|
0-28050-616-0 |
03 |
1 |
1502- |
| |
133 |
00.206 NUT; TIMING GEAR CASE
01.540
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
1502- |
| |
134 |
00.669 STUD; TIMING GEAR CASE
02.510
M8X20 L=32
|
0-41010-820-0 |
02 |
1 |
1502- |
| |
202 |
00.206 NUT; BRKT
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1502- |
| |
233 |
00.669 STUD; BRKT
03.275
M8X71 L=83
|
8-98017-063-0 |
01 |
1 |
1502- |
| |
510 |
04.895 PUMP ASM; VACUUM
|
8-98251-764-0 |
01 |
1 |
1502- |
| |
516 |
04.895 VANE; VAC PUMP
|
8-98051-275-0 |
03 |
1 |
1502- |
| |
517 |
04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
|
8-98251-769-0 |
01 |
1 |
1502- |
| |
517 |
04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
00.206
(A)
|
9-09566-271-0 |
01 |
1 |
1502- |
| |
518 |
04.895 BOLT; VAC PUMP
|
8-98049-523-0 |
03 |
1 |
1502- |
| |
595 |
00.213 GASKET; VLV
(B)
ID=12
|
8-98018-518-0 |
01 |
1 |
1502- |
| |
595 |
00.213 GASKET; VLV
(A)
ID=18
|
8-98018-519-0 |
02 |
1 |
1502- |
| |
620 |
00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.40 1-NOTCH
|
8-97328-828-2 |
01 |
1 |
1502- |
| |
620 |
00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.45 2-NOTCH
|
8-97331-631-2 |
01 |
1 |
1502- |
| |
620 |
00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.50 3-NOTCH
|
8-97331-632-2 |
01 |
1 |
1502- |
| |
621 |
00.207 NUT; VAC PUMP
01.540
M8 FLANGE
|
0-91180-208-0 |
03 |
1 |
1502- |
| |
636 |
00.206 ROTOR & VANE ASM; VAC PUMP
|
8-98049-520-0 |
01 |
1 |
1502- |
