0-13 — OIL PAN AND LEVEL GAUGE (#156014) — 20 parça

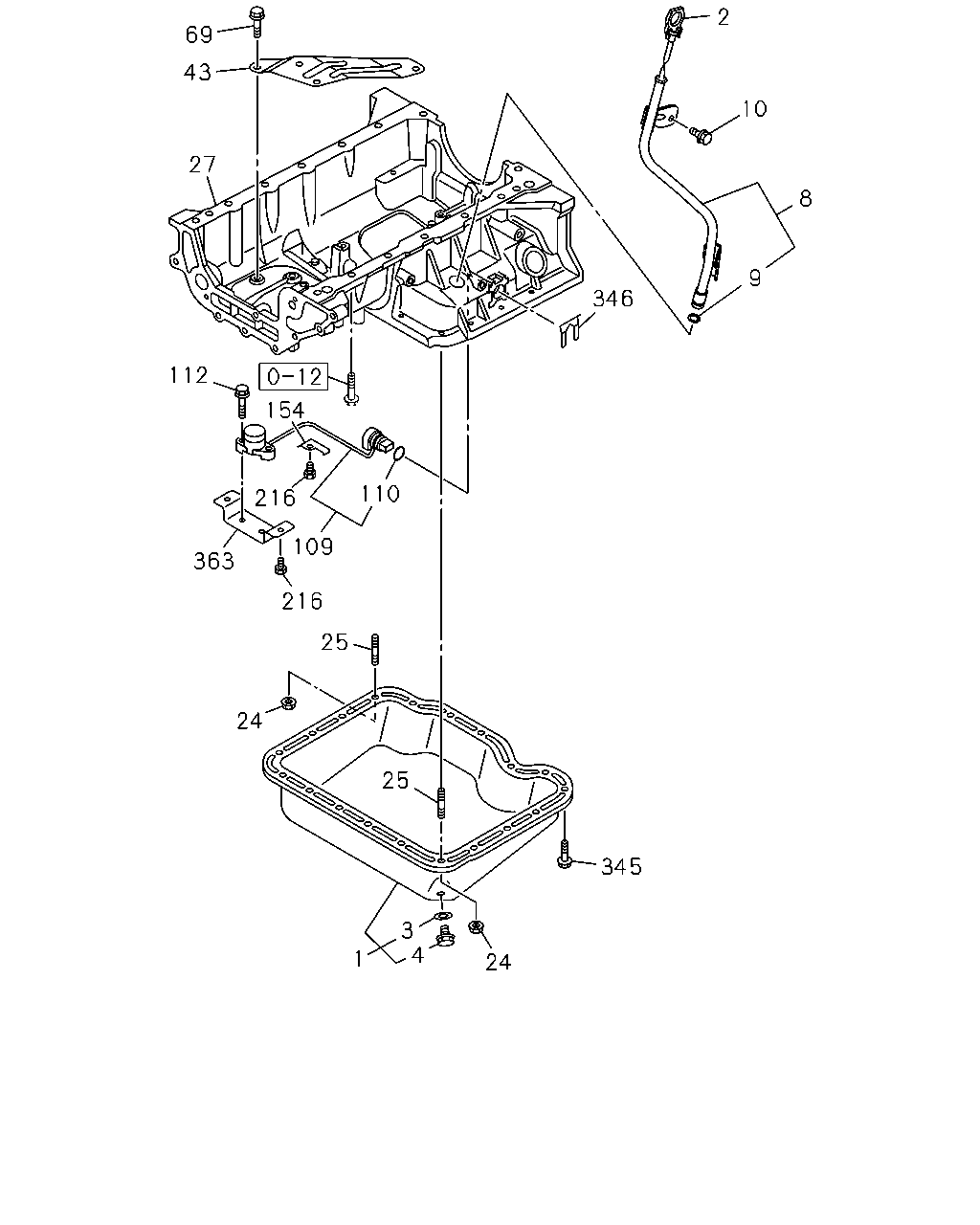

çizim 467014
69 43 27 112 154 216 363 109 216 25 24 25 345 3 1 4 24 110 346 9 8 10 2
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-98207-932-0 01 1 1502-
2 01.516 GAUGE; OIL LEVEL 8-98285-768-0 01 1 1502-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1502-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1502-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98074-744-2 01 1 1502-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 1502-
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1502-
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1502-
25 01.453 STUD; OIL PAN
00.349 M8X20 L=31 		8-97945-022-0 02 1 1502-
27 01.426 CRANKCASE 8-98202-045-2 01 1 1502-
43 01.780 PLATE; CRANKCASE
04.642 		8-98213-367-0 01 1 1502-
69 01.780 BOLT; PLATE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1502-
109 01.516 SWITCH; OIL LEVEL 8-97328-879-0 01 1 1502-
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 1502-
112 01.516 BOLT; SW,OIL LEVEL
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 1502-
154 01.428 BRACKET; CLIP,ENG HARNESS 8-97386-380-0 01 1 1502-
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 1502-
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X16 FLANGE 		0-28050-816-0 17 1 1502-
346 01.516 CLIP; OIL LEVEL SW
04.047 ID=19.2 		8-97211-011-0 01 1 1502-
363 01.516 BRACKET; OIL LEVEL SW 8-97381-486-0 01 1 1502-
