Isuzu WW
▶
BUSES
▶
LV
▶
11208 - LV434(LHD) EURO3
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#15581) — 57 parça
◀
[320A] NO.1 (13 parça)
[320A] NO.3 (16 parça)
[320A] NO.2 (28 parça)
▶
5
10
10
10
11
166
5
37
5
1
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48370-861-0
01
1
0910-
5
UNION; AIR TANK
(A) M22 & PT3/4 ELBOW
1-09650-277-0
01
1
0910-
5
UNION; AIR TANK
(B) M22 & PT3/8 ELBOW
1-09650-440-0
01
1
0910-
5
UNION; AIR TANK
(C) PT1/4 2WAY
1-09660-693-0
01
1
0910-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
08
1
0910-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
08
1
0910-
10
PLUG; AIR TANK
(A) PT3/8
9-09204-517-0
01
1
0910-
10
PLUG; AIR TANK
(B) PT1/4
9-99204-513-0
02
1
0910-
11
VALVE; SAFETY,AIR TANK
1-48320-012-2
01
1
0910-
37
BOLT; AIR TANK
M10X30 FLANGE
0-28651-030-0
04
1
0910-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) R1/4 & RC1/4 ELBOW
1-09660-501-0
04
1
0910-1005
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) PT1/4 2WAY
1-09660-693-0
04
1
1006-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 530KPA
1-48340-054-1
01
1
0910-

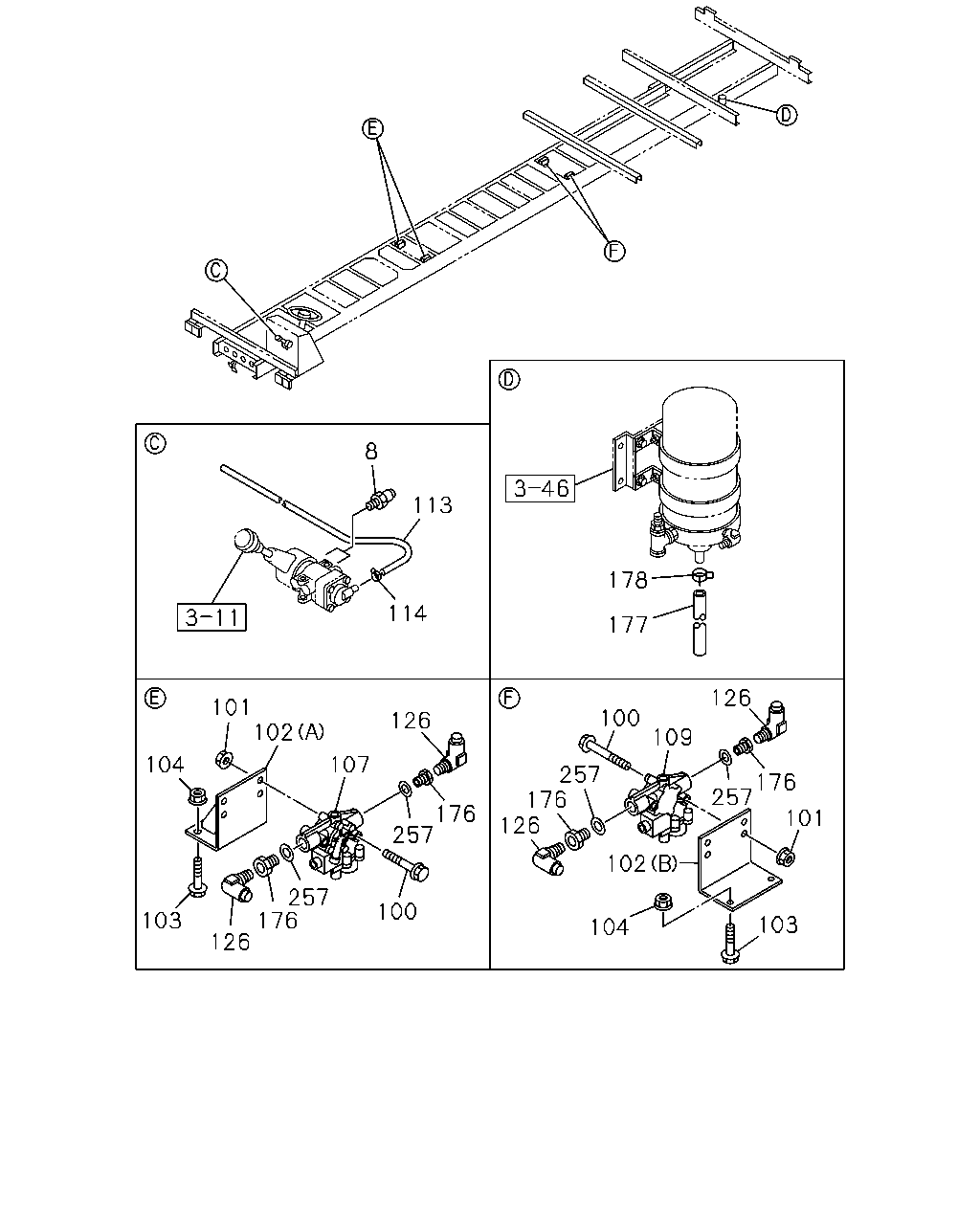

8
113
178
114
177
126
101
102
100
126
109
104
107
257
176
126
176
257
176
257
101
102
257
176
126
100
103
103
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CONNECTOR; AIR TANK
DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
0910-
100
BOLT; MODULATOR
M8X80 FLANGE
0-28050-880-0
08
1
0910-
101
NUT; MODULATOR
M8 FLANGE
0-91180-108-0
08
1
0910-
102
BRACKET; MODULATOR
(A)
1-47471-249-0
02
1
0910-
102
BRACKET; MODULATOR
(B)
1-47471-341-0
02
1
0910-
103
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
08
1
0910-
104
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0910-
107
MODULATOR; RR
1-48240-115-0
02
1
0910-
109
MODULATOR; FRT
1-48240-115-0
02
1
0910-
113
HOSE; VINYL,EXH
L=650 SERVICED BY L=10000
9-09914-701-0
01
1
0910-
114
CLAMP; HOSE
ID=14
1-09704-102-0
01
1
0910-
126
CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW
1-09660-959-0
08
1
0910-
176
ADAPTER
INNER PT3/8,OUTER M22
1-09650-494-1
08
1
0910-
177
HOSE; RUBBER,DRAIN
L=90
9-09712-638-0
01
1
0910-
178
CLIP; HOSE
ID=33.6
8-94362-518-0
01
1
0910-
257
GASKET; PLUG
ID=22.5
9-09571-422-0
08
1
0910-

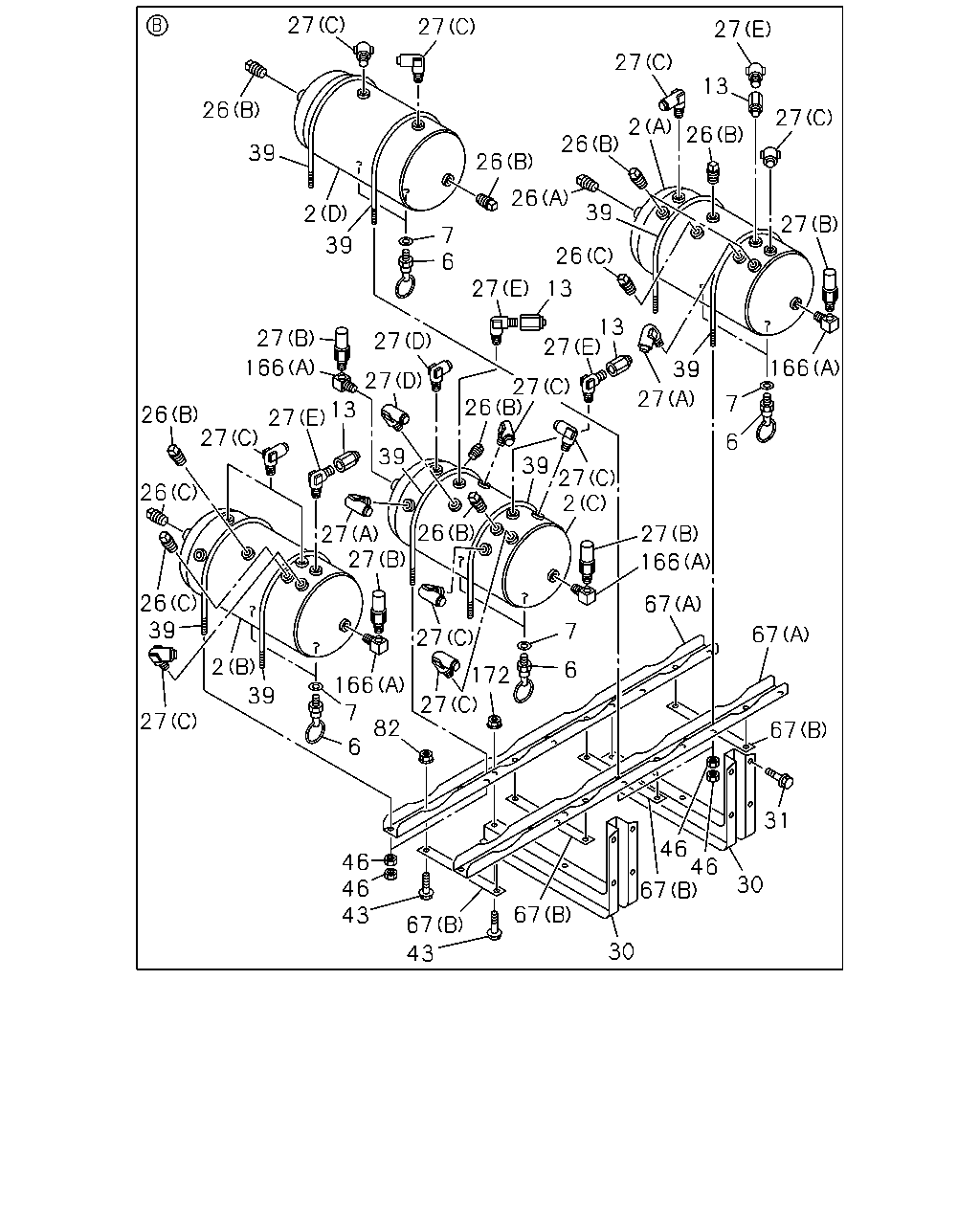

27
27
27
27
13
26
27
2
26
26
39
26
26
39
2
27
7
6
39
26
27
13
27
13
27
27
166
166
39
27
27
26
27
7
13
27
26
27
6
39
39
27
2
26
26
27
27
27
166
26
39
67
27
7
67
2
6
172
166
7
39
27
27
82
67
6
31
46
46
67
46
46
43
30
67
67
30
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
(A)
1-48370-353-0
01
1
0910-
2
TANK; AIR
(C)
1-48370-862-0
01
1
0910-
2
TANK; AIR
(D)
1-48370-863-1
01
1
0910-
2
TANK; AIR
(B)
1-48370-904-0
01
1
0910-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
08
1
0910-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
08
1
0910-
13
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
1-09660-877-0
04
1
0910-
26
PLUG; SUB AIR TANK
(A) PT3/4
9-09204-526-0
01
1
0910-
26
PLUG; SUB AIR TANK
(B) PT3/8
9-09204-517-0
08
1
0910-
26
PLUG; SUB AIR TANK
(C) PT1/4
9-99204-513-0
03
1
0910-
27
UNION; ELBOW,AIR TANK
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0910-
27
UNION; ELBOW,AIR TANK
(D) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
0910-
27
UNION; ELBOW,AIR TANK
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
11
1
0910-
27
UNION; ELBOW,AIR TANK
(B) 530KPA
1-48340-054-1
04
1
0910-
27
UNION; ELBOW,AIR TANK
(E) M20 & PT3/4 ELBOW
8-98067-083-1
04
1
0910-
30
BRACKET; AIR TANK,SUB
1-48317-900-0
02
1
0910-
31
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
08
1
0910-
39
U-BOLT; AIR TANK
1-48317-675-0
08
1
0910-
43
BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE
0-28650-820-0
08
1
0910-
43
BOLT; STAY,AIR TANK,MAIN
M12X25 FLANGE
0-28651-225-0
04
1
0910-
46
NUT; U-BOLT
M8
0-91110-508-0
32
1
0910-
67
STAY; SUB TANK
(A)
1-48316-070-0
02
1
0910-
67
STAY; SUB TANK
(B)
1-48316-071-0
04
1
0910-
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE
0-91180-108-0
08
1
0910-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) R1/4 & RC1/4 ELBOW
1-09660-501-0
04
1
0910-1005
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) PT1/4 2WAY
1-09660-693-0
04
1
1006-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 530KPA
1-48340-054-1
01
1
0910-
172
NUT; STAY,AIR TANK,MAIN
M12 FLANGE
0-91180-212-0
04
1
0910-
