0-81 — GOVERNOR; INJECTION PUMP (#1558) — 180 parça

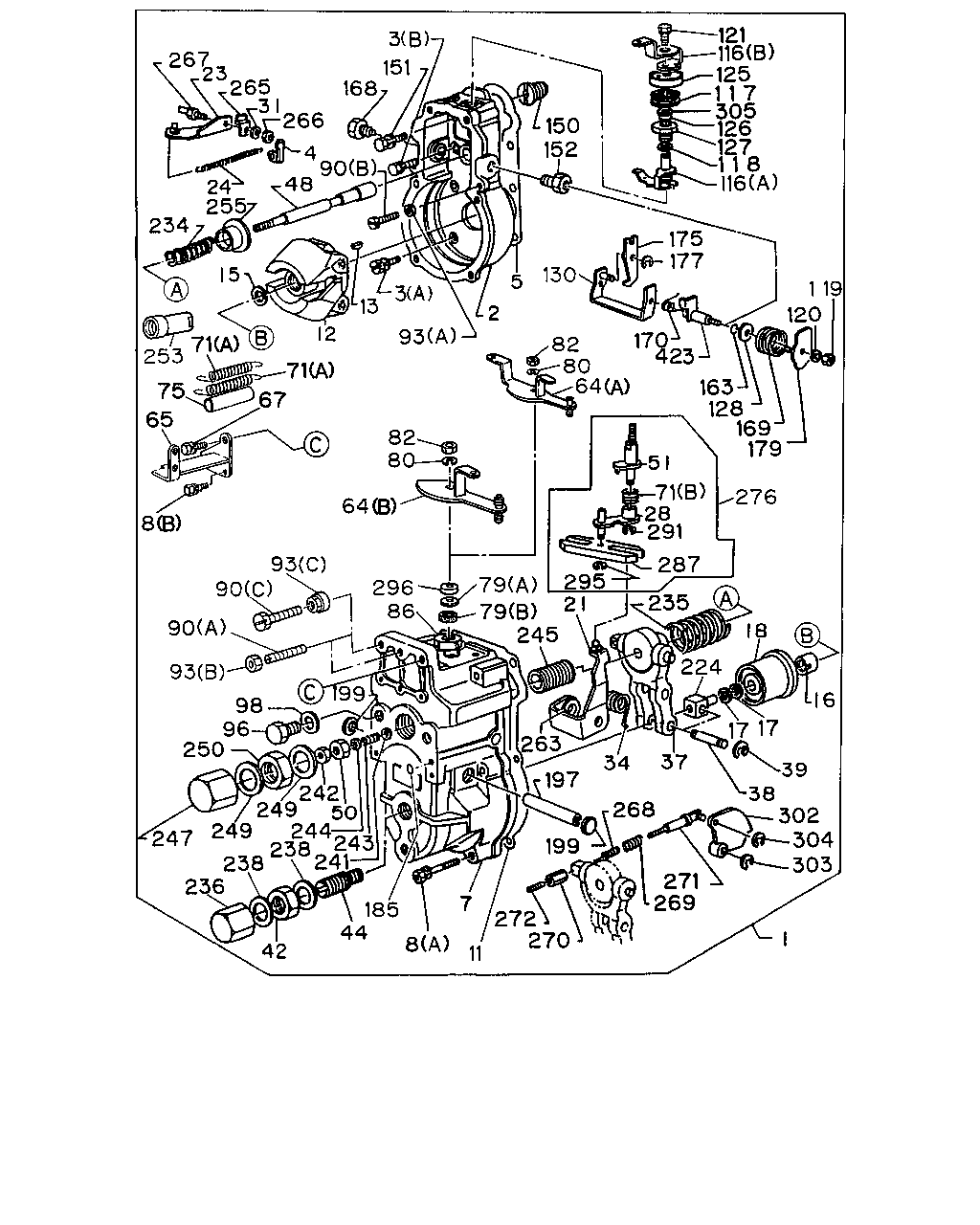

çizim 27871
1 303 269 304 302 38 39 17 17 16 18 224 37 34 268 271 199 270 272 11 7 8 185 44 42 197 263 50 243 241 238 238 236 247 249 250 249 244 242 96 98 93 90 90 199 93 86 296 245 79 79 21 235 295 287 291 28 276 71 51 64 80 82 8 65 75 253 71 67 71 12 13 3 15 93 2 5 130 82 80 64 179 169 128 163 423 170 120 119 177 175 116 118 127 126 305 117 121 116 125 152 150 3 168 151 90 48 4 266 31 265 23 267 24 234 255
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: D = 1-15601-907-4 		1-15720-849-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: E = 1-15601-910-4 		1-15720-956-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: F = 1-15601-912-4 		1-15770-167-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: C = 1-15601-906-4 		1-15770-168-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: B = 1-15601-904-4 		1-15770-169-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15601-764-4 		1-15770-177-0 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15721-030-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
(A), M6X15 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-027-0 05 1 -
3 BOLT; GOV HSG,INJ PUMP
(B), M6X16 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-071-0 01 1 -
4 PLATE; START SPRING,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		8-94472-265-0 01 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-000-1 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: C = 1-15601-906-4, F = 1-15601-912-4 		1-15721-119-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4, E = 1-15601-910-4 		5-15721-041-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: E = 1-15601-910-4 		1-15719-005-0 02 1 -
8 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-033-0 07 1 -
8 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4 		5-15729-096-0 02 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-020-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81321-325-0 01 1 -
13 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15619-049-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-034-0 01 1 -
16 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-086-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-891-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-892-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-893-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-286-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-287-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-088-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-551-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-552-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-553-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-016-0 01 1 -
21 LEVER ASM; GUIDE,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-010-0 01 1 -
23 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-011-0 01 1 -
24 SPRING; START,GOV,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-044-0 01 1 -
28 LEVER; SUPPORTING,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-012-0 01 1 -
31 WASHER; LK,CONT RACK,GOV
ID=5 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-83539-044-0 01 1 -
31 WASHER; LK,CONT RACK,GOV
ID=5.1 ASM PART: E = 1-15601-910-4 		9-09150-505-0 01 1 -
34 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-039-0 01 1 -
37 LEVER ASM; TENSION,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-019-0 01 1 -
38 PIN; TENSION LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-032-0 01 1 -
39 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-88410-201-0 02 1 -
42 NUT; SPRING CAPSULE,IDLE CONT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-285-0 01 1 -
44 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15723-216-0 01 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-674-0 01 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		8-94172-279-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-675-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		5-15729-059-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: E = 1-15601-910-4 		1-15729-229-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-821-0 01 1 -
64 LEVER; LOAD CONT,GOV
(A) ASM PART: A = 1-15601-764-4 		1-15725-304-0 01 1 -
64 LEVER; LOAD CONT,GOV
(B) ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-084-0 01 1 -
65 BRACKET; RETURN SPRING,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4, E = 1-15601-910-4 		5-15729-193-0 01 1 -
65 BRACKET; RETURN SPRING,GOV
ASM PART: C = 1-15601-906-4, F = 1-15601-912-4 		5-15729-548-0 01 1 -
67 BOLT; SPRING BRKT,GOV
M8X16 W/LK WASHER ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4, E = 1-15601-910-4 		9-01900-816-0 01 1 -
71 SPRING; CONT LEVER,GOV
(B) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-034-0 01 1 -
71 SPRING; CONT LEVER,GOV
(A) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-111-0 02 1 -
75 TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-074-0 02 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.95 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-076-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.20 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-077-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.25 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-078-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.30 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-079-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.35 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-080-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.40 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-081-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.50 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-082-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.70 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-617-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.90 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-618-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.80 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-619-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-822-0 01 1 -
79 SHIM; LEVER SETTING,GOV
(A), T=0.60 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-896-0 AR 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=8.2 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-09150-608-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-236-0 01 1 -
86 BUSHING; CONT SHAFT,GOV COVER
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-192-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(C), M8X62 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4 		1-15729-642-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X65 ASM PART: C = 1-15601-906-4 		1-15729-761-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X33 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-799-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X34 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-800-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X35 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-801-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X36 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-802-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X37 ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-803-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X31 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-842-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X32 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-843-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-044-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=62 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-123-0 02 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=62 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		5-15729-123-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-643-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		1-15729-807-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-081-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		9-81325-237-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-237-0 02 1 -
96 PLUG; LEVER SHAFT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-050-0 01 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-022-0 01 1 -
116 LEVER; ENG STOP,GOV
(B) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15725-368-0 01 1 -
116 LEVER; ENG STOP,GOV
(A) ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-063-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: E = 1-15601-910-4 		1-15723-233-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		5-15723-233-0 01 1 -
118 COLLAR; CONT SHAFT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-181-0 01 1 -
119 NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-236-0 01 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
ID=8.2 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-09150-608-0 01 1 -
121 BOLT; ENG STOP LEVER,GOV
M6X16 W/LK WASHER ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-01900-616-0 01 1 -
125 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-210-0 01 1 -
126 GASKET; STOP LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81391-906-0 01 1 -
127 BUSHING; CONT SHAFT,GOV HSG
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-429-0 01 1 -
128 SHIM; CONT SHAFT,GOV
T=0.20 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-294-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.25 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-295-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.30 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-296-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.35 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-297-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.40 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-298-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.50 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-299-0 AR 1 -
130 LEVER; CONT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, D = 1-15601-907-4, E = 1-15601-910-4 		5-15725-007-0 01 1 -
130 LEVER; CONT,GOV
ASM PART: C = 1-15601-906-4, F = 1-15601-912-4 		5-15725-155-0 01 1 -
150 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81315-065-0 01 1 -
151 BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-01900-818-0 01 1 -
152 BUSHING; GOV SHAFT,HSG,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-429-0 01 1 -
163 GASKET; CONT SHAFT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81391-906-0 01 1 -
168 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-029-0 01 1 -
169 SPRING; LEVER SET,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-032-0 01 1 -
170 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-033-0 01 1 -
175 LEVER; GOV,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-57250-050-1 01 1 -
175 LEVER; GOV,INJ PUMP
ASM PART: E = 1-15601-910-4 		5-15725-005-0 01 1 -
177 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-445-0 01 1 -
179 LEVER; SPD ADJ,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-062-0 01 1 -
185 GASKET; BUSHING,GOV COVER
ASM PART: C = 1-15601-906-4 		1-15729-421-0 01 1 -
197 SHAFT; LEVER,GOV COVER
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-008-0 01 1 -
199 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-076-0 02 1 -
224 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-036-0 01 1 -
234 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15723-215-0 01 1 -
235 SPRING; OUTER,GOV,INJ PUMP
ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15723-214-0 01 1 -
235 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 1-15601-764-4 		1-15723-230-0 01 1 -
236 CAP; SPRING CAPSULE,IDLE CONT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-212-0 01 1 -
238 GASKET; SPRING CAPSULE CAP,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-211-0 02 1 -
241 SEAT; GOV SHAFT
ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-119-0 01 1 -
242 NUT; LK,GOV SHAFT
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-067-0 01 1 -
243 SPRING; GOV SHAFT
ASM PART: E = 1-15601-910-4 		1-15723-196-0 01 1 -
243 SPRING; GOV SHAFT
ASM PART: F = 1-15601-912-4 		1-15723-244-0 01 1 -
244 SHIM; GOV SHAFT
T=0.10 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-170-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.15 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-171-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.20 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-172-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.25 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-173-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.30 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-174-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.35 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-175-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.40 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-176-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.45 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-177-0 AR 1 -
244 SHIM; GOV SHAFT
T=0.50 ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-178-0 AR 1 -
245 SCREW; GUIDE,GOV SHAFT,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4 		5-15729-040-0 01 1 -
245 SCREW; GUIDE,GOV SHAFT,INJ PUMP
ASM PART: E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-118-0 01 1 -
247 CAP; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-041-0 01 1 -
249 GASKET; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-021-0 02 1 -
250 NUT; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-350-0 01 1 -
253 LIMITTER; GOV CONT
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-435-0 01 1 -
255 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-042-0 01 1 -
263 COLLAR; GUIDE LEVER,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-031-0 02 1 -
265 PLATE; CONN LINK,CONT RACK,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-183-0 01 1 -
266 NUT; PIN TO LINK,CONT RACK,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-069-0 01 1 -
267 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-182-0 01 1 -
268 SPRING; ROD INNER,TORQUE CAM,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-056-0 01 1 -
269 SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15723-057-0 01 1 -
270 NUT; TORQUE ROD LK,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-051-0 01 1 -
271 ROD; TORQUE CAM,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15725-009-0 01 1 -
272 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-030-0 01 1 -
276 LEVER ASM; LOAD CONT,GOV
ASM PART: E = 1-15601-910-4 		1-15725-377-0 01 1 -
276 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15725-490-0 01 1 -
287 LEVER; GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15725-542-0 01 1 -
291 RING; SNAP,CONT SHAFT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-445-0 01 1 -
295 RING; SNAP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-81325-445-0 01 1 -
296 SEAL; OIL,CONT SHAFT,GOV
ASM PART: E = 1-15601-910-4 		1-15729-072-0 01 1 -
296 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-875-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: E = 1-15601-910-4 		1-15729-605-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: D = 1-15601-907-4 		1-15729-606-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: A = 1-15601-764-4 		1-15729-650-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: B = 1-15601-904-4, C = 1-15601-906-4, F = 1-15601-912-4 		5-15729-605-0 01 1 -
303 RING; SNAP,CAM PLATE,GOV
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		5-15729-023-0 01 1 -
304 RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		9-09185-404-0 01 1 -
305 SHIM; STOP LEVER,GOV
T=0.20 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-294-0 AR 1 -
305 SHIM; STOP LEVER,GOV
T=0.25 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-295-0 AR 1 -
305 SHIM; STOP LEVER,GOV
T=0.30 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-296-0 AR 1 -
305 SHIM; STOP LEVER,GOV
T=0.35 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-297-0 AR 1 -
305 SHIM; STOP LEVER,GOV
T=0.40 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-298-0 AR 1 -
305 SHIM; STOP LEVER,GOV
T=0.50 ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, E = 1-15601-910-4, F = 1-15601-912-4 		1-15729-299-0 AR 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 1-15601-764-4, B = 1-15601-904-4, C = 1-15601-906-4, D = 1-15601-907-4, F = 1-15601-912-4 		1-15729-820-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: E = 1-15601-910-4 		8-94171-130-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
