◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11208 - LV434(LHD) EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#15570) — 86 parça

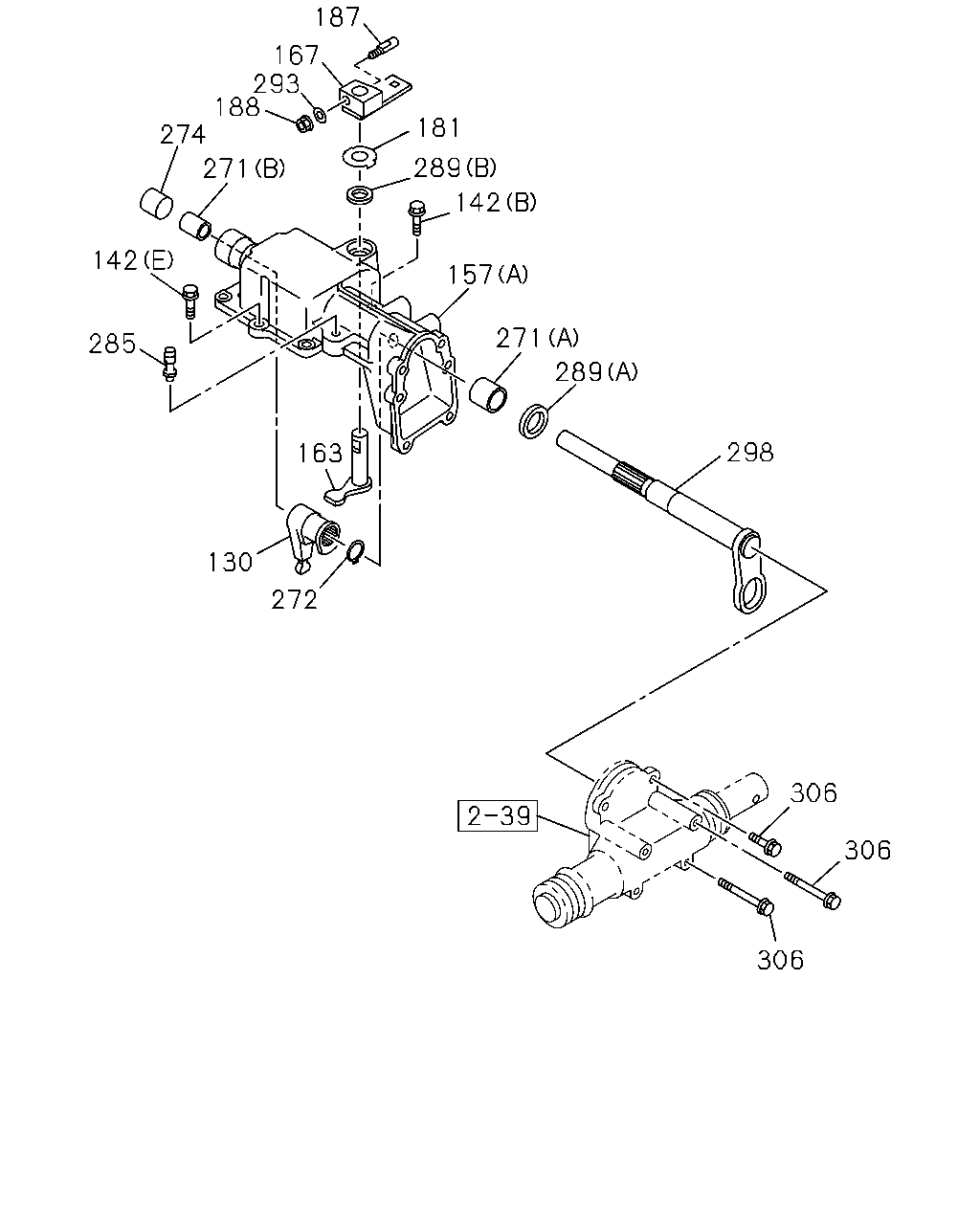

çizim 130032
187 167 293 188 274 181 289 271 142 142 157 271 285 289 298 163 130 272 306 306 306
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0910-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0910-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0910-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0910-
142 BOLT; QUAD BOX
(F) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0910-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0910-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0910-
157 BOX; QUAD,TRANS
(B) 		1-33541-367-2 01 1 0910-
157 BOX; QUAD,TRANS
(A) 		1-33541-388-1 01 1 0910-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0910-
167 LEVER; SELECT,EXTERNAL 1-33521-150-1 01 1 0910-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0910-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0910-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0910-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0910-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0910-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0910-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0910-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0910-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0910-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0910-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0910-
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0910-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0910-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0910-

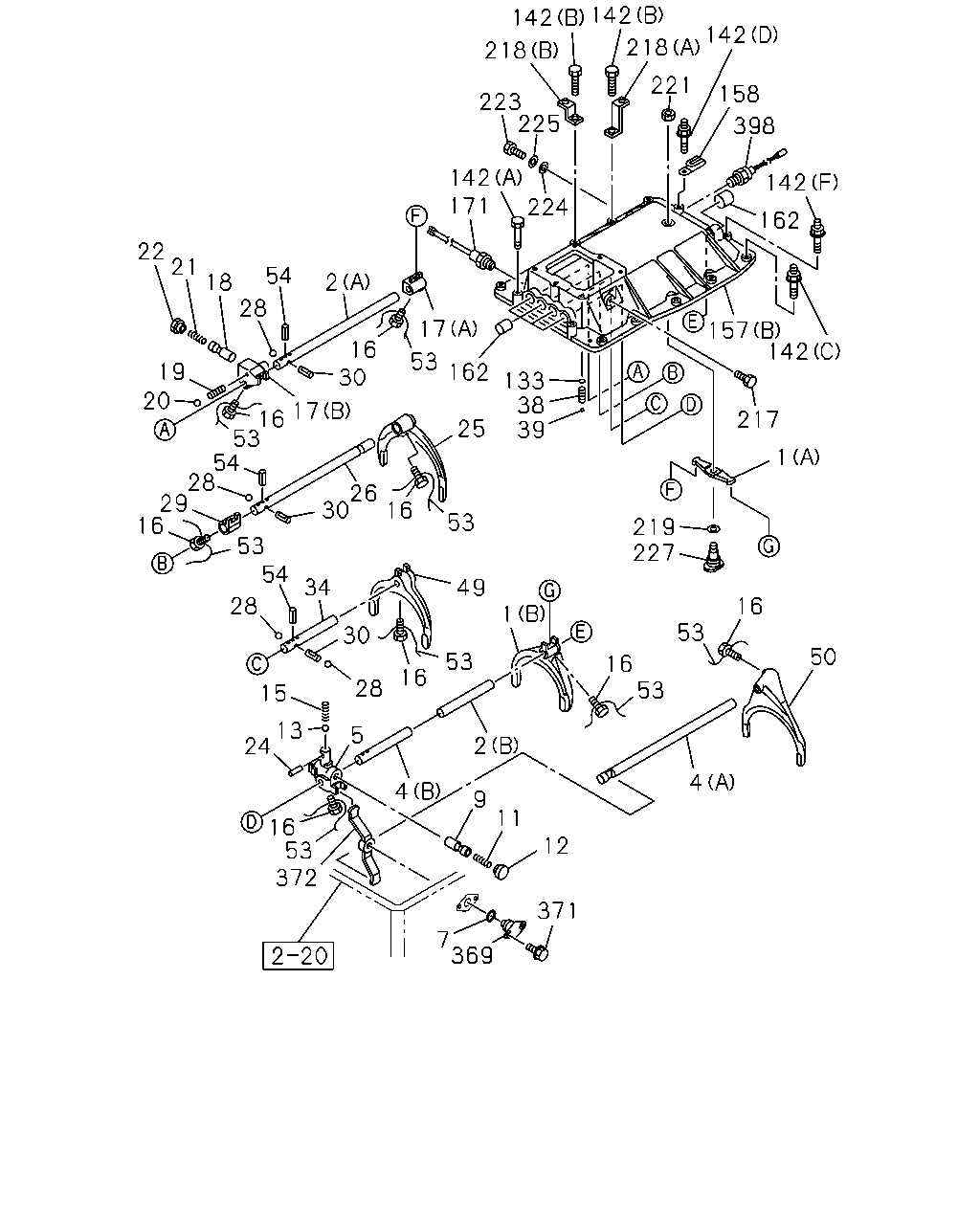

çizim 130039
142 142 142 218 218 221 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 142 16 30 53 19 162 133 38 39 20 17 16 53 54 28 29 16 217 25 1 26 30 16 53 219 227 53 54 34 49 1 28 16 53 30 50 53 16 53 16 28 15 13 24 5 2 4 9 4 11 16 53 372 12 371 7 369
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0910-
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0910-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0910-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0910-
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0910-
4 ROD; SHIFT,6TH
(A) 		1-33531-406-1 01 1 0910-
5 BLOCK; SHIFT,6TH 1-33511-374-2 01 1 0910-
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0910-
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0910-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0910-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0910-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0910-
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0910-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0910-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0910-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0910-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0910-
19 SPRING; COIL COMP 1-09580-438-0 01 1 0910-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0910-
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0910-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0910-
24 PIN; SPR,6TH & 7TH 1-09748-006-0 01 1 0910-
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0910-
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0910-
28 BALL; INTER LK 9-00097-501-0 04 1 0910-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0910-
30 PIN; INTER LK 9-33534-003-0 03 1 0910-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 0910-
38 SPRING; DETENT 1-09580-379-0 04 1 0910-
39 BALL; DETENT 1-09843-012-0 04 1 0910-
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0910-
50 ARM; SHIFT,6TH 1-33511-340-1 01 1 0910-
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0910-
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0910-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0910-
133 SEAT; SPR 1-33549-072-0 04 1 0910-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0910-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0910-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0910-
142 BOLT; QUAD BOX
(F) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0910-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0910-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0910-
157 BOX; QUAD,TRANS
(B) 		1-33541-367-2 01 1 0910-
157 BOX; QUAD,TRANS
(A) 		1-33541-388-1 01 1 0910-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0910-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0910-
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0910-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
217 SCREW; SET,6TH SHIFT BLOCK 1-09070-091-0 01 1 0910-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0910-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0910-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0910-
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0910-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0910-
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0910-
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0910-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0910-
369 SPINDLE; 6TH,SHIFT ARM 1-33519-008-1 01 1 0910-
371 BOLT; 6 & 7TH SPINDLE
M14X20 		1-09044-078-0 02 1 0910-
372 LEVER; RELAY,6TH 9-33511-402-1 01 1 0910-
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0910-
