2-05 — CLUTCH PIPING (#15563) — 60 parça

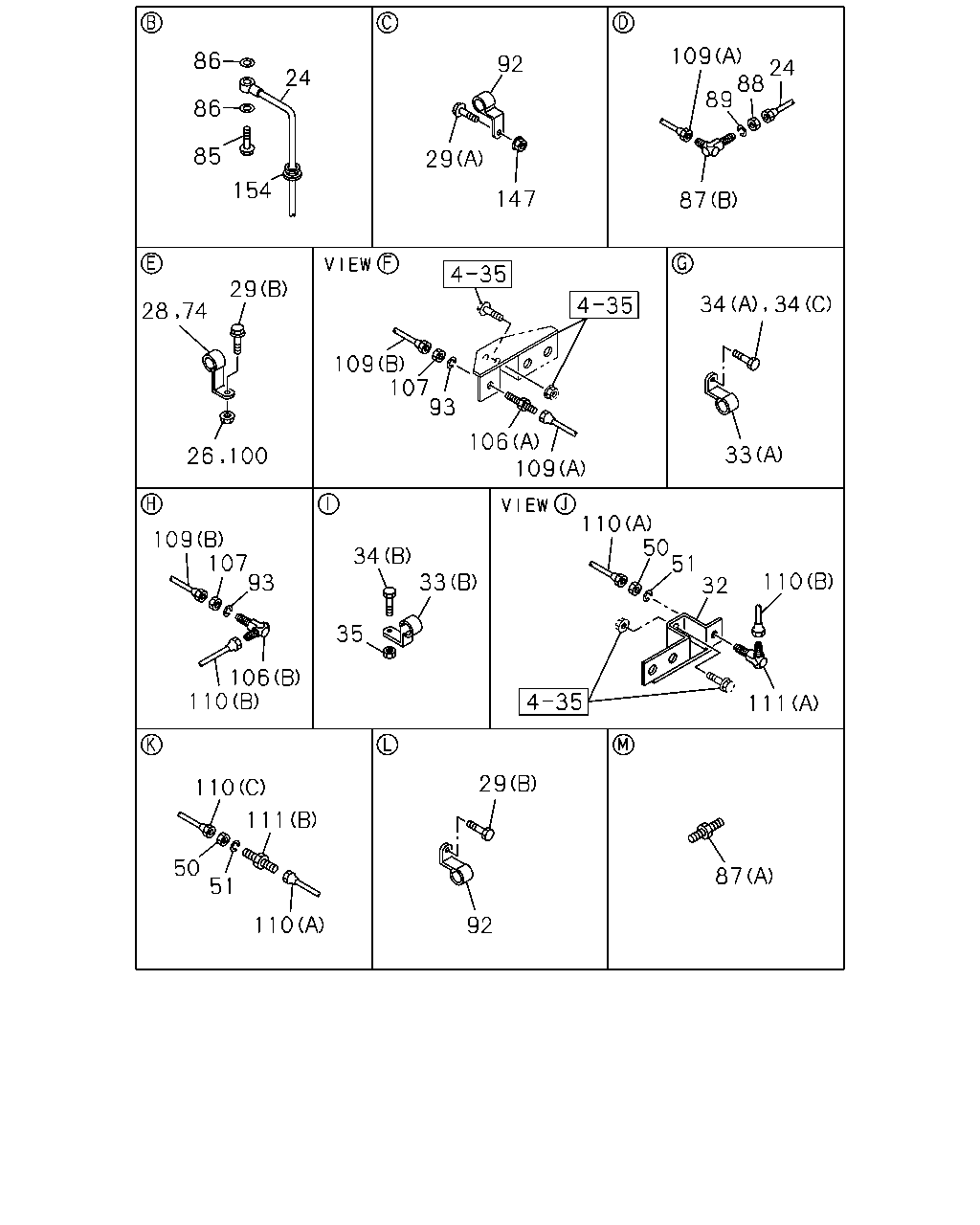

109 24 88 89 86 92 24 86 85 29 154 147 87 29 34 34 109 107 93 106 109 33 110 50 51 32 109 107 93 34 33 110 35 106 110 111 29 110 111 50 87 51 110 92 28 74 26 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0910-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0910-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0910-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0910-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0910-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0910-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	05	1	0910-
32	BRACKET; CLIP OIL PIPE	8-98109-426-0	01	1	0910-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0910-
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	02	1	0910-
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28050-820-0	02	1	0910-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0910-
34	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0910-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0910-
50	NUT; UNION M14	0-91111-514-0	02	1	0910-
51	WASHER; LK ID=14.2	0-91510-814-0	02	1	0910-
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0910-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0910-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0910-
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0910-
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0910-
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0910-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0910-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0910-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0910-
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	02	1	0910-
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	0910-
106	UNION; OIL PIPE (A) M14	0-92113-308-0	01	1	0910-
106	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0910-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	02	1	0910-
109	PIPE; AIR,UNION TO UNION (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0910-
109	PIPE; AIR,UNION TO UNION (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0910-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0910-
111	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	0910-
111	UNION; OIL PIPE (A) M14	0-92125-108-0	01	1	0910-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0910-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0910-

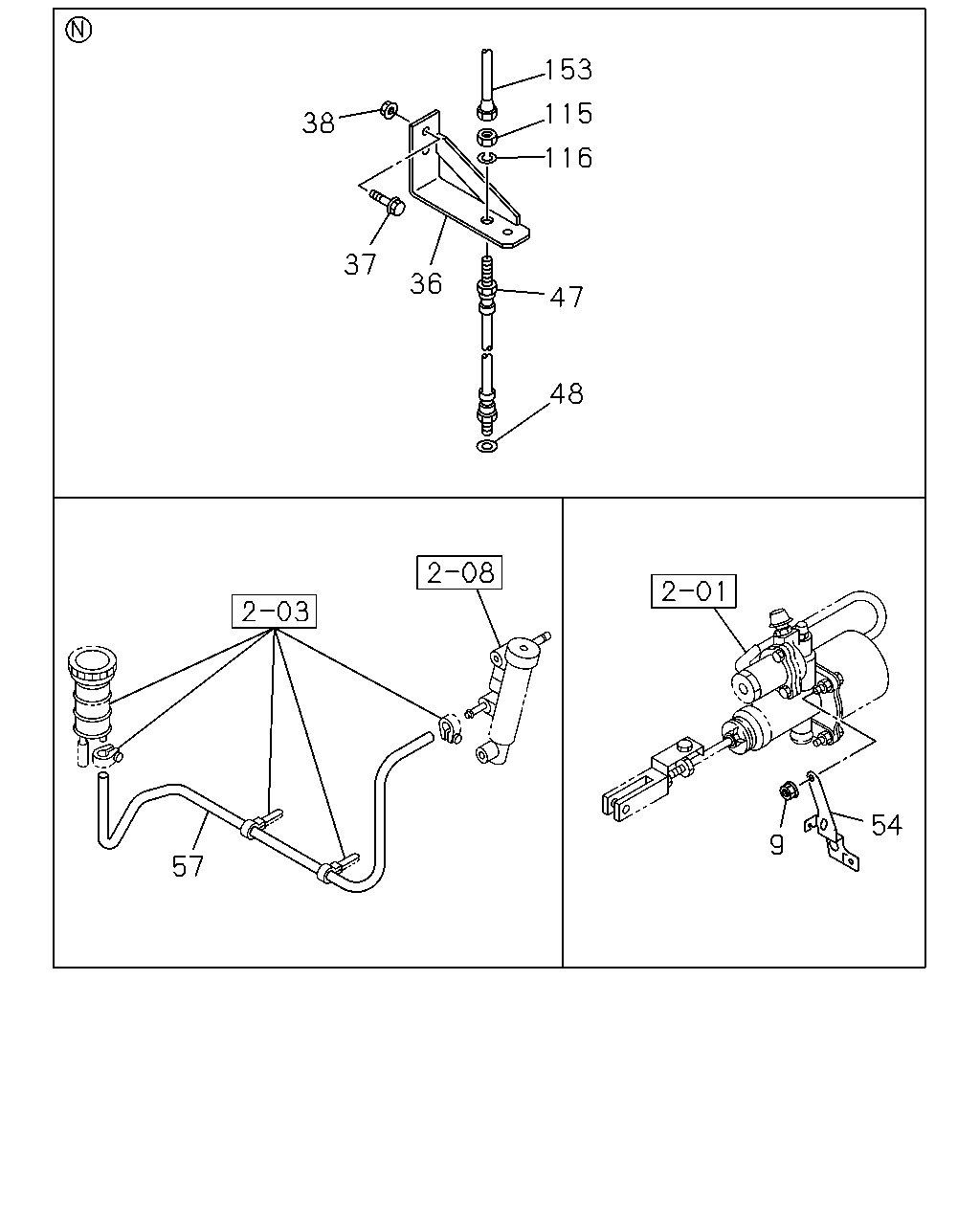

153 115 38 116 37 36 47 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0910-
36	BRACKET; CLIP	1-47478-929-0	01	1	0910-
37	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0910-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0910-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0910-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0910-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0910-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0910-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0910-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0910-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0910-

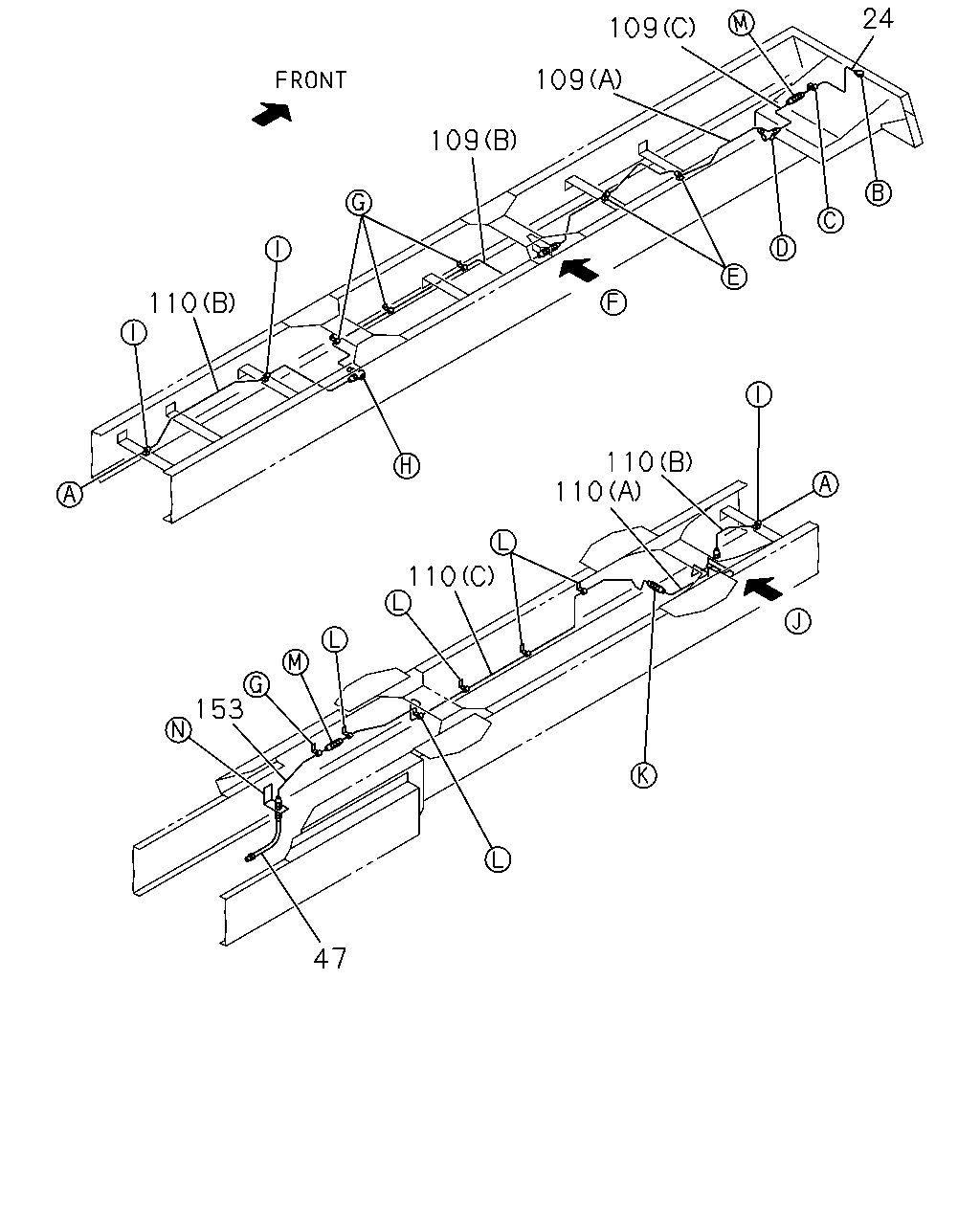

24 109 109 109 110 110 110 110 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0910-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0910-
109	PIPE; AIR,UNION TO UNION (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0910-
109	PIPE; AIR,UNION TO UNION (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0910-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0910-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0910-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0910-
