Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11046 - CYZ LHD EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶

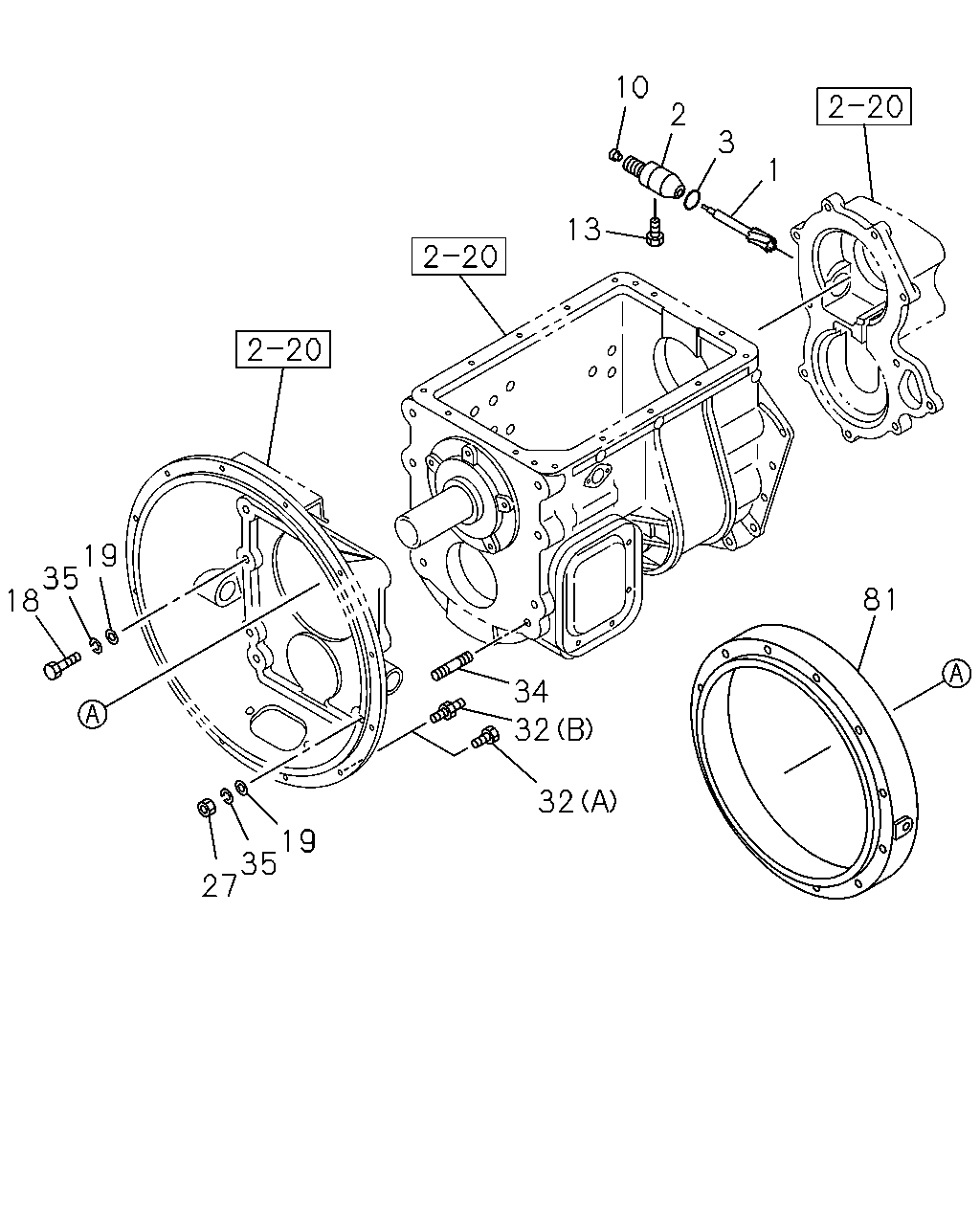

2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#15556) — 14 parça
10
2
3
1
13
19
35
18
27
35
19
32
32
34
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0611-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0611-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0611-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0611-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0611-0805
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0806-
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50651-650-0
06
1
0611-
19
WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30
0-91610-516-0
02
1
0611-
27
NUT; CLU HSG TO TRANS
M16
0-91110-516-0
02
1
0611-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE
0-28151-270-0
11
1
0611-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
01
1
0611-
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0611-
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
0-91510-516-0
02
1
0611-
81
SPACER
1-31119-017-0
01
1
0611-
