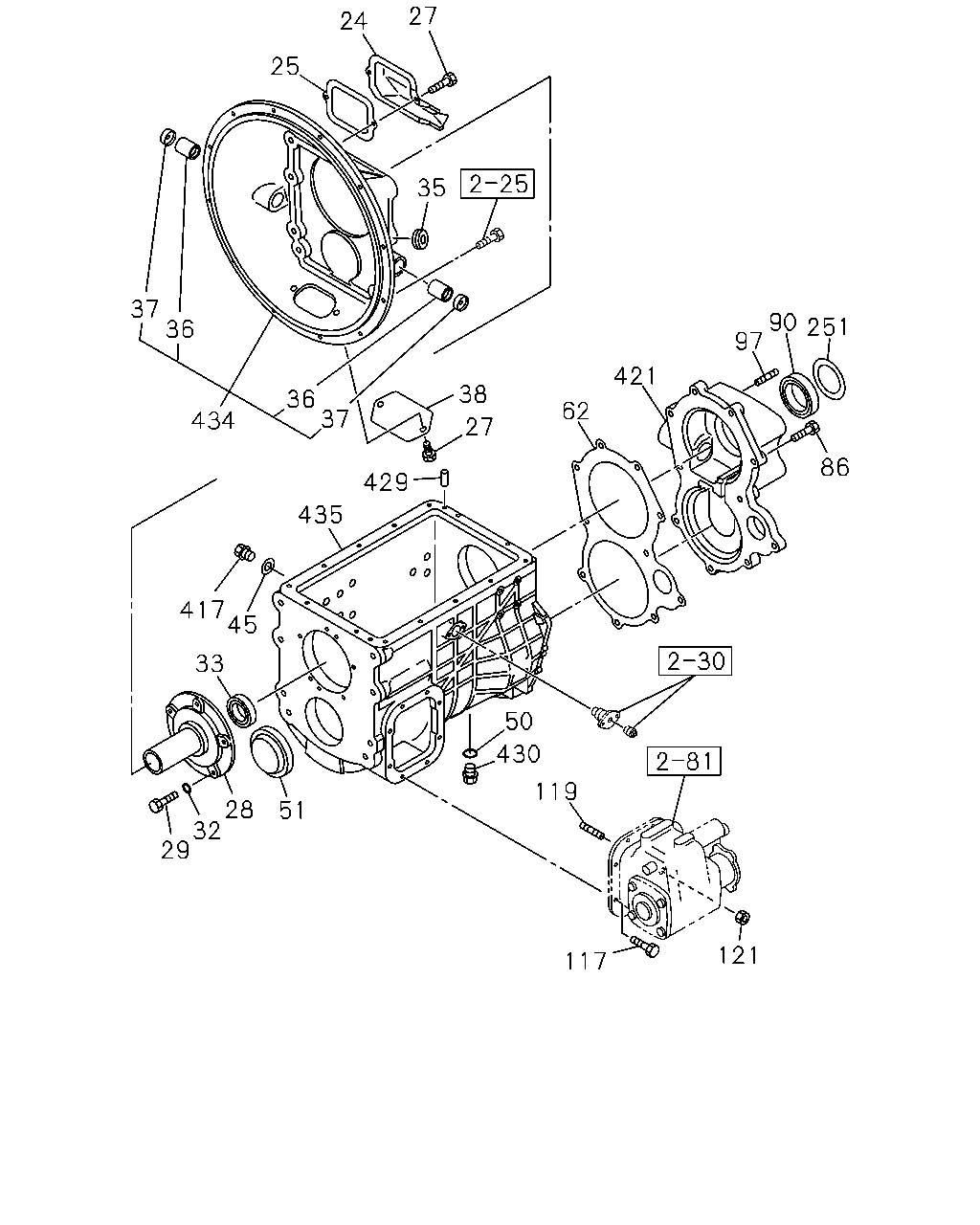

2-20 — MANUAL TRANSMISSION ASM AND CASE (#15555) — 73 parça

27 24 25 35 37 36 90 251 97 421 38 36 37 62 434 27 86 429 435 417 45 33 50 430 119 28 32 29 51 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0611-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0611-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0611-
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0611-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0611-0805
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	0806-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0611-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0611-
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0611-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0611-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0611-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0611-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0611-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-026-0	01	1	0611-
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	0611-
86	BOLT; RR COVER M14X20	1-09044-078-0	01	1	0611-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0611-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0611-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	0611-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	0611-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0611-
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0611-1204
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0611-
421	COVER; RR,TRANS	1-33131-188-2	01	1	0611-
429	PIN; STRAIGHT OD=8 L=16	9-08160-816-0	02	1	0611-1203
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	1204-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0611-
434	HOUSING; CLU	1-31110-198-1	01	1	0611-
435	CASE; TRANS	1-33111-335-0	01	1	0611-

329 245 245 245 228 405 404 245 404 227 263 263 262 265 270 279 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

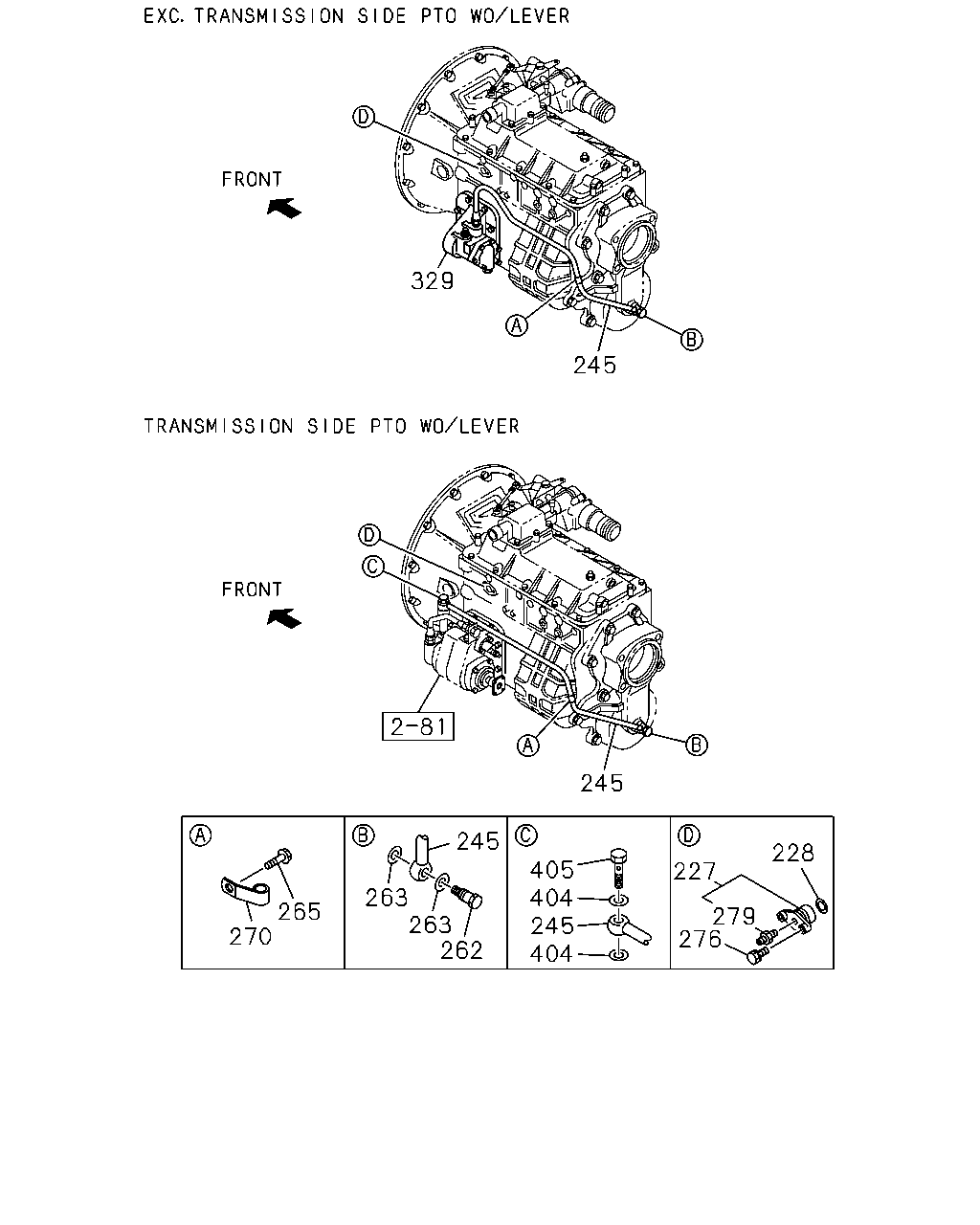

227	ADAPTER; NOZZLE	1-33119-185-0	01	1	0611-
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	0611-
245	PIPE; OIL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-49164-861-0	01	1	0611-
245	PIPE; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-49164-882-0	01	1	0611-
262	STRAINER; OIL PUMP	1-34159-039-1	01	1	0611-
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T). ID=24.2	1-09630-090-0	02	1	0611-
265	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0611-
270	CLIP; OIL PIPE	1-09701-117-0	01	1	0611-
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	0611-
279	CONNECTOR; INL PIPE R1/4 & M16	0-92306-008-0	01	1	0611-
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	0611-
404	GASKET; OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=24.2	1-09630-090-0	02	1	0611-
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-132-1	01	1	0611-1404
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-175-2	01	1	1405-

444 329 268 329 264 477 478 479 479 467 466 477 478 469 468 465 474 476 475 473 471 472 470 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

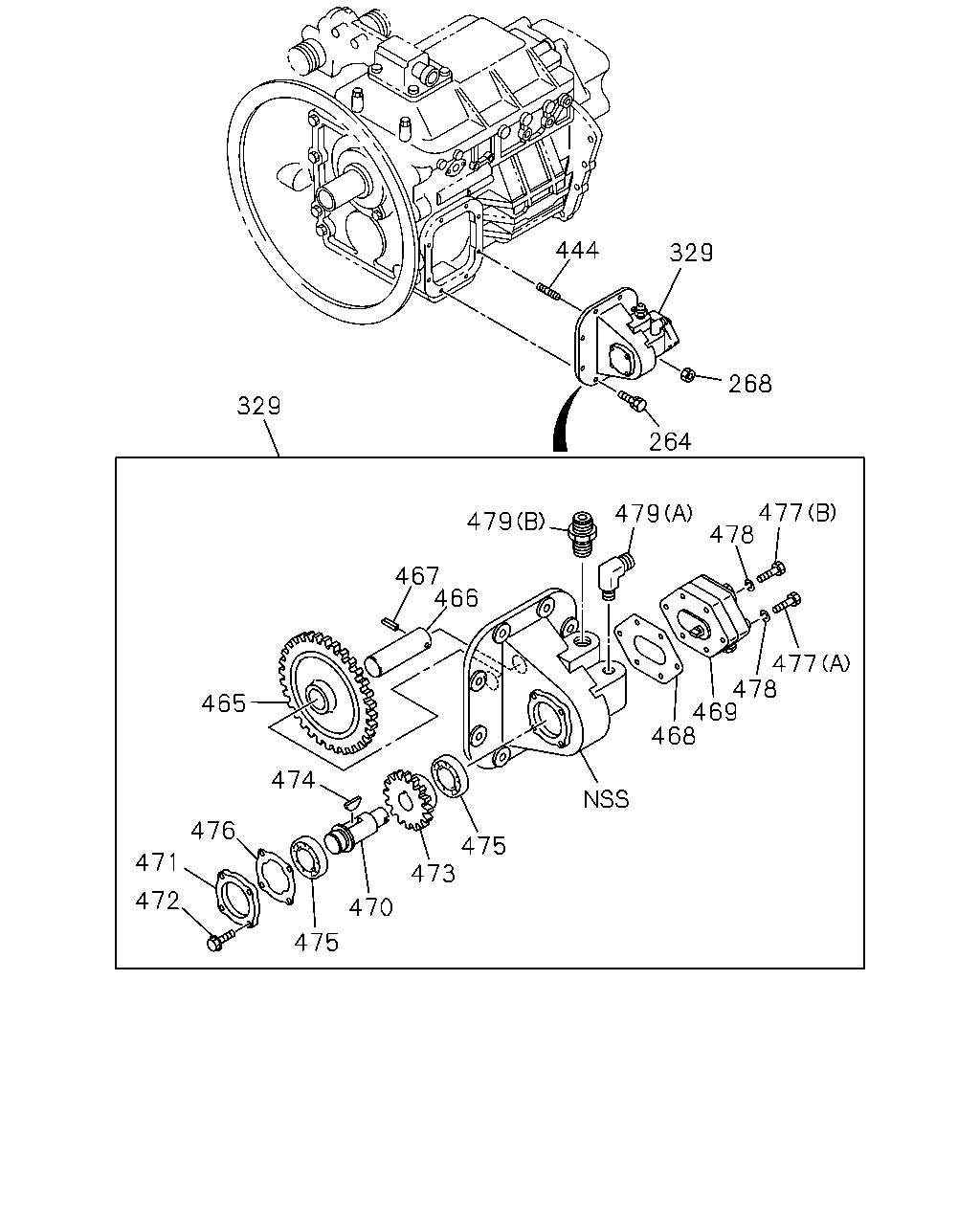

264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	0611-
268	NUT EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0611-
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	0611-
444	STUD; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0611-
465	GEAR; IDLE,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=34	1-34159-073-1	01	1	0611-
466	SHAFT; IDLE GEAR,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-072-0	01	1	0611-
467	PIN; SPRING,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0611-
468	GASKET; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34142-027-0	01	1	0611-
469	PUMP; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-049-0	01	1	0611-
470	SHAFT; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-043-0	01	1	0611-
471	COVER; FRT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-042-0	01	1	0611-
472	BOLT; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28080-816-0	04	1	0611-1208
472	BOLT; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28050-816-0	04	1	1209-
473	GEAR; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=15	1-34152-011-0	01	1	0611-
474	KEY; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-08055-628-0	01	1	0611-
475	BEARING; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-044-0	02	1	0611-
476	GASKET; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-045-0	01	1	0611-
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50	0-10805-850-0	02	1	0611-1208
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50 FLANGE	0-28050-850-0	02	1	1209-
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70	0-10805-870-0	02	1	0611-1208
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70 FLANGE	0-28050-870-0	02	1	1209-
478	WASHER; LK,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2	9-09150-508-0	04	1	0611-1208
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-518-0	01	1	0611-1310
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-538-0	01	1	1311-
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M22 & PT1/2 FLARE	9-09231-815-1	01	1	0611-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

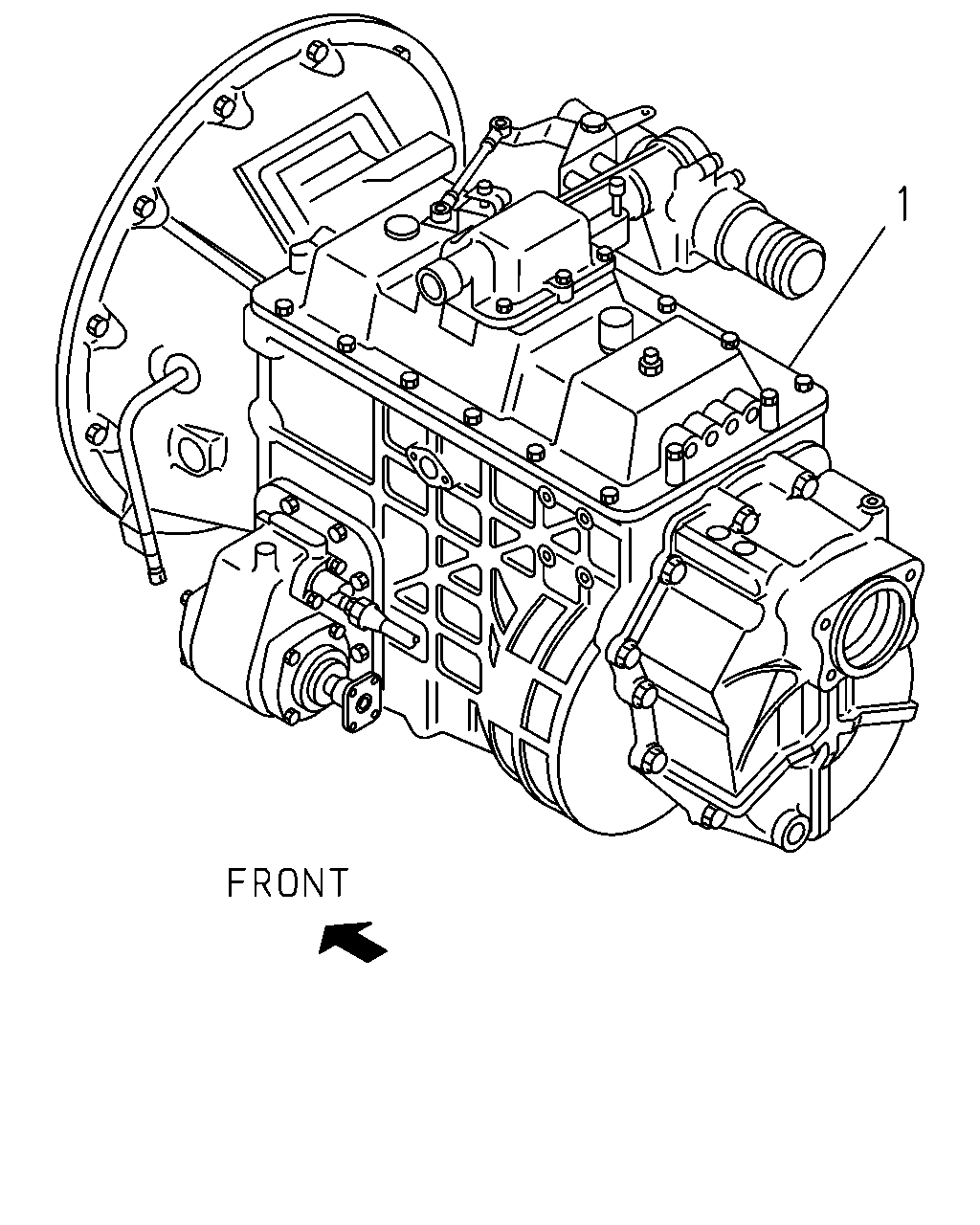

	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-985-0	01	1	0611-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-985-0	01	1	0611-
