2-05 — CLUTCH PIPING (#15551) — 89 parça

29 31 32 30 28 26 33 29 29 28 34 25 106 33 35 44 45 46 42 49 115 116 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (B) L=50	1-47475-299-2	02	1	0611-
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0611-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0611-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0611-
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0611-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0611-
30	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0611-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0611-0904
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0611-
32	BRACKET; CLIP OIL PIPE	1-47479-482-0	01	1	0611-
33	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0611-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0611-0704
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0705-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0611-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0705-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0611-0704
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0611-0704
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0705-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0611-0704
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0705-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0611-
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-203-0	01	1	0611-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0611-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0611-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0611-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0611-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER W/TRANS FRT PTO L=293	1-49117-734-0	01	1	0611-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0611-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0611-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-

173 173 9 220 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0611-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0611-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0611-
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0611-
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0611-

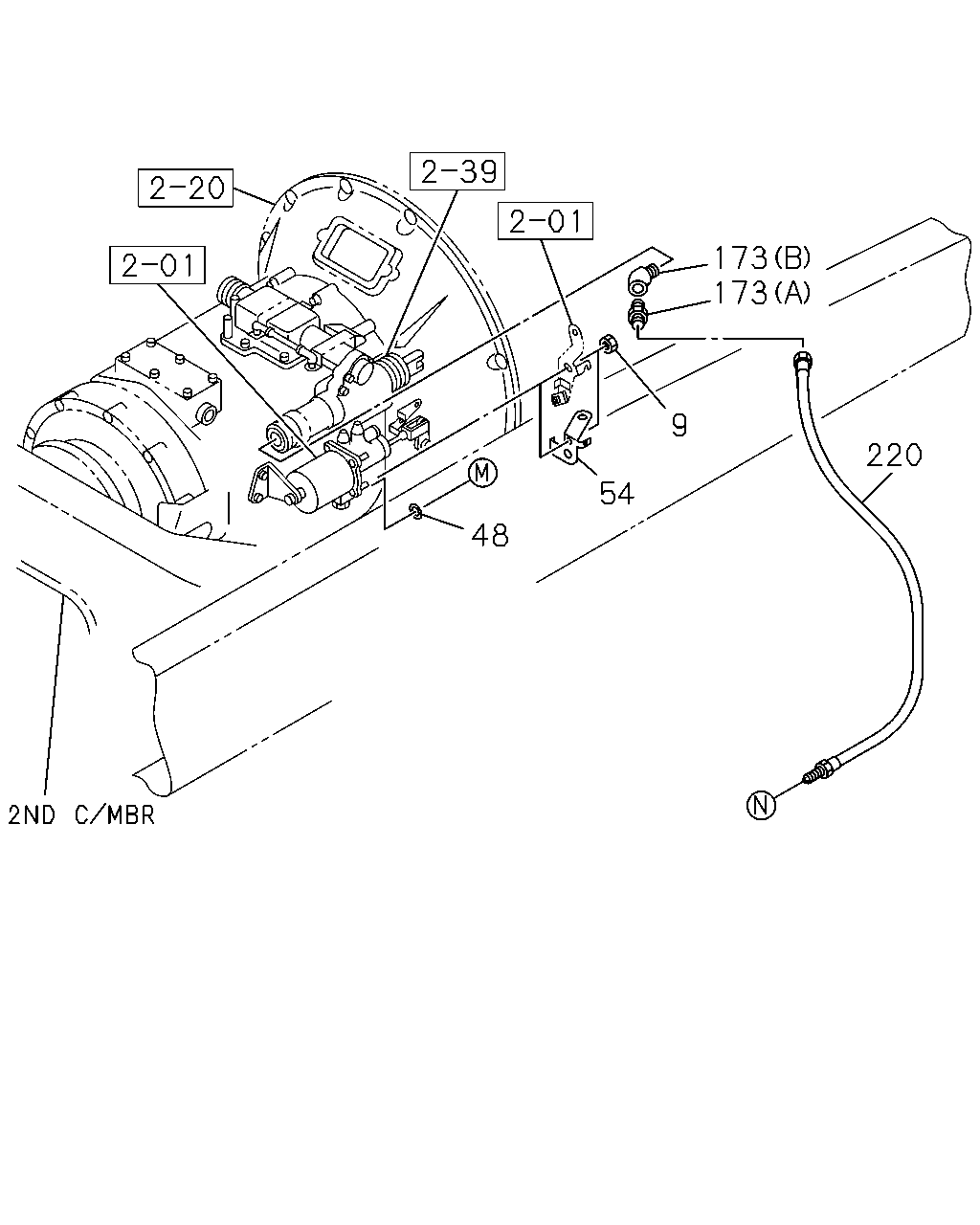

220	HOSE; FLEX,POWER ASSIST L=420	1-09363-633-0	01	1	0611-

153 109 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT L=500	1-09364-329-0	01	1	0611-

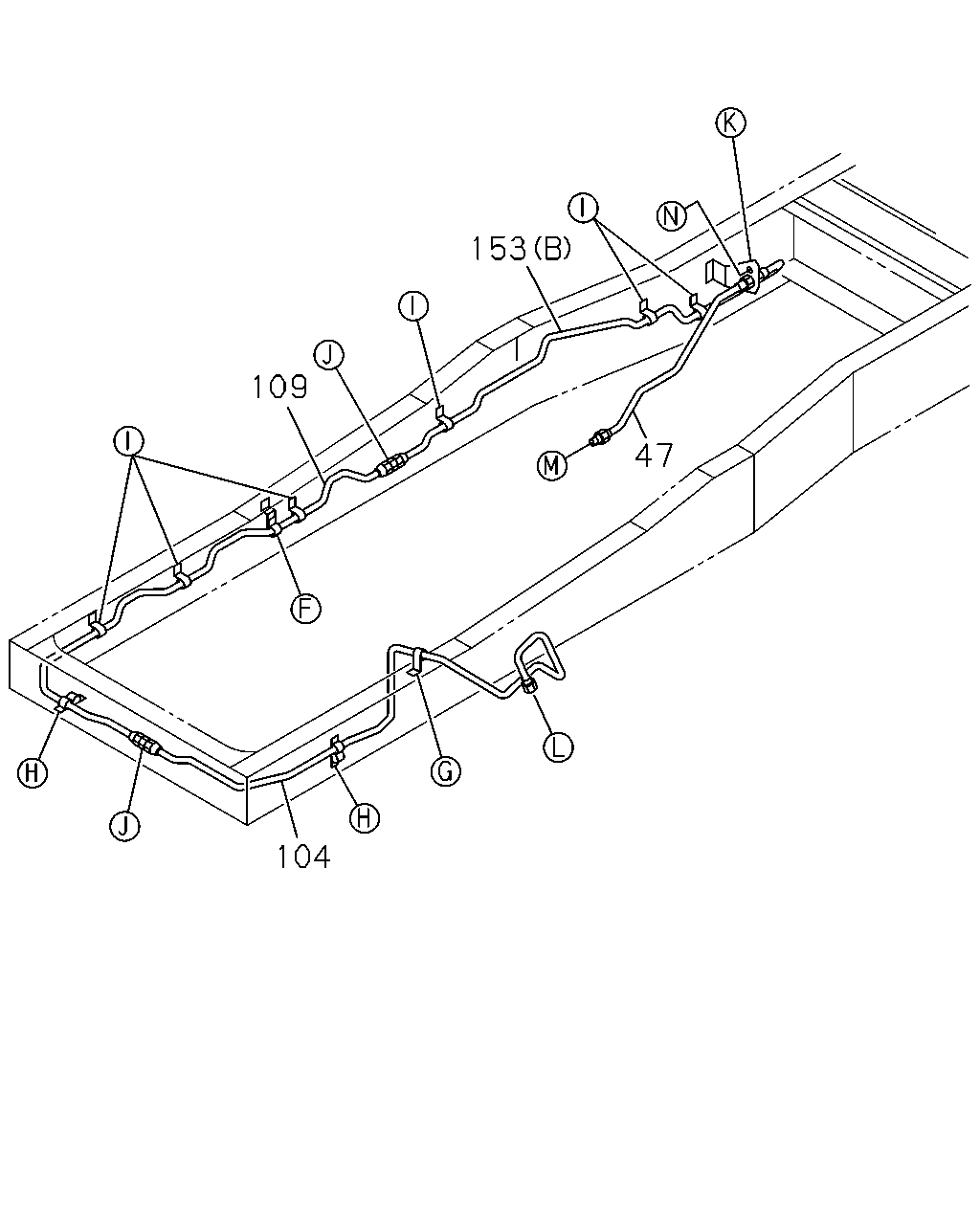

104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1397 SERVICED BY L=1400	1-47428-765-0	01	1	0611-
109	PIPE; AIR,UNION TO UNION L=1693 SERVICED BY L=1700	1-47428-767-0	01	1	0611-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1985 SERVICED BY L=2150	1-47428-770-0	01	1	0611-1110
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1985 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0611-

36 67 24 185 67 66 185 186 147 58 167 58 187 57 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

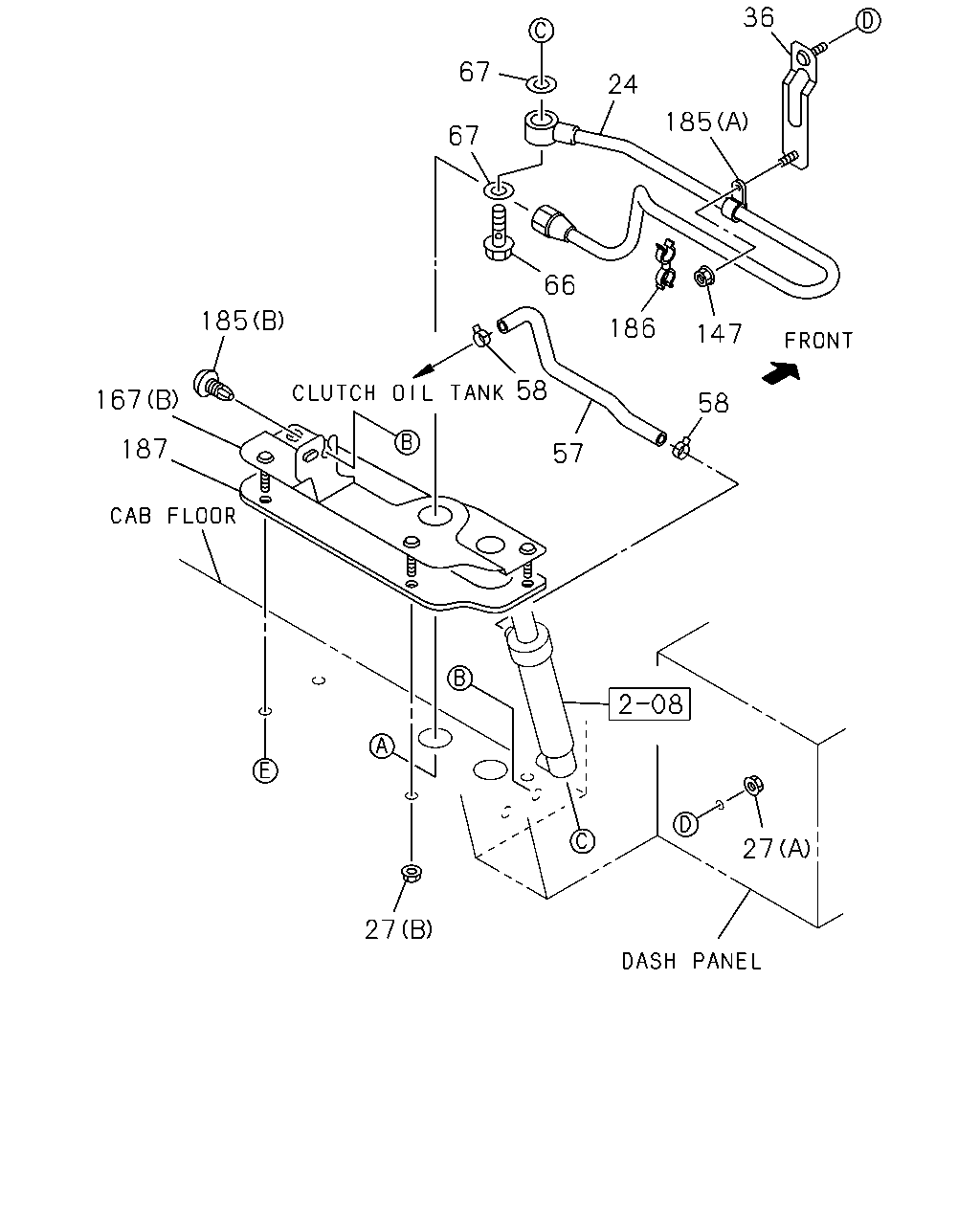

24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0611-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0611-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0611-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0611-
36	BRACKET; CLIP	1-71117-191-1	01	1	0611-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0611-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0611-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0611-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0611-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0611-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0611-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0611-
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0611-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0611-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0611-
187	SEAL; BRKT	1-71117-209-2	01	1	0611-

153 22 167 103 102 27 30 25 184 180 1 27 56 175 10 133 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

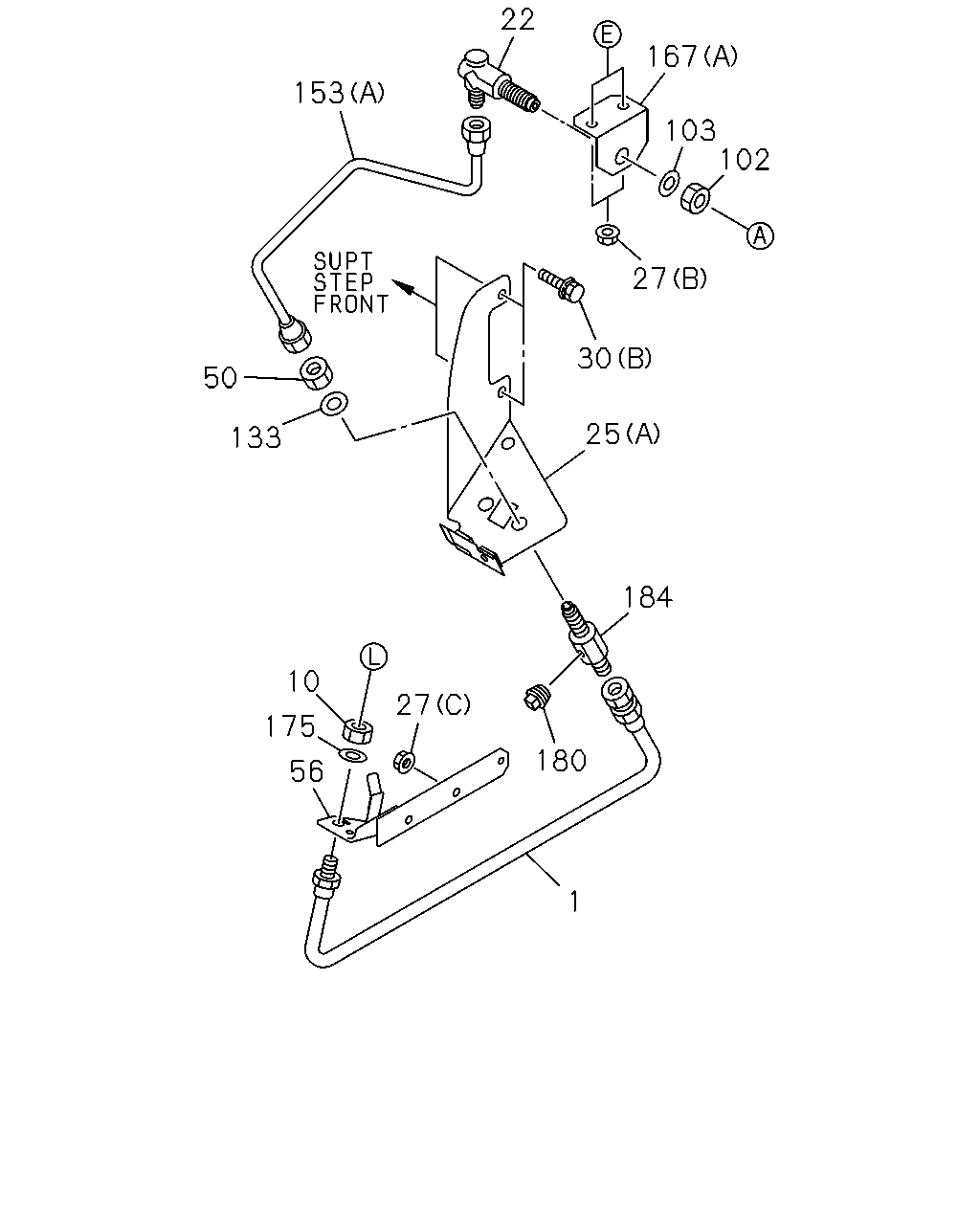

1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0611-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0611-
25	BRACKET; OIL PIPE (B) L=50	1-47475-299-2	02	1	0611-
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0611-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0611-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0611-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0611-
30	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0611-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0611-0904
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
50	NUT; UNION M14	0-91111-514-0	01	1	0611-
56	BRACKET; FLEX HOSE	1-47471-366-0	01	1	0611-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0611-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1985 SERVICED BY L=2150	1-47428-770-0	01	1	0611-1110
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1985 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0611-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0611-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0611-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-
180	PLUG; PIPE	9-09204-510-0	01	1	0611-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0611-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
