Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11046 - CYZ LHD EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#15549) — 51 parça
◀

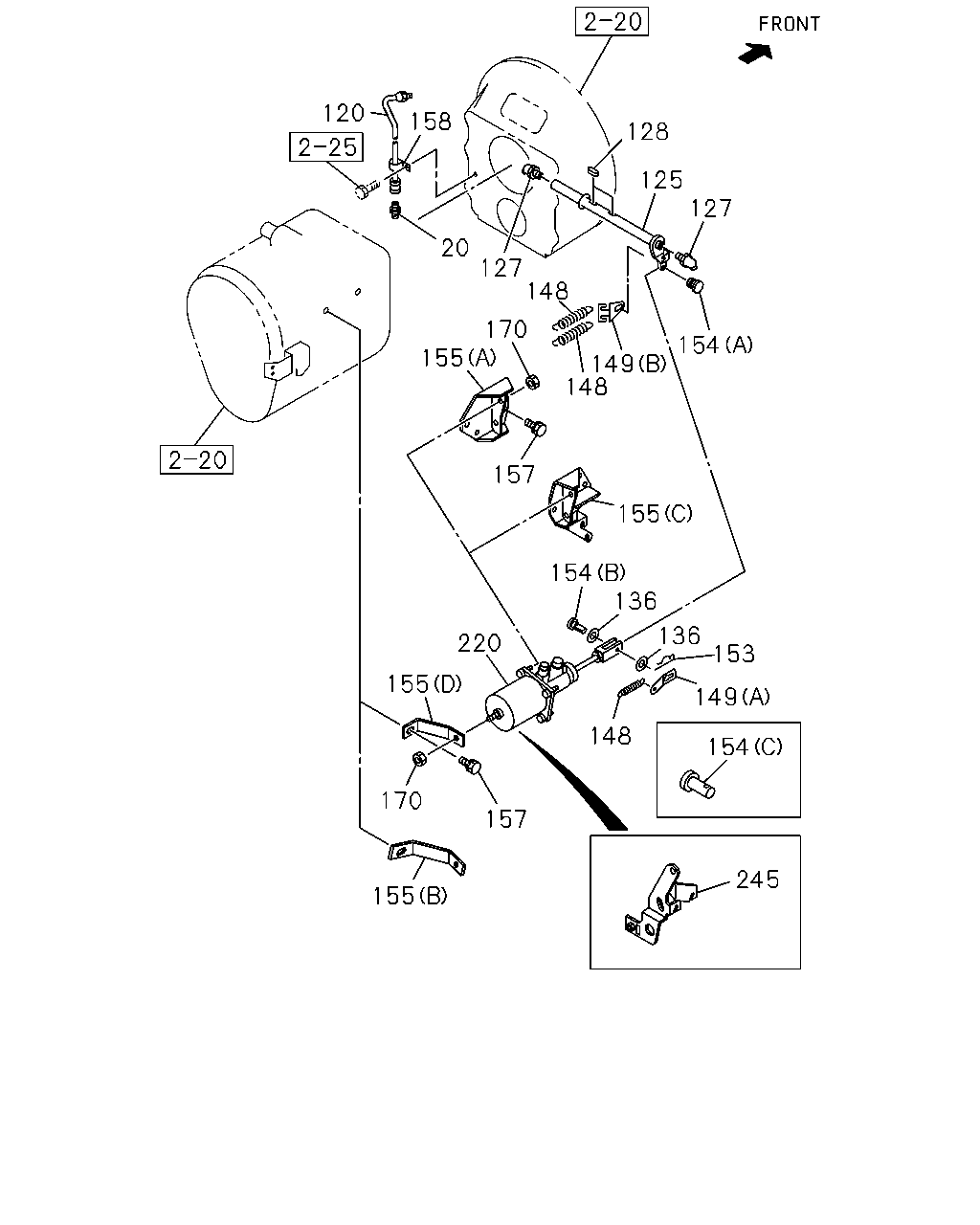

[201A] BOOSTER AND BRACKET (24 parça)

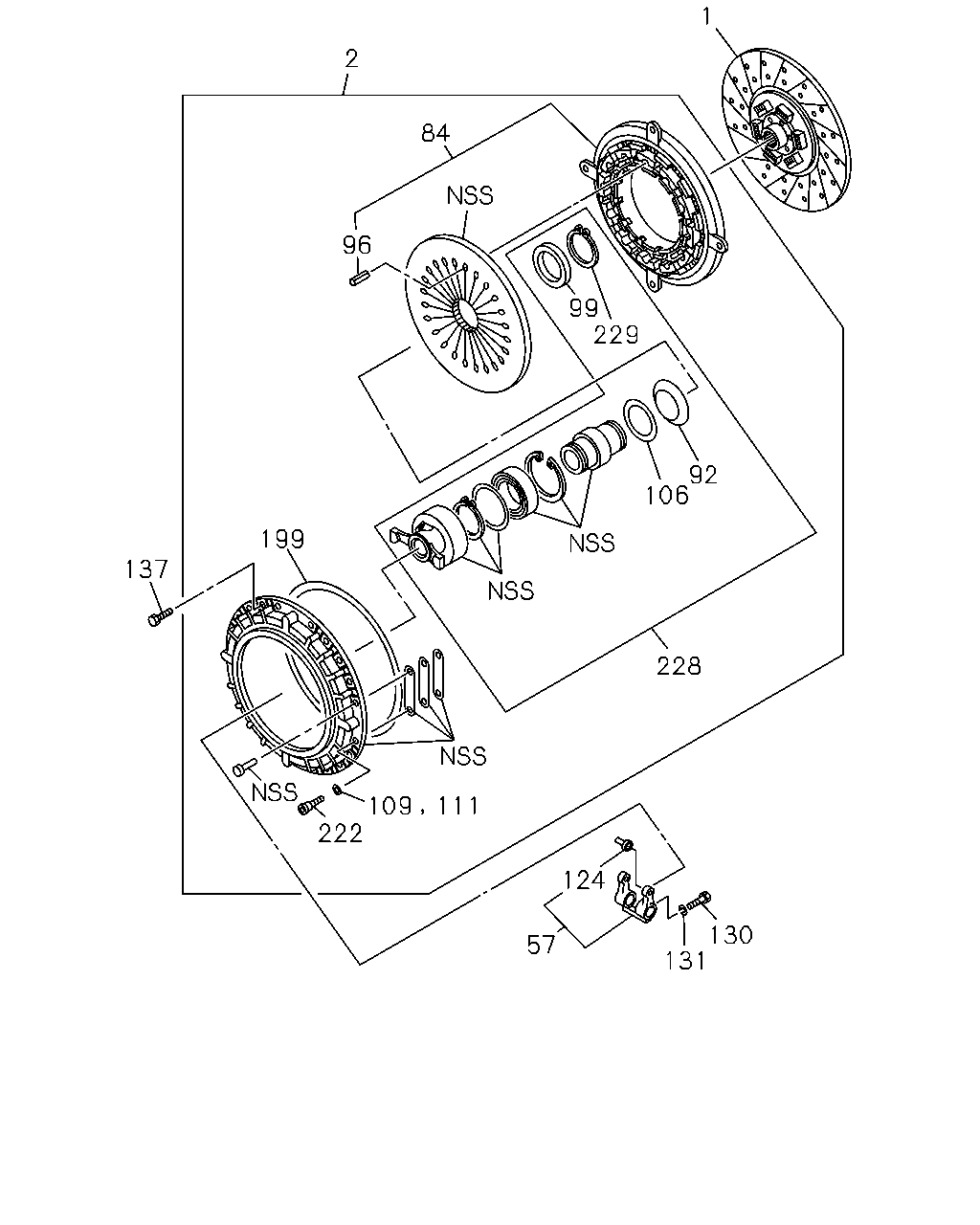

[201A] DISC AND PLATE (27 parça)
▶
120
158
128
125
127
20
127
148
170
154
149
148
155
157
155
154
136
136
220
153
155
149
148
154
170
157
245
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
0611-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
0611-
125
SHAFT; CLU
1-31342-311-1
01
1
0611-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0611-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0611-
136
WASHER; PL
ID=15
0-91610-514-0
02
1
0611-
148
SPRING; CLU RETURN
W/TRANS FRT PTO L=135
1-09583-305-0
01
1
0611-
148
SPRING; CLU RETURN
WO/TRANS FRT PTO L=192
1-09583-266-0
02
1
0611-
149
EYE; SPRING,RETURN SPRING
(A) W/TRANS FRT PTO
1-31426-052-0
01
1
0611-
149
EYE; SPRING,RETURN SPRING
(B) WO/TRANS FRT PTO
1-31426-031-0
01
1
0611-
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
0611-
154
PIN; JAW JOINT
(C) W/TRANS FRT PTO
1-31424-009-0
01
1
0611-
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
0611-
154
PIN; JAW JOINT
(A) L=15.7
1-31424-005-0
01
1
0611-
155
BRACKET; MINIPACK
(A) W/TRANS FRT PTO
1-31429-431-0
01
1
0611-
155
BRACKET; MINIPACK
(B) W/TRANS FRT PTO
1-31429-432-0
01
1
0611-
155
BRACKET; MINIPACK
(C) WO/TRANS FRT PTO
1-31429-395-0
01
1
0611-
155
BRACKET; MINIPACK
(D) WO/TRANS FRT PTO
1-31429-419-0
01
1
0611-
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
04
1
0611-
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
0611-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
0611-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-491-0
01
1
0611-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-091-0
01
1
0611-
245
BRACKET; HOSE
W/TRANS FRT PTO
1-47478-722-0
01
1
0611-
2
84
96
199
137
222
109
111
57
124
131
130
228
106
92
229
99
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-865-1
01
1
0611-0712
1
DISC; CLUTCH
17"
1-31240-980-0
01
1
0801-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-141-0
01
1
0801-
2
PLATE ASM; PRESSURE,CLU
1-31220-400-1
01
1
0611-0710
2
PLATE ASM; PRESSURE,CLU
1-31220-430-0
01
1
0711-1002
2
PLATE ASM; PRESSURE,CLU
1-31220-445-0
01
1
1003-1404
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1405-
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
0611-
84
PLATE; PRESSURE
1-31221-125-0
01
1
0611-1002
84
PLATE; PRESSURE
1-31221-141-0
01
1
1003-
92
SPRING; CLU
1-31239-052-0
01
1
0611-
96
PIN; RELEASE LEVER
1-31239-055-0
03
1
0611-1002
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
0611-
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
0611-
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1405-
111
WASHER; PL,STRAP
ID=13
1-31239-038-0
04
1
0611-1404
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0611-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0611-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0611-
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
0611-
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
0611-
222
BOLT; STRAP
1-31239-037-0
04
1
0611-1002
222
BOLT; STRAP
1-31239-066-0
04
1
1003-
228
BEARING; RELEASE
1-31310-014-0
01
1
0611-0710
228
BEARING; RELEASE
1-31310-023-0
01
1
0711-1404
228
BEARING; RELEASE
1-31310-029-0
01
1
1405-
229
RING
1-31239-064-0
01
1
0611-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
