9-33 — REAR BODY; GATE AND SIDE GUARD (#155489) — 239 parça

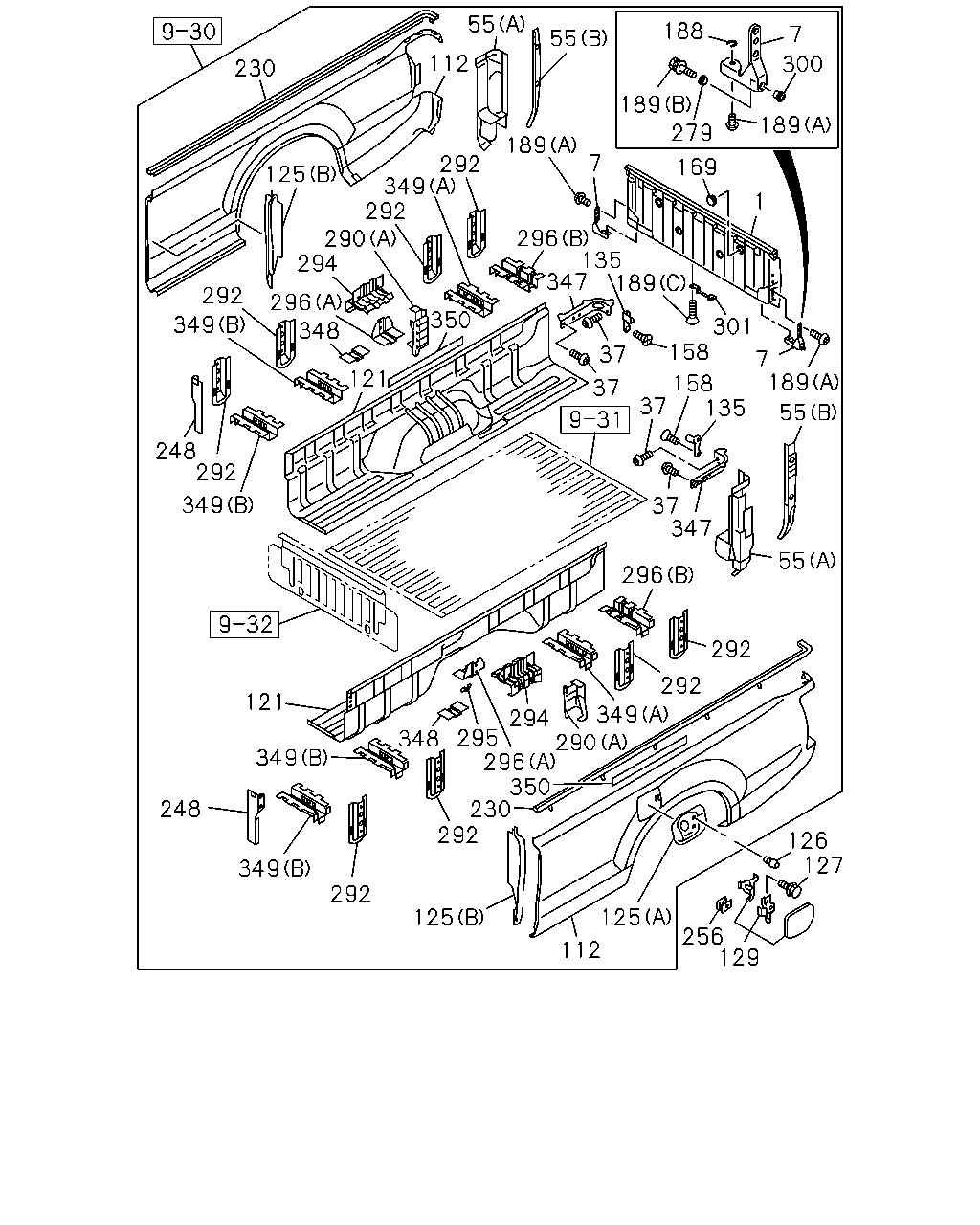

çizim 464441
230 55 188 7 300 189 279 189 169 189 292 112 55 7 296 189 135 347 301 158 37 135 189 7 55 37 55 347 296 292 292 349 294 290 295 348 296 349 248 349 292 125 125 126 127 256 350 230 292 121 349 248 349 292 292 294 296 121 350 125 37 37 158 349 292 290 348 1 112 129
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1501- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98198-539-2 01 1 1501- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1501- ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1501- ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1501- ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1501-1505 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1501- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1501- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1501- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1501- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1501- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1501- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1501- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1501- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1501- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1501- ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1501- ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1501- ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1501- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1501- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1501- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1501- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1501- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1501- ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1501- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) M8X22 		8-98050-437-0 02 1 1501- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1501- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1501- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-333-0 01 1 1501- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-336-0 01 1 1501- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1501- ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1501- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-244-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-245-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-117-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-118-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-118-0 01 1 1506- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-156-0 04 1 1501- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 08 1 1501- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1501- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1501- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1501- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1501- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1501- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1501- ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1501- ● ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1501- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1501- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1501- ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1501- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1501- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1501- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1501- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1501- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1501- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1501- ●

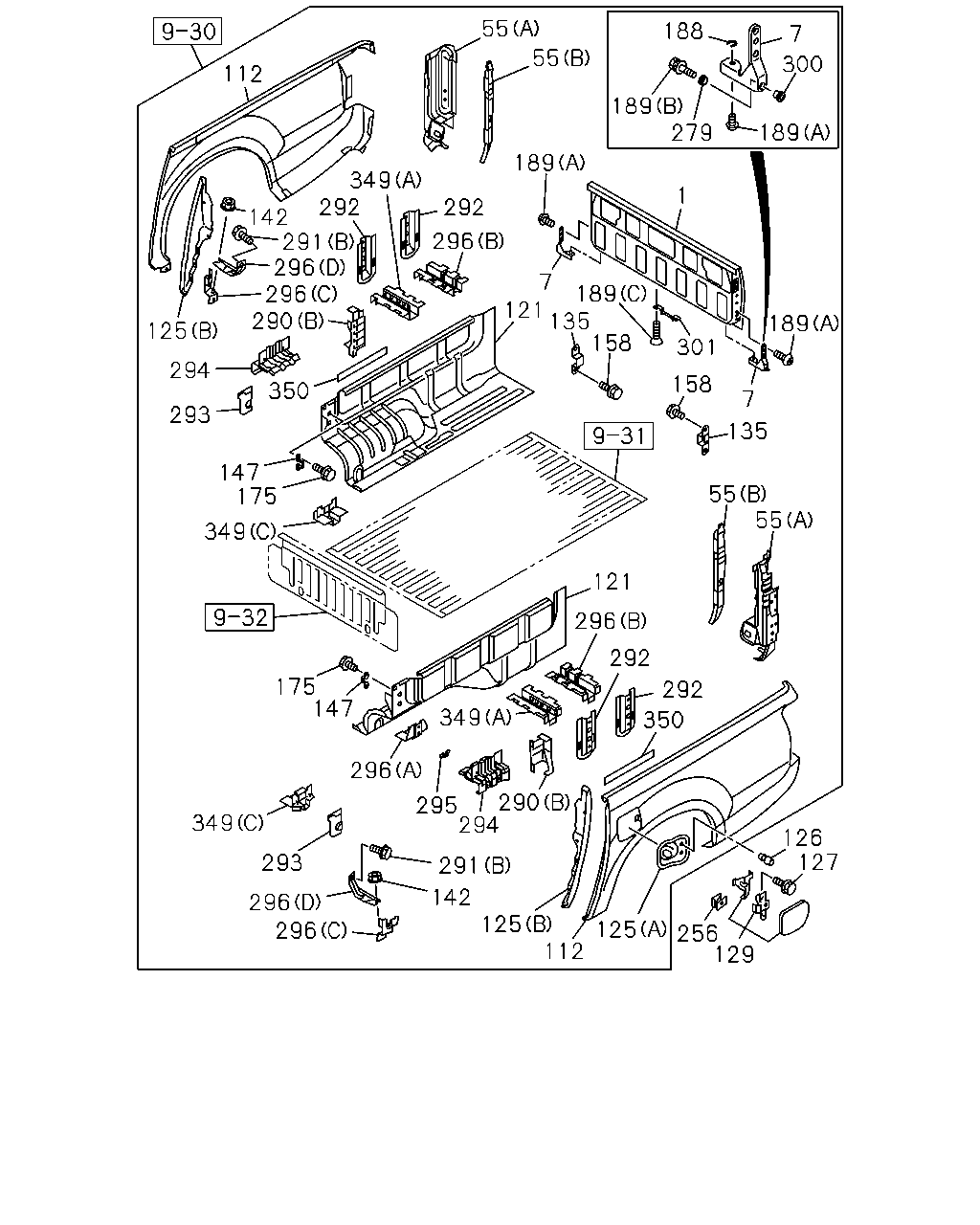

çizim 464649
112 55 188 7 189 189 300 279 189 292 349 292 296 189 7 121 158 301 7 158 135 55 55 121 296 292 292 350 290 291 142 296 290 296 350 293 294 125 147 349 135 294 291 142 296 296 125 125 256 127 126 175 147 296 295 349 55 293 349 175 189 1 112 129
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1501- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98198-539-2 01 1 1501- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1501- ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1501- ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1501- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1501- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1501- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1501- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1501- ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1501- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1501- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1501- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1501- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1501- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1501- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1501- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1501- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1501- ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1501- ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1501- ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1501- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1501- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1501- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1501- ●
142 NUT
REAR BODY DBL WALL CTR PULL(E63) M8 FLANGE 		0-91180-108-0 02 1 1501- ● ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1501- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1501- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1501- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1501- ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1501- ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) M8X22 		8-98050-437-0 02 1 1501- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1501- ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1501- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-244-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-245-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-117-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-118-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-118-0 01 1 1506- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1501- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-156-0 04 1 1501- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 08 1 1501- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1501- ● ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1501- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1501- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1501- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1501- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1501- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1501- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1501- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1501- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1501- ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1501- ● ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1501- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1501- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1501- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1501- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1501- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1501- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1501- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1501- ●

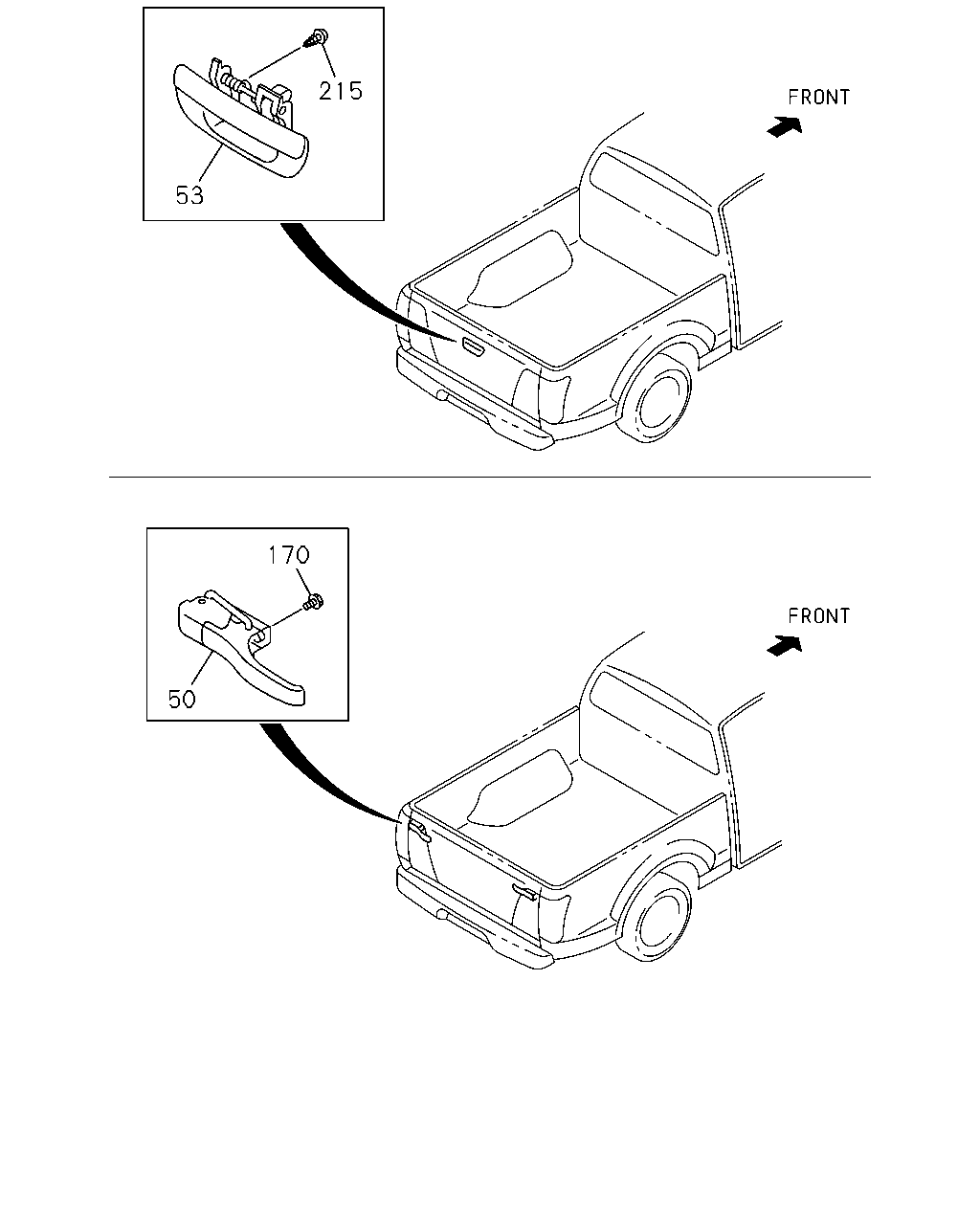

çizim 464901
53 215 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1501- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. LOCK END GATE<8CW> 		8-98102-968-3 01 1 1501- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-968-3 01 1 1501- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) LOCK END GATE<8CW> 		8-98102-969-3 01 1 1501- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTSIDE HANDLE CHROME<E20>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1501- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTSIDE HANDLE CHROME<E20>,OUTER ROPE HOOKS<7MZ> 		8-98102-967-3 01 1 1501- ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) M6X20 W/WASHER 		8-98056-282-0 04 1 1501- ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) LOCK END GATE<8CW> M6X14 FLANGE 		8-97247-698-0 01 1 1501-1505 ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X14 FLANGE 		8-97247-698-0 01 1 1506- ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) LOCK END GATE<8CW> M6X8 FLANGE 		8-98048-996-0 01 1 1501-1505 ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X8 FLANGE 		8-98048-996-0 01 1 1506- ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. LOCK END GATE<8CW> M6X8 FLANGE 		8-98048-996-0 02 1 1501-1505 ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE 		8-98048-996-0 02 1 1501-1505 ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> M6X8 FLANGE 		8-98048-996-0 02 1 1506- ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE 		8-98048-996-0 02 1 1506- ●

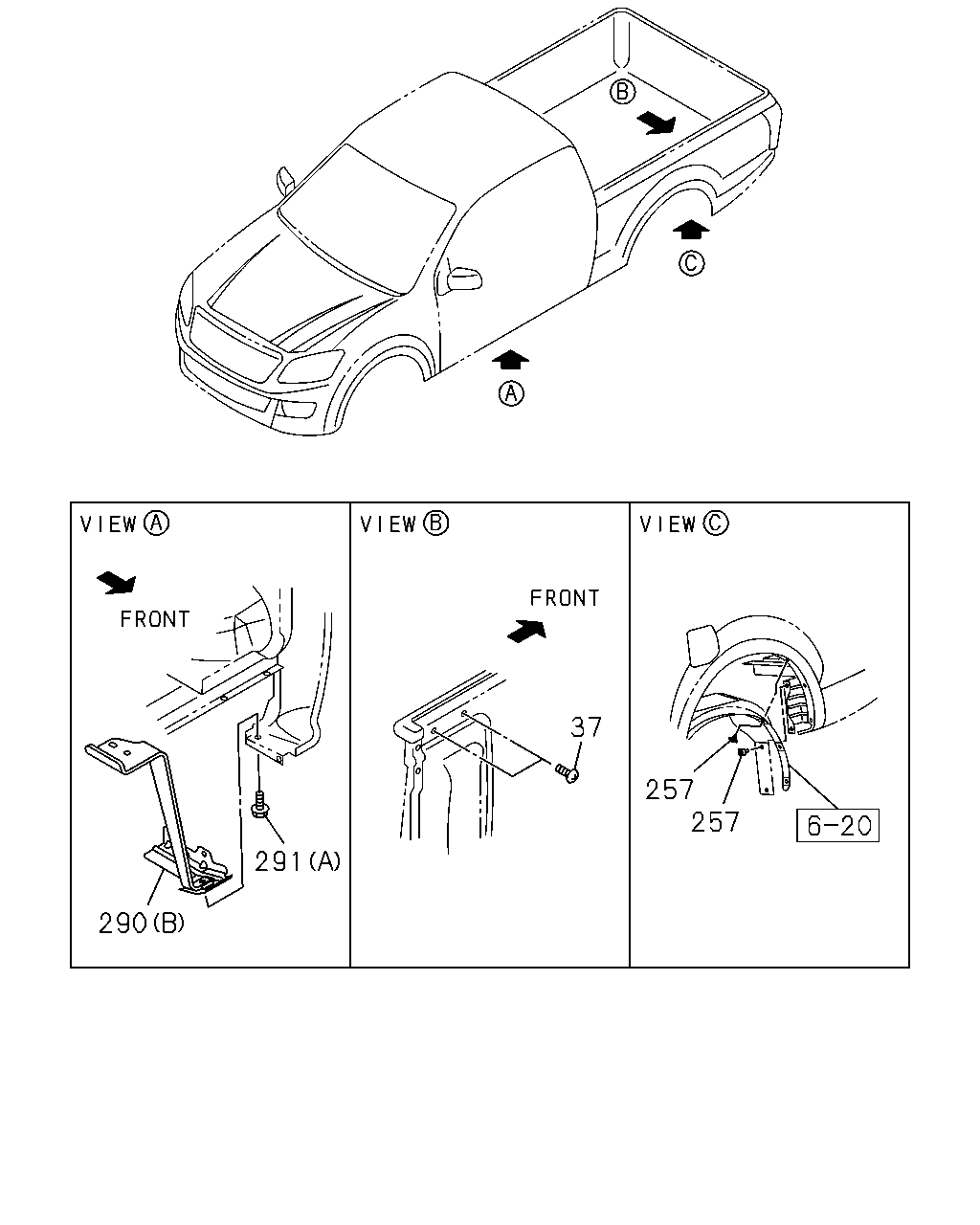

çizim 464902
37 257 257 291 290
BalonParca AdiParca NoAdetTipApplied Date A B C
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1501- ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1501-1505 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
257 RIVET
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-864-0 04 1 1501- ● ●
257 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98057-864-0 04 1 1501- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-244-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-244-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1501-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98113-245-2 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98113-245-2 01 1 1506- ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-117-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98187-118-0 01 1 1501-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98187-118-0 01 1 1506- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1501-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1501- ● ●

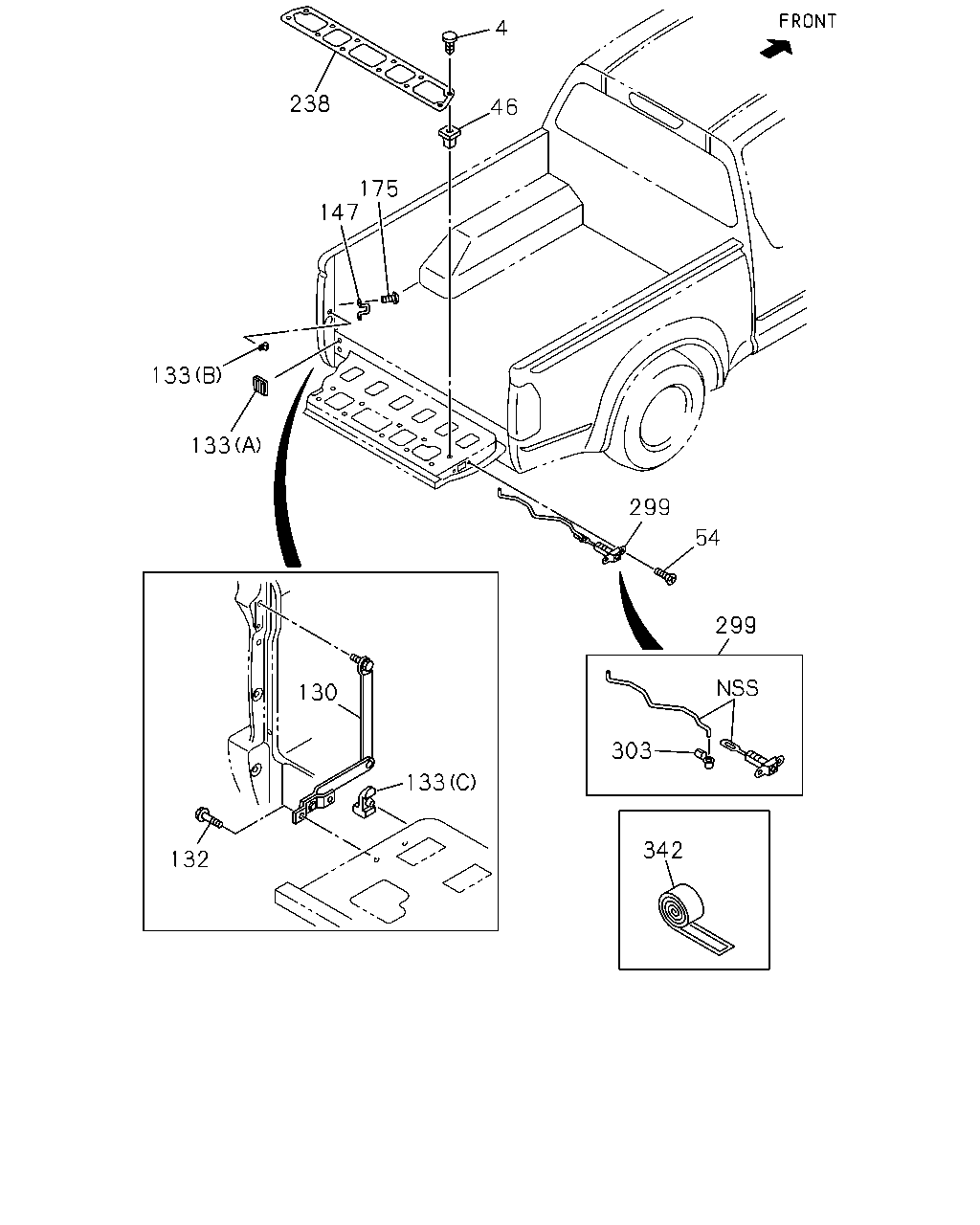

çizim 464977
4 46 175 147 238 133 133 299 54 299 303 342 133 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1501- ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1501- ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1501- ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1501- ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1501- ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1501- ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1501- ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1501- ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1501- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1501- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1501- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1501- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1501- ● ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1501- ● ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1501- ● ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1501- ● ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1501- ● ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1501- ● ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1501- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1501- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
