Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶
9-31 — REAR BODY; FLOOR AND FENDER
(#155487) — 45 parça
Tümü
A - TFB5WF
B - TFS5SF
C - TFS5WF
◀

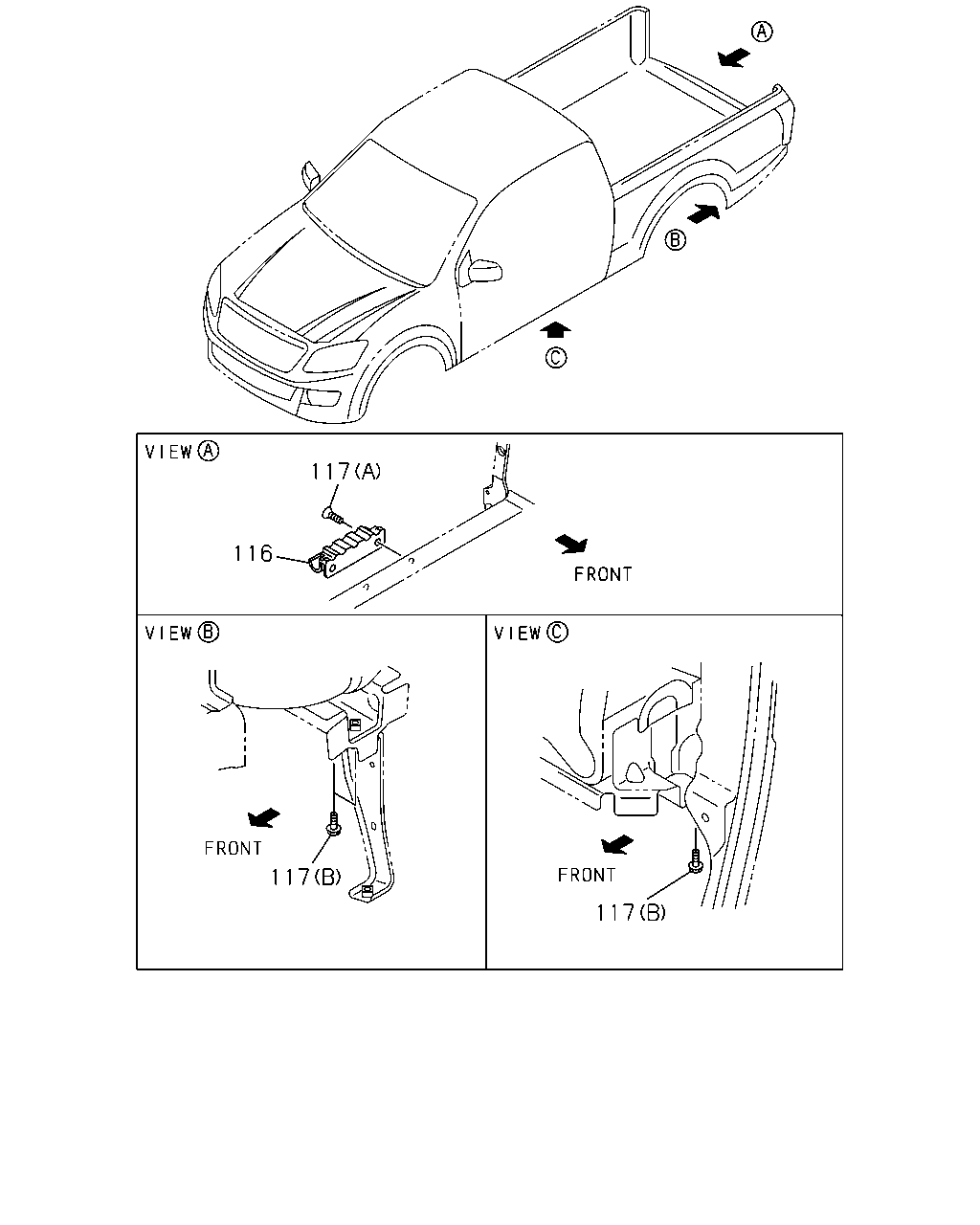

[931A] FIXING PARTS(NO.2) (6 parça)
[931A] FIXING PARTS(NO.1) (7 parça)

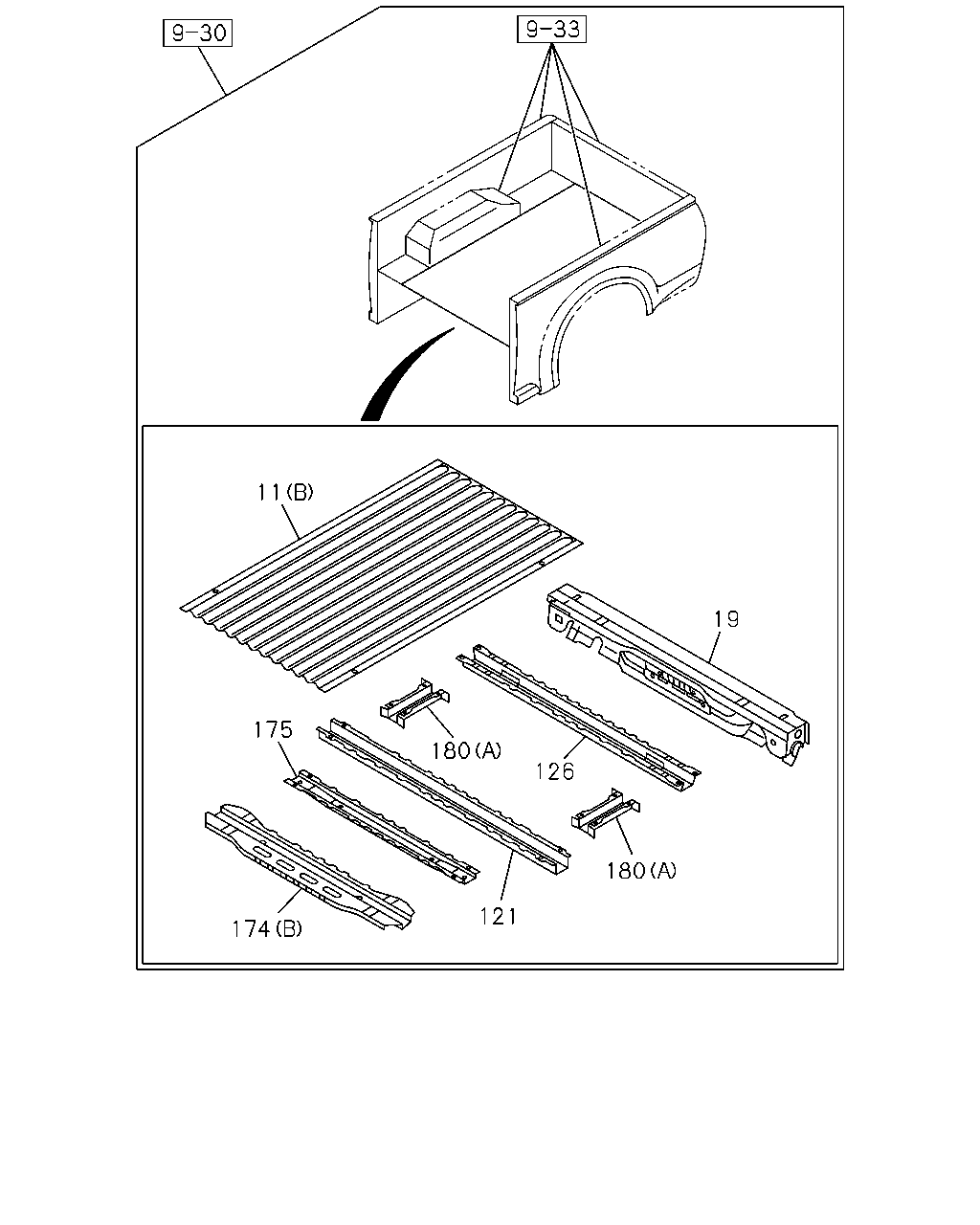

[931A] CREW CAB (12 parça)

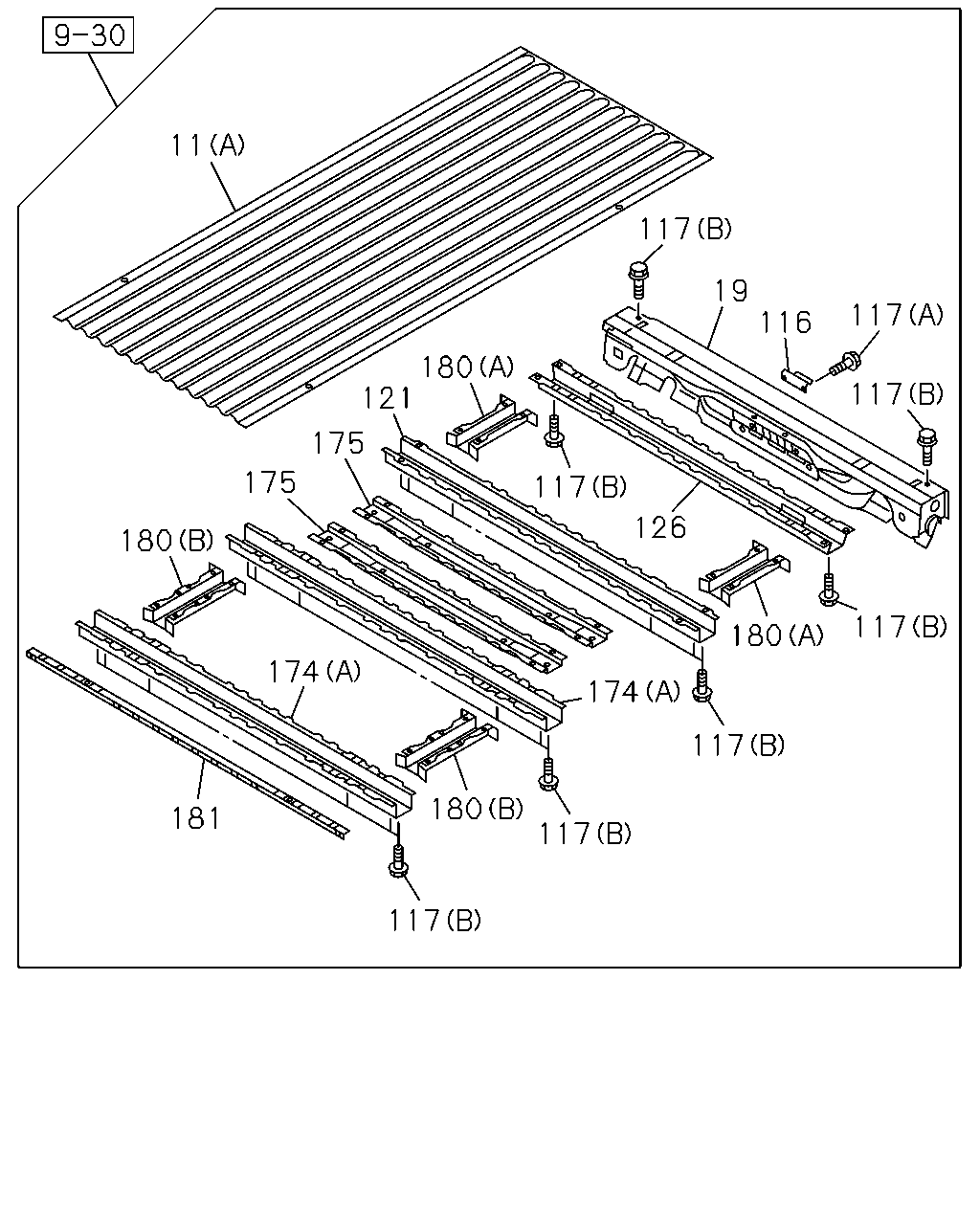

[931A] REGULAR CAB (20 parça)
▶
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
08
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
12
1
1501-
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
10
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET
8-98152-995-2
02
1
1501-1506
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
02
1
1507-
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X22
8-98050-437-0
02
1
1501-
●
116
117
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
116
SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63)
8-98104-017-1
01
1
1501-
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
08
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
12
1
1501-
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
10
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET
8-98152-995-2
02
1
1501-1506
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
02
1
1507-
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X22
8-98050-437-0
02
1
1501-
●
11
180
126
180
19
121
174
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-159-2
01
1
1501-
●
●
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-150-1
01
1
1501-
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)
8-98210-518-0
01
1
1501-
●
●
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)
8-98104-216-7
01
1
1501-
●
●
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-98104-194-2
01
1
1501-
●
●
●
126
BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-98104-201-2
01
1
1501-
●
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-258-3
01
1
1501-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-179-1
02
1
1501-
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63)
8-98104-191-2
01
1
1501-
●
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63)
8-98104-191-2
02
1
1501-
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-197-0
02
1
1501-
●
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-185-0
02
1
1501-
●
11
117
117
117
117
180
174
117
117
180
117
181
174
180
175
175
121
180
19
117
126
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-159-2
01
1
1501-
●
●
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-150-1
01
1
1501-
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)
8-98210-518-0
01
1
1501-
●
●
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)
8-98104-216-7
01
1
1501-
●
●
●
116
SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63)
8-98104-017-1
01
1
1501-
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
08
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
8-98294-857-0
12
1
1501-
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
10
1
1501-
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET
8-98152-995-2
02
1
1501-1506
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET
8-98290-484-0
02
1
1507-
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X22
8-98050-437-0
02
1
1501-
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-98104-194-2
01
1
1501-
●
●
●
126
BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-98104-201-2
01
1
1501-
●
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-258-3
01
1
1501-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-179-1
02
1
1501-
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63)
8-98104-191-2
01
1
1501-
●
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63)
8-98104-191-2
02
1
1501-
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A)
8-98104-197-0
02
1
1501-
●
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B)
8-98104-185-0
02
1
1501-
●
181
EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL(E63)
8-98104-171-1
01
1
1501-
●
