9-30 — REAR BODY ASM AND MOUNTING (#155486) — 10 parça
çizim 464598
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1501- ● ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1501- ● ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1501- ●

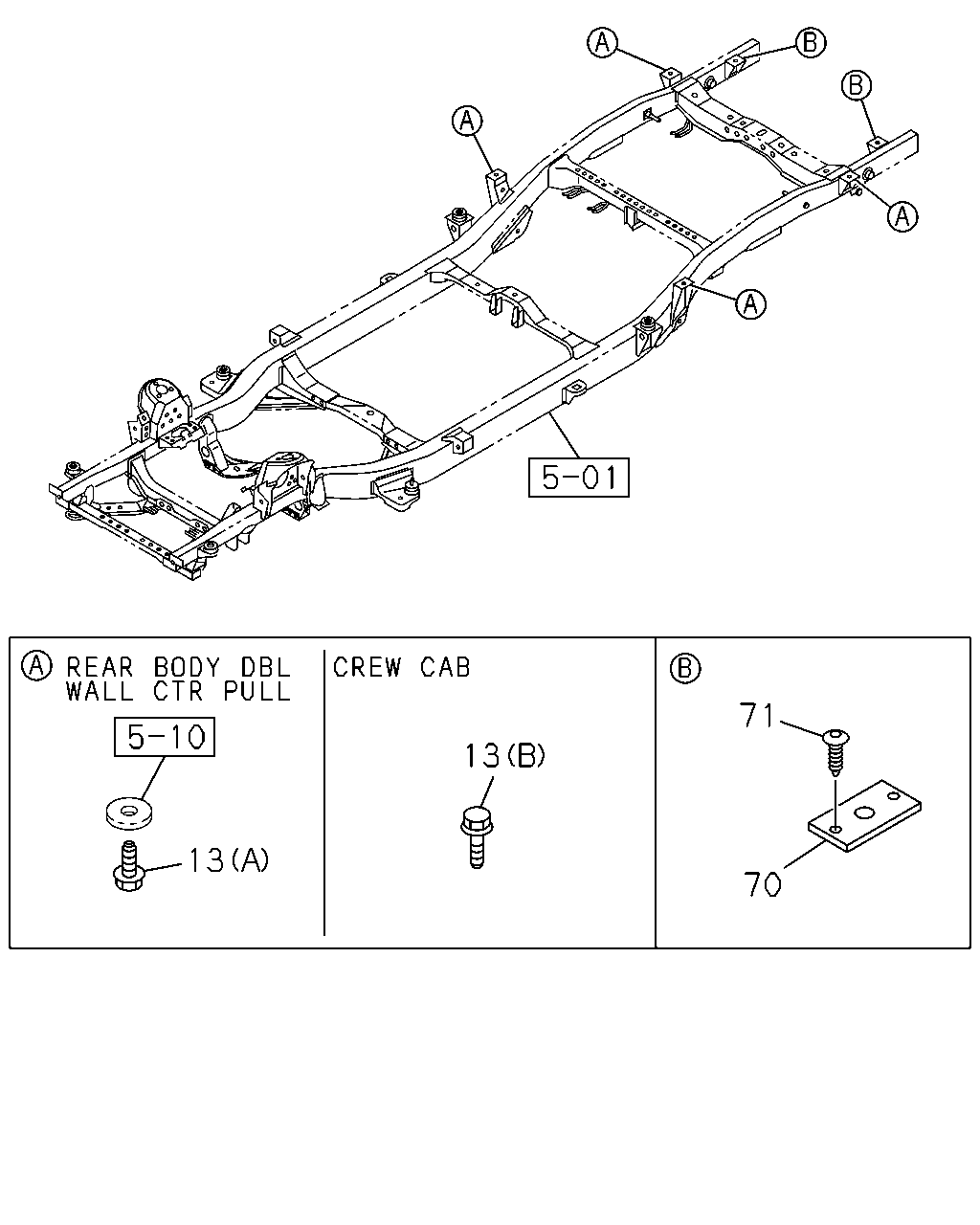

çizim 464889
13 13 70 71
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X35 FLANGE 		0-28651-235-0 04 1 1501- ● ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1501- ● ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X35 FLANGE 		0-28651-235-0 08 1 1501- ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1501- ● ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1501- ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 		8-94178-705-0 04 1 1501- ● ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 		8-94178-705-0 08 1 1501- ●
