Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#155484) — 48 parça
Tümü
A - TFB5WF
B - TFS5WF
C - TFS5SF
◀

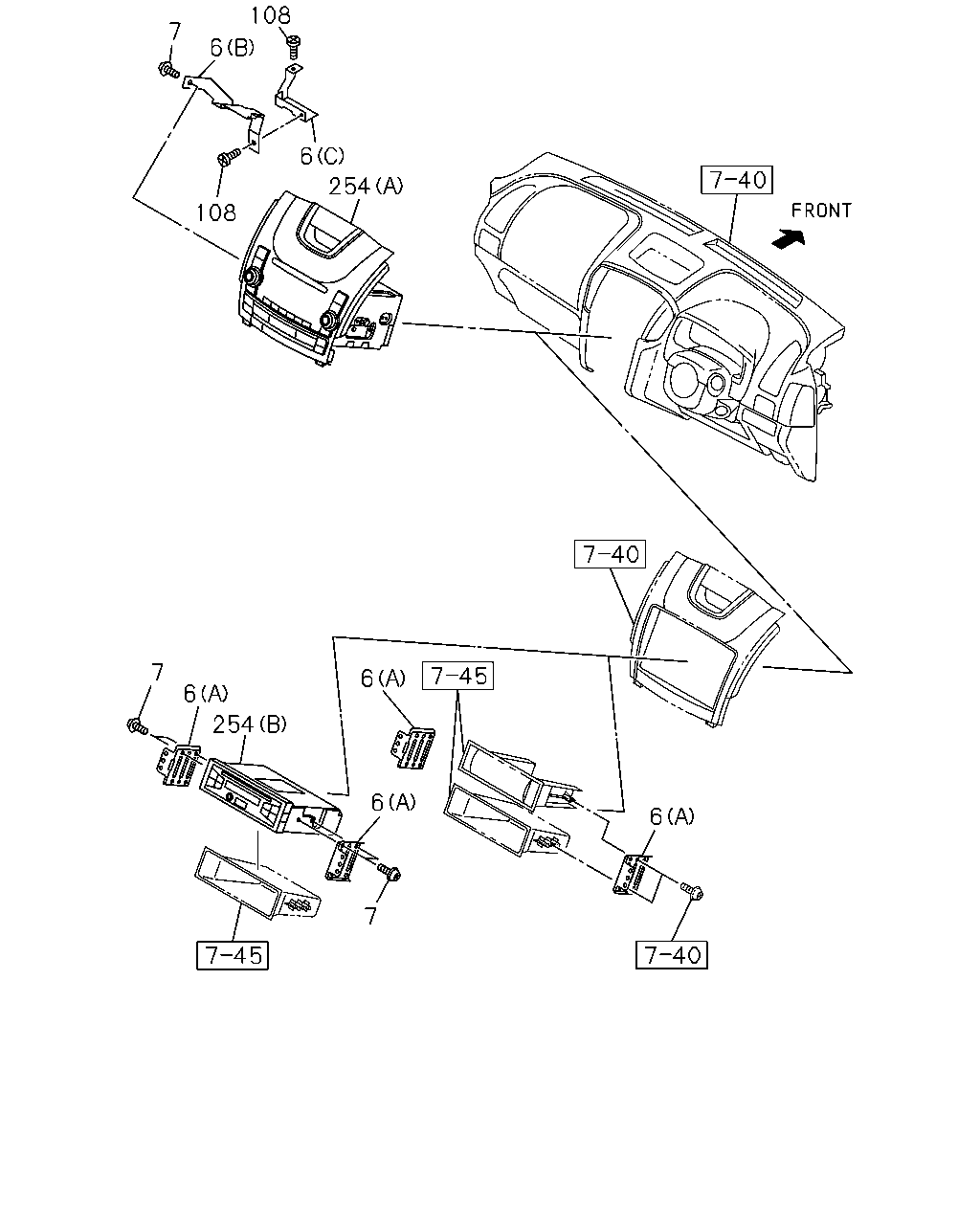

[890A] AUDIO (10 parça)

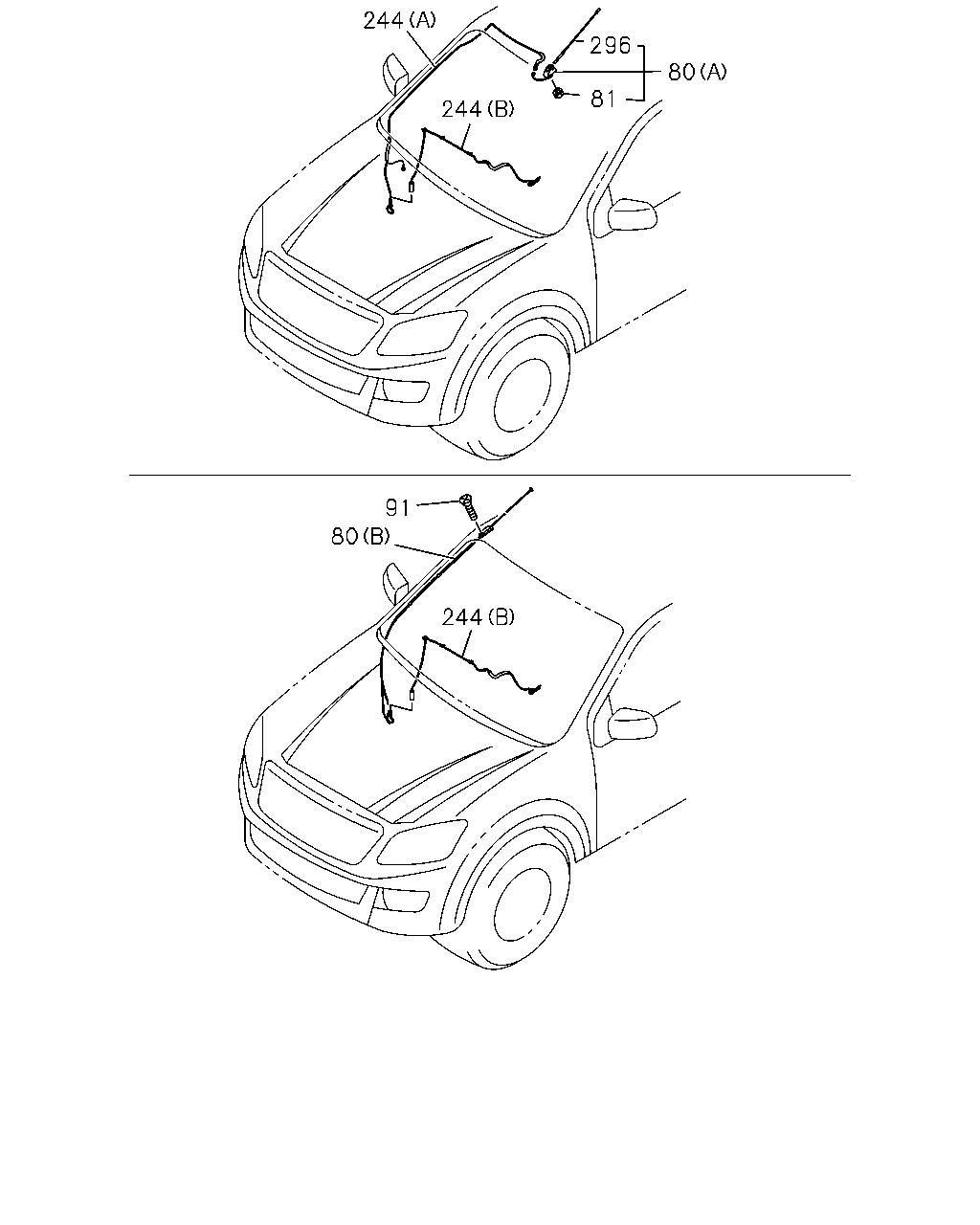

[890A] ANTENNA (7 parça)

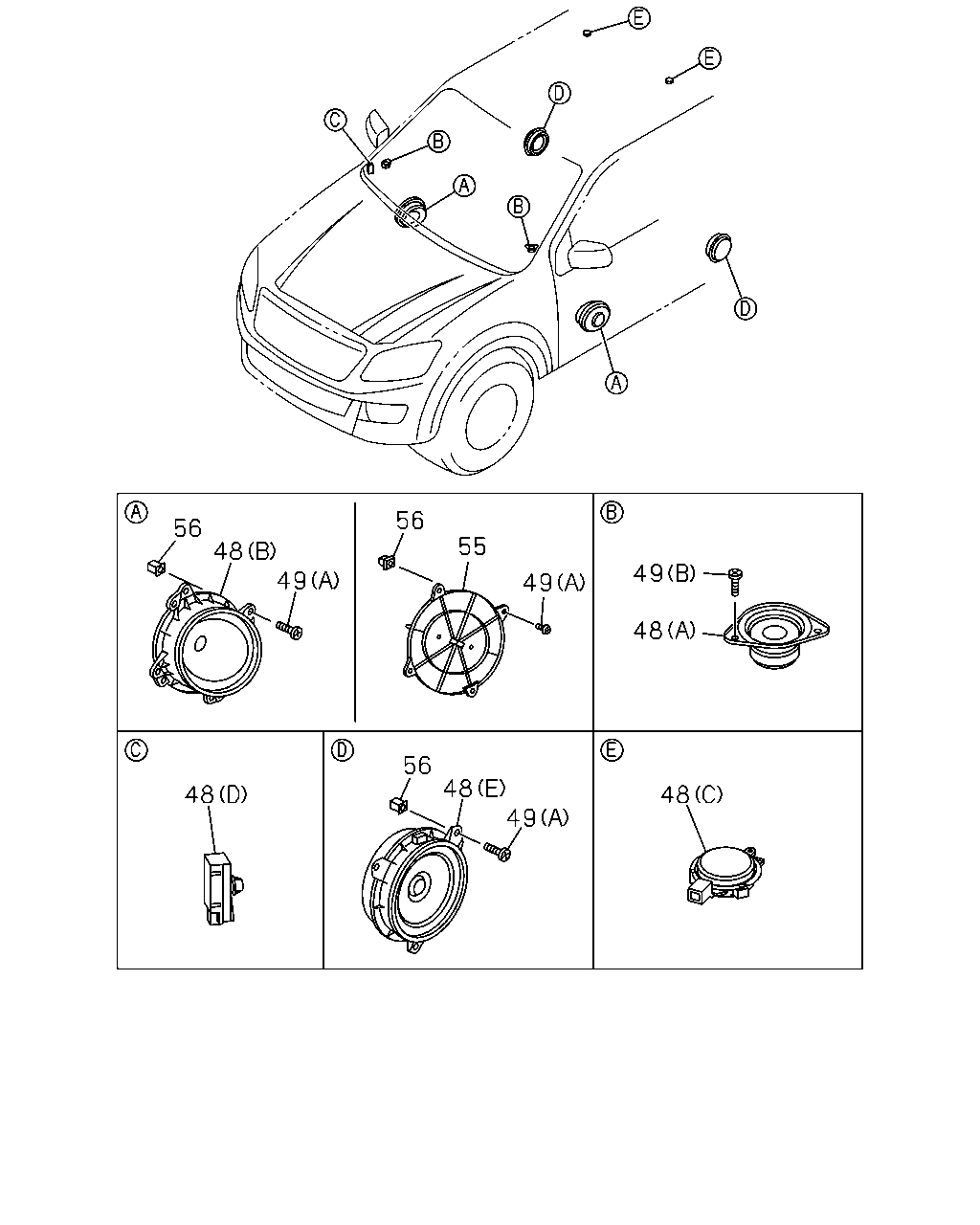

[890A] SPEAKER (13 parça)

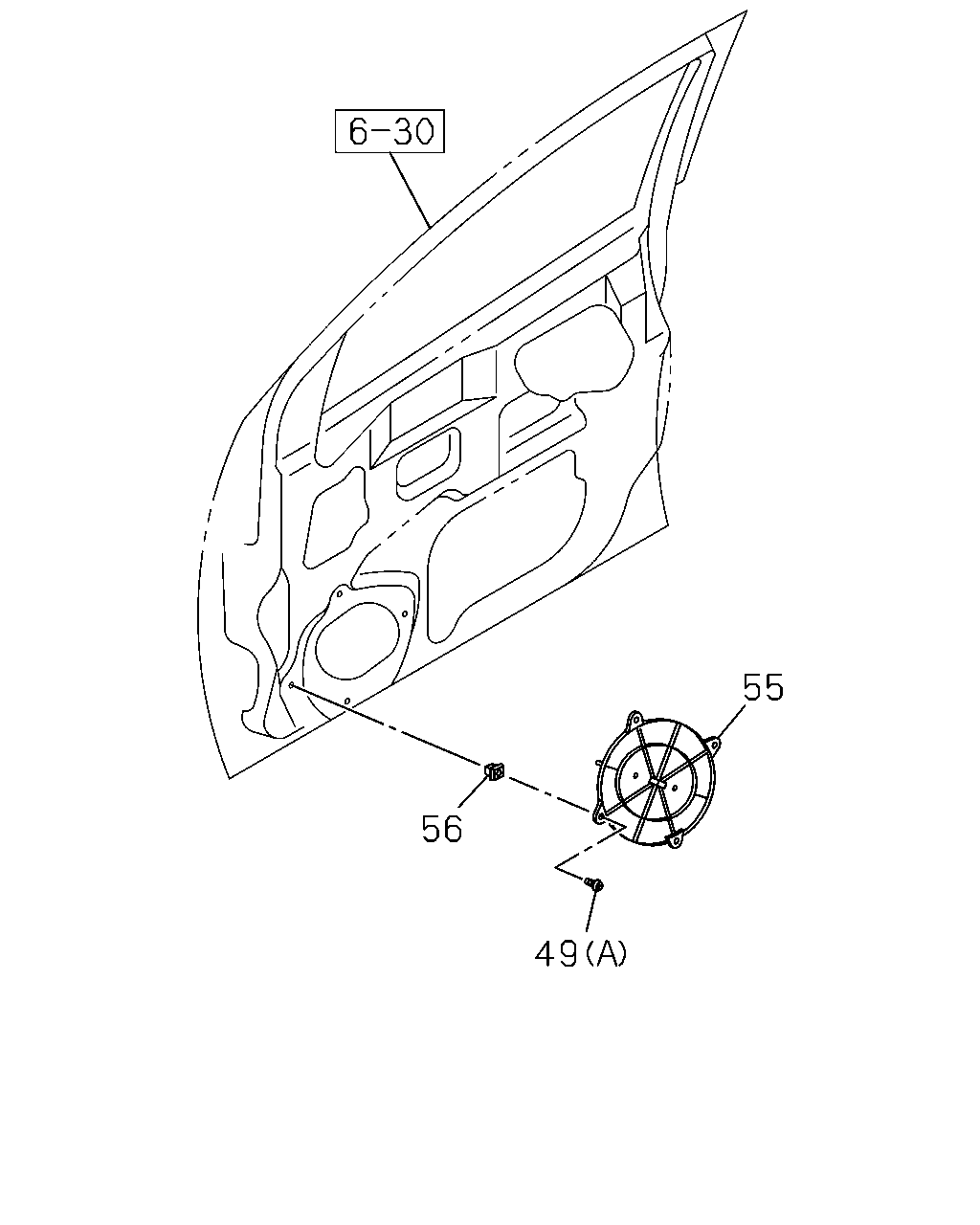

[890A04] (11 parça)

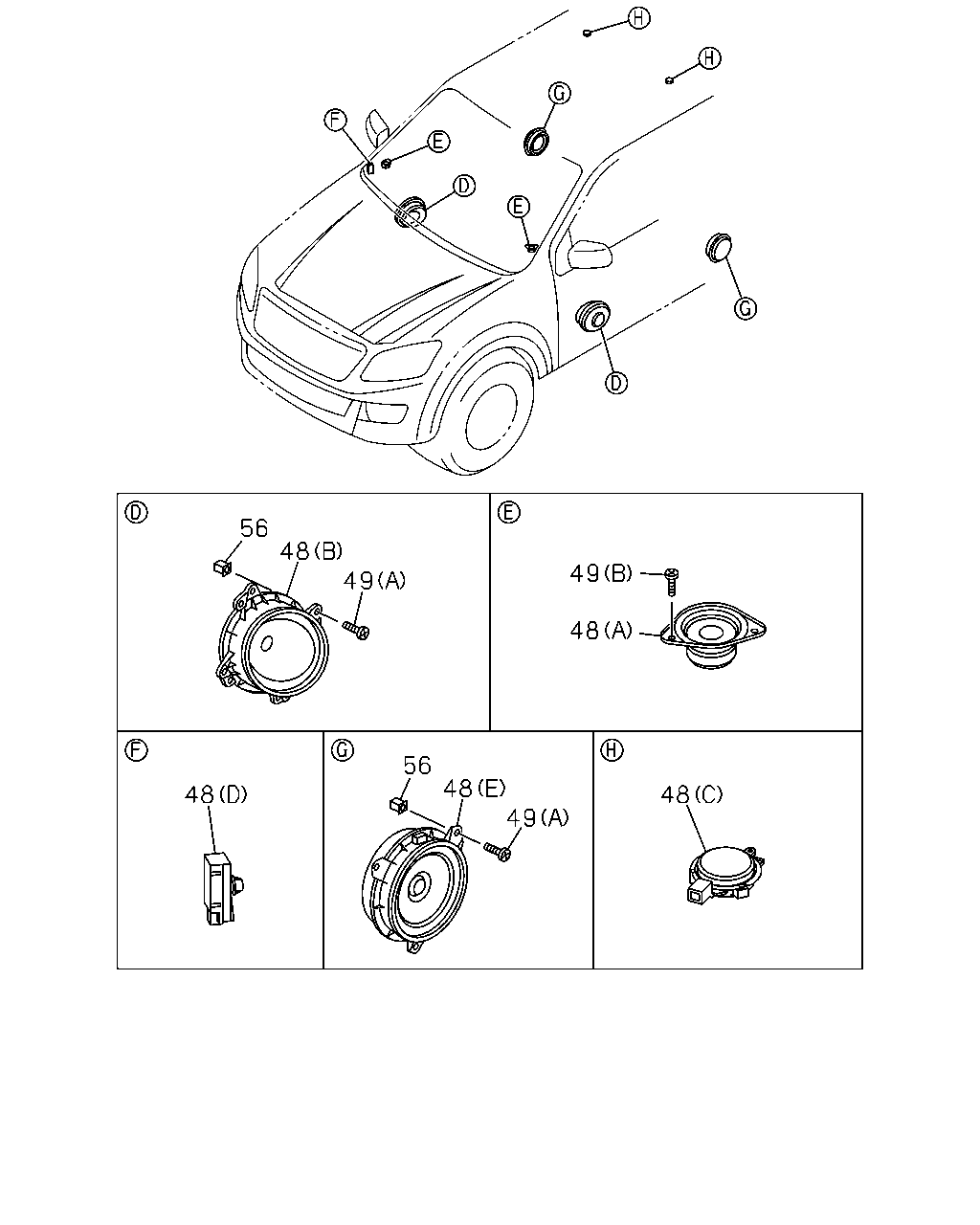

[890A05] (7 parça)
▶
108
6
7
6
108
254
7
6
254
6
7
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C)
8-98106-390-3
01
1
1501-
●
●
6
BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)
8-98227-139-1
01
1
1501-
●
●
6
BRACKET; RADIO TO PANEL
RADIO DELETE(UL5) (A)
8-98102-188-2
02
1
1501-
●
●
6
BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) (A)
8-98102-188-2
02
1
1501-
●
7
SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) M5X10 W/LK+PL WASHER
0-36230-510-0
01
1
1501-
●
●
7
SCREW; RADIO
AM/FM,CLOCK,CD PLAYER(U1C) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1501-
●
108
SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) M5X16 TAPPING
8-98167-449-0
02
1
1501-
●
●
254
RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98219-845-3
01
1
1501-
●
●
254
RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98228-730-2
01
1
1501-
●
●
254
RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,CD PLAYER(U1C) (B)
8-98219-844-3
01
1
1501-
●
296
80
81
244
244
91
80
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
80
ANTENNA
(A)
8-98053-048-0
01
1
1501-
●
●
80
ANTENNA
(B)
8-98053-047-2
01
1
1501-
●
81
NUT; ANTENNA POLE
8-98165-971-0
01
1
1501-
●
●
91
BOLT; ANTENNA
M5X16
8-97375-569-0
02
1
1501-
●
244
CABLE; FEEDER
(B)
8-98053-051-1
01
1
1501-
●
●
●
244
CABLE; FEEDER
(A)
8-98063-228-0
01
1
1501-
●
●
296
ROD; ANTENNA
8-98165-969-0
01
1
1501-
●
●
56
48
49
56
55
49
49
48
48
49
48
56
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (E)
8-98052-941-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B)
8-98052-937-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1501-
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98052-940-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C)
8-98052-942-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D)
8-98064-704-0
01
1
1501-
●
●
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (A) M5X14 TAPPING
8-98184-363-0
06
1
1501-
●
●
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING
8-98167-449-0
04
1
1501-
●
●
49
SCREW; SPEAKER
(A) M5X14 TAPPING
8-98184-363-0
08
1
1501-
●
●
●
55
COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>
8-98102-183-0
02
1
1501-
●
●
55
COVER; SPEAKER HOLE
EXC. 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1501-
●
56
NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1501-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1501-
●
●
●
56
49
48
48
56
48
49
49
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (E)
8-98052-941-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B)
8-98052-937-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1501-
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98052-940-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C)
8-98052-942-0
02
1
1501-
●
●
48
SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D)
8-98064-704-0
01
1
1501-
●
●
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (A) M5X14 TAPPING
8-98184-363-0
06
1
1501-
●
●
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING
8-98167-449-0
04
1
1501-
●
●
49
SCREW; SPEAKER
(A) M5X14 TAPPING
8-98184-363-0
08
1
1501-
●
●
●
56
NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1501-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1501-
●
●
●
55
56
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (A) M5X14 TAPPING
8-98184-363-0
06
1
1501-
●
●
49
SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING
8-98167-449-0
04
1
1501-
●
●
49
SCREW; SPEAKER
(A) M5X14 TAPPING
8-98184-363-0
08
1
1501-
●
●
●
55
COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>
8-98102-183-0
02
1
1501-
●
●
55
COVER; SPEAKER HOLE
EXC. 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1501-
●
56
NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1501-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1501-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
