◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#155482) — 12 parça

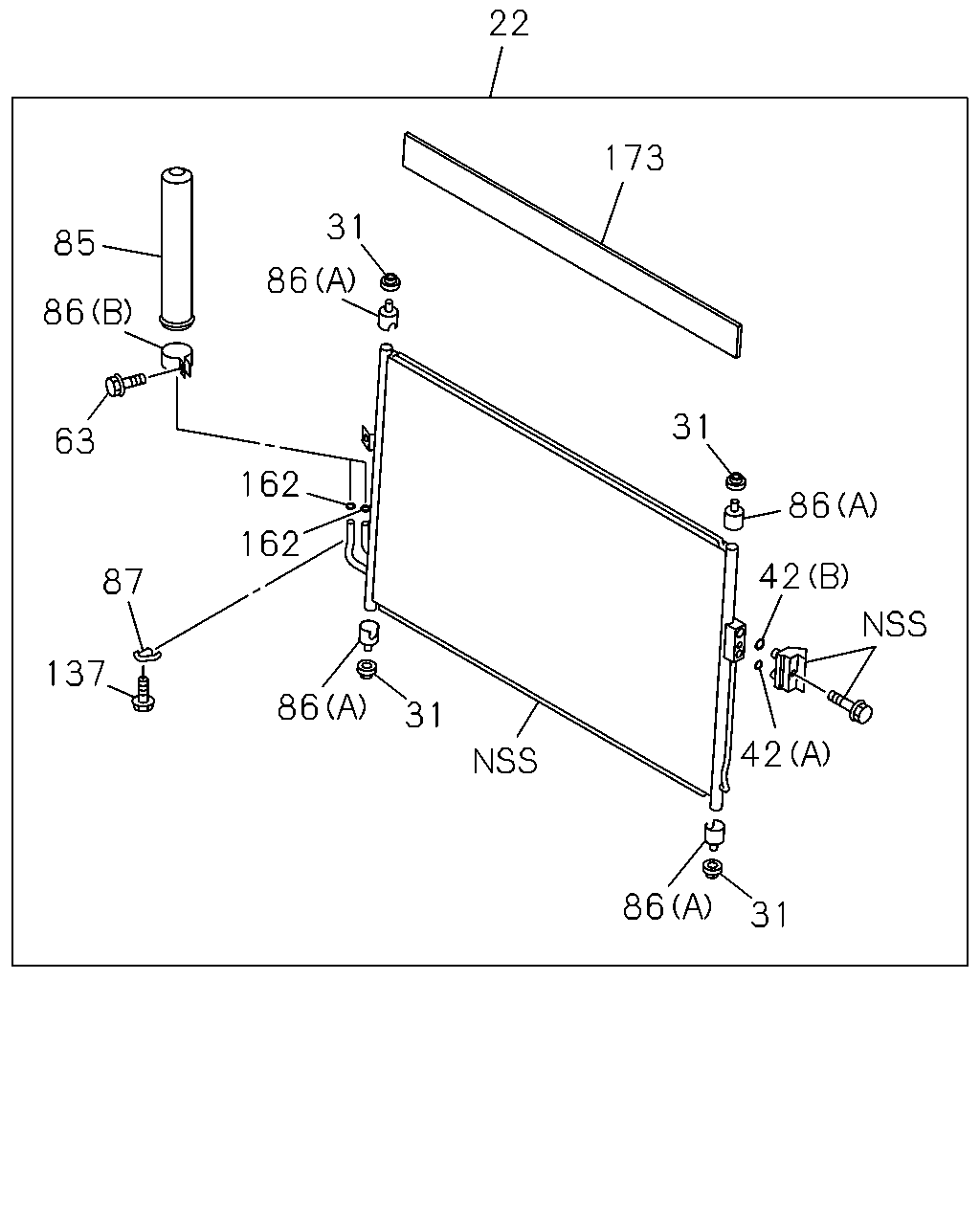

çizim 465019
31 86 42 42 86 31 173 22 31 86 162 86 162 31 137 87 63 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CONDENSER ASM; A/C
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98052-634-3 01 1 1501- ● ● ●
31 RUBBER; MTG,CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98193-616-0 04 1 1501- ● ● ●
42 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) ID=8 		8-98193-614-0 01 1 1501- ● ● ●
42 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) ID=12 		8-98193-615-0 01 1 1501- ● ● ●
63 BOLT; RECEIVER TANK
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) M5X16 		8-98193-604-0 01 1 1501- ● ● ●
85 DRYER; RECEIVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-381-0 01 1 1501- ● ● ●
86 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98193-599-0 01 1 1501- ● ● ●
86 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98193-618-0 04 1 1501- ● ● ●
87 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98193-602-0 01 1 1501- ● ● ●
137 BOLT; BRKT,DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) M6X12 		8-98193-603-0 01 1 1501- ● ● ●
162 GASKET; PIPE TO DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=8 		8-98193-614-0 02 1 1501- ● ● ●
173 INSULATOR; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-382-0 01 1 1501- ● ● ●
