8-73 — BLOWER UNIT (#155481) — 85 parça

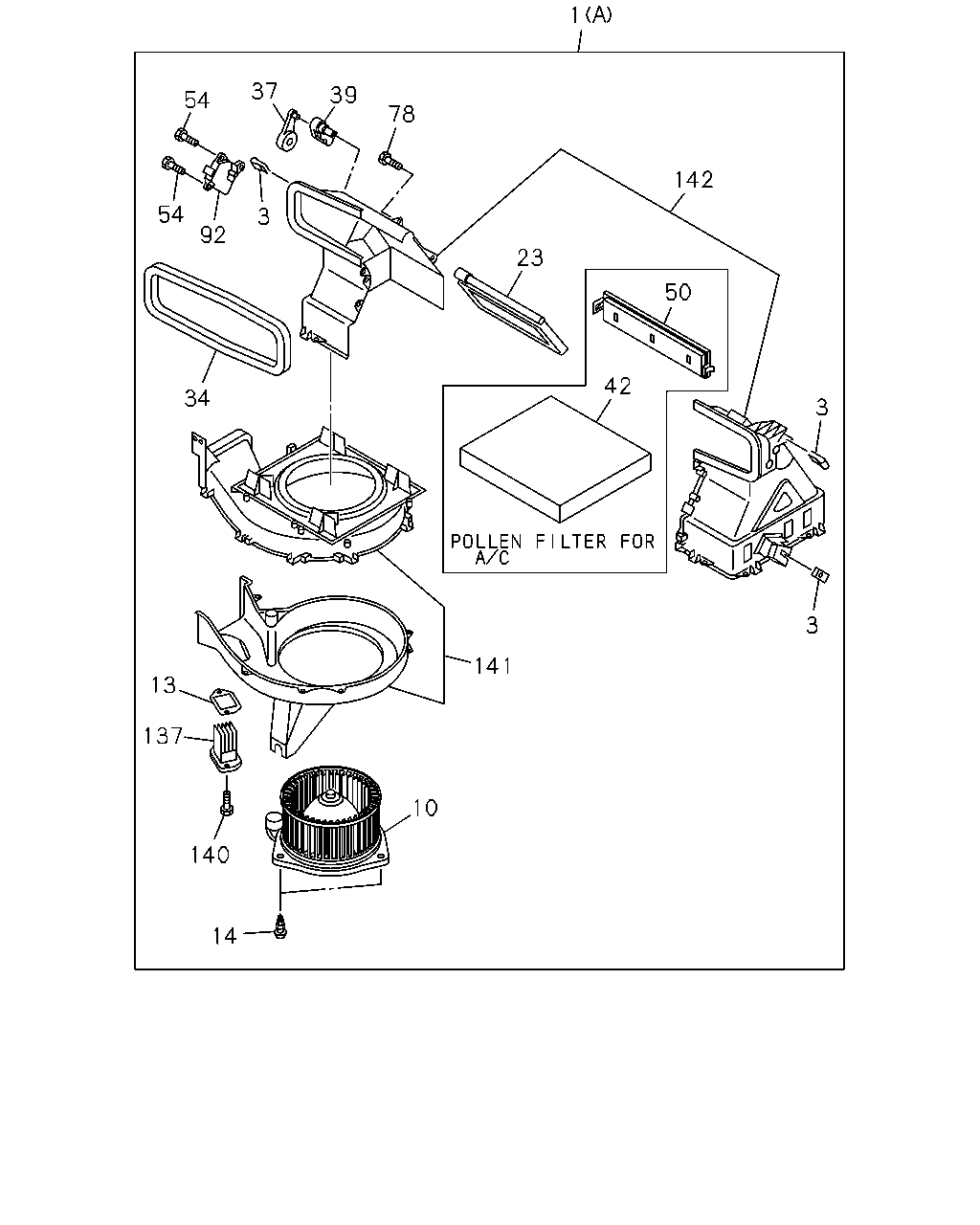

çizim 464990
1 142 54 37 39 23 3 92 54 42 3 3 141 10 13 137 140 14 34 50 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1501- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1501- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1501- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1501- ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1501- ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1501- ●
3 NUT; CASE 8-98139-394-1 03 1 1501- ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1501- ● ● ●
13 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98157-116-1 01 1 1501- ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1501- ● ● ●
23 SHUTTER; BLOWER UNIT 8-98294-586-0 01 1 1501- ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98294-586-0 01 1 1501- ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1501- ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98195-045-0 01 1 1501- ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-417-0 01 1 1501- ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98139-416-0 01 1 1501- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-416-0 01 1 1501- ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1501- ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1501- ● ● ●
54 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98139-395-1 02 1 1501- ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1501- ● ● ●
92 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98139-424-0 01 1 1501- ● ●
137 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98139-431-1 01 1 1501- ● ●
140 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98139-421-0 02 1 1501- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98233-641-0 01 1 1501- ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1501- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1501- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1501- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1501- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1501- ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1501- ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1501- ●

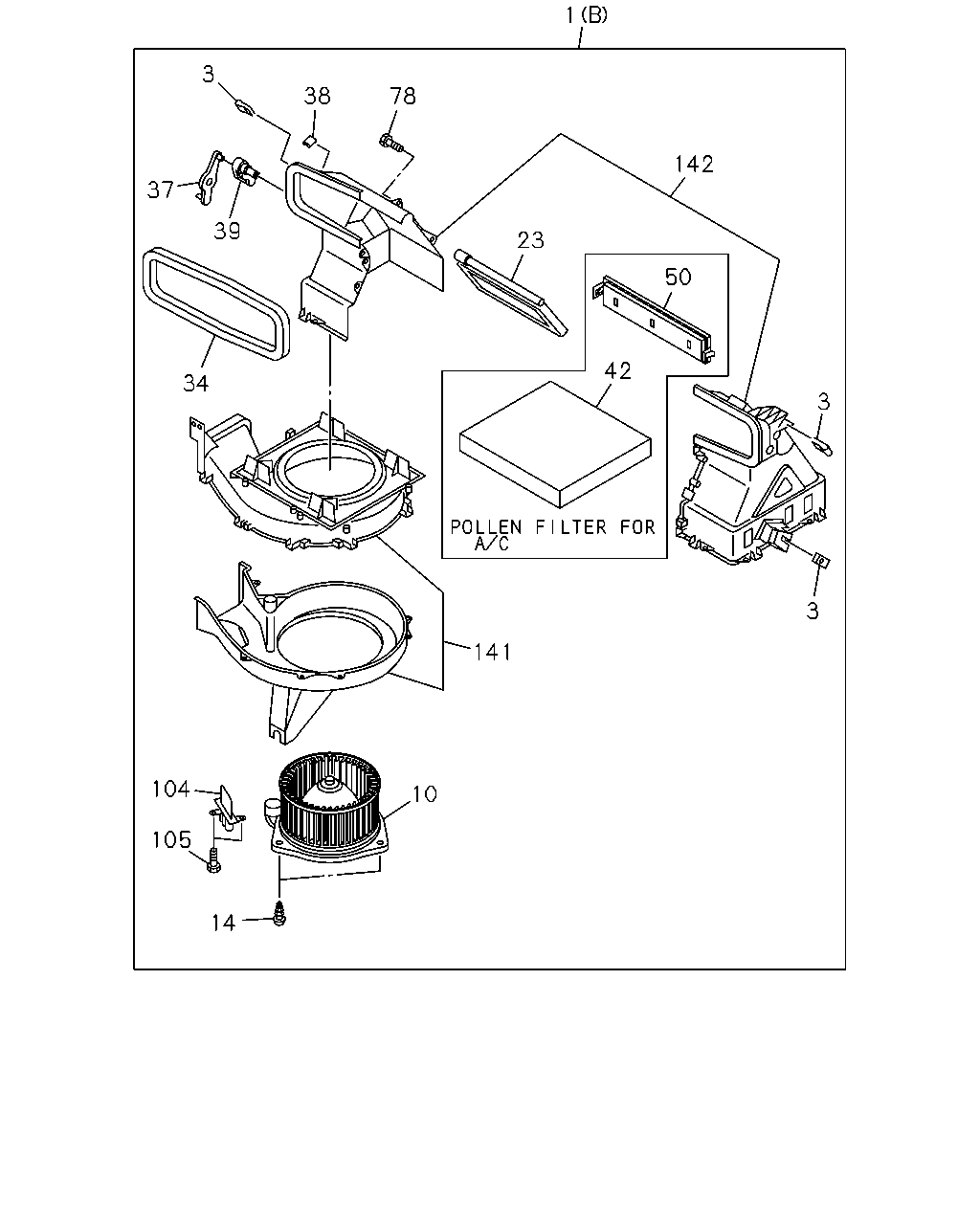

çizim 465009
1 142 78 38 3 37 39 23 50 3 42 141 10 104 105 14 34 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1501- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1501- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1501- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1501- ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1501- ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1501- ●
3 NUT; CASE 8-98139-394-1 03 1 1501- ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1501- ● ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1501- ● ● ●
23 SHUTTER; BLOWER UNIT 8-98294-586-0 01 1 1501- ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98294-586-0 01 1 1501- ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1501- ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98195-045-0 01 1 1501- ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-417-0 01 1 1501- ● ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-422-1 01 1 1501- ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98139-416-0 01 1 1501- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-416-0 01 1 1501- ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1501- ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1501- ● ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1501- ● ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98183-234-0 01 1 1501- ● ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98139-395-1 02 1 1501- ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98233-641-0 01 1 1501- ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1501- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1501- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1501- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1501- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1501- ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1501- ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1501- ●

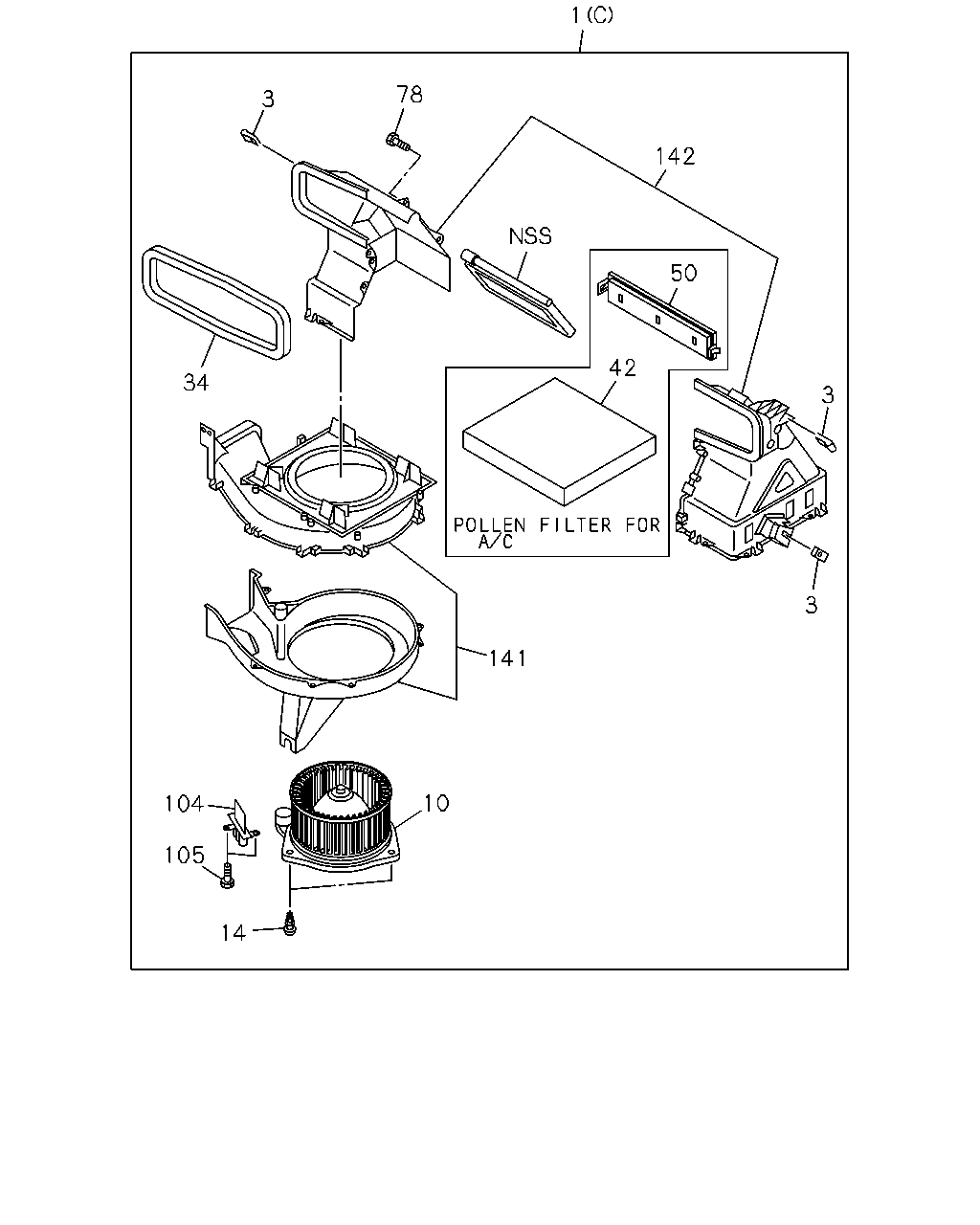

çizim 465010
1 78 3 142 50 42 3 3 141 10 14 104 105 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1501- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1501- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1501- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1501- ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1501- ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1501- ●
3 NUT; CASE 8-98139-394-1 03 1 1501- ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1501- ● ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1501- ● ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1501- ● ● ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1501- ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1501- ● ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1501- ● ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98183-234-0 01 1 1501- ● ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98139-395-1 02 1 1501- ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98233-641-0 01 1 1501- ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1501- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1501- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1501- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1501- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1501- ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR(8NF) 		8-98233-647-0 01 1 1501- ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1501- ●
