◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#155477) — 19 parça

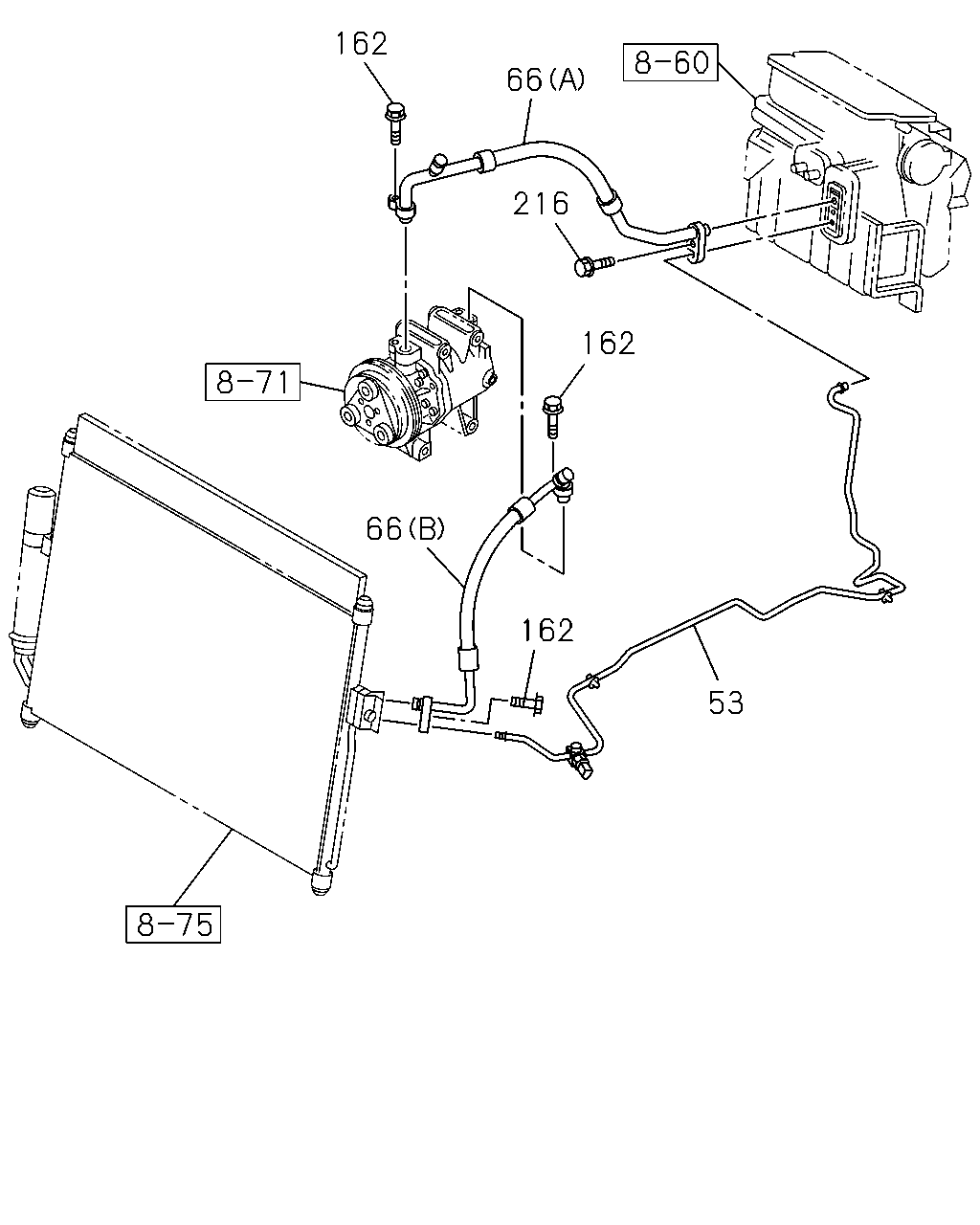

çizim 464853
162 66 216 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1501- ● ● ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) M8X25 FLANGE 		0-28650-825-0 03 1 1501- ● ● ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) M6X20 FLANGE 		0-28650-620-0 01 1 1501- ● ● ●
çizim 465056
123 146 146 122 202 123 53 66 147 67 67 147 67 67 66
BalonParca AdiParca NoAdetTipApplied Date A B C
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1501- ● ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1501- ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98164-687-0 01 1 1501- ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (C) 		8-98164-688-0 01 1 1501- ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98193-624-0 02 1 1501- ● ● ●
122 GASKET
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98164-690-0 01 1 1501- ● ● ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98164-689-0 02 1 1501- ● ● ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98193-622-0 02 1 1501- ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98193-623-0 01 1 1501- ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98193-625-0 01 1 1501- ● ● ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98164-691-0 01 1 1501- ● ● ●
