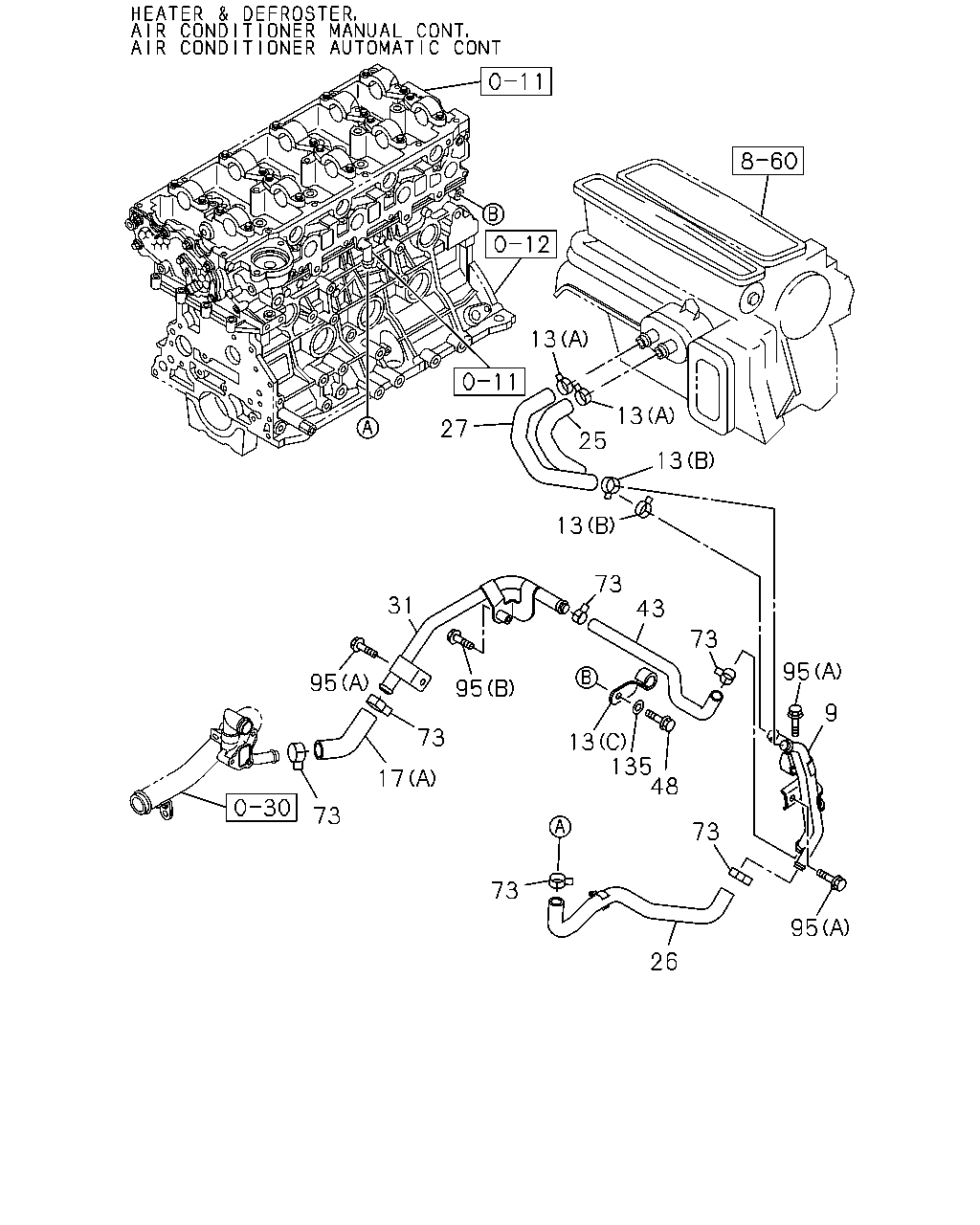

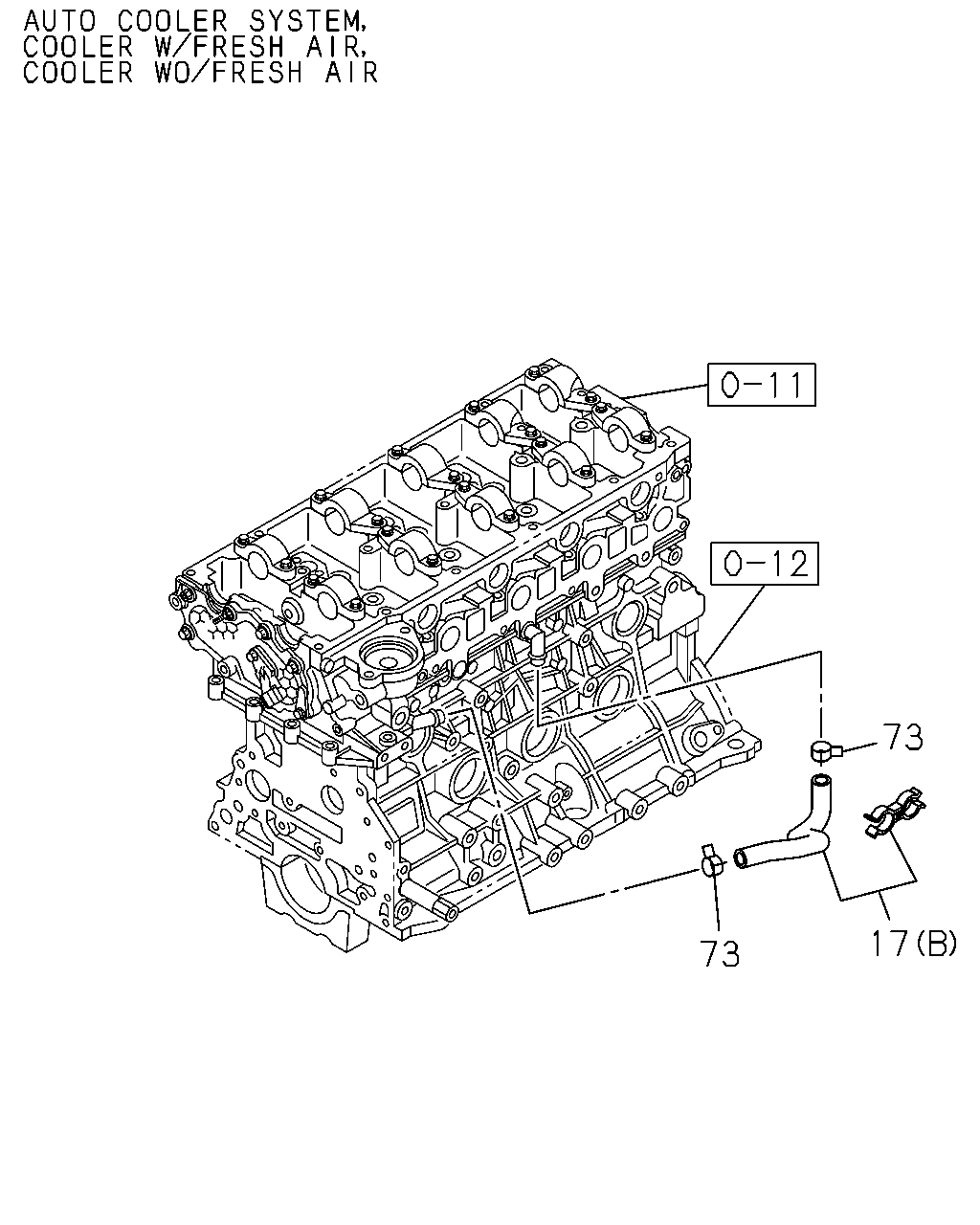

8-45 — HEATER PIPING (#155475) — 25 parça

73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	HOSE; WATER,BYPASS AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) (B)	8-98205-896-0	01	1	1501-	●	●	●
17	HOSE; WATER,BYPASS HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) ID=20.8	8-94125-862-1	02	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-94125-862-1	06	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1501-			●
73	CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1501-			●

27 13 13 25 13 13 73 43 73 95 9 95 26 73 73 48 135 13 95 31 95 73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98228-412-0	01	1	1501-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=22	8-97359-141-0	02	1	1501-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=20.8	8-98133-607-0	02	1	1501-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=25 L=54	1-09700-392-1	01	1	1501-	●	●	●
17	HOSE; WATER,BYPASS AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) (B)	8-98205-896-0	01	1	1501-	●	●	●
17	HOSE; WATER,BYPASS HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1501-	●	●	●
25	HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98129-341-3	01	1	1501-	●	●	●
26	HOSE; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98228-459-0	01	1	1501-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98129-339-3	01	1	1501-	●	●	●
31	PIPE; BYPASS,HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98131-989-0	01	1	1501-	●	●	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98239-131-0	01	1	1501-	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X12 FLANGE	0-28050-812-0	01	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) ID=20.8	8-94125-862-1	02	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-94125-862-1	06	1	1501-	●	●	●
73	CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1501-			●
73	CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1501-			●
95	BOLT; BYPASS PIPE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M8X16 FLANGE	0-28050-816-0	03	1	1501-	●	●	●
95	BOLT; BYPASS PIPE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M8X40 FLANGE	0-28650-840-0	01	1	1501-	●	●	●
135	WASHER; PL HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=8.4 OD=16	0-91610-508-0	01	1	1501-	●	●	●
