◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#155473) — 23 parça

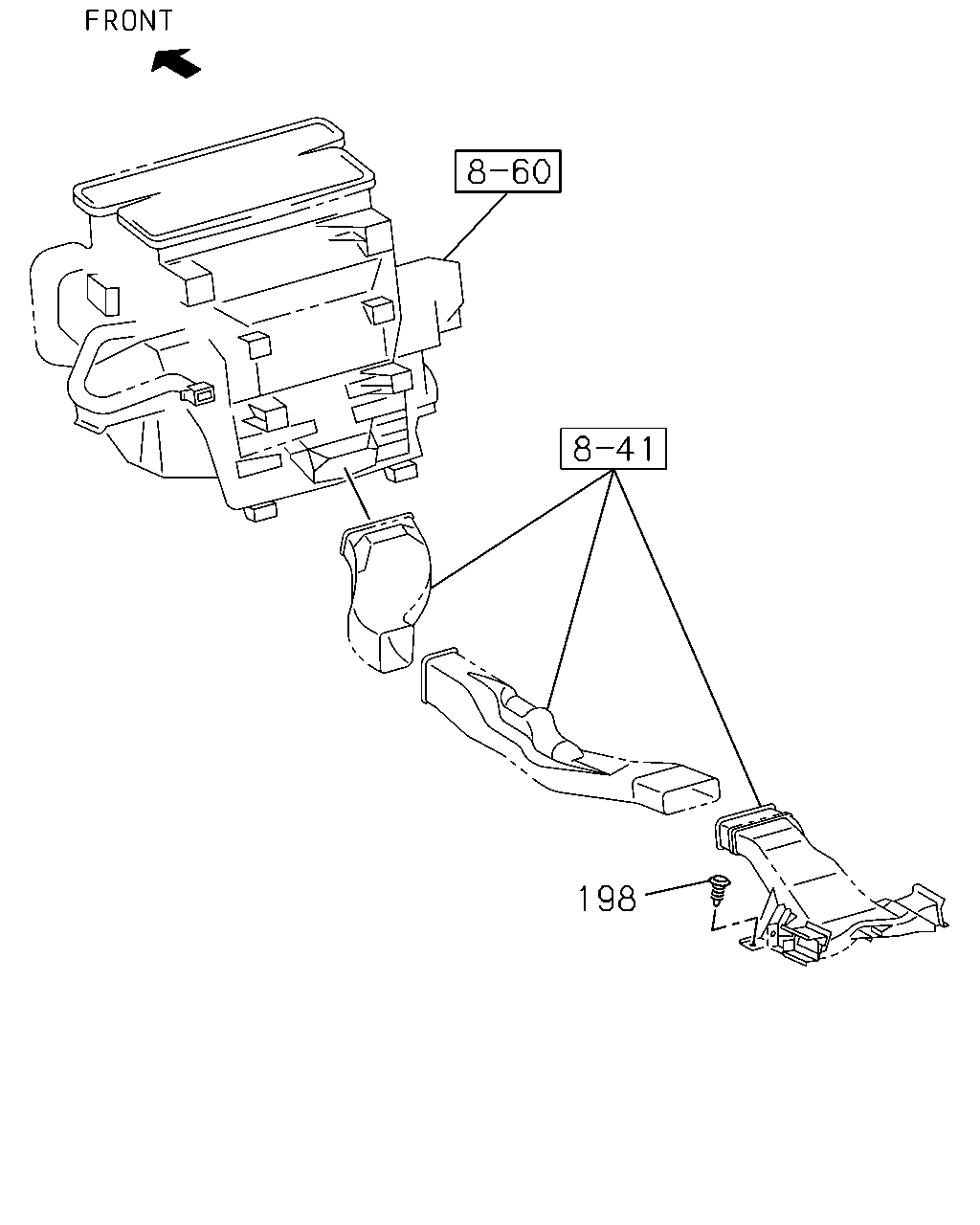

çizim 464462
198
BalonParca AdiParca NoAdetTipApplied Date A B C
198 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98147-301-0 02 1 1501- ● ●

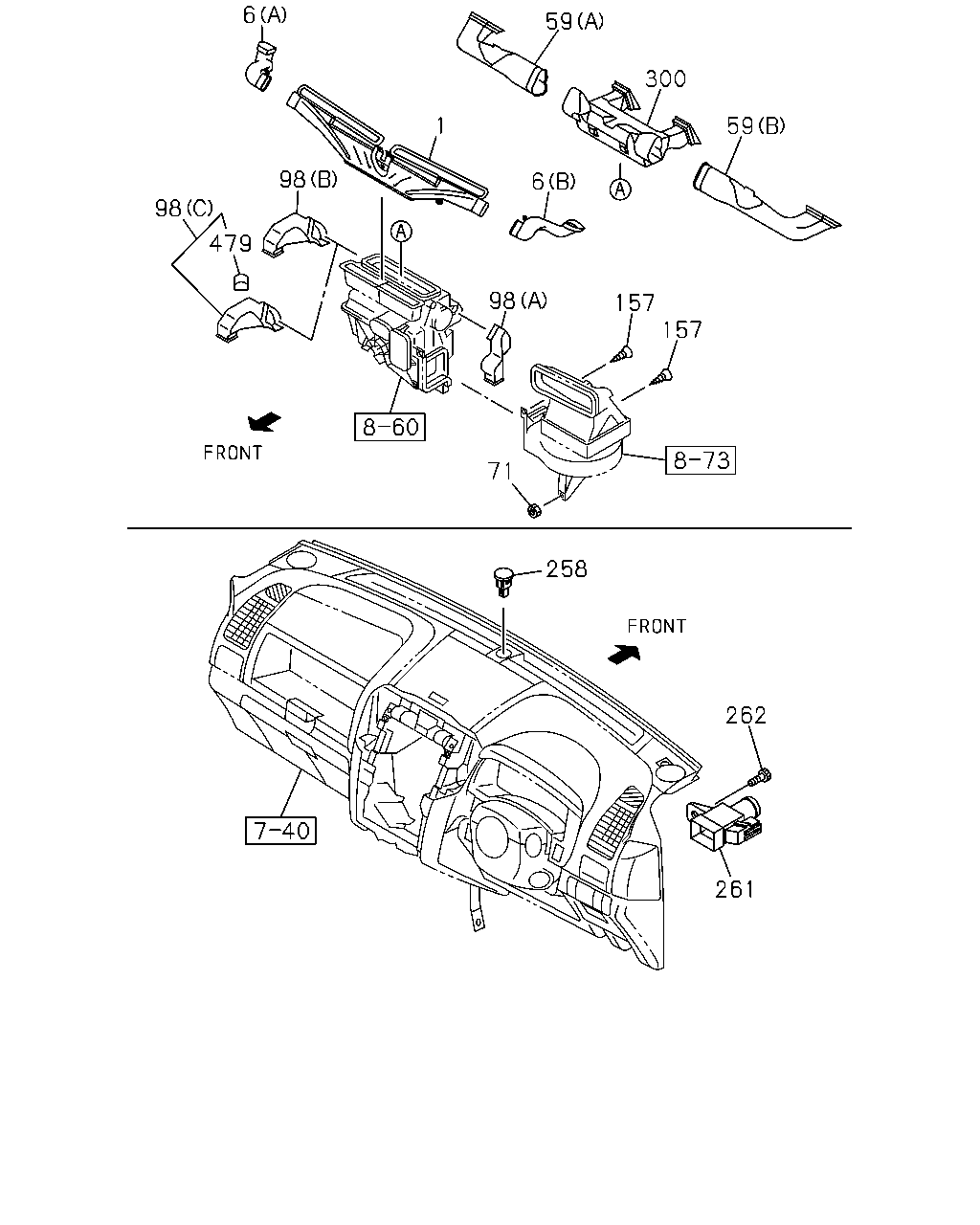

çizim 464950
6 98 98 479 1 98 6 59 300 157 71 261 262 258 157 59
BalonParca AdiParca NoAdetTipApplied Date A B C
1 NOZZLE; DEFROSTER,INST PNL
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98187-101-2 01 1 1501- ● ●
1 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98187-101-2 01 1 1501- ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98187-102-0 01 1 1501- ● ●
6 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98187-102-0 01 1 1501- ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98187-103-0 01 1 1501- ● ●
6 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98187-103-0 01 1 1501- ●
59 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1501- ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1501- ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		8-94279-514-0 01 1 1501- ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) (C) 		8-98274-165-0 01 1 1501- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-054-0 01 1 1501- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (A) 		8-98233-054-0 01 1 1501- ●
98 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98233-055-0 01 1 1501- ● ● ●
157 SCREW
M5X16 		8-98167-220-0 02 1 1501- ● ● ●
258 SENSOR; SUN
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-691-0 01 1 1501-1505 ● ●
258 SENSOR; SUN
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98103-691-0 01 1 1506- ● ●
261 SENSOR; IN CAR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-694-0 01 1 1501-1505 ● ●
261 SENSOR; IN CAR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98103-694-0 01 1 1506- ● ●
262 SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M5X14 TAPPING 		8-98184-363-0 01 1 1501-1505 ● ●
262 SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) M5X14 TAPPING 		8-98184-363-0 01 1 1506- ● ●
300 DUCT; VENT,CENTER 8-98187-098-0 01 1 1501- ● ● ●
479 SPONGE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) 		8-98274-219-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
