◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#155472) — 20 parça

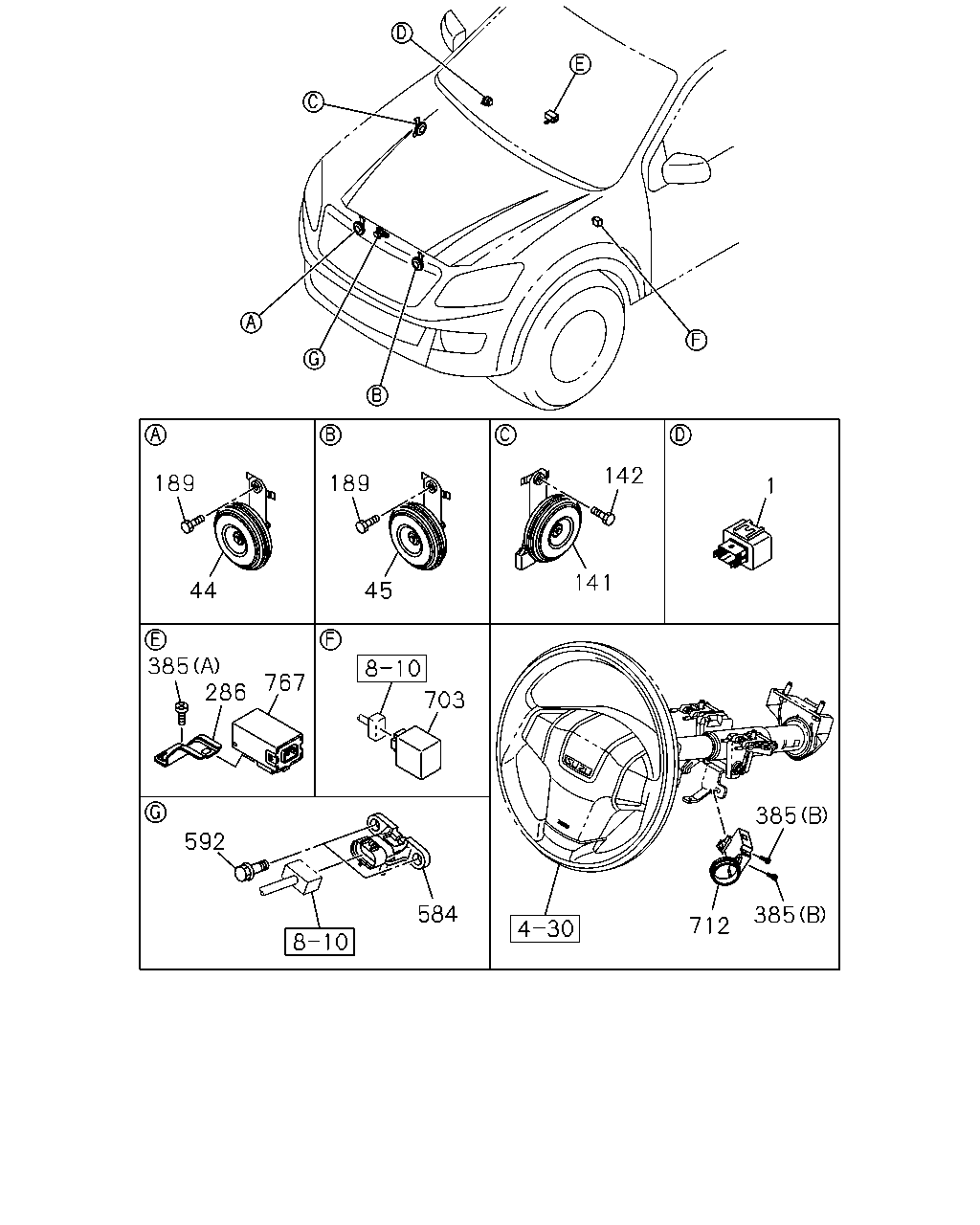

çizim 465044
189 189 45 44 142 141 1 385 385 712 584 592 767 286 385 703
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98080-978-0 01 1 1501- ● ● ●
44 HORN; HIGH NOTE 8-98219-100-0 01 1 1501- ● ● ●
45 HORN; LOW NOTE 8-98219-102-1 01 1 1501- ● ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98164-588-0 01 1 1501- ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1501-1501 ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1501-1501 ● ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1501-1501 ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ●
286 BRACKET
REMOTE CONT DOOR LOCK<AP5> 		8-98102-503-0 01 1 1501- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1501- ● ●
385 BOLT; CONT UNIT
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1501-1507 ● ● ●
385 BOLT; CONT UNIT
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1508- ● ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1501- ● ● ●
592 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1501- ● ●
712 CONTROL UNIT; ANTI THEFT 8-98226-205-0 01 1 1501- ● ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98226-196-0 01 1 1501-1509 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98076-338-1 01 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
