◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#155470) — 36 parça

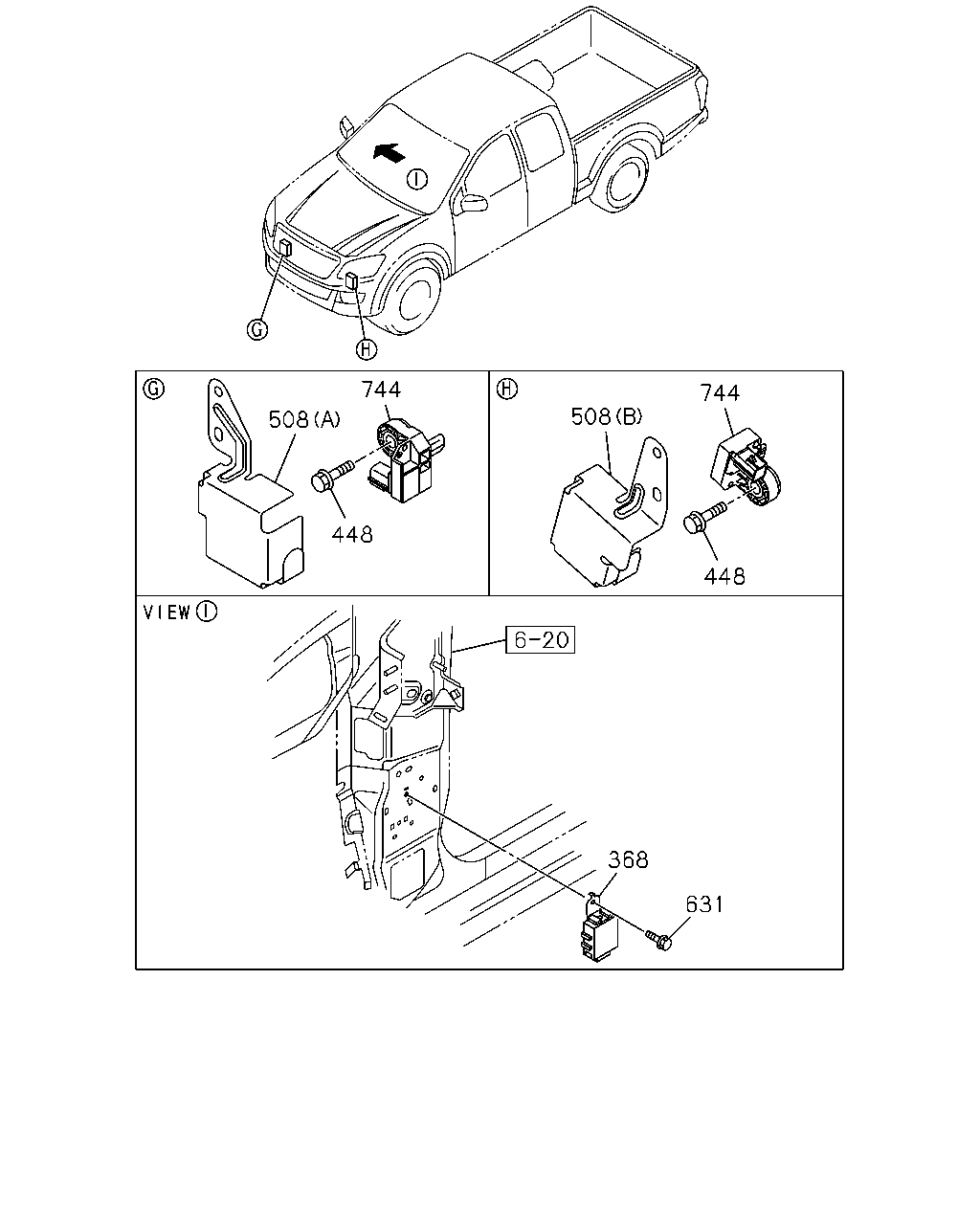

çizim 464915
744 508 448 508 744 448 631 368
BalonParca AdiParca NoAdetTipApplied Date A B C
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1501- ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97385-923-0 01 1 1501- ●
448 BOLT; SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 1501- ● ● ●
508 PROTECTOR
(A) 		8-98165-179-0 01 1 1501- ● ● ●
508 PROTECTOR
(B) 		8-98165-180-0 01 1 1501- ● ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> M6X16 FLANGE 		0-28450-616-0 01 1 1501- ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28450-616-0 01 1 1501- ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> M6X16 FLANGE 		0-28450-616-0 02 1 1501- ● ●
744 SENSOR; AIR BAG 8-98059-533-2 02 1 1501- ● ● ●

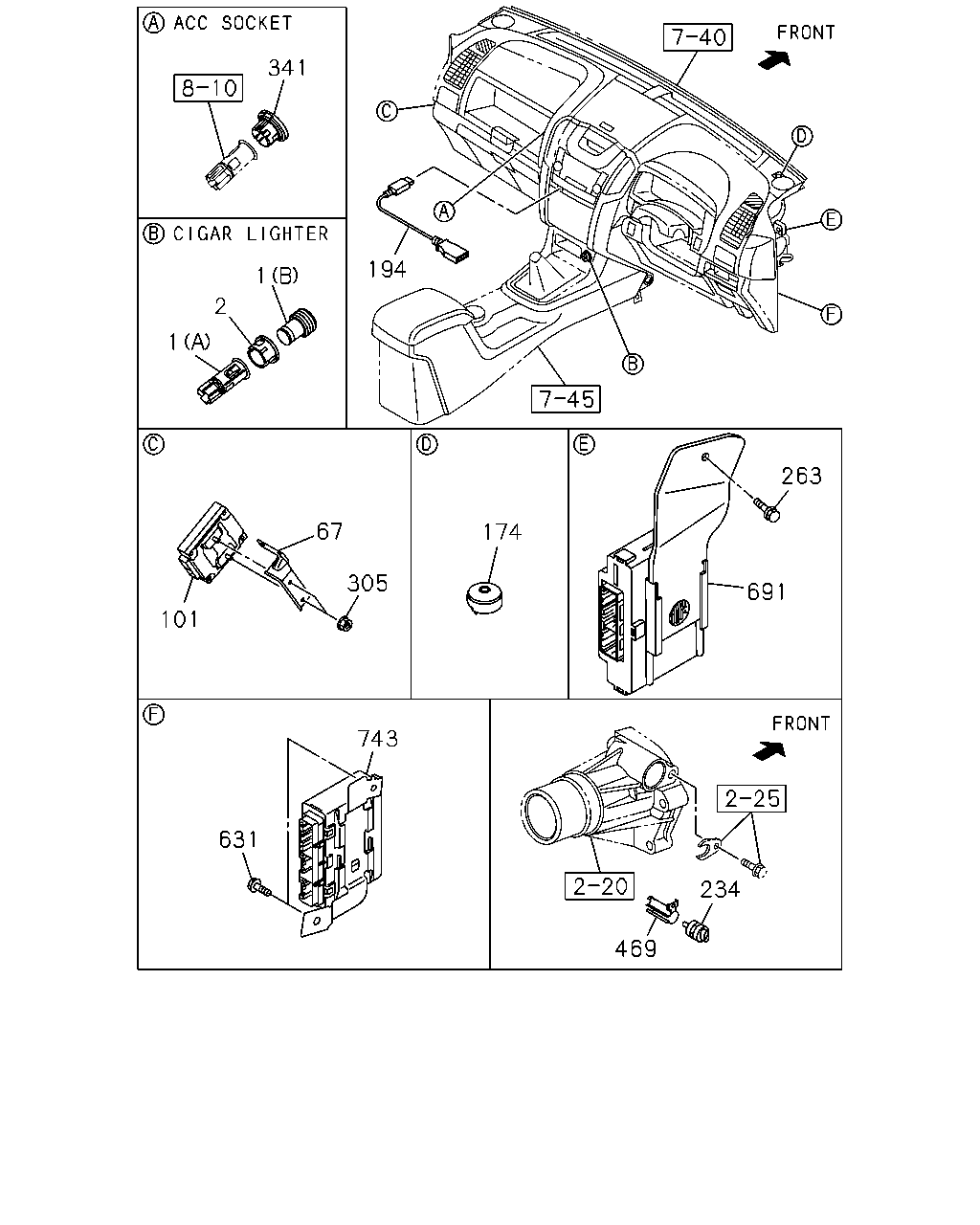

çizim 465037
174 305 67 101 1 2 1 341 234 469 691 263 743 631 194
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1501- ● ● ●
1 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1501- ● ● ●
2 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1501- ● ● ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1501- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION<NT2> 		8-98315-550-0 01 1 1505- ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98239-945-0 01 1 1501- ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION<NT2> 		8-98239-945-0 01 1 1501- ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98239-941-0 01 1 1501-1504 ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO3 SPECIFICATION<NT3> 		8-98239-941-0 01 1 1505- ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1501- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98193-631-0 01 1 1501- ● ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 1501- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1501- ● ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1501- ●
263 BOLT; CONT UNIT
M/T MUA 5 SPEED 5H(MWQ) M6X16 FLANGE 		0-28650-616-0 01 1 1501- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1501- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) M6 FLANGE 		0-91180-106-0 02 1 1501- ● ●
341 COVER ASM 8-98123-123-0 01 1 1501- ● ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1501- ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1501- ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98119-901-0 01 1 1501- ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> M6X16 FLANGE 		0-28450-616-0 01 1 1501- ● ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28450-616-0 01 1 1501- ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> M6X16 FLANGE 		0-28450-616-0 02 1 1501- ● ●
691 CONTROLLER; TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98186-110-0 01 1 1501- ●
691 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1501- ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98215-286-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
