1-50 — EXHAUST PIPE AND SILENCER (#15547) — 71 parça

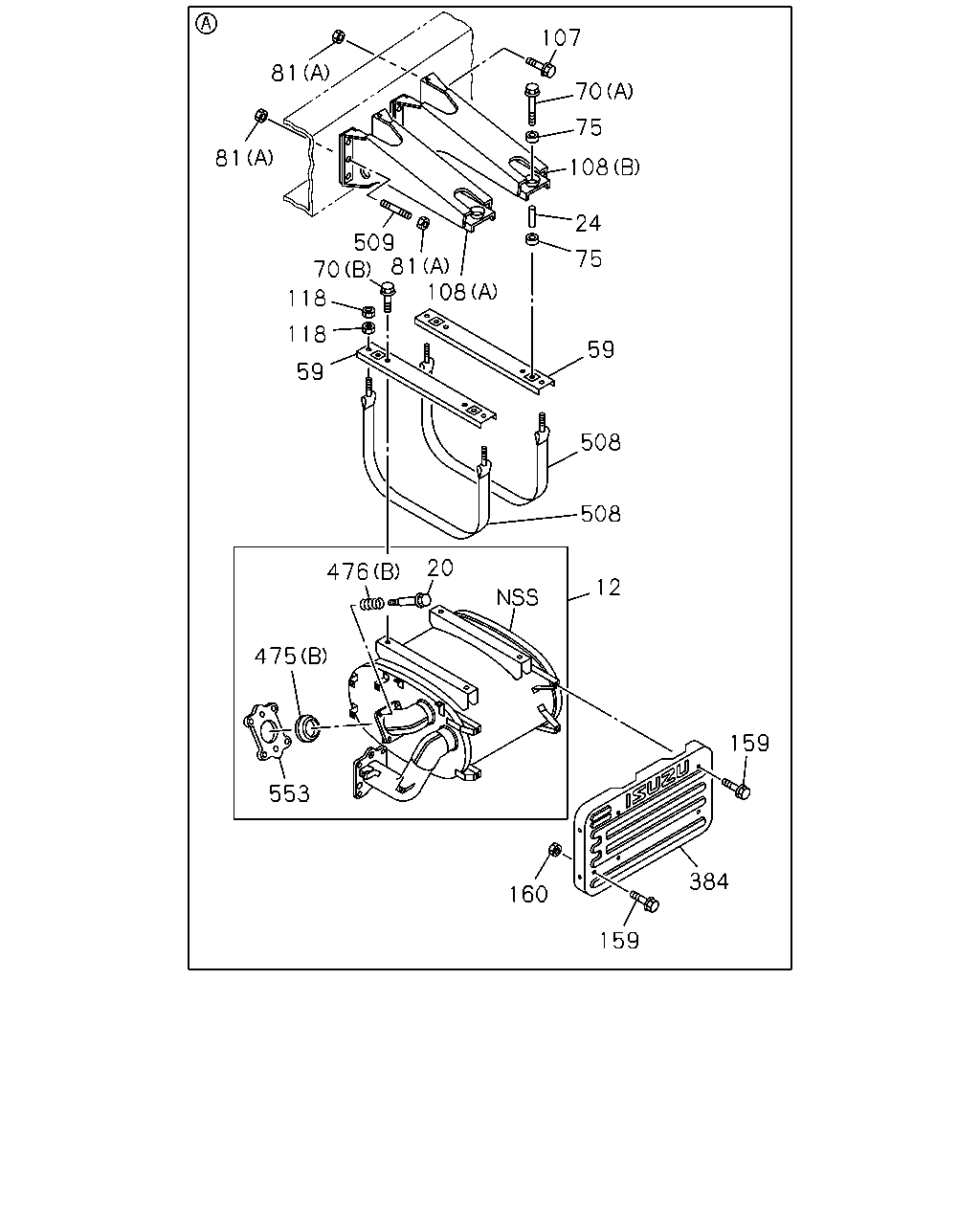

çizim 91580
107 81 70 75 81 108 24 509 70 81 108 75 118 118 59 59 508 508 20 476 12 475 159 553 384 160 159
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
CATALYSIS CONTROL<6MZ> 		8-97611-398-0 01 1 0611-
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		1-09009-167-0 03 1 0611-0701
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		8-94436-943-0 02 1 0702-
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		1-09009-167-0 02 1 0611-0701
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		8-94436-943-0 03 1 0702-
24 COLLAR; DIST,CLAMP
CATALYSIS CONTROL<6MZ> L=22 		9-22159-024-0 04 1 0611-
59 BRACKET; EXH SILENCER,FRT
CATALYSIS CONTROL<6MZ> 		1-22134-147-1 02 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 01 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 04 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 04 1 0611-
75 RUBBER; SUPPORT,BRKT
CATALYSIS CONTROL<6MZ> OD=40 		1-22159-094-0 08 1 0611-
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10 FLANGE 		0-91180-210-0 01 1 0611-0611
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10 FLANGE 		0-91180-210-0 03 1 0611-
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (A) M12 FLANGE 		0-91180-212-0 12 1 0611-
107 BOLT; BRKT
CATALYSIS CONTROL<6MZ> M12X40 FLANGE 		0-28051-240-0 06 1 0611-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
CATALYSIS CONTROL<6MZ> (A) 		1-22134-145-0 01 1 0611-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
CATALYSIS CONTROL<6MZ> (B) 		1-22134-146-0 01 1 0611-
118 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL<6MZ> M10 		0-91110-510-0 08 1 0611-
159 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL<6MZ> M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0611-
160 NUT; HEAT PROTECTOR
CATALYSIS CONTROL<6MZ> M8 FLANGE 		0-91180-108-0 01 1 0611-
384 PROTECTOR; HEAT SILENCER MTG
CATALYSIS CONTROL<6MZ> 		1-22119-556-0 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) OD=112 		1-22119-294-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-0 02 1 0611-
476 SPRING; VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) 		8-94141-851-0 02 1 0611-
476 SPRING; VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) 		1-09583-248-0 04 1 0611-
508 BAND; EXHAUST SILENCER
CATALYSIS CONTROL<6MZ> 		1-22159-384-0 02 1 0611-
509 STUD; BRKT
CATALYSIS CONTROL<6MZ> M12X40 L=56 		1-09300-123-0 06 1 0611-
553 FLANGE; SILENCER
CATALYSIS CONTROL<6MZ> 		1-22115-148-1 01 1 0611-

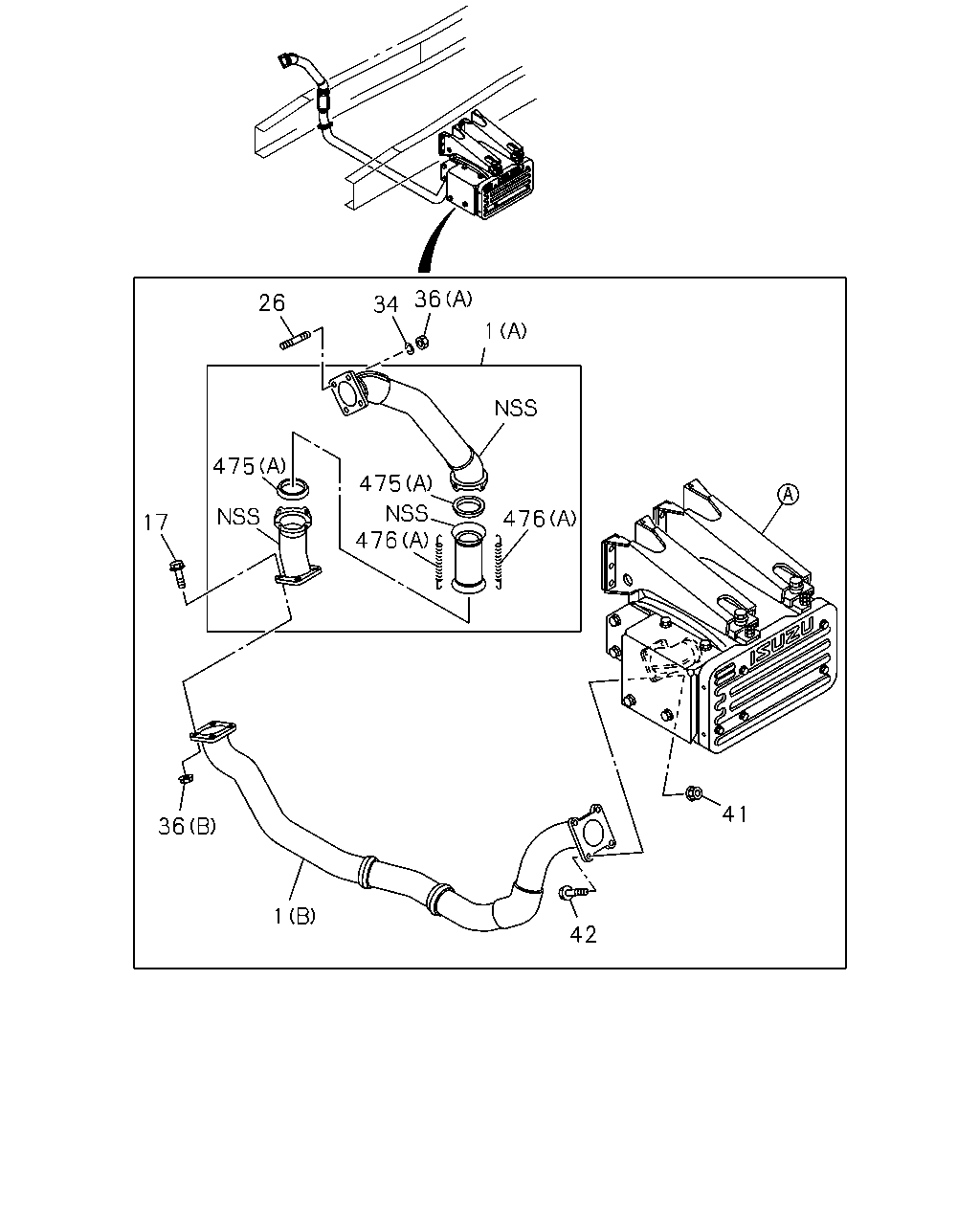

çizim 91611
36 26 34 1 475 475 476 476 17 41 36 1 42
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (B) 		1-22123-762-1 01 1 0611-
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (A) 		1-22124-034-0 01 1 0611-
17 BOLT; EXH PIPE
CATALYSIS CONTROL<6MZ> M12X25 FLANGE 		1-09000-604-0 04 1 0611-
26 STUD; EXH MANIF
CATALYSIS CONTROL<6MZ> M12X140 L=160 		1-09302-163-0 04 1 0611-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0611-
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 04 1 0611-
36 NUT; EXH PIPE
CATALYSIS CONTROL<6MZ> (B) M12 		0-91110-512-0 04 1 0611-
41 NUT; EXH PIPE TO EXH SILENCER
CATALYSIS CONTROL<6MZ> M12 		0-91110-512-0 04 1 0611-
42 BOLT; EXH PIPE TO EXH SILENCER
CATALYSIS CONTROL<6MZ> M12X25 FLANGE 		1-09000-604-0 04 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) OD=112 		1-22119-294-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-0 02 1 0611-
476 SPRING; VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) 		8-94141-851-0 02 1 0611-
476 SPRING; VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) 		1-09583-248-0 04 1 0611-

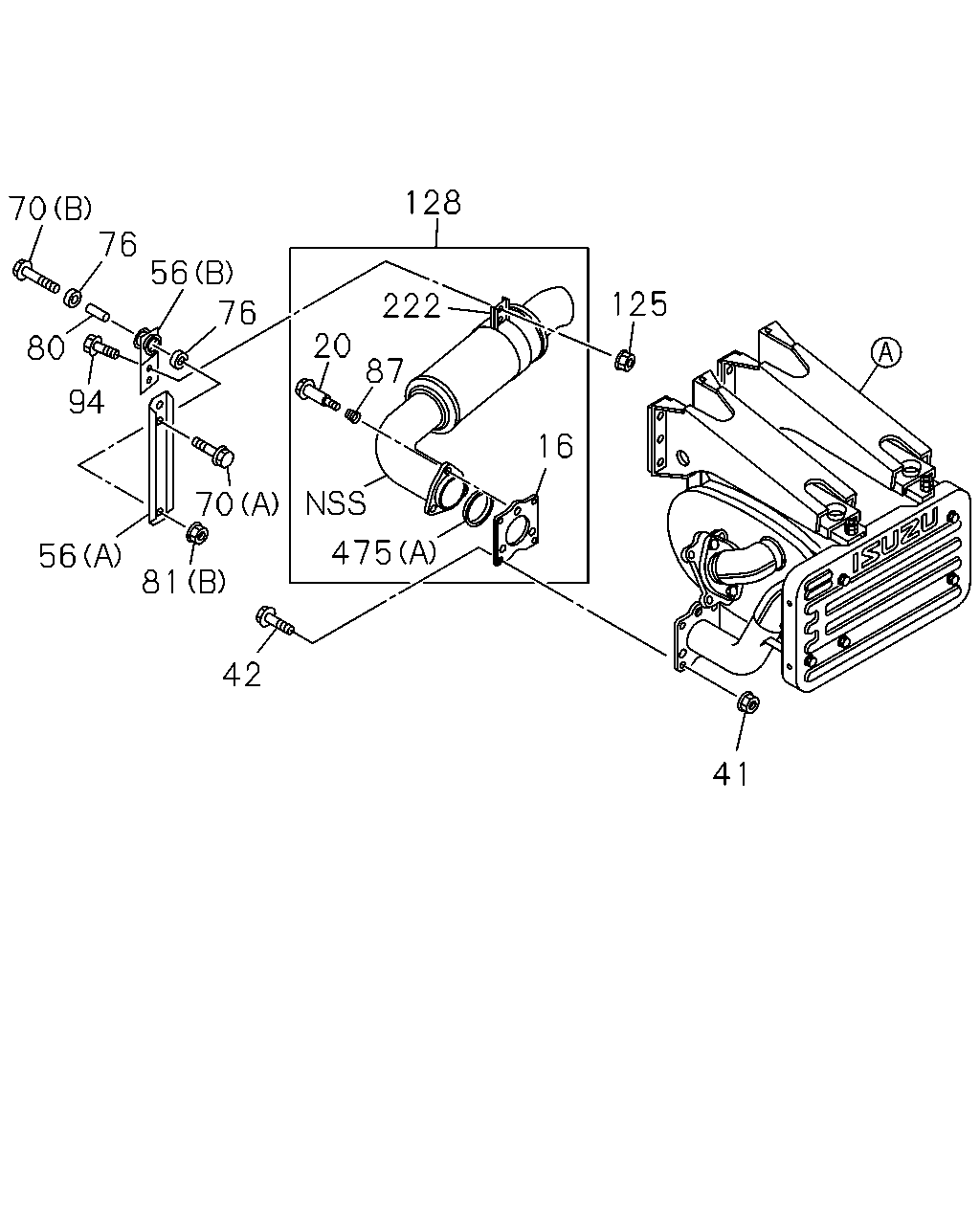

çizim 91613
128 70 76 56 76 222 125 20 87 80 94 16 70 475 56 81 42 41
BalonParca AdiParca NoAdetTipApplied Date
16 FLANGE; EXH PIPE
CATALYSIS CONTROL<6MZ> 		1-22115-229-0 01 1 0611-
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		1-09009-167-0 03 1 0611-0701
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		8-94436-943-0 02 1 0702-
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		1-09009-167-0 02 1 0611-0701
20 BOLT; FLANGE,EXH PIPE
CATALYSIS CONTROL<6MZ> M10X51.4 		8-94436-943-0 03 1 0702-
41 NUT; EXH PIPE TO EXH SILENCER
CATALYSIS CONTROL<6MZ> M12 		0-91110-512-0 04 1 0611-
42 BOLT; EXH PIPE TO EXH SILENCER
CATALYSIS CONTROL<6MZ> M12X25 FLANGE 		1-09000-604-0 04 1 0611-
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) 		8-97615-956-0 01 1 0611-
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) 		8-97615-957-0 01 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 01 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 04 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 04 1 0611-
76 SUPPORT; BRKT
CATALYSIS CONTROL<6MZ> OD=40 		1-22159-094-0 02 1 0611-
80 COLLAR; DIST,SUPPORT RUBBER
CATALYSIS CONTROL<6MZ> L=22 		9-22159-024-0 01 1 0611-
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10 FLANGE 		0-91180-210-0 01 1 0611-0611
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10 FLANGE 		0-91180-210-0 03 1 0611-
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> (A) M12 FLANGE 		0-91180-212-0 12 1 0611-
87 SPRING; PRE SILENCER
CATALYSIS CONTROL<6MZ> 		8-94141-851-0 03 1 0611-
94 BOLT; CLAMP
CATALYSIS CONTROL<6MZ> M8X40 FLANGE 		0-28650-840-0 02 1 0611-
125 NUT; CLAMP
CATALYSIS CONTROL<6MZ> M8 FLANGE 		0-91180-108-0 02 1 0611-
128 PIPE; EXH,RR
CATALYSIS CONTROL<6MZ> 		8-97615-958-1 01 1 0611-0704
128 PIPE; EXH,RR
CATALYSIS CONTROL<6MZ> 		8-97623-173-0 01 1 0705-
222 CLAMP; EXH PIPE
CATALYSIS CONTROL<6MZ> 		1-22133-293-0 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (B) OD=112 		1-22119-294-1 01 1 0611-
475 BEARING; SEAL,VIBNON,EXH PIPE
CATALYSIS CONTROL<6MZ> (A) OD=122 		1-22119-297-0 02 1 0611-
