8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#155469) — 48 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●

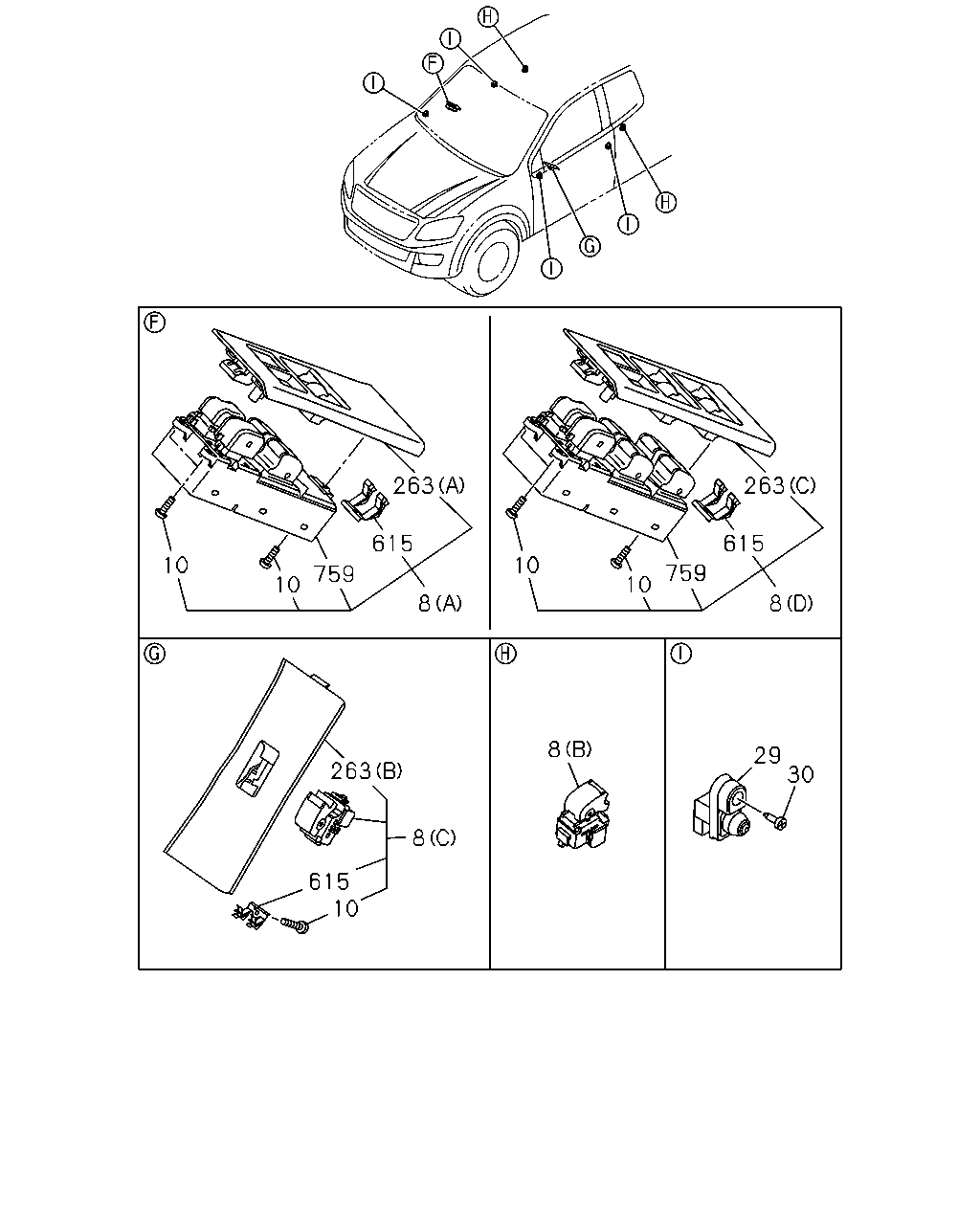

10 10 759 263 615 8 10 10 759 263 615 8 8 29 30 8 615 10 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK	8-97416-975-0	01	1	1501-	●		●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97416-810-0	01	1	1501-	●	●	●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-004-0	02	1	1501-	●		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK	8-97416-976-0	01	1	1501-	●		●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK	8-97416-734-0	01	1	1501-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK	8-97416-735-0	01	1	1501-		●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-450-0	01	1	1401-	●	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-450-0	03	1	1401-	●	●	●
29	SWITCH; DOOR	8-97313-208-0	02	1	1501-	●	●	●
29	SWITCH; DOOR	8-97313-208-0	02	1	1501-	●		●
30	SCREW; DOOR SW M5X14	8-94120-095-0	02	1	1501-	●	●	●
30	SCREW; DOOR SW M5X14	8-94120-095-0	02	1	1501-	●		●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98192-247-0	01	1	1501-	●	●	●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98192-244-0	01	1	1501-	●		●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98192-243-0	01	1	1501-		●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-268-0	01	1	1501-	●	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-268-0	01	1	1501-	●	●	●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ>	8-98192-251-0	01	1	1501-	●		●
759	SWITCH ASM; WINDOW POWER WINDOW FRT&REAR DOOR<A31>	8-98192-252-0	01	1	1501-	●		●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ>	8-98192-249-0	01	1	1501-		●
759	SWITCH ASM; WINDOW POWER WINDOW FRT&REAR DOOR<A31>	8-98192-250-0	01	1	1501-		●

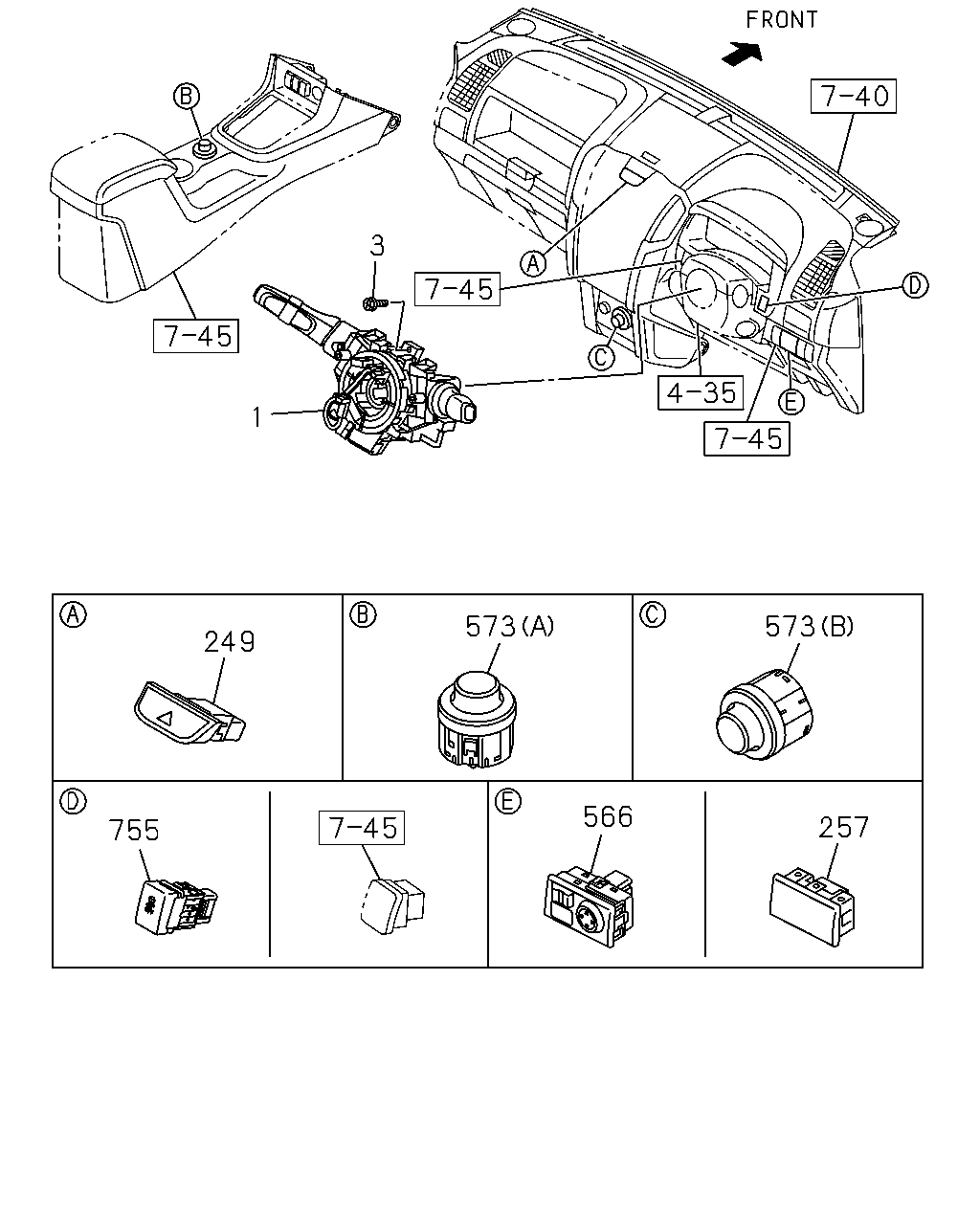

573 573 566 257 755 249 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-137-1	01	1	1501-	●		●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96>	8-98227-411-1	01	1	1501-	●		●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98194-135-1	01	1	1501-	●		●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>	8-98194-140-1	01	1	1501-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-142-1	01	1	1501-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-141-1	01	1	1501-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-136-1	01	1	1501-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-98194-136-1	01	1	1501-		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-134-1	01	1	1501-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-98194-134-1	01	1	1501-		●
1	SWITCH; COMB ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATIONCLUSTER<UCA>	8-98296-351-0	01	1	1501-	●		●
1	SWITCH; COMB ELECTRONIC TRACTION CONTROL<NW9> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98296-352-0	01	1	1501-	●		●
1	SWITCH; COMB FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELE CTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-138-1	01	1	1501-	●		●
1	SWITCH; COMB FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-98194-138-1	01	1	1501-		●
1	SWITCH; COMB EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>, FOGLAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98194-139-1	01	1	1501-	●		●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-98194-139-1	01	1	1501-		●
3	SCREW; COMB SW M5X20 W/LK&PL WASHER	0-36230-520-0	01	1	1501-	●	●	●
249	SWITCH; HAZARD BLACK	8-97416-805-0	01	1	1501-	●	●	●
257	COVER; HOLE,SW	8-98106-389-2	01	1	1501-		●
566	SWITCH; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>	8-98058-078-1	01	1	1501-	●		●
573	SWITCH; 4WD FRONT CONSOLE W/LID<D55> (A)	8-98065-836-2	01	1	1501-		●
573	SWITCH; 4WD CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A)	8-98065-836-2	01	1	1501-			●
573	SWITCH; 4WD EXC. FRONT CONSOLE W/LID<D55> (B)	8-98058-076-2	01	1	1501-		●
573	SWITCH; 4WD EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)	8-98058-076-2	01	1	1501-			●
755	SWITCH; ESC OFF ELECTRONIC TRACTION CONTROL<NW9>	8-98058-081-1	01	1	1501-	●		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
