◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#155468) — 27 parça

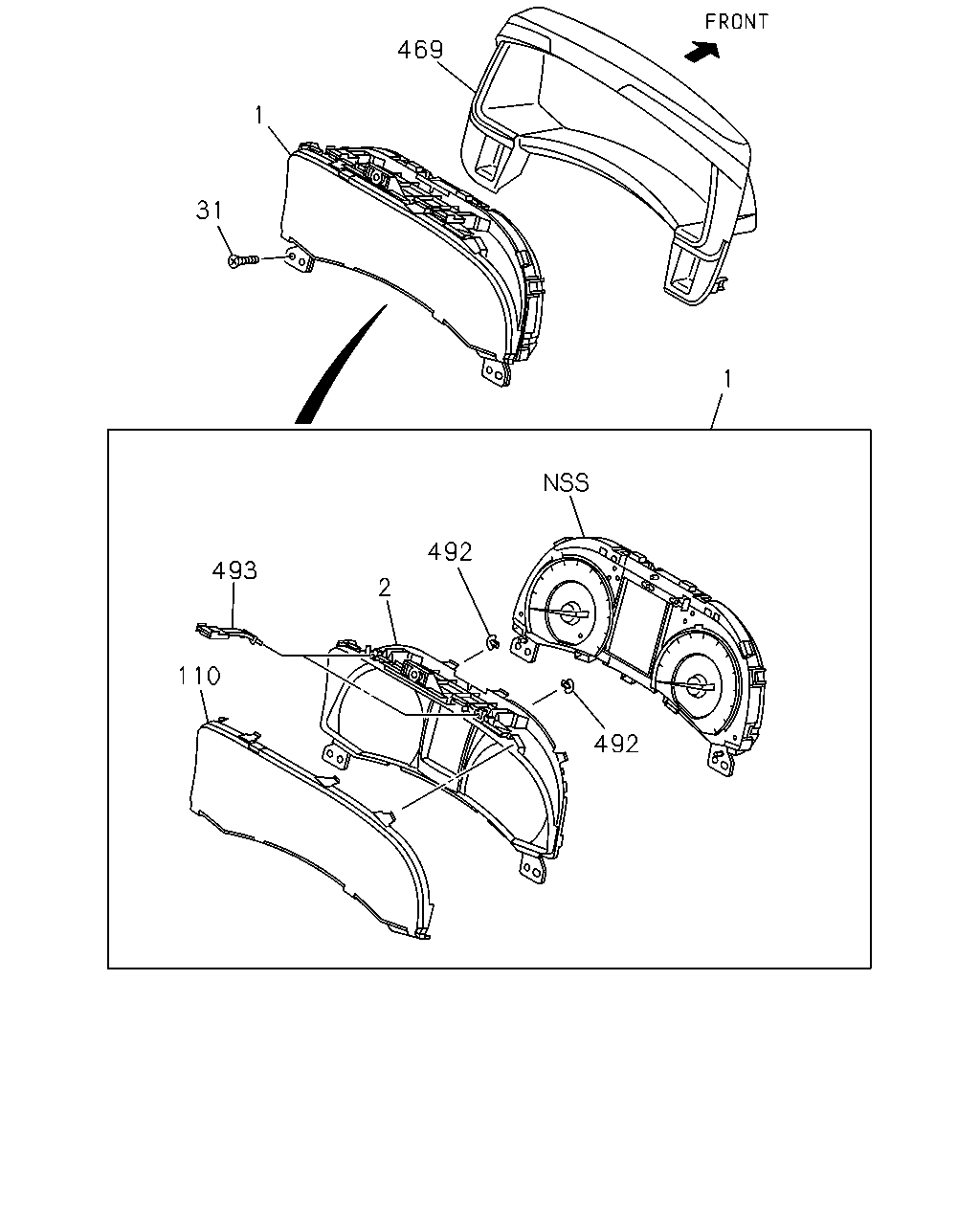

çizim 464874
469 1 31 1 492 2 493 110 492
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-415-0 01 1 1501- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-415-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98185-145-4 01 1 1501- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98185-145-4 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98277-416-0 01 1 1501- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98277-416-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98228-635-0 01 1 1501- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98228-635-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-412-0 01 1 1501- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-412-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98103-776-8 01 1 1501- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98103-776-8 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98277-413-0 01 1 1501- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98277-413-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98228-634-0 01 1 1501- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98228-634-0 01 1 1501- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98228-634-0 01 1 1501- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-884-0 01 1 1501- ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-885-0 01 1 1501- ● ●
2 PANEL; CLUSTER 8-98163-885-0 01 1 1501- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		8-98167-449-0 03 1 1501- ● ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-882-0 01 1 1501- ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-883-0 01 1 1501- ● ●
110 GLASS; CLUSTER METER 8-98163-883-0 01 1 1501- ●
469 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1501- ● ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-886-0 02 1 1501- ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-887-0 02 1 1501- ● ●
