Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#155466) — 137 parça

4 734 750 749 751

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1501-	●	●	●
734	RELAY; ACC SOCKET 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
749	RELAY; POWER WINDOW 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
750	RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
751	RELAY; DEAD LOCK 12V YAZAKI	8-97309-292-0	01	1	1501-	●	●	●

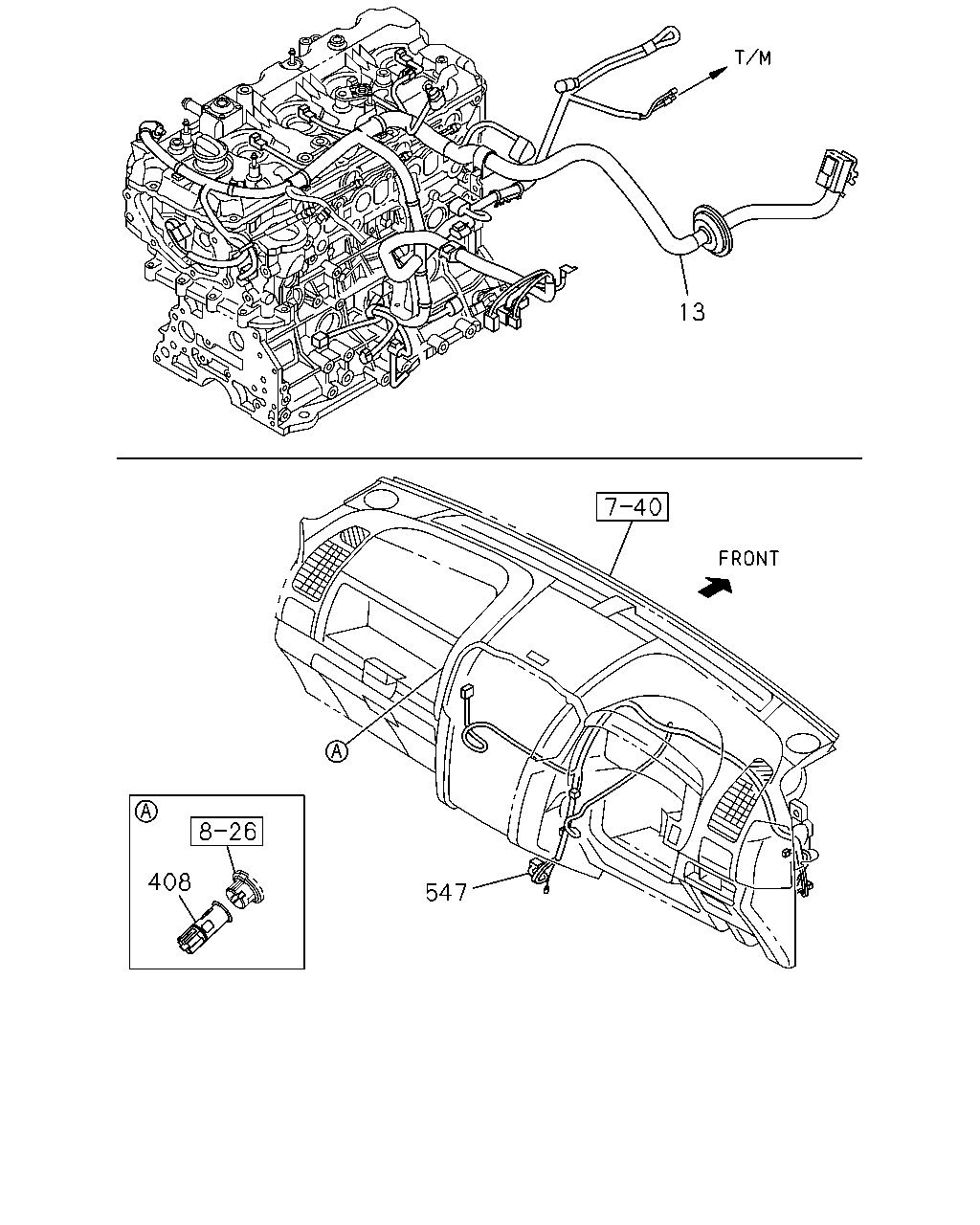

13 547 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98206-415-3	01	1	1501-	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98206-015-3	01	1	1501-	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98260-516-0	01	1	1501-		●	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98260-518-0	01	1	1501-			●
13	HARNESS; ENG 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1)	8-98260-520-0	01	1	1501-			●
13	HARNESS; ENG 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98260-519-0	01	1	1501-			●
408	SOCKET ASM; ACCESSORY	8-98123-115-0	01	1	1501-	●		●
408	SOCKET ASM; ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5>	8-98123-115-0	01	1	1501-		●
547	HARNESS; CABLE,SRS	8-98258-879-1	01	1	1501-	●	●	●

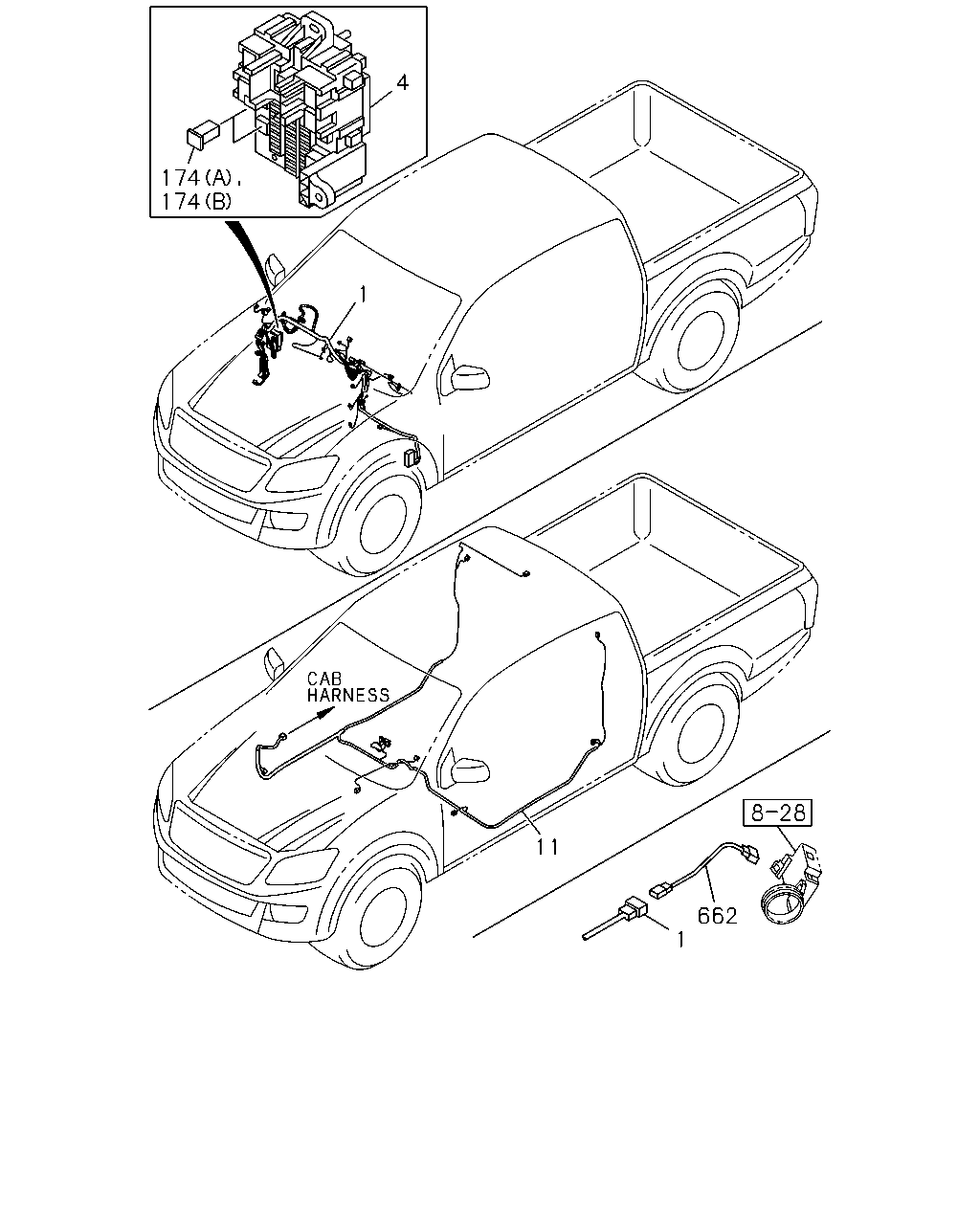

4 1 11 1 662 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1501-1507	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1508-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1501-1507	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1508-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1501-1507	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1508-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1501-1507	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1508-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1501-1507	●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1508-	●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1501-1507	●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1501-1507			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1508-	●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1508-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL)	8-98272-275-1	01	1	1501-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4>	8-98272-276-1	01	1	1501-		●
4	BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1501-	●	●	●
11	HARNESS; BODY AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-597-7	01	1	1501-	●		●
11	HARNESS; BODY AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REAR DEFOGGER<C49>	8-98160-590-7	01	1	1501-	●		●
11	HARNESS; BODY REAR DEFOGGER<C49> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4>	8-98160-614-7	01	1	1501-	●		●
11	HARNESS; BODY AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>	8-98160-607-7	01	1	1501-	●		●
11	HARNESS; BODY	8-98160-558-5	01	1	1501-		●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (D)	8-98197-288-0	AR	1	1501-	●	●	●
662	HARNESS; IMMOBILIZER	8-98163-074-0	01	1	1501-	●	●	●

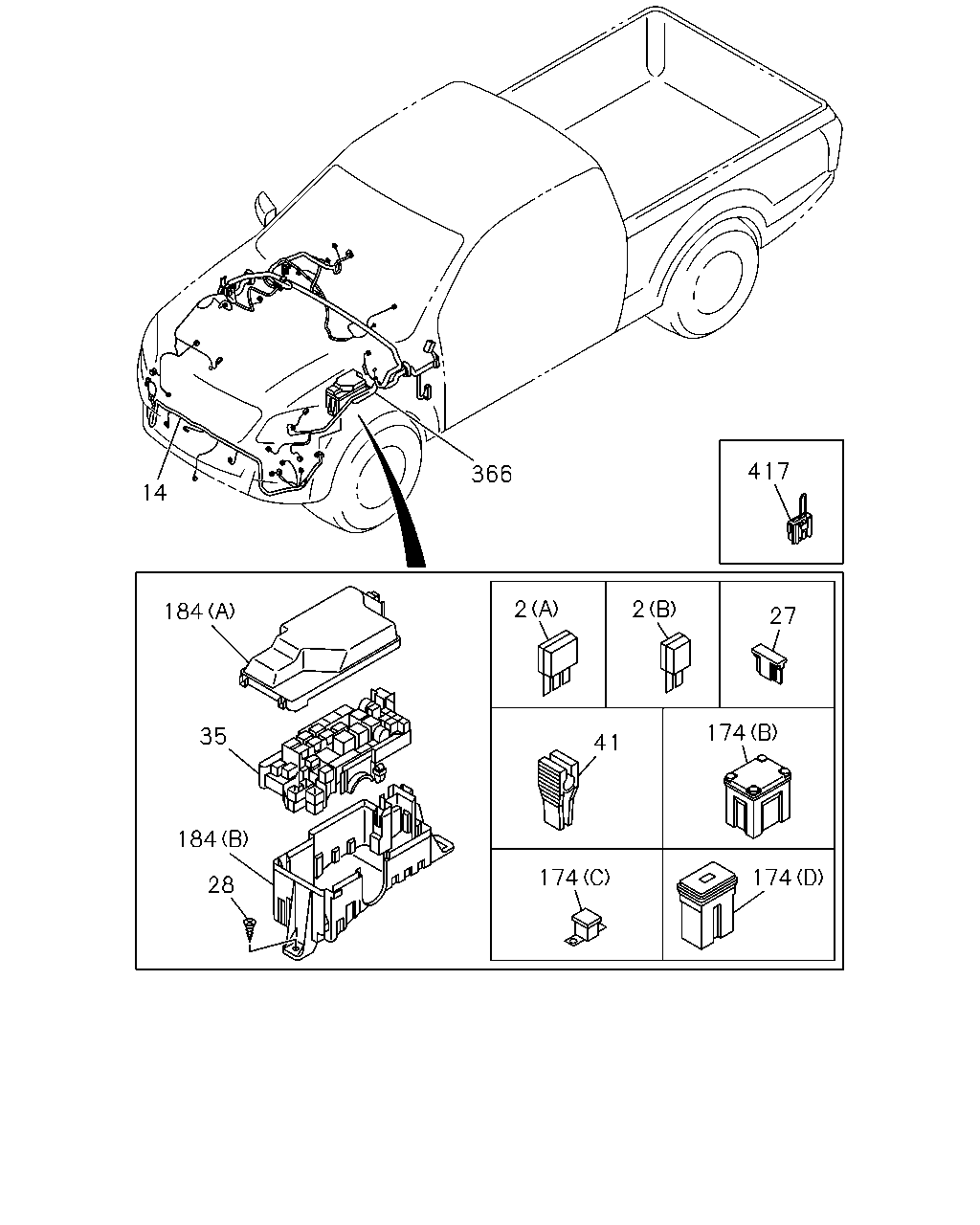

14 366 184 35 184 28 174 41 2 2 27 174 174 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1501-	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	01	1	1501-	●	●	●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-349-1	01	1	1501-	●		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1501-	●		●
14	HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>	8-98159-347-1	01	1	1501-	●		●
14	HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-346-1	01	1	1501-	●		●
14	HARNESS; HEADLAMP	8-98159-338-1	01	1	1501-		●
27	FUSE UNIT 10A RED	8-98054-257-0	AR	1	1501-	●	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	AR	1	1501-	●	●	●
27	FUSE UNIT 20A YELLOW	8-98054-259-0	AR	1	1501-	●	●	●
28	SCREW; FUSE BOX	8-97249-192-0	02	1	1501-	●	●	●
35	BOX; RELAY & FUSE	8-98113-097-0	01	1	1501-	●	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1501-	●	●	●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1501-	●	●	●
174	FUSE; SLOW BLOW (D)	8-98197-288-0	AR	1	1501-	●	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1501-	●	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1501-	●	●	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-544-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-555-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-556-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-536-7	01	1	1501-		●
366	HARNESS; CABLE,ENG ROOM 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-536-7	01	1	1501-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-541-7	01	1	1501-		●
366	HARNESS; CABLE,ENG ROOM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-541-7	01	1	1501-			●
366	HARNESS; CABLE,ENG ROOM 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-527-7	01	1	1501-			●
417	CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65)	8-97362-918-0	01	1	1501-	●		●
417	CONNECTOR ASM; ENG HARNESS COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF)	8-97362-918-0	01	1	1501-		●

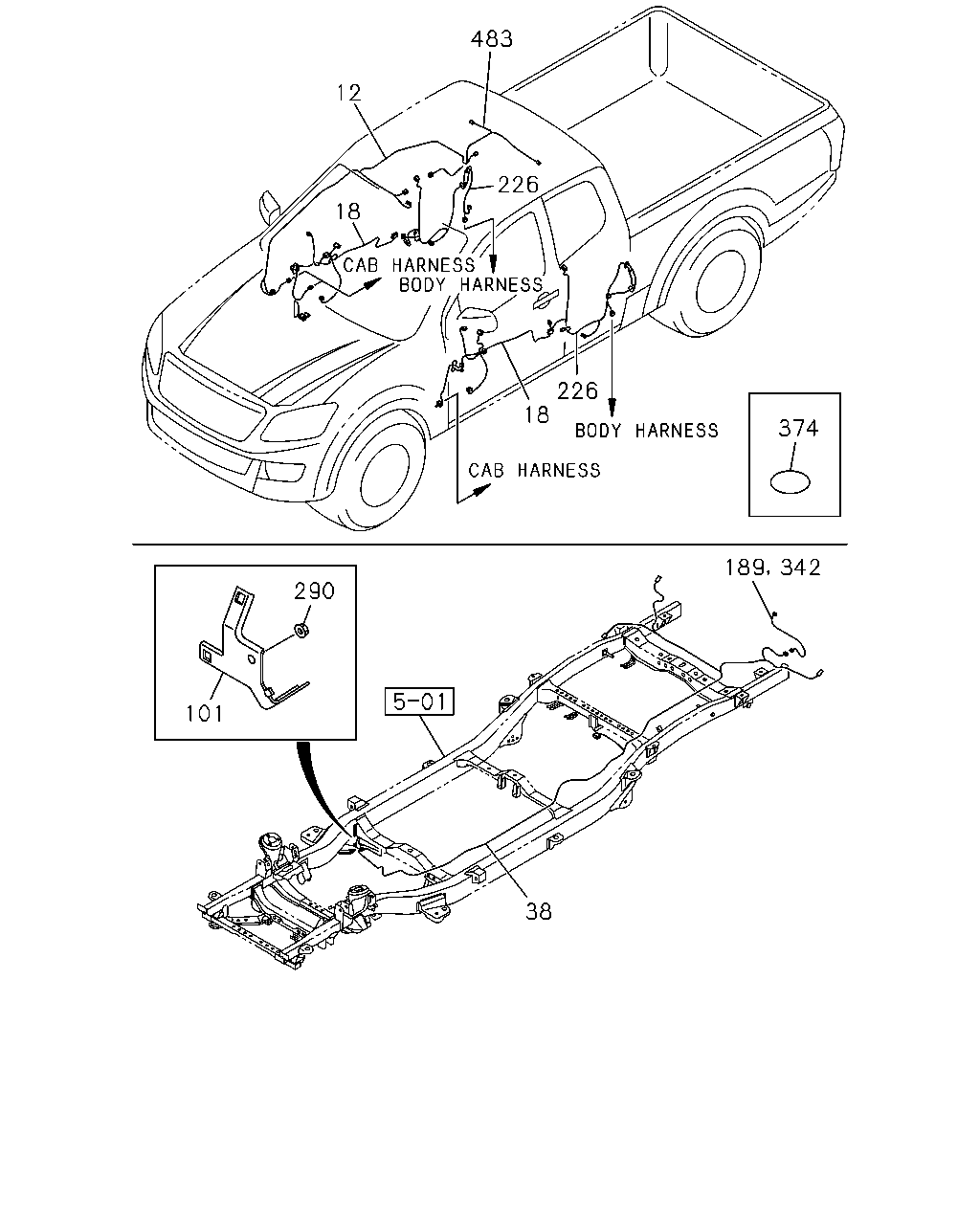

483 12 226 18 226 18 374 290 101 38 189 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	HARNESS; ROOF MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98275-273-0	01	1	1501-	●		●
12	HARNESS; ROOF MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98275-272-0	01	1	1501-	●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>	8-98275-275-0	01	1	1501-	●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98275-274-0	01	1	1501-	●		●
12	HARNESS; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98275-271-0	01	1	1501-	●		●
12	HARNESS; ROOF	8-98159-332-0	01	1	1501-		●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-362-1	01	1	1501-	●		●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98225-364-1	01	1	1501-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-486-4	01	1	1501-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-506-5	01	1	1501-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-488-4	01	1	1501-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98159-490-3	01	1	1501-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98159-508-5	01	1	1501-		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98159-492-3	01	1	1501-		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98159-510-4	01	1	1501-		●
38	HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-322-2	01	1	1501-	●	●	●
38	HARNESS; CHAS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-317-2	01	1	1501-	●	●	●
101	BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1501-	●	●	●
189	HARNESS; EXT EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1501-	●	●	●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-533-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-534-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-527-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-528-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-535-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-536-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-525-3	01	1	1501-	●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-526-3	01	1	1501-	●		●
290	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1501-	●	●	●
342	HARNESS; EXT,LICENSE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98137-579-2	01	1	1501-	●	●	●
374	PLUG; HARNESS CONNECTOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> D=58 BLACK	8-97302-191-0	02	1	1501-	●		●
483	HARNESS; EXT,RADIO HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98165-202-2	01	1	1501-	●		●
483	HARNESS; EXT,RADIO 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98129-592-2	01	1	1501-	●		●

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-544-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-555-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-556-7	01	1	1501-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-536-7	01	1	1501-		●
366	HARNESS; CABLE,ENG ROOM 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-536-7	01	1	1501-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-541-7	01	1	1501-		●
366	HARNESS; CABLE,ENG ROOM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-541-7	01	1	1501-			●
366	HARNESS; CABLE,ENG ROOM 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98160-527-7	01	1	1501-			●
736	RELAY; STARTER CUT 12V YAZAKI	8-97309-292-0	01	1	1501-	●	●	●
737	RELAY; DIMMER 12V YAZAKI	8-97309-292-0	01	1	1501-	●	●	●
738	RELAY; HEADLAMP 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
739	RELAY; TAIL LAMP 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
741	RELAY; HORN 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
742	RELAY; THERMO 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
743	RELAY; A/C COMPRESSOR 12V YAZAKI	8-97309-293-0	01	1	1501-	●	●	●
745	RELAY; HEATER 12V YAZAKI	8-98146-834-0	01	1	1501-	●	●	●
746	RELAY; ECM,MAIN 12V YAZAKI	8-98146-834-0	01	1	1501-	●	●	●
747	RELAY; GLOW 12V YAZAKI	8-98146-837-0	01	1	1501-	●	●	●
748	RELAY; STARTER 12V YAZAKI	8-98146-837-0	01	1	1501-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
