8-03 — LAMP; REAR AND REAR SIDE (#155464) — 97 parça

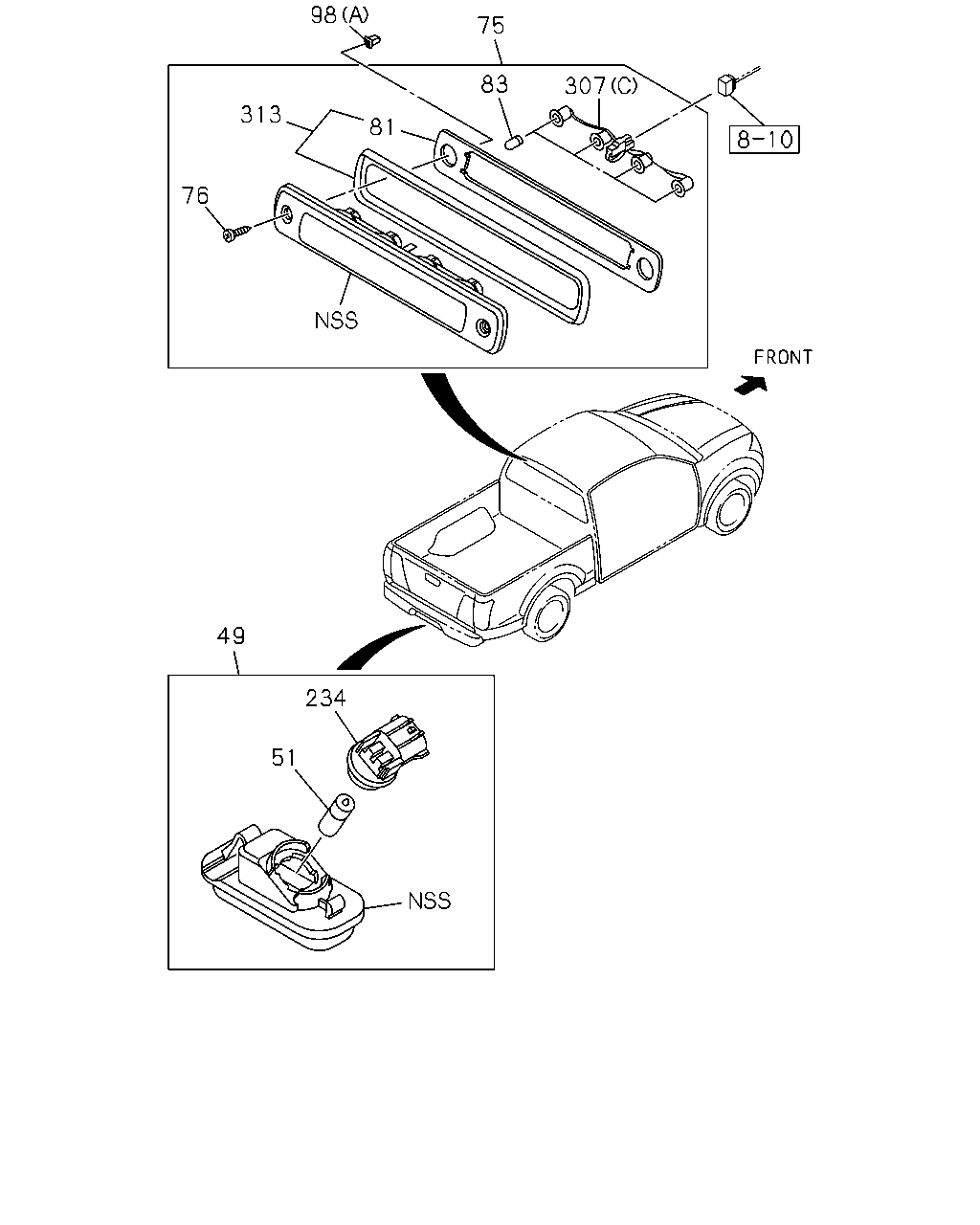

98 313 76 81 83 75 307 49 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	LAMP; LICENSE PLATE	8-98224-482-0	02	1	1501-	●	●	●
51	BULB; LICENSE PLATE LAMP 12V 5W	8-94124-595-0	02	1	1501-	●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED	8-98255-655-2	01	1	1501-	●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED	8-98193-901-0	02	1	1501-	●	●	●
81	GASKET; STOP LAMP	8-98257-962-0	01	1	1501-	●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W	8-98193-898-0	04	1	1501-	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1501-	●	●	●
98	WASHER (B) D=16	8-94427-941-0	04	1	1501-1502	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (B) D=16	8-94427-941-0	04	1	1503-	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP	1-82119-148-0	02	1	1501-	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1501-		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1501-		●
307	CORD ASM; LAMP (C)	8-98193-900-0	01	1	1501-	●	●	●
313	RUBBER & GASKET	8-98250-208-0	01	1	1501-	●	●	●

1 5 5 5 6 15 3 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-092-2	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-093-2	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1501-		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1501-		●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1501-	●	●	●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1501-	●	●	●
3	GASKET; RR COMB LAMP REAR BODY DELETE(8HH)	5-82236-001-0	01	1	1501-	●	●	●
3	GASKET; RR COMB LAMP REAR BODY DELETE(8HH)	5-82236-002-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-		●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1501-	●	●	●
6	LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-001-0	01	1	1501-	●	●	●
6	LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-002-0	01	1	1501-	●	●	●
9	NUT; LAMP,RR COMB REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING	8-97376-768-0	03	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING	8-97376-768-0	03	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DELETE(8HH) (B) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1501-	●	●	●

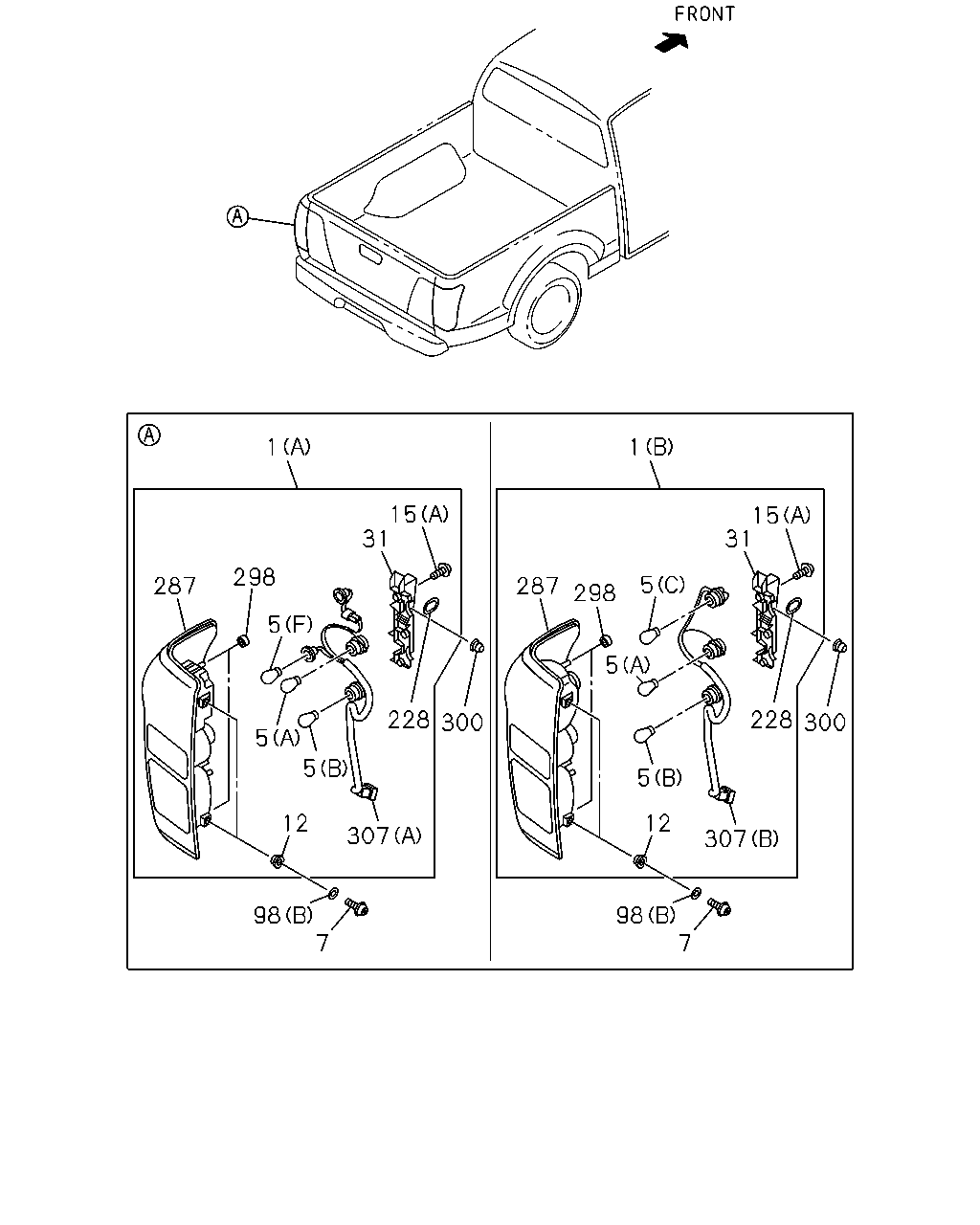

1 287 15 298 31 5 5 5 228 300 307 12 98 7 287 298 5 5 12 307 98 7 228 300 31 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-092-2	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-093-2	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1501-		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1501-	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1501-		●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1501-	●	●	●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1501-		●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1501-	●	●	●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1501-	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	1501-1502	●	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	1503-	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1501-	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING	8-97376-768-0	03	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING	8-97376-768-0	03	1	1501-	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DELETE(8HH) (B) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1501-	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-892-0	01	1	1501-	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-893-0	01	1	1501-	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1501-	●	●	●
98	WASHER (B) D=16	8-94427-941-0	04	1	1501-1502	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (B) D=16	8-94427-941-0	04	1	1503-	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1501-	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1501-	●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-556-0	01	1	1501-	●		●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-557-0	01	1	1501-	●		●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-706-0	01	1	1501-	●		●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-706-0	01	1	1501-		●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-707-0	01	1	1501-	●		●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-707-0	01	1	1501-		●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1501-	●	●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1501-	●	●	●
300	HOLDER; LAMP	8-97372-854-0	02	1	1501-1502	●	●	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97372-854-0	02	1	1503-	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1501-	●		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1501-		●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1501-		●
307	CORD ASM; LAMP (C)	8-98193-900-0	01	1	1501-	●	●	●
