8-01 — LAMP; FRONT AND FRONT SIDE (#155463) — 38 parça

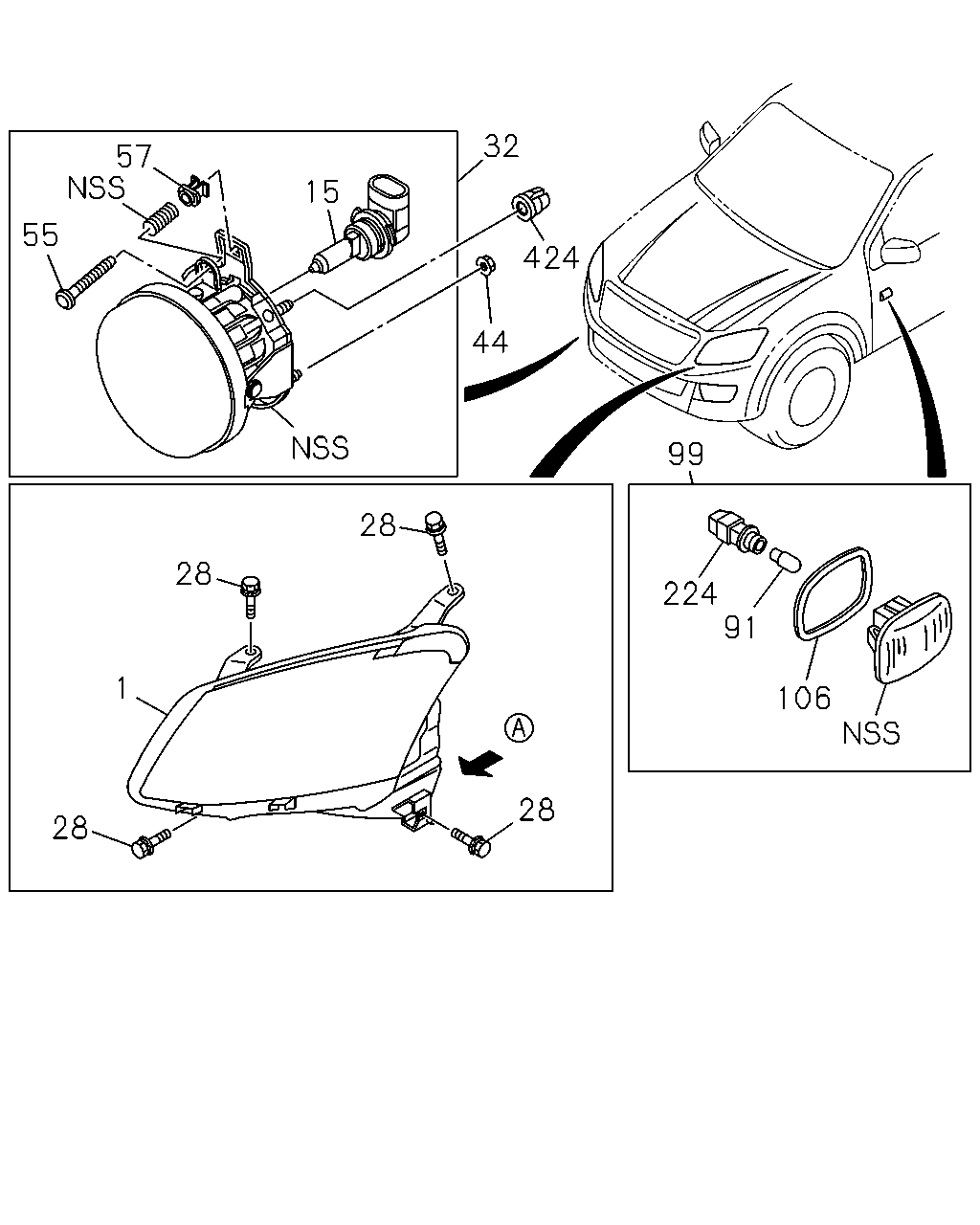

çizim 465034
57 15 55 44 424 32 99 224 106 91 28 28 1 28 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD 8-98222-275-2 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98222-276-2 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98125-391-6 01 1 1501- ●
1 LAMP ASM; HEAD 8-98125-392-6 01 1 1501- ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W 		8-97286-998-0 02 1 1501- ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1501- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1501- ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE 		8-98055-704-0 04 1 1501- ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 1501- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 1501- ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 1501- ●
99 LAMP; SIDE FLASHER 8-98084-153-0 02 1 1501- ●
106 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 1501- ●
224 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 1501- ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> 		8-97372-854-0 02 1 1501- ● ● ●

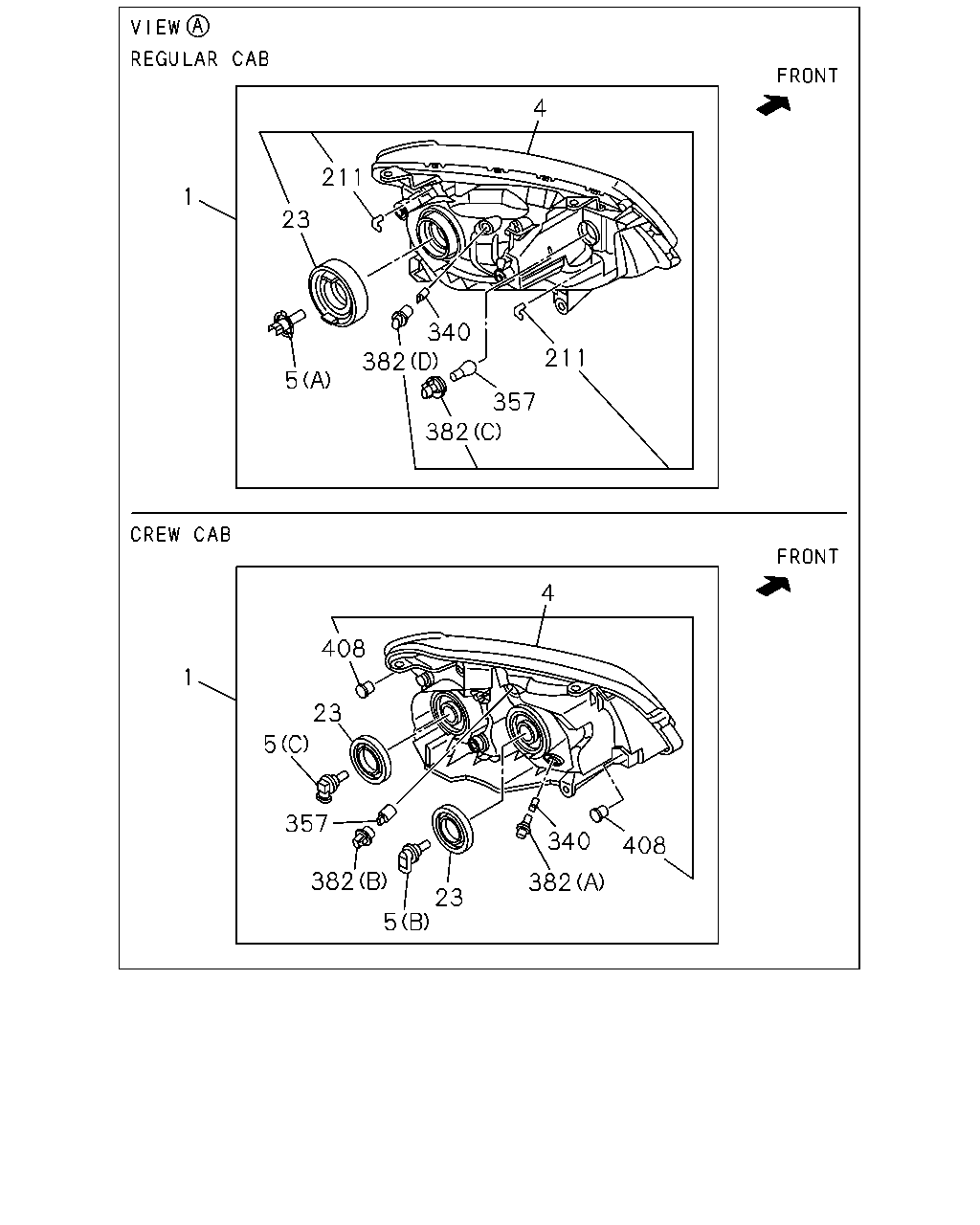

çizim 465062
4 1 211 23 5 382 340 382 357 211 1 408 23 5 357 382 5 340 382 23 408 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD 8-98222-275-2 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98222-276-2 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98125-391-6 01 1 1501- ●
1 LAMP ASM; HEAD 8-98125-392-6 01 1 1501- ●
4 HEADLAMP UNIT 8-98253-037-1 01 1 1501- ● ●
4 HEADLAMP UNIT 8-98253-038-1 01 1 1501- ● ●
4 HEADLAMP UNIT 8-98186-215-0 01 1 1501- ●
4 HEADLAMP UNIT 8-98186-216-0 01 1 1501- ●
5 BULB; HEADLAMP
(B) 12V 60W 		8-97289-997-0 02 1 1501- ● ●
5 BULB; HEADLAMP
(C) 12V 55W 		8-98160-205-0 02 1 1501- ● ●
5 BULB; HEADLAMP
(A) 12V 55/60W 		8-98186-377-0 02 1 1501- ●
23 COVER; BULB,HEADLAMP 8-97675-961-0 04 1 1501- ● ●
23 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 1501- ●
211 TUBE; HEADLAMP 8-97333-983-0 04 1 1501- ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1501- ● ●
340 BULB; POSITION
12V 5W 		8-98257-815-0 02 1 1501- ●
357 BULB; TURN SIGNAL
12V 21W 		8-98160-206-0 02 1 1501- ● ●
357 BULB; TURN SIGNAL
12V 21W 		8-97179-967-0 02 1 1501- ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-98012-788-0 02 1 1501- ● ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-98160-270-1 02 1 1501- ● ●
382 PLUG; SOCKET,HEADLAMP
(D) 		8-97332-447-0 02 1 1501- ●
382 PLUG; SOCKET,HEADLAMP
(C) 		8-98206-114-0 02 1 1501- ●
408 CAP; BREATHER,HEADLAMP 8-98300-478-0 04 1 1501- ● ●
