Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

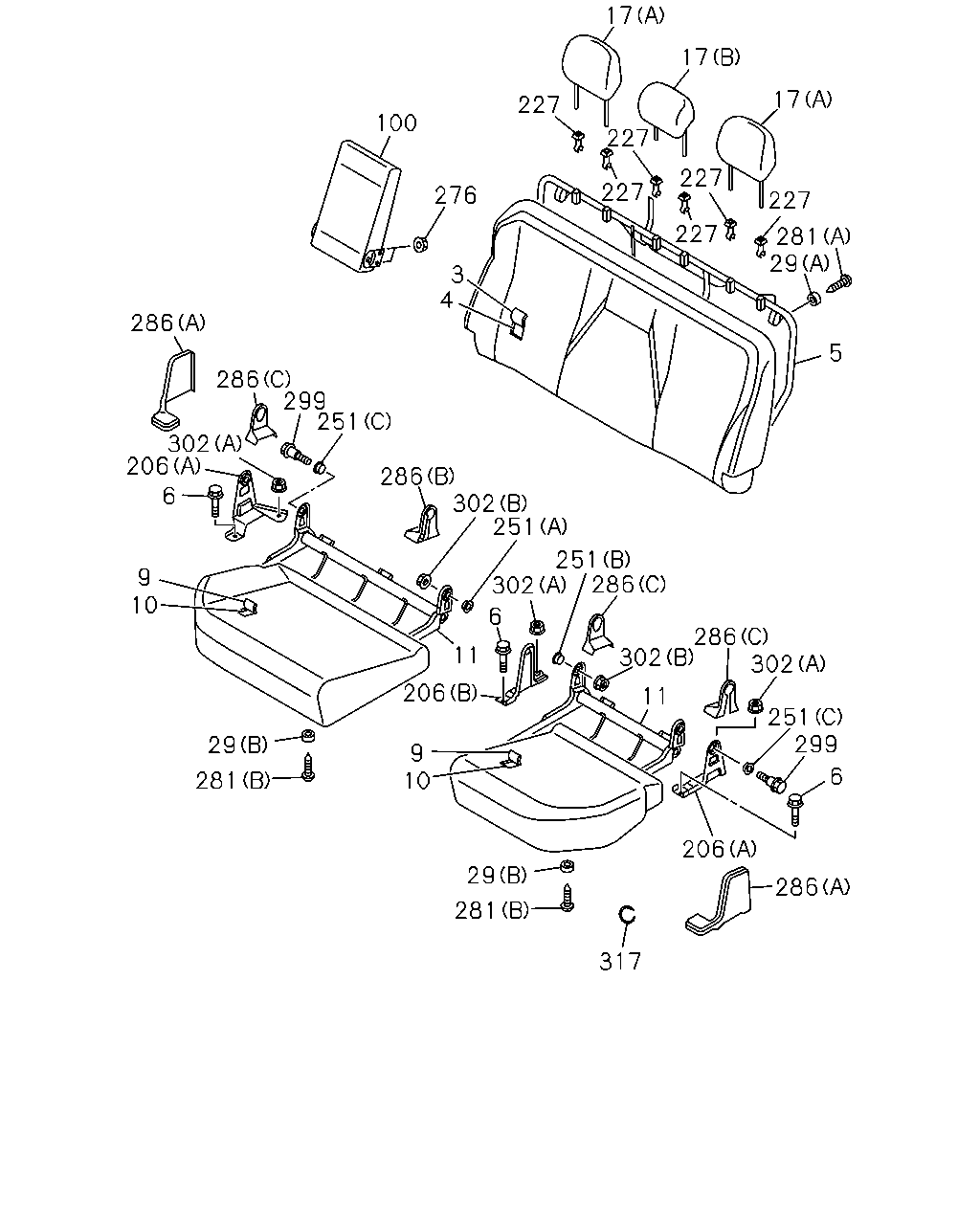

7-55 — REAR SEAT
(#155461) — 41 parça
Tümü
A - TFB5WF
B - TFS5WF
17
17
17
227
227
227
29
281
227
227
227
100
276
3
4
286
286
251
286
299
302
251
251
302
286
286
302
251
299
6
206
286
29
281
10
29
281
9
206
6
206
9
10
11
11
6
302
302
5
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
COVER; TRIM,RR SEAT BACK
BLACK
8-97423-393-0
01
1
1501-1507
●
●
3
COVER; TRIM,RR SEAT BACK
BLACK
8-97460-302-0
01
1
1508-
●
●
4
PAD; RR,SEAT BACK
8-98196-183-0
01
1
1501-1507
●
●
4
PAD; RR,SEAT BACK
8-98300-432-0
01
1
1508-
●
●
5
FRAME ASM; RR SEAT BACK
BLACK MAL
8-97427-756-0
01
1
1501-
●
●
6
BOLT; RR SEAT
M12X27.5 W/PL WASHER
8-98050-319-0
03
1
1501-
●
●
9
COVER ASM; TRIM,RR,CUSHION
BLACK
8-97423-394-0
01
1
1501-1507
●
●
9
COVER ASM; TRIM,RR,CUSHION
BLACK
8-97460-304-0
01
1
1508-
●
●
9
COVER ASM; TRIM,RR,CUSHION
BLACK
8-97423-395-0
01
1
1501-1507
●
●
9
COVER ASM; TRIM,RR,CUSHION
BLACK
8-97460-306-0
01
1
1508-
●
●
10
PAD; CUSHION,RR SEAT
8-98196-199-0
01
1
1501-1507
●
●
10
PAD; CUSHION,RR SEAT
8-98300-436-0
01
1
1508-
●
●
10
PAD; CUSHION,RR SEAT
8-98196-213-0
01
1
1501-1507
●
●
10
PAD; CUSHION,RR SEAT
8-98300-440-0
01
1
1508-
●
●
11
FRAME ASM; CUSHION,RR SEAT
BLACK
8-97427-778-1
01
1
1501-
●
●
11
FRAME ASM; CUSHION,RR SEAT
BLACK
8-97427-781-1
01
1
1501-
●
●
17
REST; HD,RR SEAT
(A) LIGHT GRAY
8-97424-713-0
02
1
1501-
●
●
17
REST; HD,RR SEAT
(B) LIGHT GRAY
8-97424-714-0
01
1
1501-
●
●
29
RUBBER; RR SEAT
(A)
8-98224-609-0
02
1
1501-
●
●
29
RUBBER; RR SEAT
(B)
8-98224-621-0
05
1
1501-
●
●
100
REST; ARM,RR SEAT
LIGHT GRAY
8-97424-694-0
01
1
1501-
●
●
206
BRACKET ASM; LEG,RR SEAT
(A)
8-98224-625-0
01
1
1501-
●
●
206
BRACKET ASM; LEG,RR SEAT
(B)
8-98224-695-0
01
1
1501-
●
●
206
BRACKET ASM; LEG,RR SEAT
(A)
8-98224-697-0
01
1
1501-
●
●
227
HOLDER; GUIDE,RR HD REST
LOCK BLACK
8-97424-499-0
03
1
1501-
●
●
227
HOLDER; GUIDE,RR HD REST
FREE BLACK
8-97424-500-0
03
1
1501-
●
●
251
BUSHING; HINGE PIN
(A)
8-98224-622-0
01
1
1501-
●
●
251
BUSHING; HINGE PIN
(B)
8-98224-623-0
01
1
1501-
●
●
251
BUSHING; HINGE PIN
(C)
8-98224-624-0
02
1
1501-
●
●
276
NUT; ARM REST
M6 FLANGE
8-98224-604-0
04
1
1501-
●
●
281
SCREW
(A) M4X14
8-98224-611-0
02
1
1501-
●
●
281
SCREW
(B) M5X18
8-98233-169-0
05
1
1501-
●
●
286
COVER; HINGE
(A) BLACK
8-97416-997-2
01
1
1501-
●
●
286
COVER; HINGE
(A) BLACK
8-97416-999-2
01
1
1501-
●
●
286
COVER; HINGE
(B) BLACK
8-97424-699-1
01
1
1501-
●
●
286
COVER; HINGE
(C) BLACK
8-97424-700-0
03
1
1501-
●
●
299
BOLT; LEG
M8X26
8-98224-698-0
02
1
1501-
●
●
302
NUT; RR SEAT
(A) M12 FLANGE
0-91180-212-0
03
1
1501-
●
●
302
NUT; RR SEAT
(B) M6 FLANGE
8-98225-096-0
02
1
1501-
●
●
317
RING; BACK,RR SEAT
8-98220-068-0
38
1
1501-1507
●
●
317
RING; BACK,RR SEAT
8-98220-068-0
48
1
1508-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
